KDL Complete RFID Access Control System Fingerprint Access Controller Keypad, DC12V Power Supply Transformer, 180kg/350lbs Electric Magnetic Lock with Door Switch Button, 125KHz ID Cards Keychains

• 1, Introduction: This is a complete access control system, contain a fingerprint access controller, a power supply, a magnetic door lock, a switch button, and 10 pieces 125KHz RFID keychains. Off-line working, support to download attendance reports with U disk.
• 2, Fingerprint Access Controller: working frequency 125KHz, DC12V working voltage. Support to open door by fingerprint, password, RFID card, 1000 user capacity.

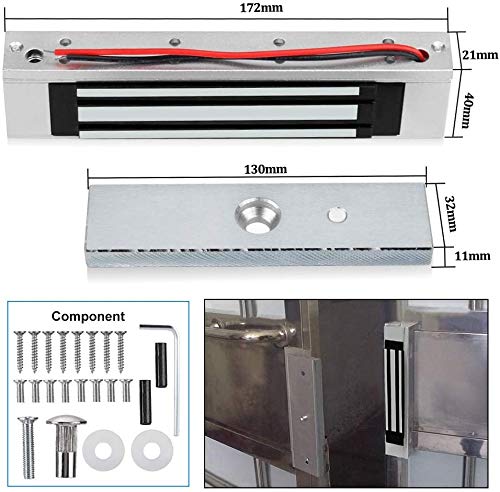

• 3, Electric Magnetic Lock: 180kg/350lbs holding force. NC mode: Locked when power on, unlocked when power off. Suitable for wooden door, metal door, glass door, PVC door, security door, etc.
• 4, Power Supply: power the access control system. Input: AC 110-260V / 50-60HZ, output: DC12V / 3A. Can control various type of single electric lock.
• 5, Exit Button: Made of fire retardant ABS plastic material. Working voltage is DC12V. With COM / NO wiring ports, suitable for various type of electric locks.

Fingerprint Access Controller Model: F30-S Display screen: 1.8 inch TFT LCD color screen Verification methods: Fingerprint, password, RFID card User capacity: 1000pcs fingerprints, 1000pcs password, 1000pcs RFID cards. Support 100,000 articles records. Communication method: USB Working RFID frequency: 125KHz, working with EM cards or EM compatible cards Display language: English, Chinese (Adjustable) Voice prompts: High-definition human voice Identify speed: ≤ 1second Identify angle: Full angle Dimension: 90 * 90 * 28 mm Support to download attendance reports in Excel format with U-disk. (The U disk have to be bought in extra.) T9 input method editors with operation menu. Operation is convenient and simple. Has Wiegand 26/34 input/output signal, relay output, door bell button. Can be used as a fingerprint time attendance machine or standalone access control keypad. Power Supply Voltage: input: AC 110-260V / 50-60 HZ; output: DC12V / 3A Time delay: 0 ~ 15 s adjustable Set NC / NO outputs, can control various type of single electric lock. Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit. Size: 100*65*32mm Magnetic Lock Type: electric magnetic lock Working voltage: DC12V, Current: 380mA~500mA Holding force: 180kg / 350lbs Working mode: NC mode, fail-safe type (Unlocked when power off, locked when power on) Waterproof, can be installed outdoors Installation: surface installed, don't need to punch a hole Suitable for: wooden, metal, glass, PVC door, security door, etc. Material: Aluminium Alloy Size: 172*40*21mm/ 130*32*11mm Package List: 1 * Fingerprint Access Controller 1 * Magnetic Lock 1 * Power Supply 1 * Switch Button 10 * RFID Keychains 1 * User Manual
