KDL Complete RFID Access Control System Fingerprint Access Controller Keypad, DC12V / 3A Power Supply Transformer, NO Type Electric Strike Lock with Door Switch Button, 125KHz ID Cards Keychains

• 1, Introduction: This is a complete access control system, contain a fingerprint access controller, a power supply, a cathode lock, a switch button, and 10 pieces 125KHz RFID keychains. Off-line working, support to download attendance reports with U disk.
• 2, Fingerprint Access Controller: working frequency 125KHz, DC12V working voltage. Support to open door by fingerprint, password, RFID card, 1000 user capacity.

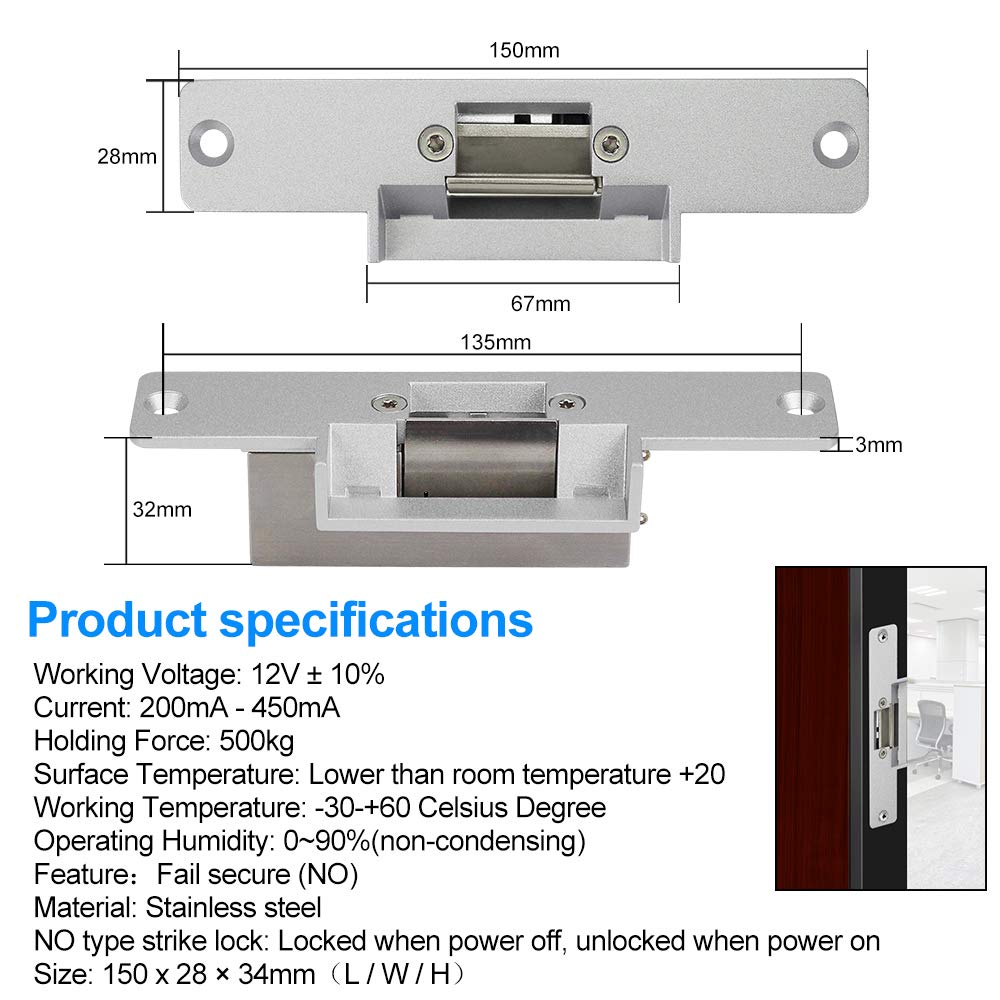

• 3, Electric Strike Lock: DC12V working voltage. NO mode, Fail-secure type, unlocked when power on, locked when power off. Holding force: 500kg / 1100 pounds. Suitable for wooden door, framed glass door.
• 4, Power Supply: power the access control system. Input: AC 110-260V / 50-60HZ, output: DC12V / 3A. Can control various type of single electric lock.
• 5, Exit Button: Made of fire retardant ABS plastic material. Working voltage is DC12V. With COM / NO wiring ports, suitable for various type of electric locks.

Fingerprint Access Controller Model: F30-S Screen: 1.8 inch TFT LCD color screen Verification methods: Fingerprint, password, RFID card User capacity: 1000pcs fingerprints, 1000pcs password, 1000pcs RFID cards. Support 100,000 articles records. Communication method: USB Working RFID frequency: 125KHz, working with EM cards or EM compatible cards Display language: English, Chinese (Adjustable) Voice prompts: High-definition human voice Dimension: 90 * 90 * 28 mm Support to download attendance reports in Excel format with U-disk. (The U disk have to be bought in extra.) T9 input method editors with operation menu. Operation is convenient and simple. Has Wiegand 26/34 input/output signal, relay output, door bell button. Can be used as a standalone fingerprint time and attendance machine or standalone access control keypad. Power Supply Voltage: input: AC 110-260V / 50-60 HZ; output: DC12V / 3A Time delay: 0 ~ 15 s adjustable Set NC / NO outputs, can control various type of single electric lock. Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit. Size: 100*65*32mm Electric Strike Lock Working Voltage: DC12V, Working Current: 110mA-250mA Holding force: 500kg / 1100lbs Working mode: NO mode, Fail-Secure, unlocked when power ON, locked when power OFF. Waterproof: no, can not be installed outdoors Suitable for: wooden door, framed glass door, PVC door, etc. Installation: embedded install It's a solenoid with one function, can be wired any way. With two contacts and no polarity requirement. (The lock will have polarity when a diode added.) Material: Stainless steel Size: 150*28*34mm Package List: 1 * Fingerprint Access Controller 1 * Electric Strike Lock 1 * Power Supply 1 * Switch Button 10 * RFID Keyfobs 1 * User Manual
