Kasstino Digital Underfloor Heating Manual Electric Room Thermostat with Floor Sensor

• This Thermostat is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally.
• The thermostat acquires the room temperature with its floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
• For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial building.
• Ideal for intermittent use. These thermostats work particularly well in mild weather where heating is often not fully required.
• Although the thermostat is rated to 16Amps, we strongly recommend that you do not load any thermostat to the full extent of its 16A relay contact rating. It is good practice to restrict the load to 2kW~2.4kW (10A~12A). The relay is rated according to the requirements of EN 61810-1:2004 and EN60730-1 which are not representative of 'real life' applications but an arbitrary test method.

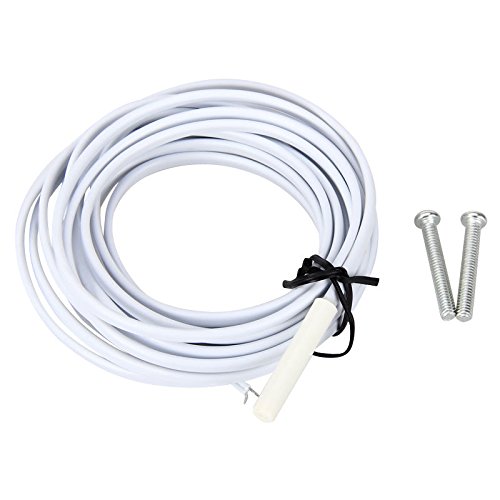

Application For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial building. Ideal for intermittent use. These thermostats work particularly well in mild weather where heating is often not fully required. - Suitable for almost all electric under tile heating systems - No need to work out how to program - Ideal for intermittent use - Floor temperature sensor with 3m cable included - Full installation & operating instructions included - 1 year manufacturers warrenty - Maximum switch rating of 16Amps (Please see advise below) - LED to indicate when heating is on Technical Data - Curent:16A - Voltage:AC110V-230V - Power Consumption:5W - Setting Range:5oC-40oC - Ambient temperature:-5-50oC - Protective housing:IP21 - Housing Material:Anti-flammable PC Floor Sensor:Rubber-Thermoplastic NTC Sensor with 3m cable. Note: Although the thermostat is rated to 16Amps, we strongly recommend that you do not load any thermostat to the full extent of its 16A relay contact rating. It is good practice to restrict the load to 2kW~2.4kW (10A~12A). The relay is rated according to the requirements of EN 61810-1:2004 and EN60730-1 which are not representative of 'real life' applications but an arbitrary test method. Critically, relay contact life is affected by loading and at 10A~12A the contact life is more than double its life at 16A. Package Included: 1 X Thermostat 1 X 3M Sensor cable 2 X Mounting screws 1 X User Guide for operating & installation instructions
