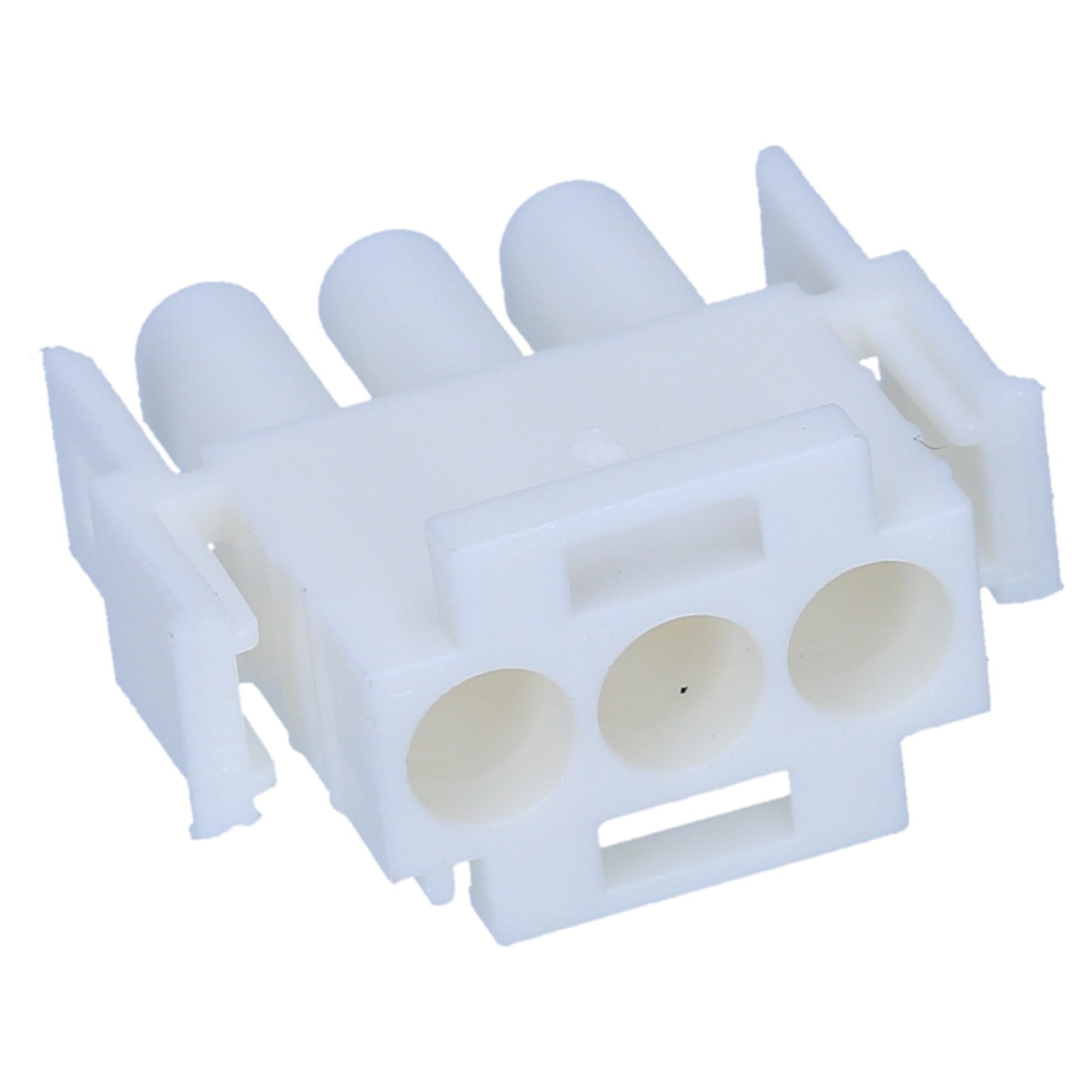

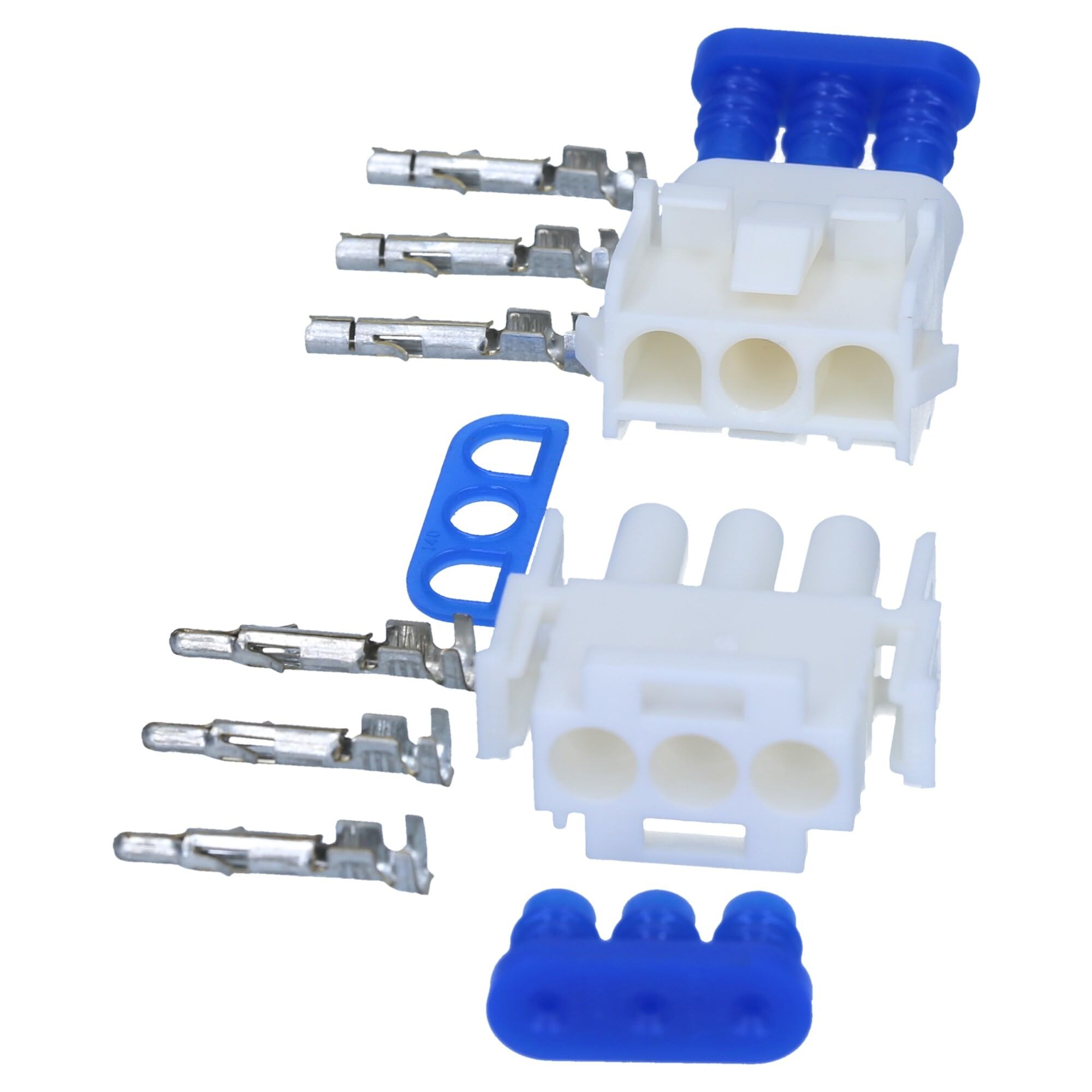

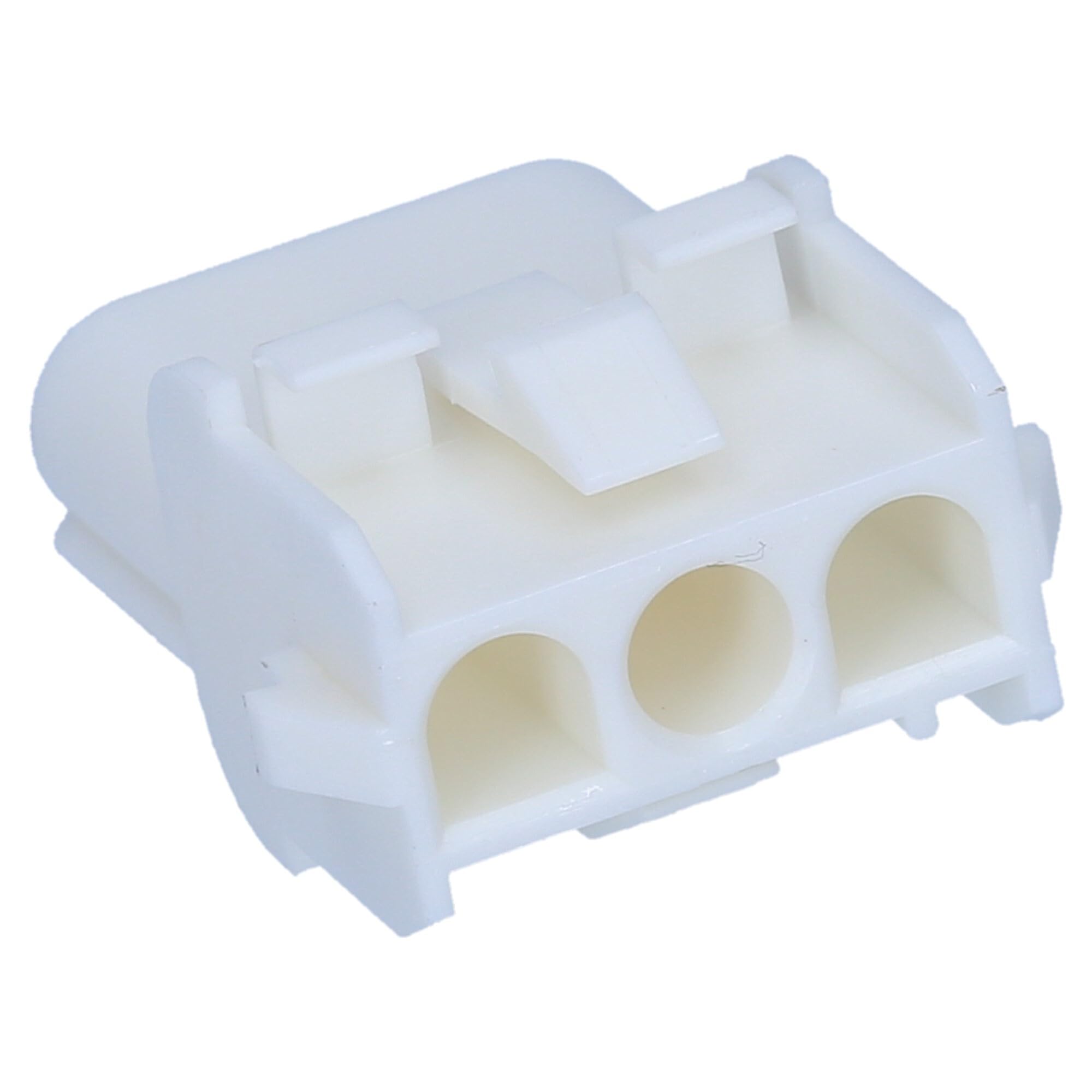

KALI-1103 Universal MATE-N-LOK Set 3-Pin with Seal

• The connector set is suitable for use in lighting systems, HVAC systems, fan modules, household appliances and on printed circuit boards.
• The MATE-N-LOK kit is designed for wire-to-cable, cable-to-chassis and wire-to-circuit board connections.
• The enclosure can be used for both free-hanging and fixed couplers as well as for PCB connections.

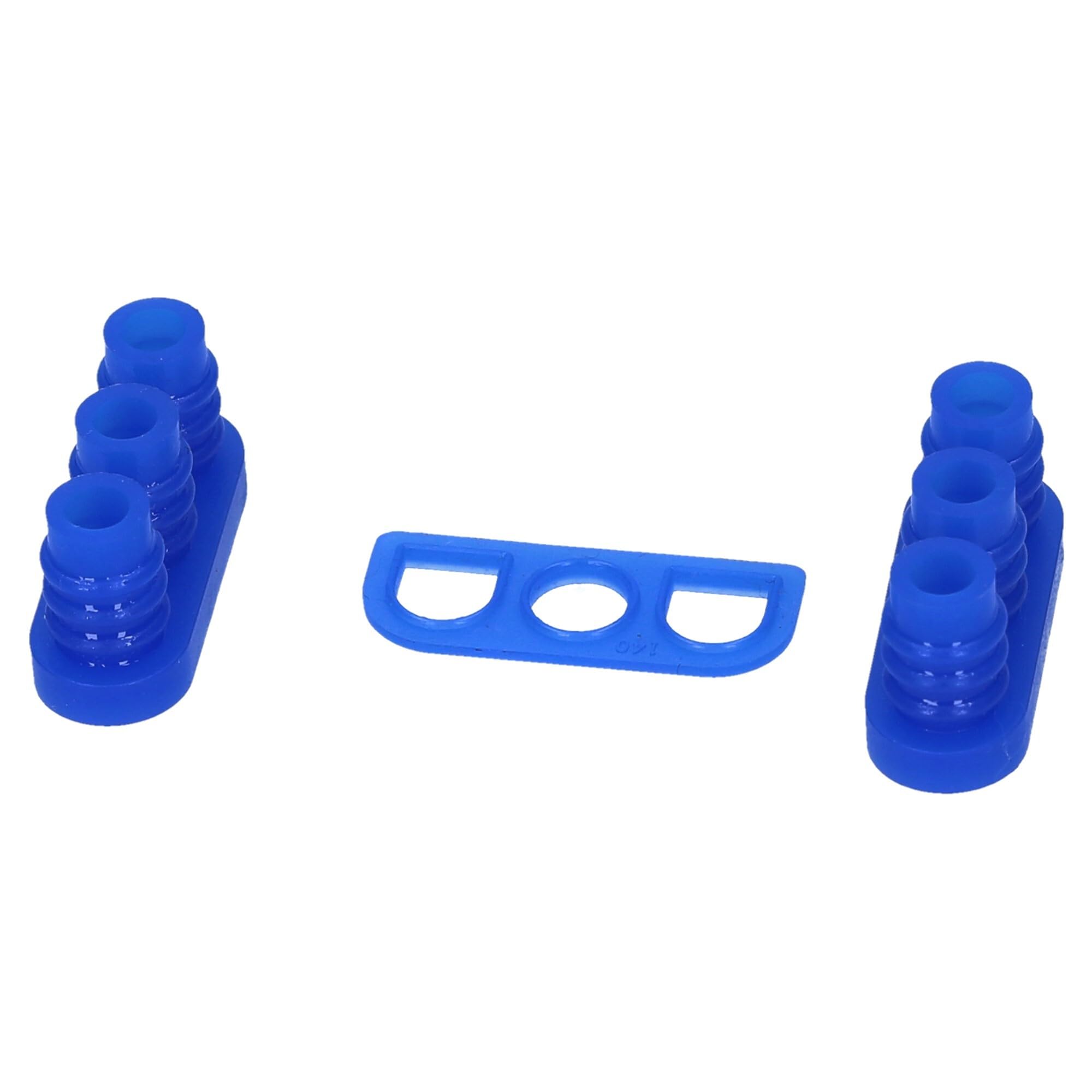

• For a sealed connection, two wire seals and a blue silicone sealing plate are required, which allow IP57 protection against dust and temporary water contamination.

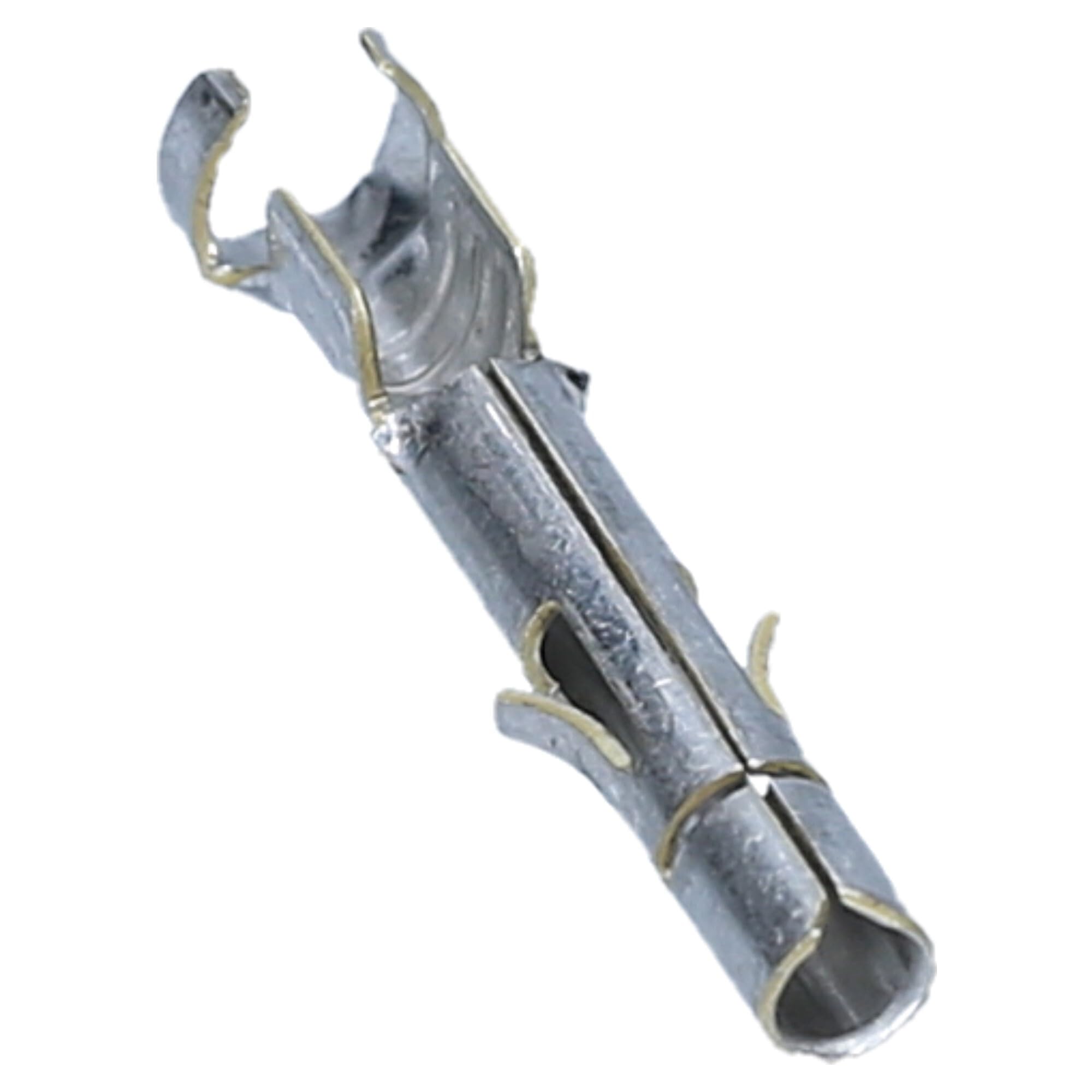

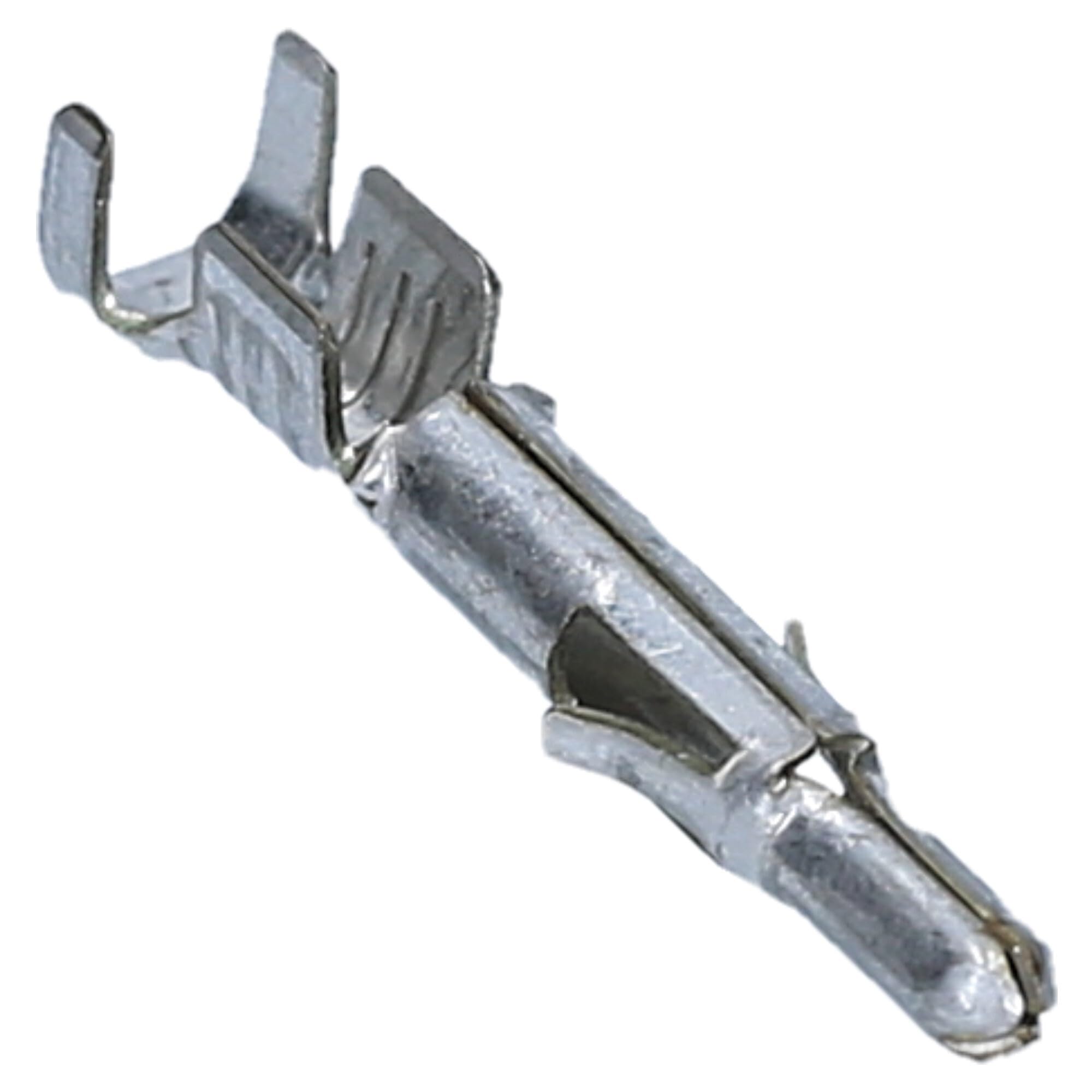

• The connectors are compatible with 6.35 mm pitch contacts and support electrical currents in the usual range of this MATE-N-LOK design.

The UP-LOK enclosures are equally suitable as a free-hanging or fixed coupling as well as for connection to printed circuit boards. These connectors meet the test regulations VDE 0110, group B, 380 V. VDE approval DIN/VDE 0627/0991, UL tested, no. E28476
