KALEA-INFORMATIQUE 2 COM RS232 - DB9 Mini PCI Express serial controller card with EXAR XR17V352 Chipset

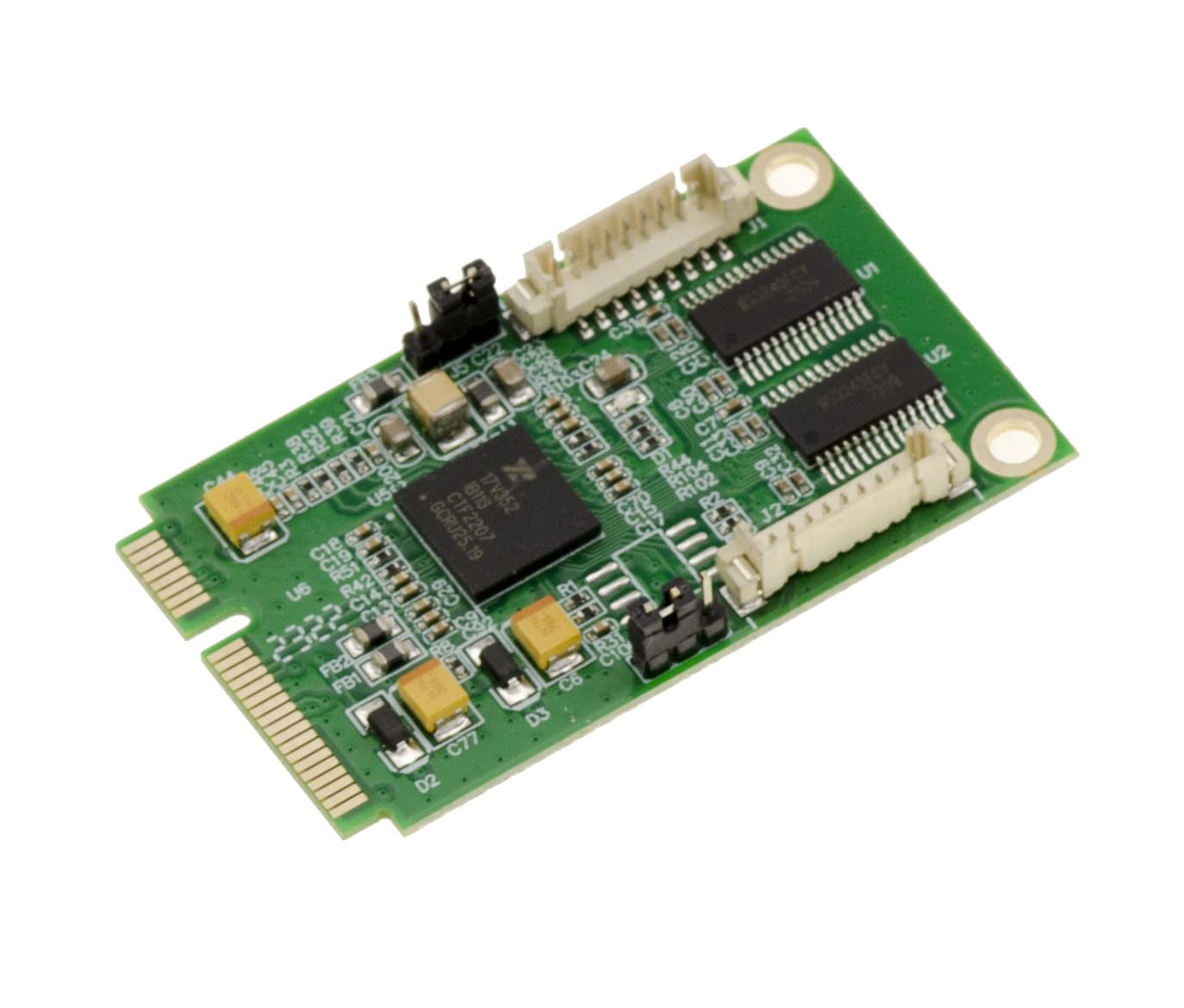

• CHIPSET EXAR XR17V352 MiniPCIe 2 COM (RS232) PORTS card. Fits into the mini PCI EXPRESS port on notebook PCs (52-pin)
• CHIPSET EXAR XR17V352 - Drivers for Windows 10, 8, Windows 7 / Vista / XP / Server 2003-2008-2012, Linux Kernel 2.6x or higher
• PCIe 2.0 Gen 1, MiniPCIe "full" or "Mini" compatible. Dual simplex transmission, 2.5 GBPs in each direction (25MBPs transfer rate). 16MPIO Sleep mode with sleep indicator
• 2 independent UART channels controlled by : 256-byte TX and RX FIFOs / Programmable TX / RX levels / TX/RX FIFO counters / Automatic management of RTS/CTS and DTR/DSR flows / Automatic management of Xon/Xoff flows. 15 KV serial port protection

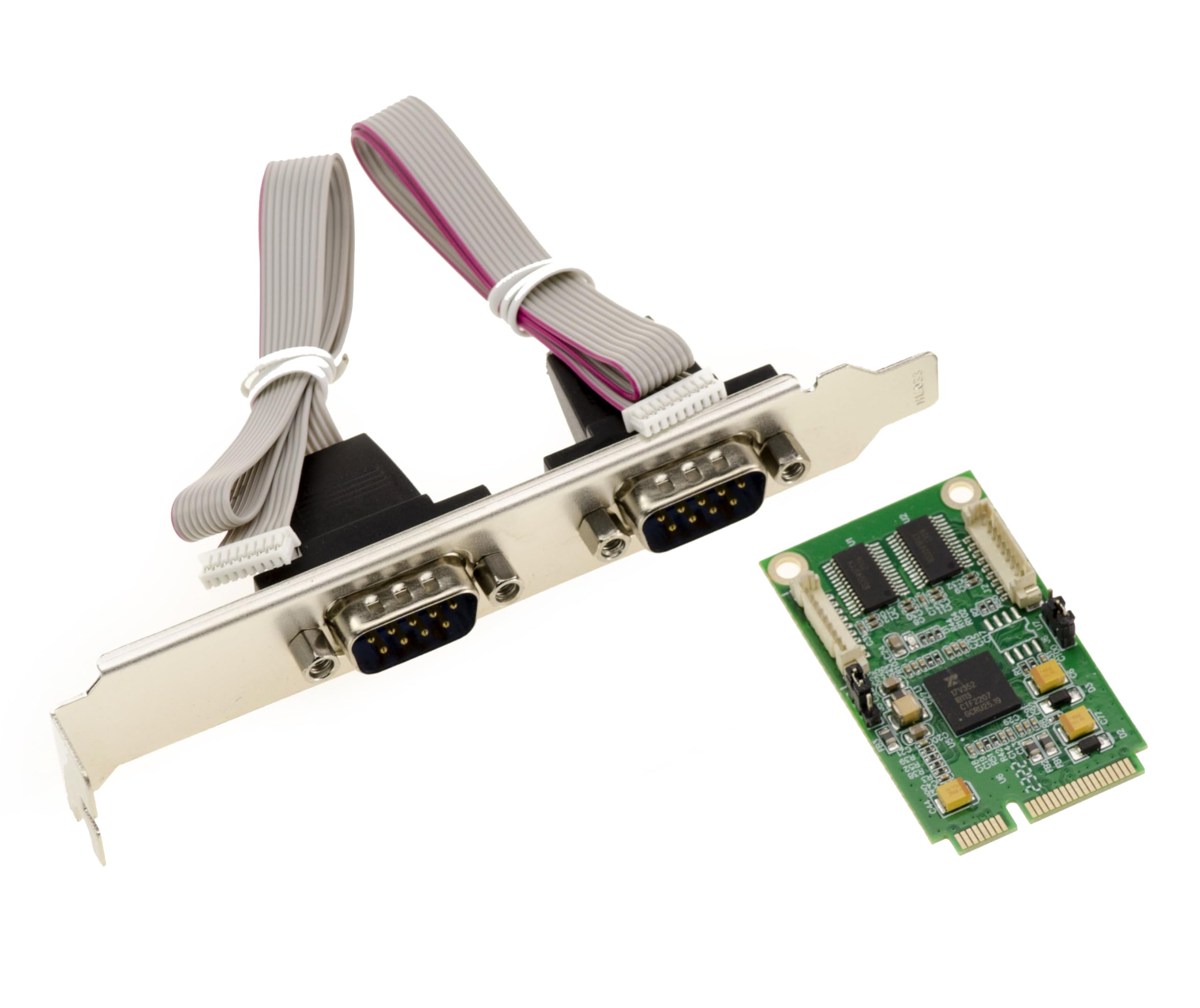

• Card supplied with an extension bracket supporting 2 COM ports (male DB9 plugs). The DB9 ports can be removed from the bracket.

Use: Mounts to the mini PCI Express port of laptops (52 pin). Compatibility: Drivers for Windows 11, 10, 8, Windows 7 / Vista / XP / Server 2003-2008-2012, Linux Kernel 2.6x or higher. Specifications: EXAR XR17V352 Chipset. PCIe 2.0 Gen 1 Dual simplex transmission, 2.5 GBPs in each direction (transfer rate 25MBPs). Compatible with MiniPCIe "full" or "Mini". 16MPIO Sleep mode with sleep indicator 2 independent UART channels controlled by: 256-byte TX and RX FIFOs, Programmable TX / RX levels. FIFO TX/RX Counters, Automatic management of RTS/CTS and DTR/DSR streams, Automatic Xon/Xoff flow management. 15 KV Series Port Protection. Card supplied with an extension bracket supporting 2 COM ports (Db9 male plugs). DB9 ports can be removed from the bracket.
