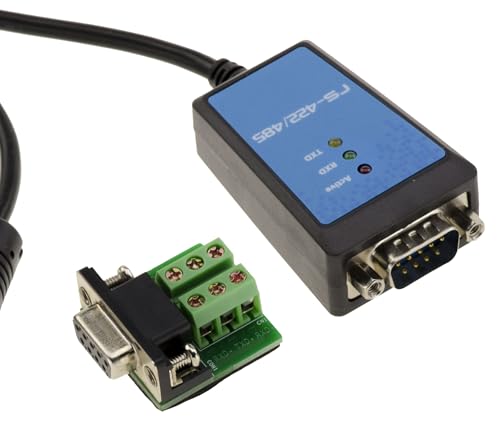

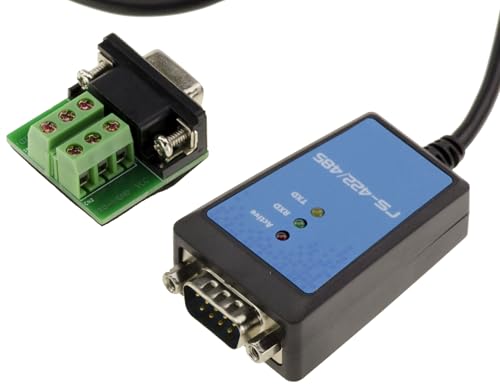

KALEA-INFORMATIQUE USB to RS422 RS485 converter with FTDI FT232 Chipset. 1.8M cable with magnetic protection

• FTDI TYPE FT232 CHIPSET - FDTI chipsets are very popular for their stability in USB UART processes. Standard USB2.0, also compatible with USB V1.0, 1.1 (and 3.0 with USB 2.0 speed). Standard RS-485,RS-422 TIA/EIA
• USB signals: VCC, DATA+, DATA-, GND and FG /// RS-422 signals: T/R+,T/R-,RXT+,RXD-,GND /// RS-485 signals: T/R+,T/R-.GND
• Asynchronous / point-to-point / point-to-multipoint 2-wire (half duplex) 4-wire (full duplex). Single USB chip managing transfer. Automatic flow control. 300 baud to 921600 baud transfer compatible. UART interface compatible with 7/8 data bits, 1/2 stop bits and even/odd/mark/space/none. None, hardware and xon/xoff control. Options bit bang RD# WR# strobes
• Distance RS-485/422 1.2km (300bps-921600bps) and USB 5m (ideally use the 1.8m cable supplied). ±15KV ESD and overvoltage protection Power (PWR), Send (TXD) and Receive (RXD) diodes. Transmission via crossover or shielded cable. Supports ambient temperatures from -40 to 85⁰C
• Windows XP,Vista,7,8,10,11 32/64-bit Windows Server 2K3,2K8,2K12 32,64-bit Windows XP Embedded Windows CE 4.2, 5.0 and 6.0 Mac OS-X Linux 3.2 and above Android

RS-485 and RS-422 to USB Full Converter 6ft Braided Cord with Magnetic Protection WITH CHIPSET FDTI FT232 Use: This adapter allows you to connect an RS485-422 system to a USB port. Specifications: FTDI CHIPSET TYPE FT232 - FDTI chipsets are very popular for their stability in USB UART processes. Standard USB2.0, also compatible with USB V1.0, 1.1 (and 3.0 with USB 2.0 speed). Standard RS-485,RS-422 TIA/EIA. USB signals: VCC, DATA+, DATA-, GND and FG. RS-422 signals: T/R+,T/R-,RXT+,RXD-,GND. RS-485 signals: T/R+,T/R-.GND. Asynchronous / point-to-point / point-to-multipoint operation 2 wires (half duplex) 4 wires (full duplex). Unique USB chip for transferring Automatic flow control. Compatible transfer from 300 baud to 921600 baud. UART interface compatible with 7/8 data bits,1/2 stop bits and even/odd/mark/space/none. None,hardware and xon/xoff control. RD# WR# strobes bit bang options. Distance RS-485/422 1.2 km (300bps-921600bps) and USB 5m (ideally stay on the supplied 1.8m cord). ±15KV ESD protection and over voltage. Diodes Power (PWR), Send (TXD) and Receive (RXD) (power/data send/receive data). Crossed or shielded cable transmission. Supports an atmosphere of -40 to 85?C. Windows XP,Vista,7,8,10 32,64-bit / Windows Server 2K3,2K8,2K12 32.64-bit / Windows XP Embedded / Windows CE 4.2, 5.0 and 6.0 / Mac OS-X / Linux 3.2 and more / Android.
