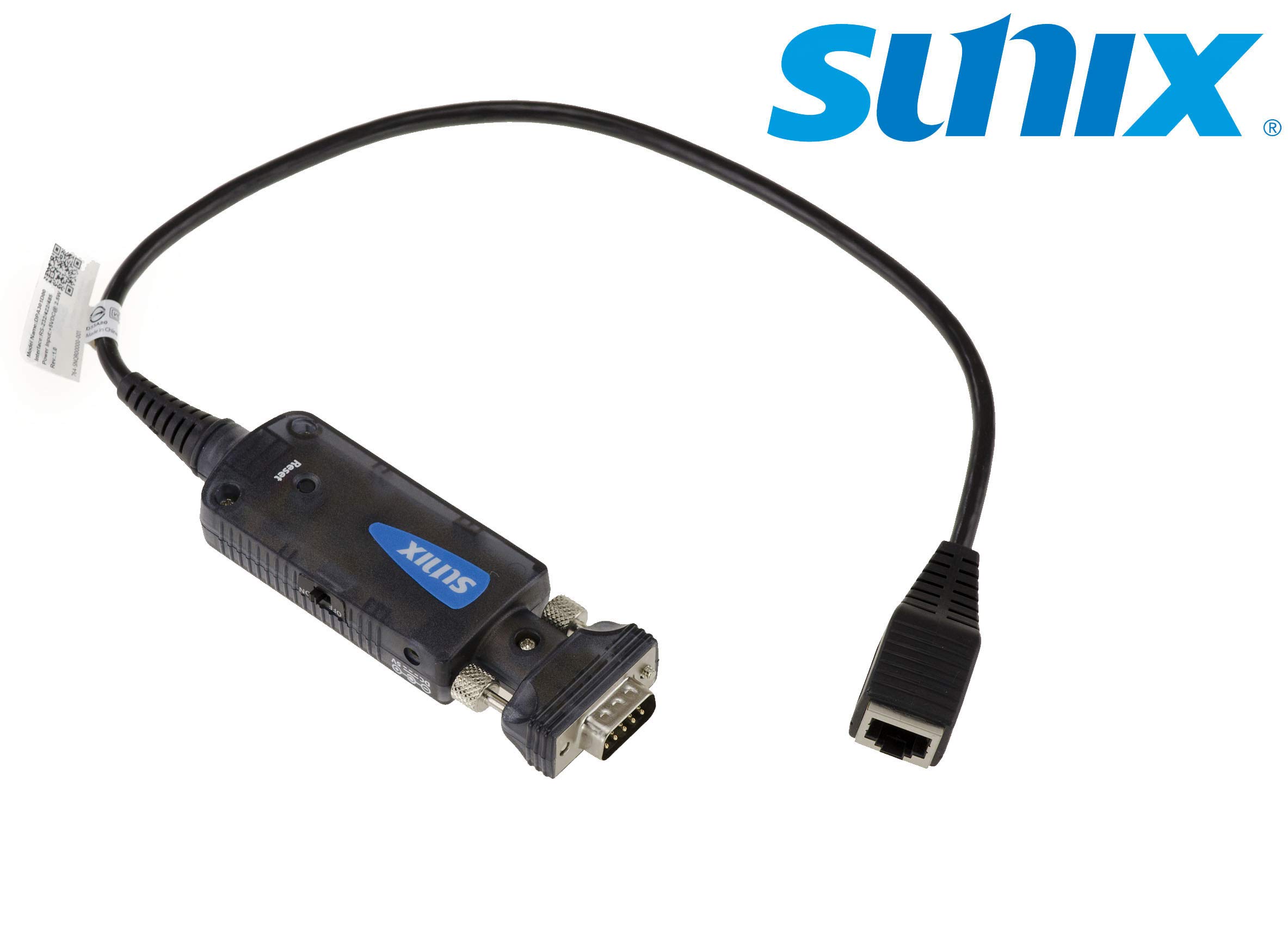

KALEA-INFORMATIQUE Industrial TCP IP ethernet RJ45 to serial RS232 RS422 RS485 access point converter, high-speed version 921.6Kbps

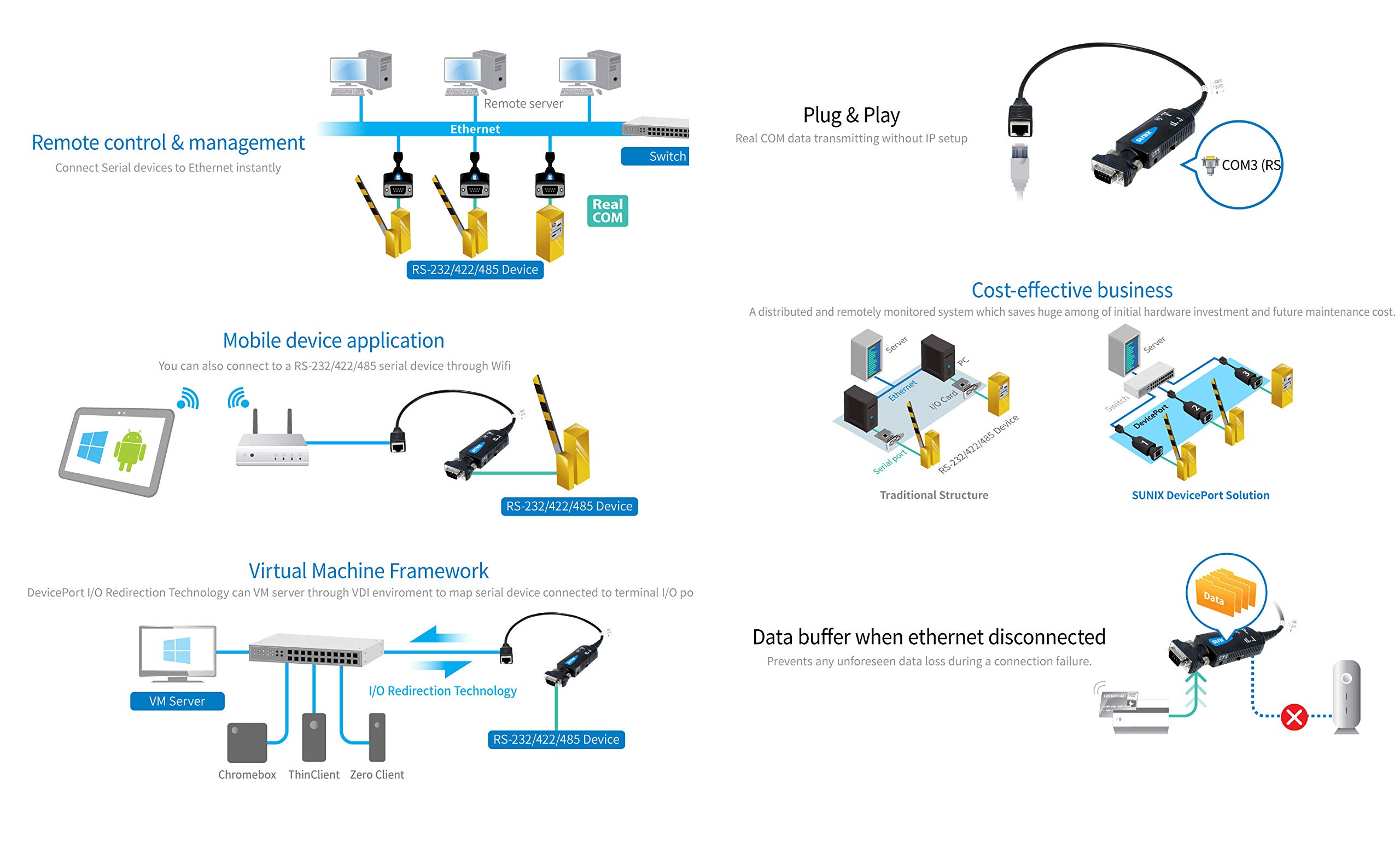

• Manufactured by SUNIX (Reference DPA301D00). Extends RS-232/422/485 communication via Ethernet. Real-time transmission (Real COM) with no need for IP settings, the PC will automatically install a COM port corresponding to the adapter, no software required! Plug and Play, auto-detection of the COM port. High-performance integrated SUNIX DPL2000Q Ethernet-UART controller. SUNIX DevicePort proprietary Ethernet I/O Redirection Technology.
• Buffer memory to prevent data loss in the event of a connection failure. ESD protection: ±15KV ESD IEC-61000-4-2 Air Discharge / ±8KV ESD IEC61000-4-2 Contact Discharge / ±4KV ESD IEC61000-4-2 Level2 Line-to-Line. Low power consumption (2.5W at 5V) FIFO 1Kbyte Hardware per port
• RS-232 signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI / RS-422 signals: TxD+, TxD-, RxD+, RxD-, GND / RS-485 signals: Data+, Data-, GND. Transfer rate 50bps ~ 921.6Kbps.
• Stop Bit 1, 1.5, 2. Parity even, odd, none, mark, space. Flow control None, Xon/Xoff, DB9 male connector. 10/100 Mbps Ethernet communication, auto MDI/MDIX via RJ45 port. With 1.0K magnetic isolation.
• Drivers for Windows XP/7/8.x/10(X86/X64) - Windows Server 2003/2008/2012R2 (x64). Standards: CE EN55022 Class B, EN55024, FCC Part 15 Class B, BSMI: CNS13438, VCCI, RoHS. Environment: 0 to 60°C (operating), 5 to 95% RH, -20 to 85°C (storage). Dimensions 480 x 34 x 18 (mm), cable length 315mm±30mm. Power supply via 5V power supply (supplied) or USB cable (supplied).

Features: Made by SUNIX (Reference DPA301D00) Extends RS-232/422/485 communication via Ethernet. Real-time transmission (Real COM) with no need for IP settings, the PC will automatically install a COM port corresponding to the adapter, no software required! SUNIX DPL2000Q Ethernet-UART integrated high performance controller "SUNIX DevicePort proprietary Ethernet I/O Redirection Technology". ESD protection : ±15KV ESD IEC-61000-4-2 Air Discharge / ±8KV ESD IEC61000-4-2 Contact Discharge / ±4KV ESD IEC61000-4-2 Level2 Line-to-Line. Low power consumption (2.5W at 5V). Supplied with 5V power supply and cord to power from USB port. FIFO 1Kbyte Hardware per port. RS-232 signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI. RS-422 signals: TxD+, TxD-, RxD+, RxD-, GND. RS-485 signals: Data+, Data-, GND. Transfer rate 50bps ~ 921.6Kbps. Stop Bit 1, 1.5, 2. Parity even, odd, none, mark, space. Flow Control None, Xon/Xoff, DB9 male connector. Ethernet 10/100 Mbps communication, auto MDI/MDIX via RJ45 port. With 1.0K magnetic isolation. Drivers for Windows XP/7/8.x/10(X86/X64) - Windows Server 2003/2008/2012R2 (x64). Standards: CE EN55022 Class B, EN55024, FCC Part 15 Class B, BSMI: CNS13438, VCCI, RoHS. Environment: 0 to 60°C (operating), 5 to 95% RH, -20 to 85°C (storage). Dimensions 480 x 34 x 18 (mm), cord length 315mm±30mm.
