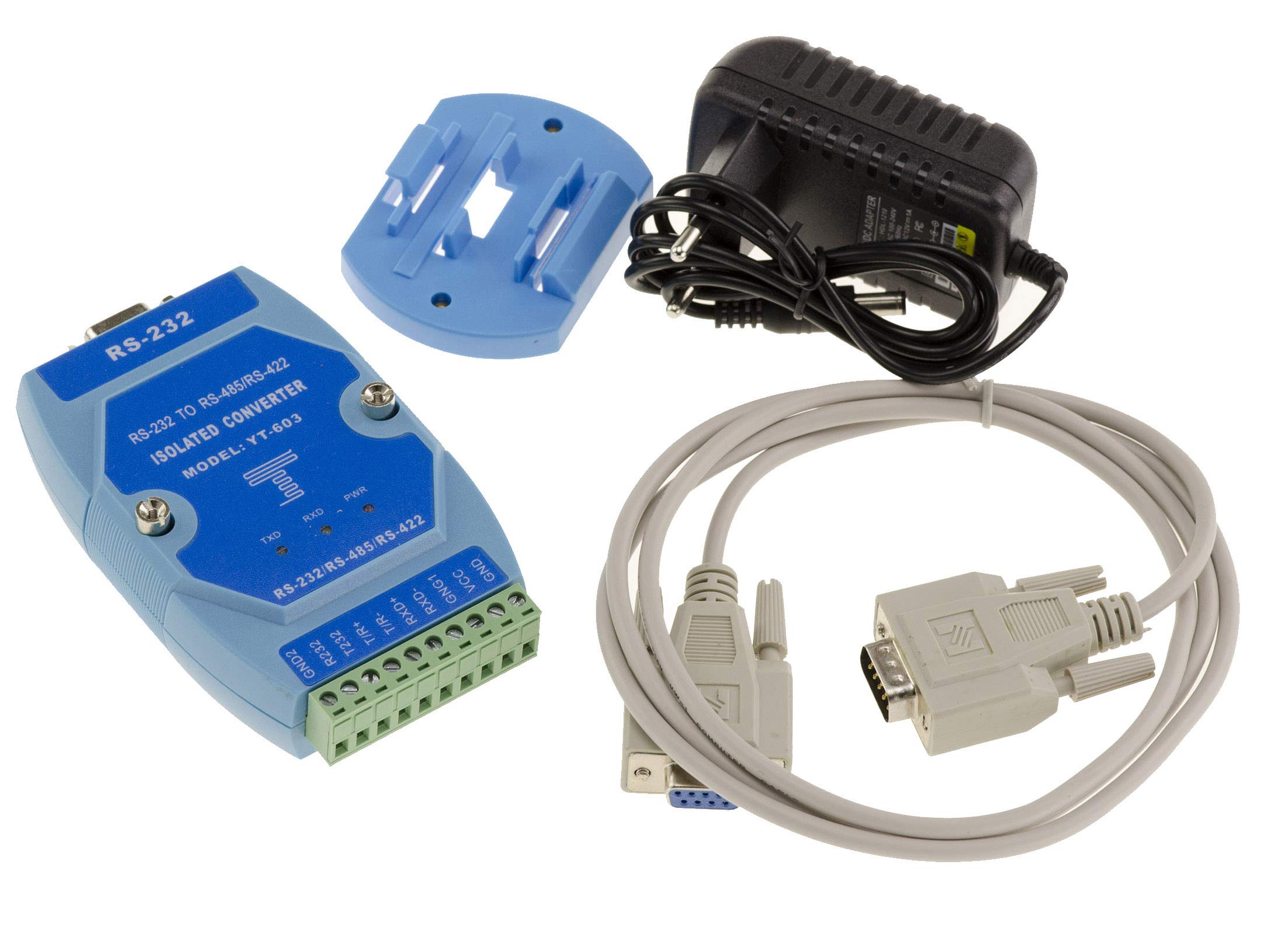

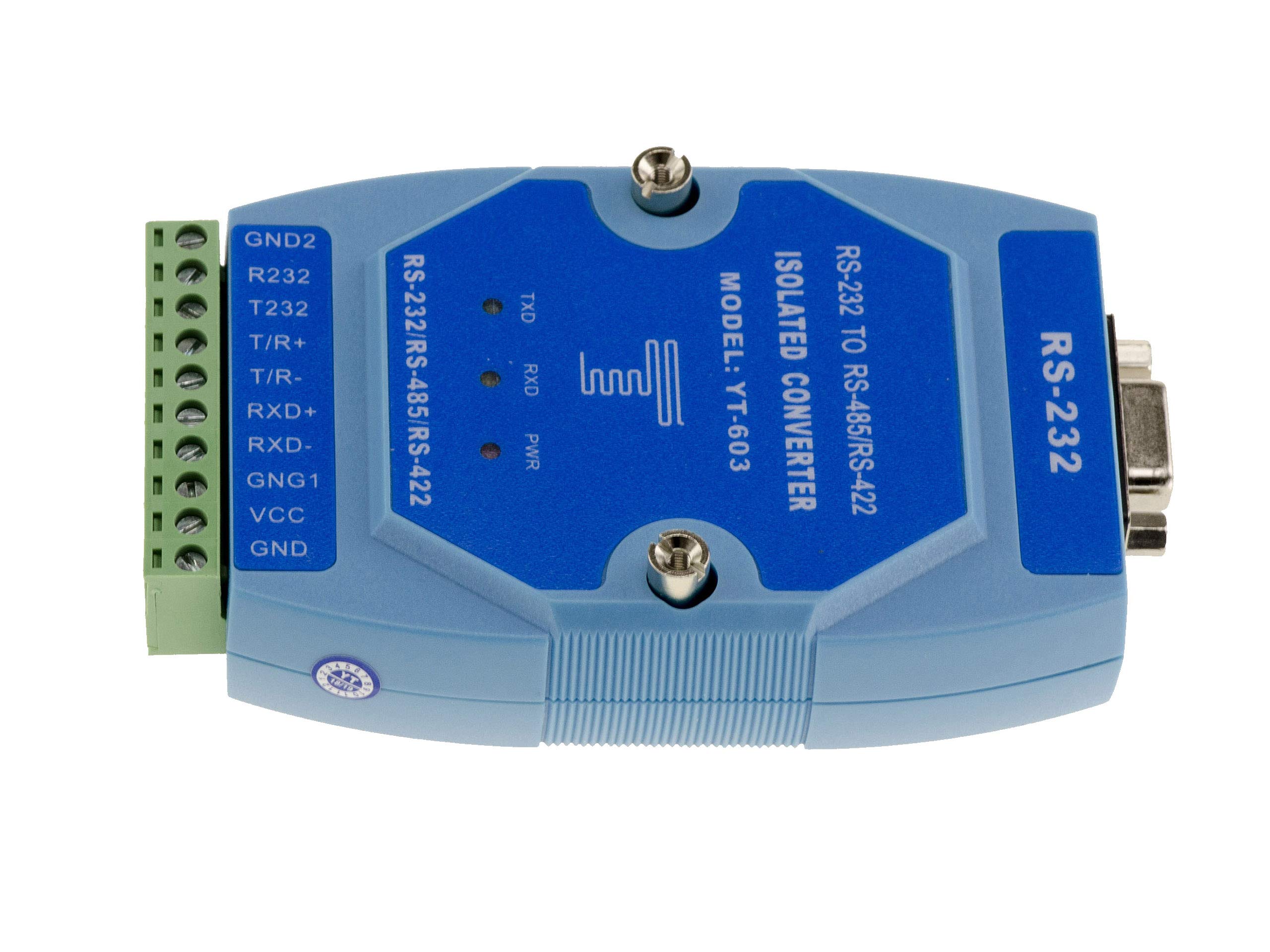

KALEA-INFORMATIQUE RS232 to RS422 RS485 converter with Photoelectric Isolation. Photoelectric Data Converter RS-232 RS-422 RS-485

• RS232 to RS422/485 converter with photoelectric insulation. Converts RS232 signal to RS422 or RS485 signal Plug and play, no settings required.
• Compatible with RS-232, RS-485 and RS-422. Conforms to EIA/TIA standards. Electrical Interface: DB9 Female to RS232 Input and 10 Pin Connector to RS422/485 Output
• Protection against overvoltage up to 600 W, ESD protection +/- 15 kV. Insulation degree: 2500 Vrms 500 DC non-stop. Supported modes: asychronous full duplex and asychrone half duplex 3 activity diodes: power supply (PWR), shipping (TXD), reception (RXD). Transmission via cable twisted pair.
• Possibility of moonage "Point to Point" or "Point to Multipoint". Transmission speed 15.2 kbps (up to 300 m), 3.8 kbps (up to 2.4 km), 9600 bps (up to 5 km). Measures 113mm x 55mm x 25mm with base for fixing.
• Signals: RS232 Input: GND / RXD / TXD / DTR / GND / DSR / RTS / CTS / RI Output RS422: SEND A+ / SEND B / RECEIVE A+ / RECEIVE B / Power 10V-48VDC Output RS485 A+ / RS-485 B / Power 10V-48VDC

Compatible with RS-232, RS-485 TIA/EIA Automatic transmission/receive data, no flow control signal to the external (RTS). Communication Rate: 300BPS-115.2KBPS Can connect 128 RS-485 or RS-422 interface equipment. Communication distance: 5000m (9600bPS) Work: asynchronous half duplex (RS-485) or asynchronous full duplex (RS-422) general, without connecting jumper settings. Photoelectric insulation type (2.5 kVrms insulation, voltage 500 VDC insulation), RS-485/422 provides lightning protection from each line of 600 W and prevents complete interference. Interface: DB9 Pass to DB9 Pin Type Connector Medium transmission: twisted pair or shielded wire. Dimensions: 113 x 55 x 25 mm. Dimensions: 113 x 55 x 25 mm. Ambient range: -25°C to 70°C, relative humidity from 5% to 95%. Suitable for all software communications, plug and play.
