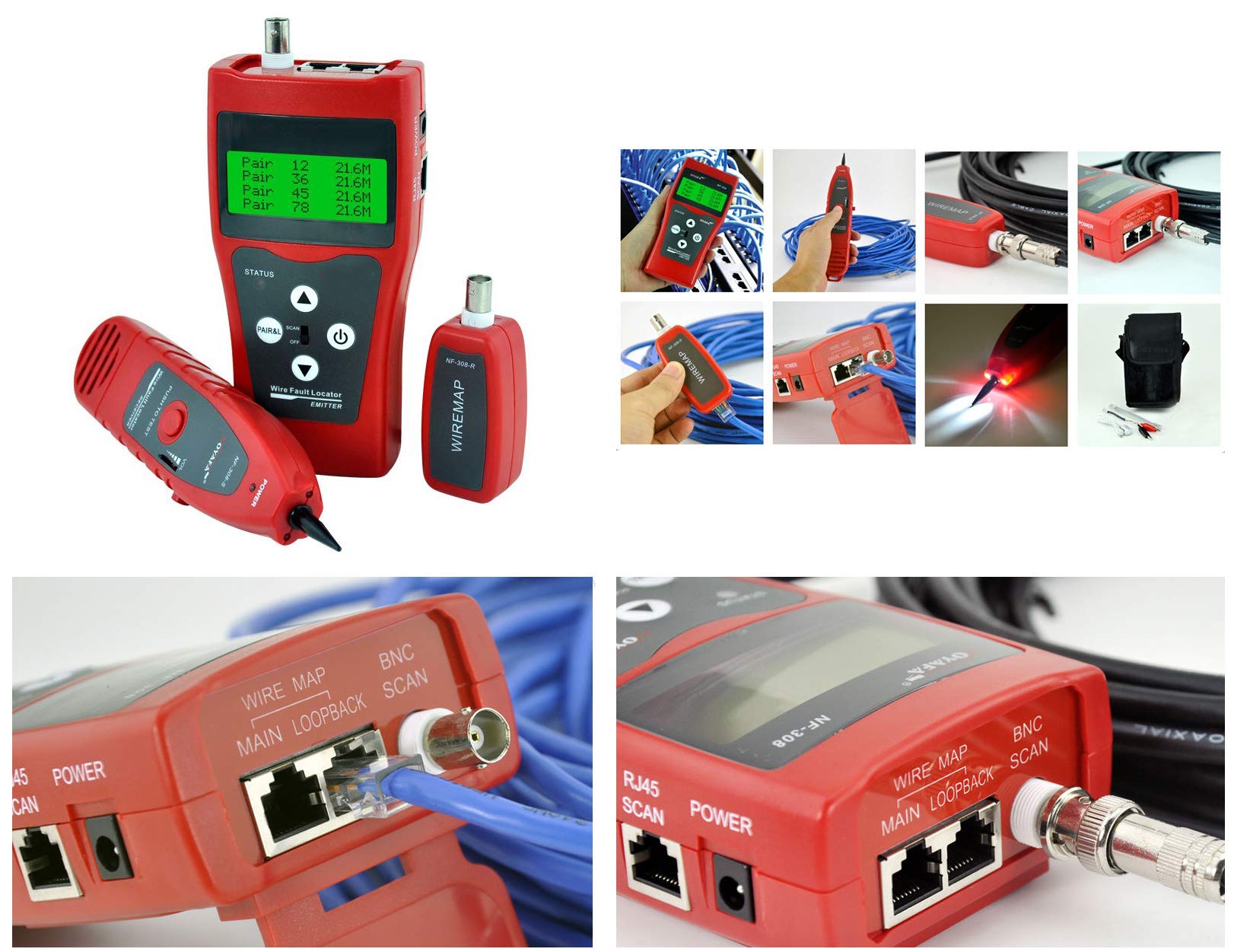

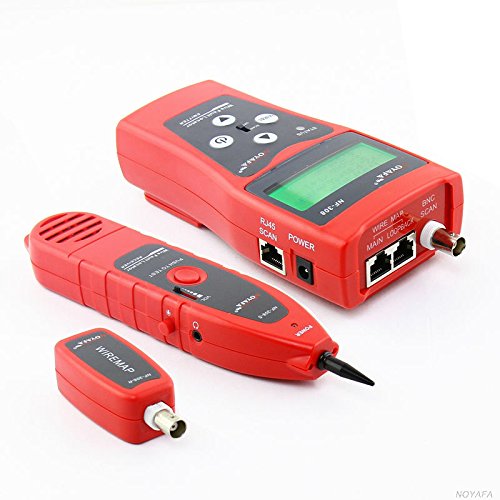

KALEA-INFORMATIQUE Professional multi-cable tester for RJ45 RJ11 USB BNC networks: Tests the length of cords, analyses internal wires, locates and pinpoints faults.

• Tests the length of RJ45 cables (main unit). Indicates the total length of the cord, or in case of failure the distance to the original point where there is damage to the cable.
• Maps RJ45 and BNC cords (main unit with satellite sound). Displays the wiring scheme on its screen. You will see if the cord is straight or crossed, for example, or you can see if one of the 8 wires of an RJ45 cord is cut or has a bad contact.
• Trace RJ45 RJ11 BNC USB cords and any metal cable (main unit with its locator). Connect the end of a cable to the main module. Thanks to the detector, you can then spot this cord amongst a multitude of other cords, it can easily be used in case of damage for example. The detector lights up in front of it and beeps so you can find the cord, you can even use the included headset to work silently.
• Black and white LCD display. "Flash port" function (allows you to simulate an activity on the network cable so that its input on the switch flashes). Ability to scan through a Power Over Ethernet (PoE) switch.

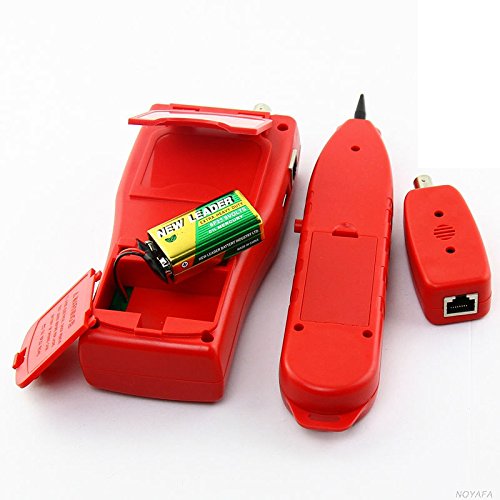

• Package contents: 1 x central control with large LCD display + 1 x satellite + 1 x induction sound locator + 1 x headset + 1 x RJ11 adapter / "crocodile" clips + 1 x soft case.

1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables. 2. Hub blink for locating network port by the flashing port light on hub / switch. 3. Check wiring error in 5E, 6E, coaxial cable, such as open circuit, short circuit, jumper wire, reverse connection. 4. Locate the wiring or connection error. 5. Measure cable length up to 1000 m and locate the breakage point. 6. Polarity test function measure DC voltage. 7. Memory and storage for calibration data. 8. Automatically time-delay shut off and low battery alarm function.
