KALEA-INFORMATIQUE PCIe controller for Mini PCI Express (MiniPCIe mPCIe) WIFI or BLUETOOTH card with SIM card reader

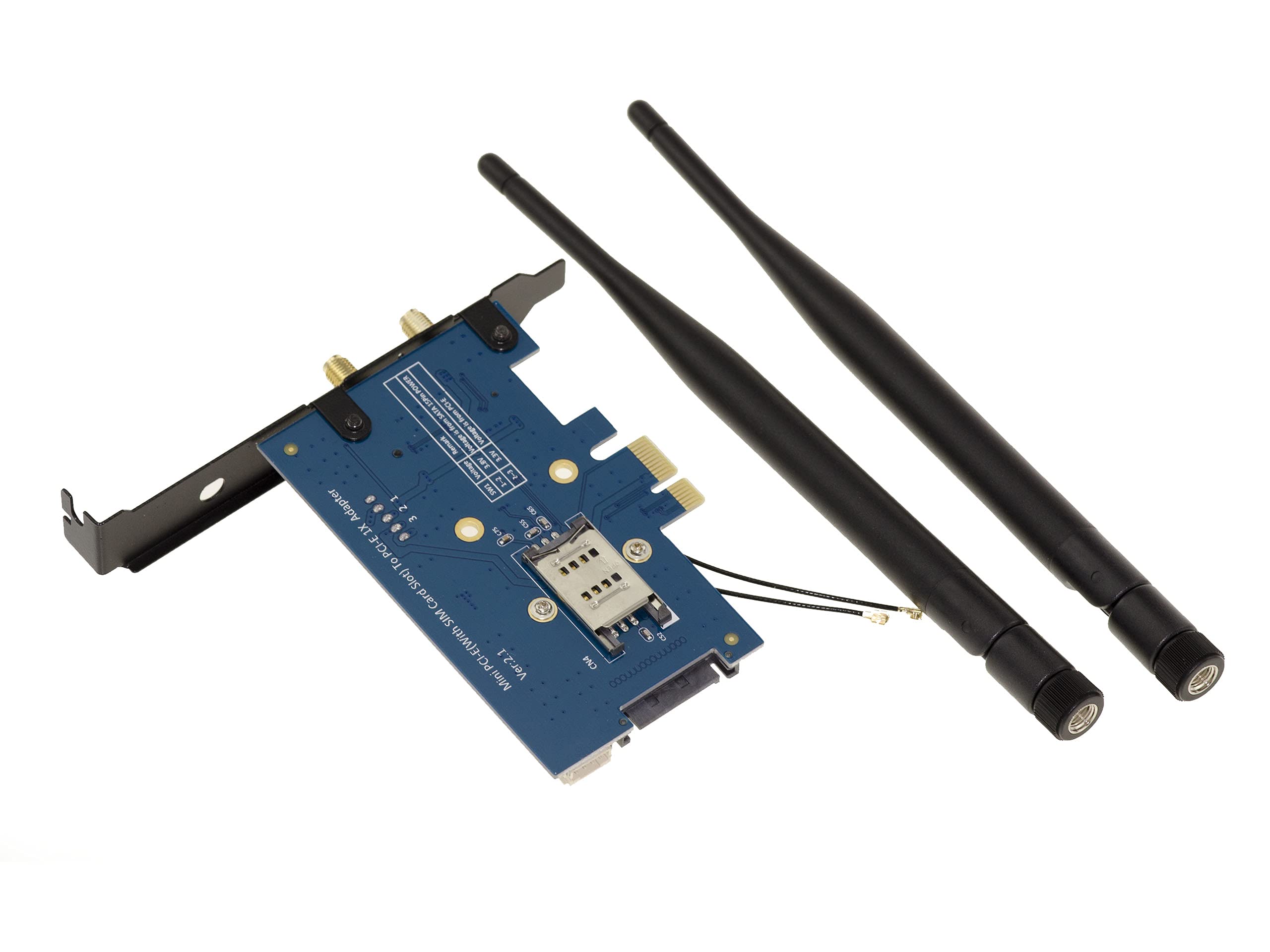

• Mini PCI EXPRESS to PCI EXPRESS converter with 2 Dual Band antennas and SIM card slot. For mounting a mini PCI EXPRESS notebook card on a desktop PC via a PCI EXPRESS port. Supports MiniCard format cards, either USB or MiniPCIe type.
• For MiniCard in MiniPCIe format (connecting the card to a PCIe 1x slot) or USB format (connecting the card to your motherboard's internal USB connector). Compatible with MiniCard 3G, CDMA, LAN, WWAN... Compatible with WIFI, WIFI+Bluetooth, 3G/WWAN cards. Supports only MiniPCIe format cards (mPCIe tx/rx), not to be confused with SATA or PATA SSD cards using a connector that looks similar but is not wired identically.
• Standards PCI Express Mini Card Electromechanical Specification Revision 1.2 and PCI Express Card Electromechanical Specification 1.1. USB Universal Serial Bus Specification Revision 2.0. Supports mPCIe cards in Full or Half Size format (full/half adapter supplied).
• 8-pin SIM connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE 8. Switch on the card to activate/deactivate Wi-Fi. 2 Dual Band antennas supplied (2.4GHz and 5GHz). WIFI a/b/g/n/ac and Bluetooth 4.0 compatible.
• Compatible with all Windows/Mac OS, no drivers for this adapter, completely hardware.

For mounting a mini PCI EXPRESS laptop card on a desktop PC via a PCI EXPRESS slot. Compatibility: Supports MiniCard format cards, either USB or MiniPCIe type. Specifications: For MiniCard in MiniPCIe format (connect the card to a PCIe 1x slot) or USB format (connect the card to your motherboard's internal USB connector). Compatible with 3G, CDMA, LAN, WWAN miniCards. .. Compatible with WIFI, WIFI+Bluetooth, 3G/WWAN cards Supports only MiniPCIe format cards (mPCIe tx/rx), not to be confused with SATA or PATA SSD cards using a connector that looks similar but is not wired identically. Standards PCI Express Mini Card Electromechanical Specification Revision 1.2 and PCI Express Card Electromechanical Specification 1.1 Standard USB Universal Serial Bus Specification Revision 2. 0 Supports mPCIe cards in Full or Half Size format (full/half adapter supplied) 8-point SIM connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE 8 Switch on the card to enable/disable WiFi 2 Dual Band antennas supplied (2. 4GHz and 5GHz) Compatible WIFI a/b/g/n/ac and Bluetooth 4.0 Compatible with all Windows/Mac OS, no drivers for this adapter, completely hardware.
