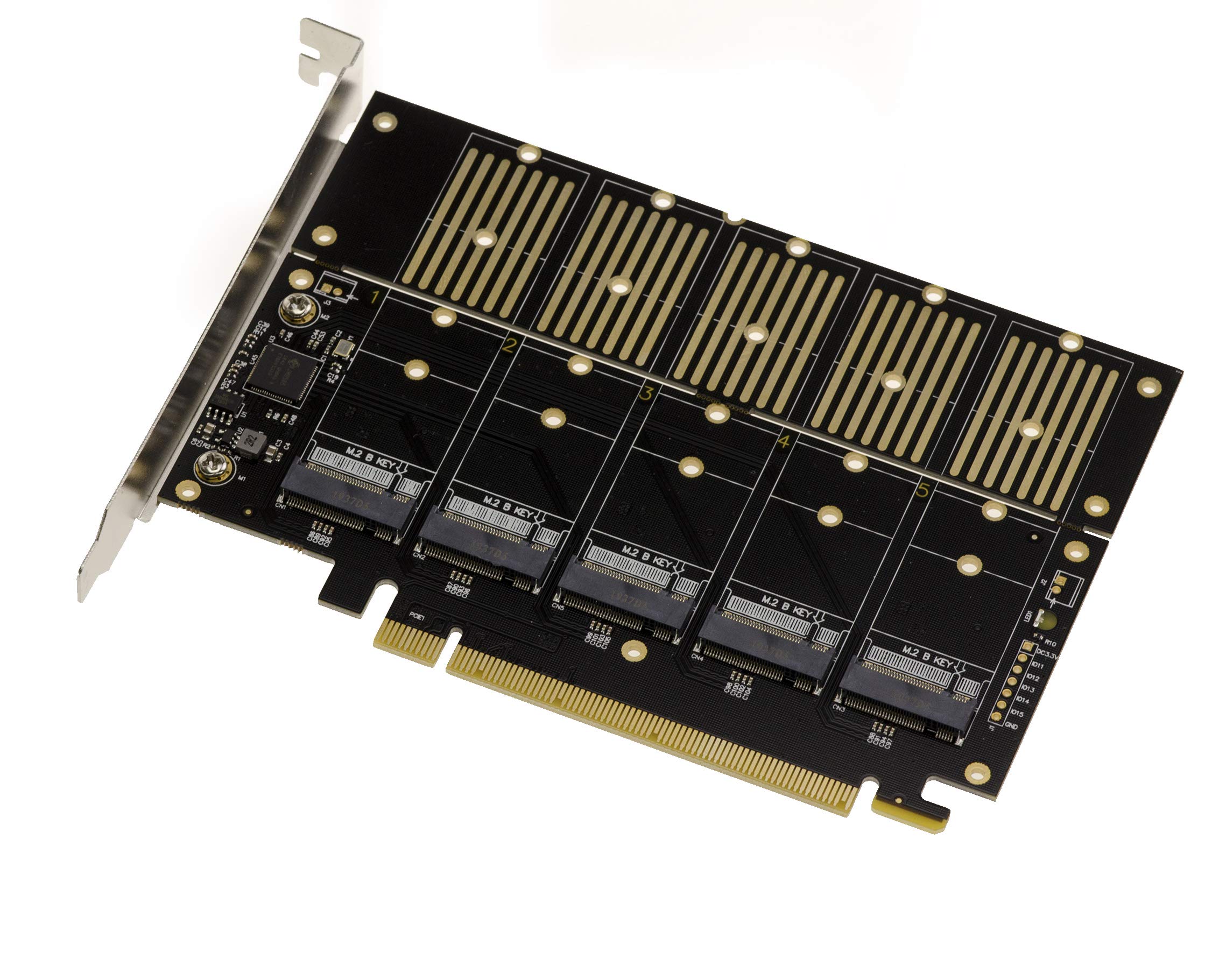

KALEA-INFORMATIQUE PCIe 3.1 x16 controller card for 5 M2 SSDs (M.2 NGFF B Key or B+M Key SATA) or SATA hard drives. High Low Profile with JMB585 Chipset

• This card allows you to control five M.2 SATA SSDs in B Key or B+M Key. Adapters are supplied to replace the M2 ports with standard 7-pin SATA ports. For all M.2 "B+M Key" or "B Key" SSDs, but only SATA type.
• JMB585 CHIPSET. For 16x type 3.1 PCIe slot. PCIe GEN3 x2 bus bandwidth. Compatible with PCIe link layer power saving mode.
• 5 ports for M.2 SATA B-key or SATA hard disk (adapters supplied). Complies with SATA Revision 3.2 specifications. AHCI, NCQ, SATA link power saving mode compatible. Compatible with SATA plug-in detection. Drive power control compatible. Partial/Slumber SATA power management.
• Compatible with types 2230/2242/2260/2280. The card is fully powered from the PCIe port. The 5 SSDs are supported by the PCIe port, they will be seen as 5 disks. Drivers for Windows 10 / 8 / 7 / Vista / XP / Server 2003 / 2000 and Linux.
• The card is "breakable" in low-profile format, and supplied with a low-profile bracket to be fitted in place of the original bracket. It will then only support 2230 or 2242 SSD disks, or SATA disks (using the adapters supplied).

This card will allow you to control five SATA M.2 SSDs with B Key or B+M Key. With the included adapters, the M2 ports can be replaced with conventional 7-point SATA ports. For all SSDs of type M.2 "B+M Key" or "B Key", but exclusively of the type SATA. Specifications: CHIPSET JMB585 For 16x PCIe port type 3.1. PCIe GEN3 x2 Bus Bandwidth Compatible with PCIe link layer power saving mode energy management. 5 ports for M.2. SATA B-key or SATA hard drives (adapter included) Compliant with SATA Revision 3.2 specifications. AHCI, NCQ, SATA link power saving mode compatible. SATA plug-in detection compatible. Drive power control-compatible hard drive power management. SATA Partial/Slumber Power Management Compatible with the types 2230/2242/2260/2280. The card is fully powered by the PCIe port. The 5 SSDs are supported via the PCIe port, they are considered as 5 drives. The card is "breakable" in low profile format and comes with a low profile angle which in this case must be mounted instead of the original angle. It then only supports 2230 or 2242 SSDs or SATA drives (when using the included adapters). Drivers for Windows 11 / 10 / 8 / 7 / Vista / XP / Server 2003 / 2000 and Linux. .
