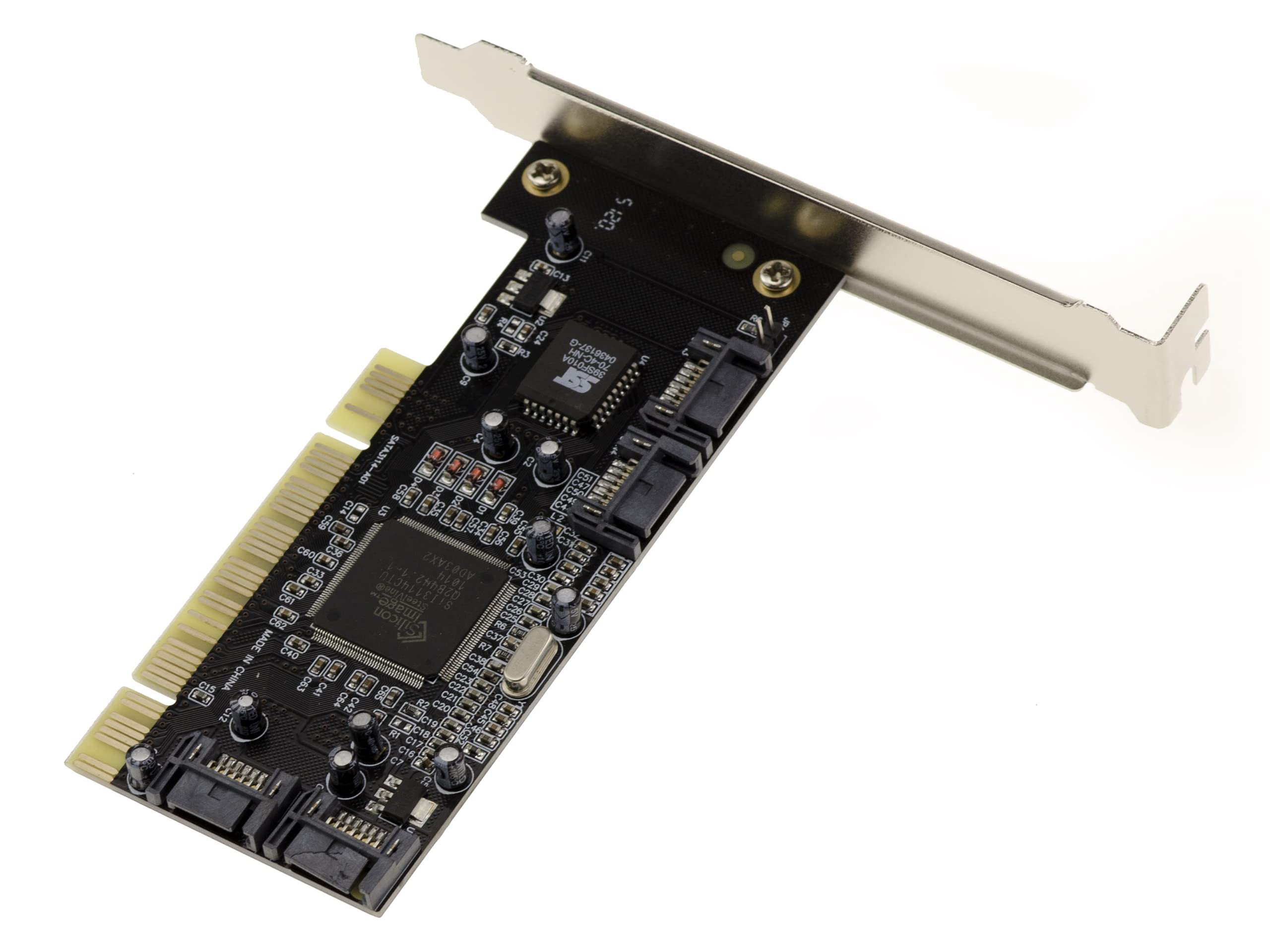

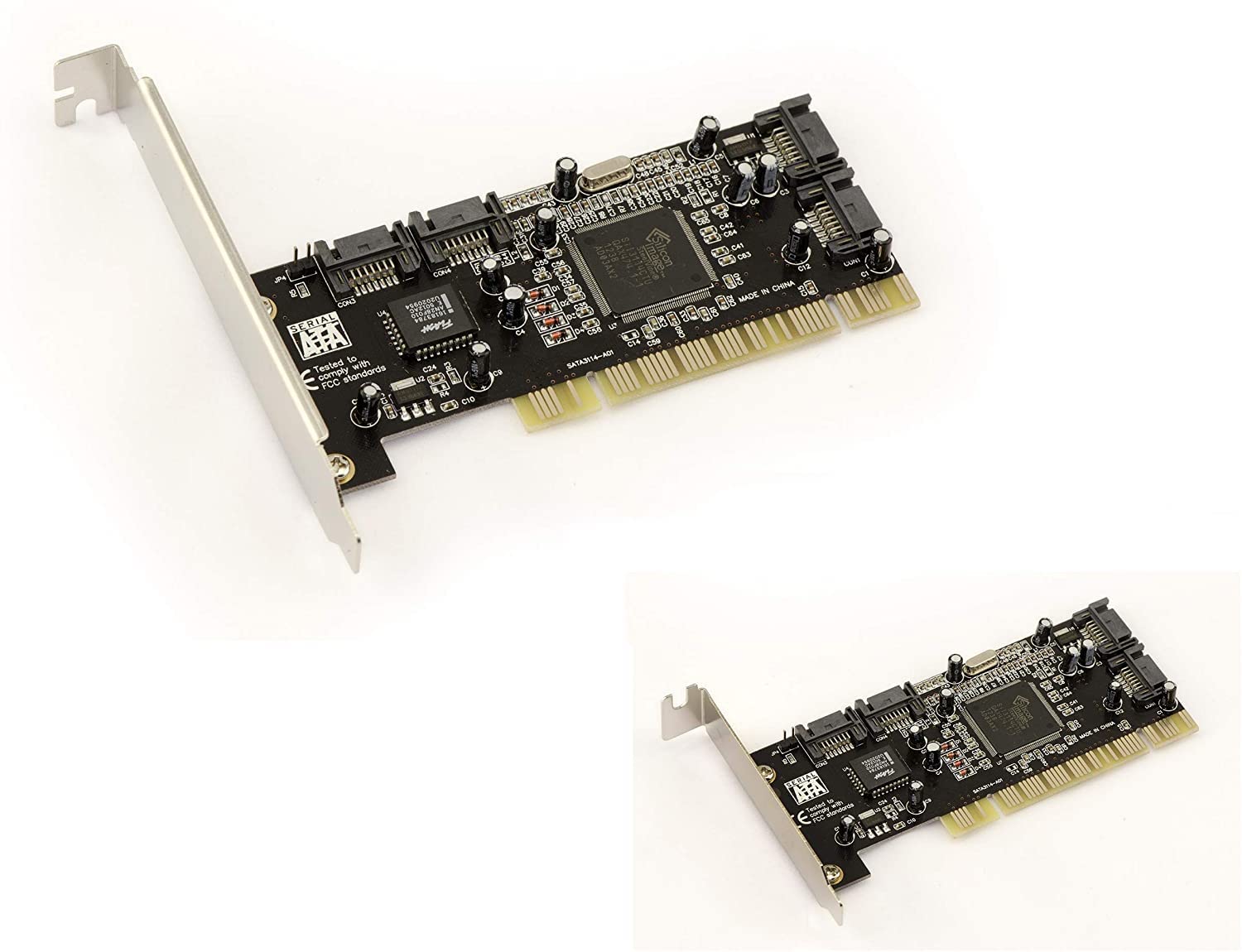

KALEA-INFORMATIQUE PCI SATA 4 INDEPENDENT PORTS or RAID 0 1 0+1 controller card with SILICON IMAGE SIL3114 Chipset. With HIGH PROFILE and LOW PROFILE brackets.

• SILICON IMAGE SIL3114 CHIPSET. For DESKTOP PC on PCI slot / Adds 4 SATA ports to connect 1 to 4 SATA peripherals either independently or in a RAID cluster.
• Compatibility: SATA 1/2/3 , Maximum data rate 150 MB/S, Drivers included for all WINDOWS 32 OR 64 BITS.
• For hard disks or optical drives. Four independent internal SATA ports,
• RAID: Raid 0 or 1, adjustable stripes for RAID 0, possibility of mounting hard disks of different capacities in a RAID array.
• Immediate installation (plug and play)

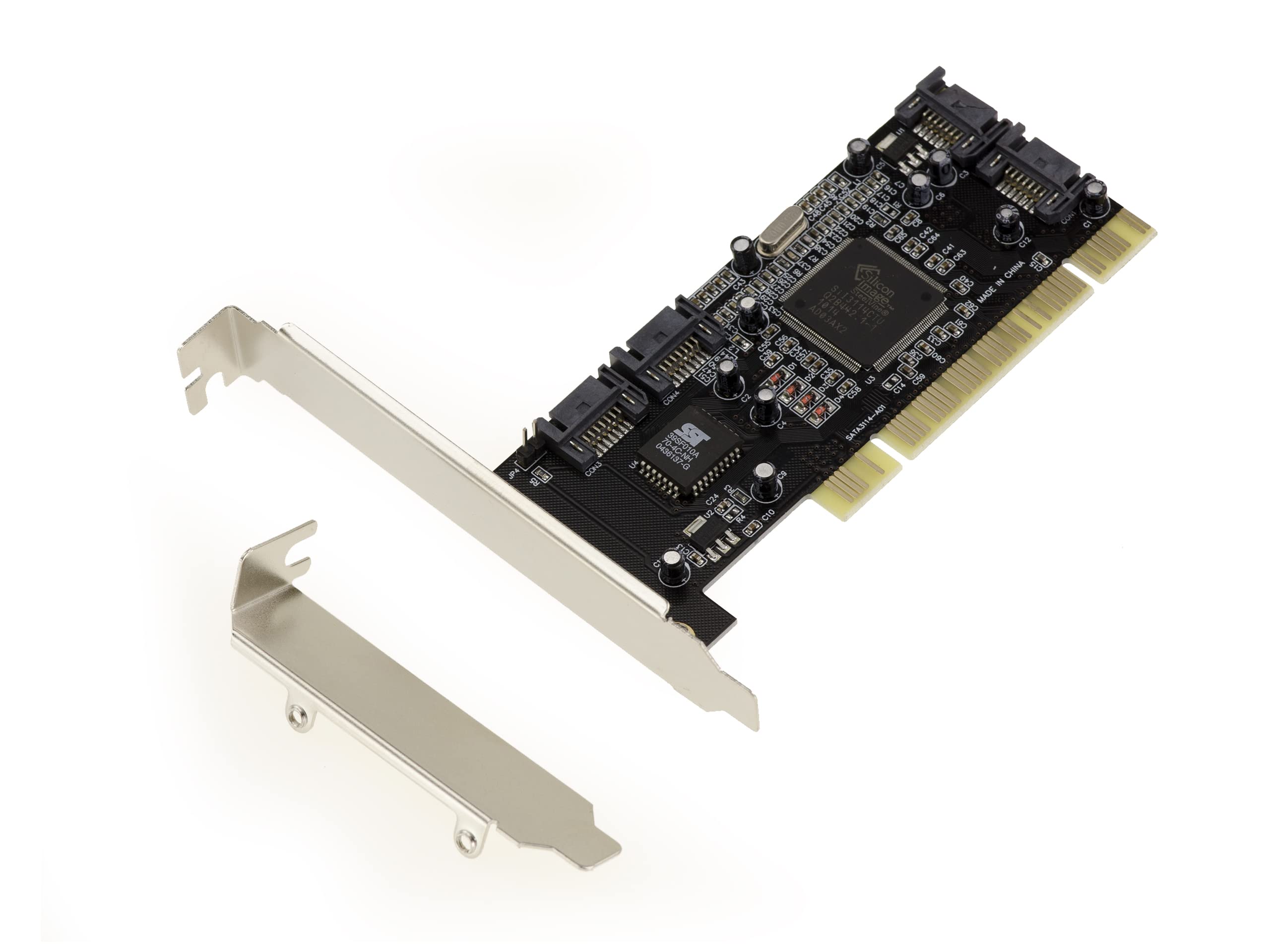

Use: For desktop PC on PCI port. Allows you to add 4 SATA ports to connect 1 to 4 SATA devices either independently or in a RAID cluster. Compatibility: SATA 1 compatible with SATA 2 (maximum throughput then flanged to 150MB/s). Compatible with Windows 98, 2000, XP, Vista 32/64, Seven 32/64, 8, 10-11 32/4, Linux... Features: PCI port, compatible with SATA 1, accepts SATA 2 by clamping it. For hard drives or optical drives. Maximum transfer speed of 150MB/second (1.5Gbps), Four independent SATA ports, with buffer of 256b per channel, The 4 connectors are internal, Accepts up to 4 SATA devices in addition to devices embedded naturally by the motherboard. RAID: Raid 0, 1, 0+1 strips (stripes) adjustable for RAID 0, possibility to mount RAID clusters of different capacities hard drives. Supplied with low profile and high profile brackets. Plug and play.
