KALEA-INFORMATIQUE mSATA 2 port SATA 3.0 RAID 0 1 JBOD controller card for mounting two SATA disks or SSDs on one mSATA port

• To mount TWO SATA hard disks in place of an mSATA SSD... Breakaway card compatible with mSATA half (26.8mmx30mm) and full size (50.95x30mm) SSD slots.
• High-performance ASM1092R chipset. Hardware RAID type 0, 1 or JBOD: selection by switch on the card. SATA3 Rev 3.2 interface (also compatible with SATA 1 and 2) - Data rate 6GB/s.
• The adaptor only transfers data, SATA drives will only be connected via the 7-pin data connector. The 15-pin power connector on each hard drive connected in this way will also need to be powered by a power cord from the computer.
• The RAID array will be recognised as a "classic" SATA drive, so you can install an operating system on it or use it for storage.

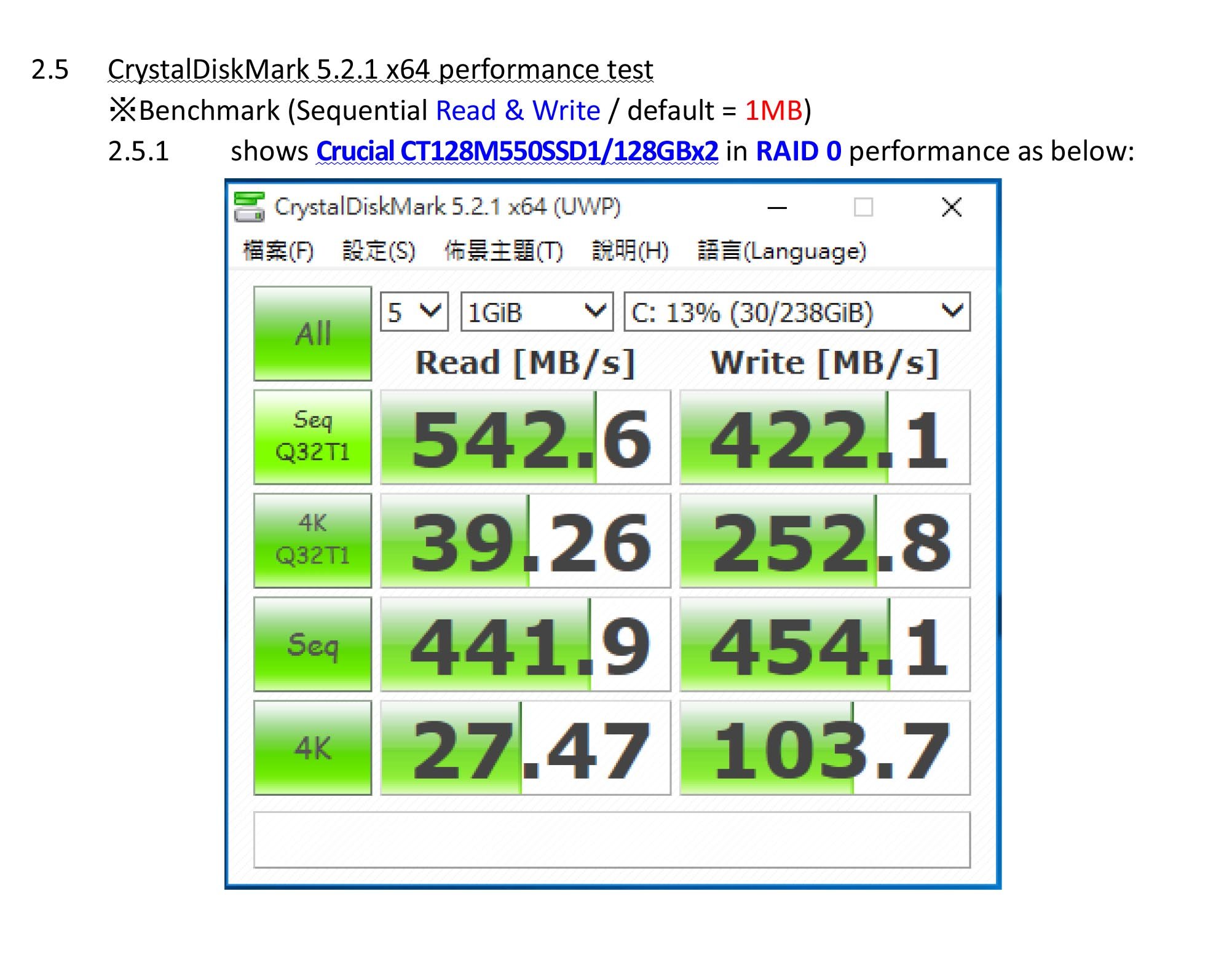

• ACTUAL SPEEDS MEASURED IN RAID 0 (with 2 crucial M550 SSDs) : Read 542 MB/s, Write 422 MB/s

2xSATA to mSATA RAID Adapter Use: To mount TWO SATA hard drives in place of an mSATA SSD. Compatibility: Breakable card compatible with mSATA half (26.8mmx30mm) and full size (50.95x30mm) SSD slots. Specifications: High-performance ASM1092R chipset. Hardware RAID type 0, 1 or JBOD: Selection by switch on the card. SATA interface type SATA3 Rev 3.2 (also compatible with SATA 1 and 2) - Data rate 6GB/s. Compatible with SATA revision 3. 0, with standard 7-pin connector. The adaptor transfers data only, so the SATA drives will be connected only via the 7-pin data connector, and the 15-pin power connector on each hard drive will also need to be powered by a power cord from the computer. The RAID array will be recognised as a "conventional" SATA drive, so you can install an operating system on it or use it for storage. REAL DATA BITS MEASURED IN RAID 0 (with 2 crucial M550 SSDs) : Read 542MB/s, Write 422 MB/s .
