KALEA-INFORMATIQUE Mini PCIe Firewire 800 and 400 IEEE1394A and IEEE1394B controller card on mPCIe port with 2+1 outputs and TI chipset

• FireWire IEEE1394a and b FIREWIRE 400 and 800 2+1 Ports CHIPSET TI XI02213BZAY controller card. Fits into the mini PCI EXPRESS slot on notebook PCs (52-pin). Compatible with all versions of Windows (2000, XP, VISTA, SEVEN, 8, 8.1, 10, 11.... TI drivers are integrated into the Windows library, so there's no driver CD to deal with! This card is particularly suitable for Computer-Assisted Music (CAM) applications.)

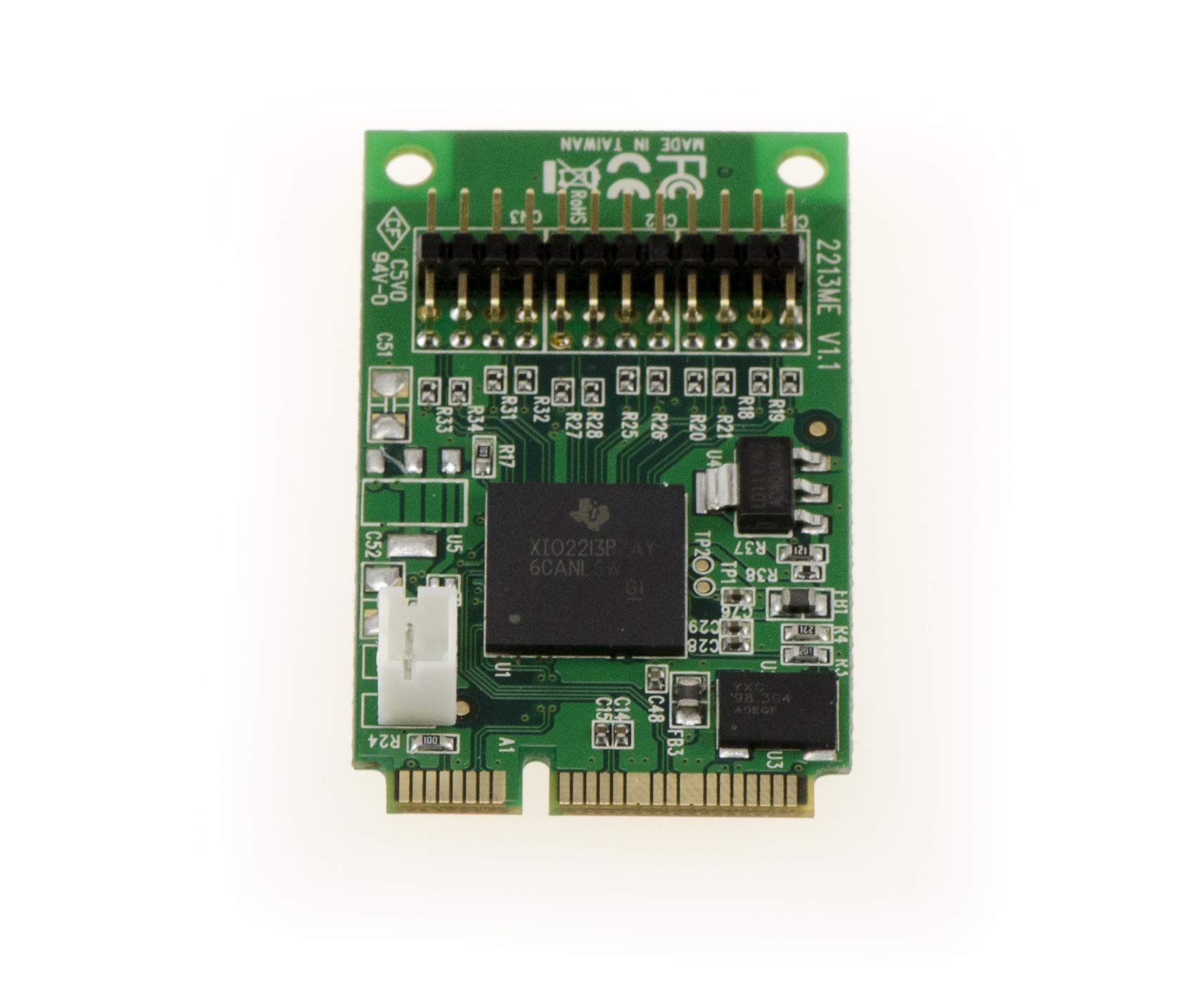

• TEXAS INSTRUMENTS XIO2213BZAY CHIPSET. For Mini PCI EXPRESS ports (1.0 or higher). IEEE P1394b Revision 1.33+ compatible. IEEE 1394 OpenHCI Specifications V1.0/V1.1 compatible. IEEE 1394-1995 (High Performance Serial Bus) compatible.
• Transfer speed up to 800 Mb/s with FireWire 800! Ports: 2x9 pins FireWire 800-1394b on external bracket + 1x6 pins FireWire 400-1394a on external bracket. IEEE 1394a-2000 compatible
• Possibility of connecting 63 peripherals in cascade. Hot-swap compatible. Compatible with all FireWire and iLink devices

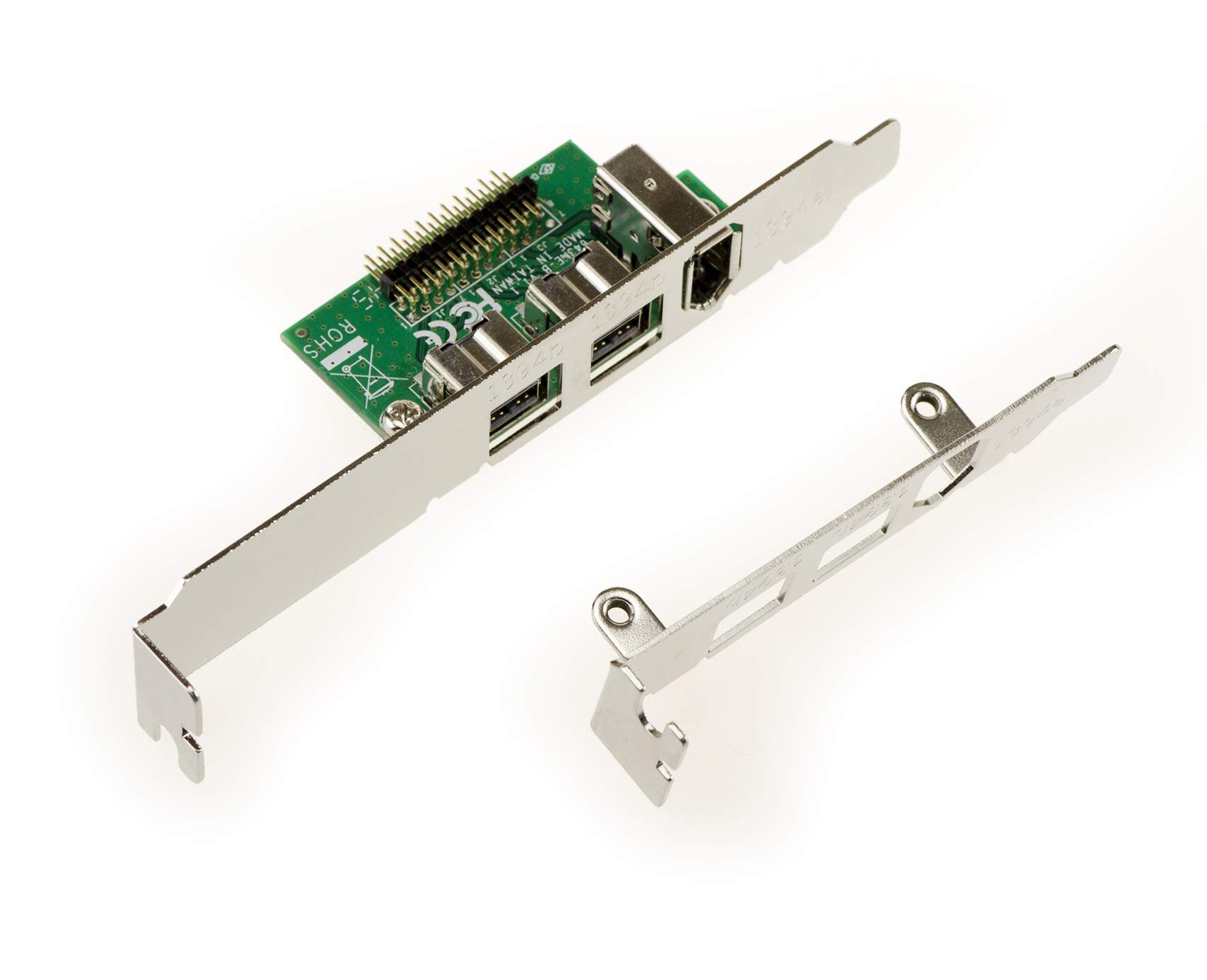

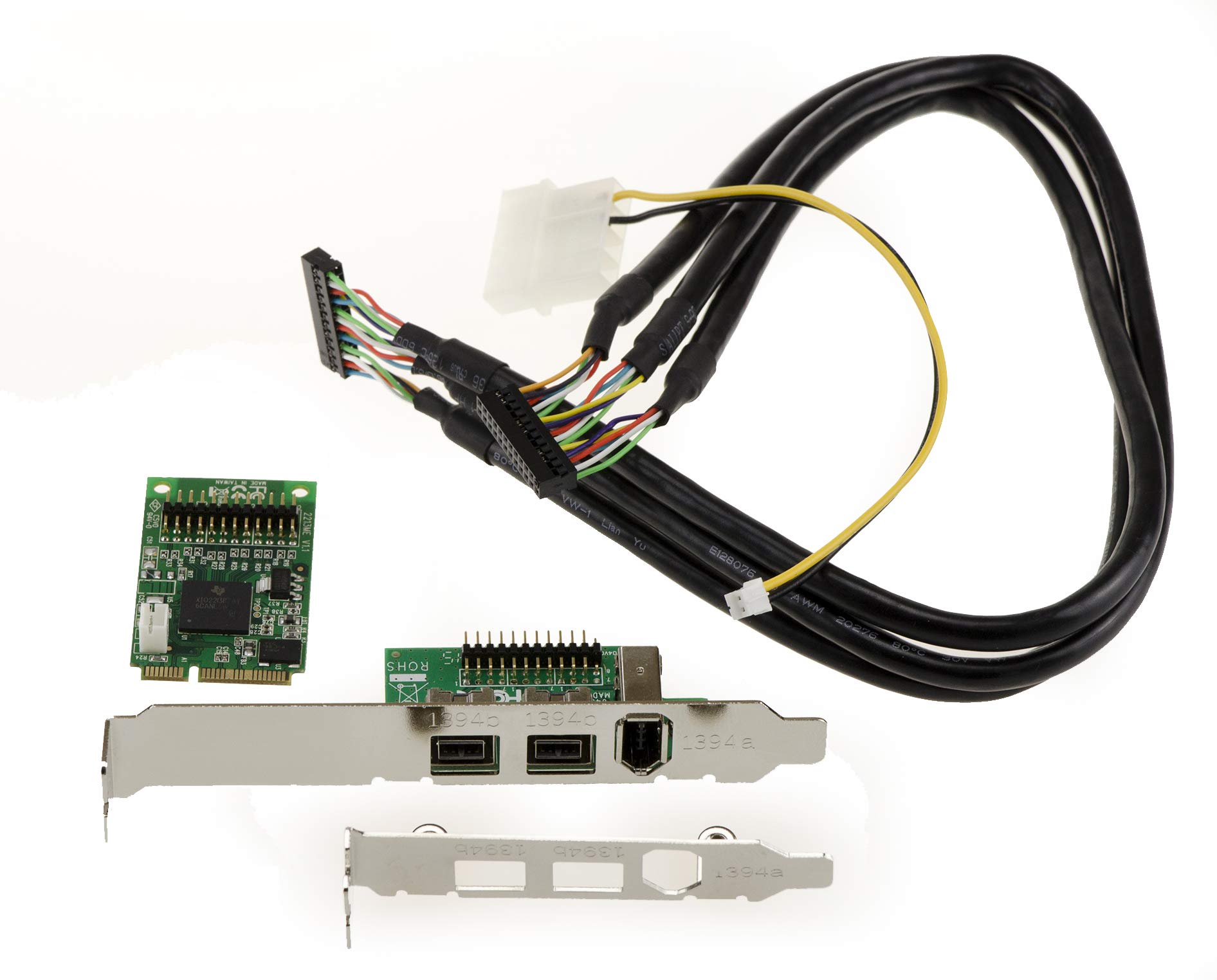

• This card has a molex plug power supply that is connected to your PC's power supply for greater communication stability. The connection cable between the mPCIe plate and the Firewire plate is 50cm long. The plate containing the Firewire plugs is supplied with two removable brackets, in HIGH and LOW profile.

Use: Mounts to the mini PCI Express port of laptops (52 pin) Compatibility: Compatible with all versions of Windows (2000, XP, VISTA, SEVEN, 8, 8.1, 10, 11.... TI drivers are integrated into the Windows library, automatic installation without CD of drivers to handle! ). This card is particularly suitable for MAO (Computer Assisted Music) uses, whether firewire 400 or firewire 800. Specifications: TEXAS INSTRUMENTS XIO2213BZAY CHIPSET For Mini PCI Express ports (1.0 or higher). Transfer speed up to 800 Mbps in firewire 800! Ports: 2x9 FireWire 800-1394b pins on external bracket / 1x6 pins FireWire 400-1394a on external bracket. Possibility to connect 63 devices in cascade. Compatible with hot changes. Compatible with IEEE P1394b Revision 1.33+. Compatible with IEEE 1394 OpenHCI Specifications V1.0/V1.1. Compatible with IEEE 1394-1995 (High Performance Serial Bus). Compatible with IEEE 1394a-2000. Compatible with all FireWire and iLink devices. This card has a power recovery in the form of a molex plug that is connected to your PC's power supply for better communication stability. The connection cord between the mPCIe plate and the Firewire plate has a length of 50 cm. The plate with the firewire plugs is supplied with two removable brackets, in HIGH and LOW profile.
