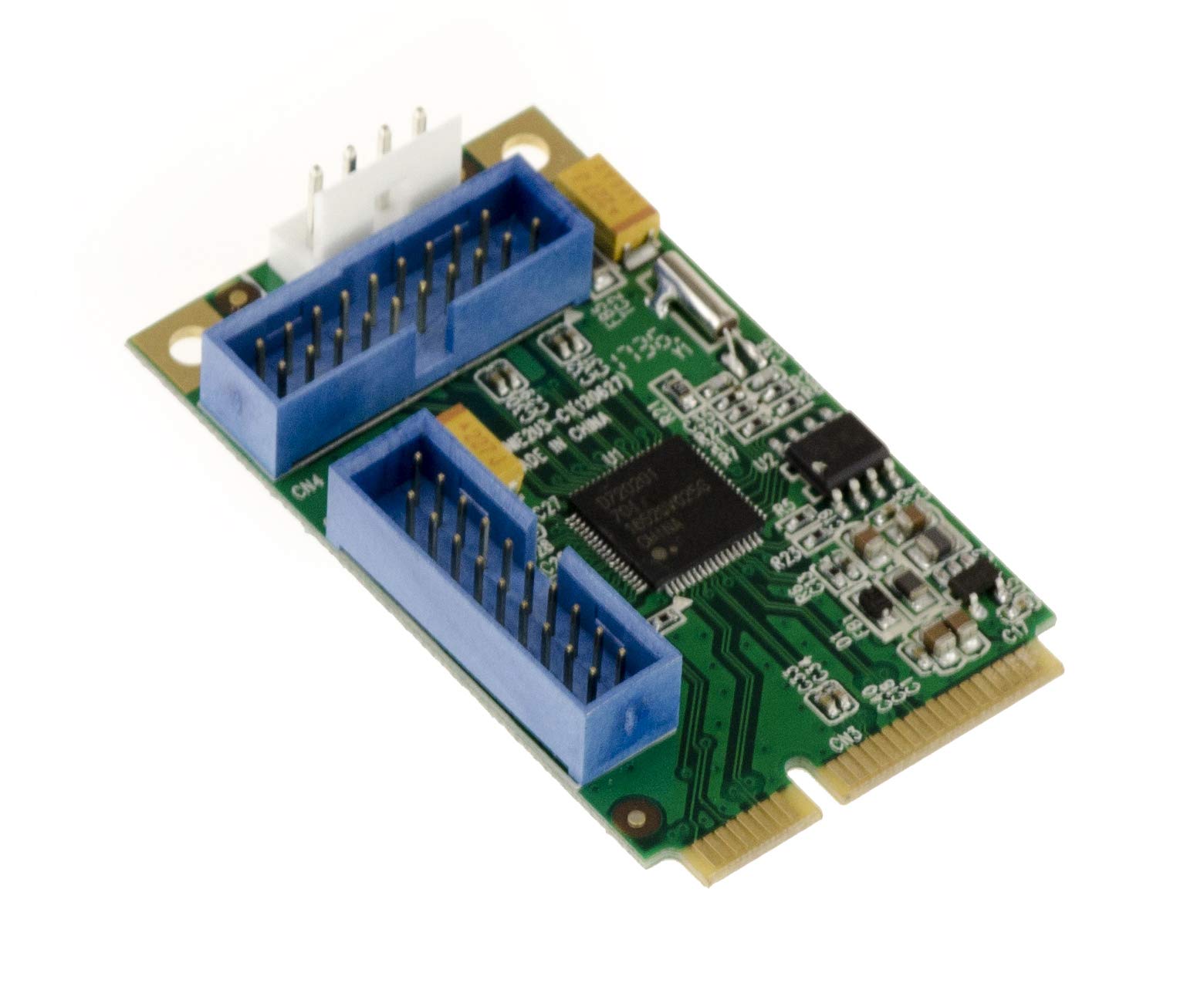

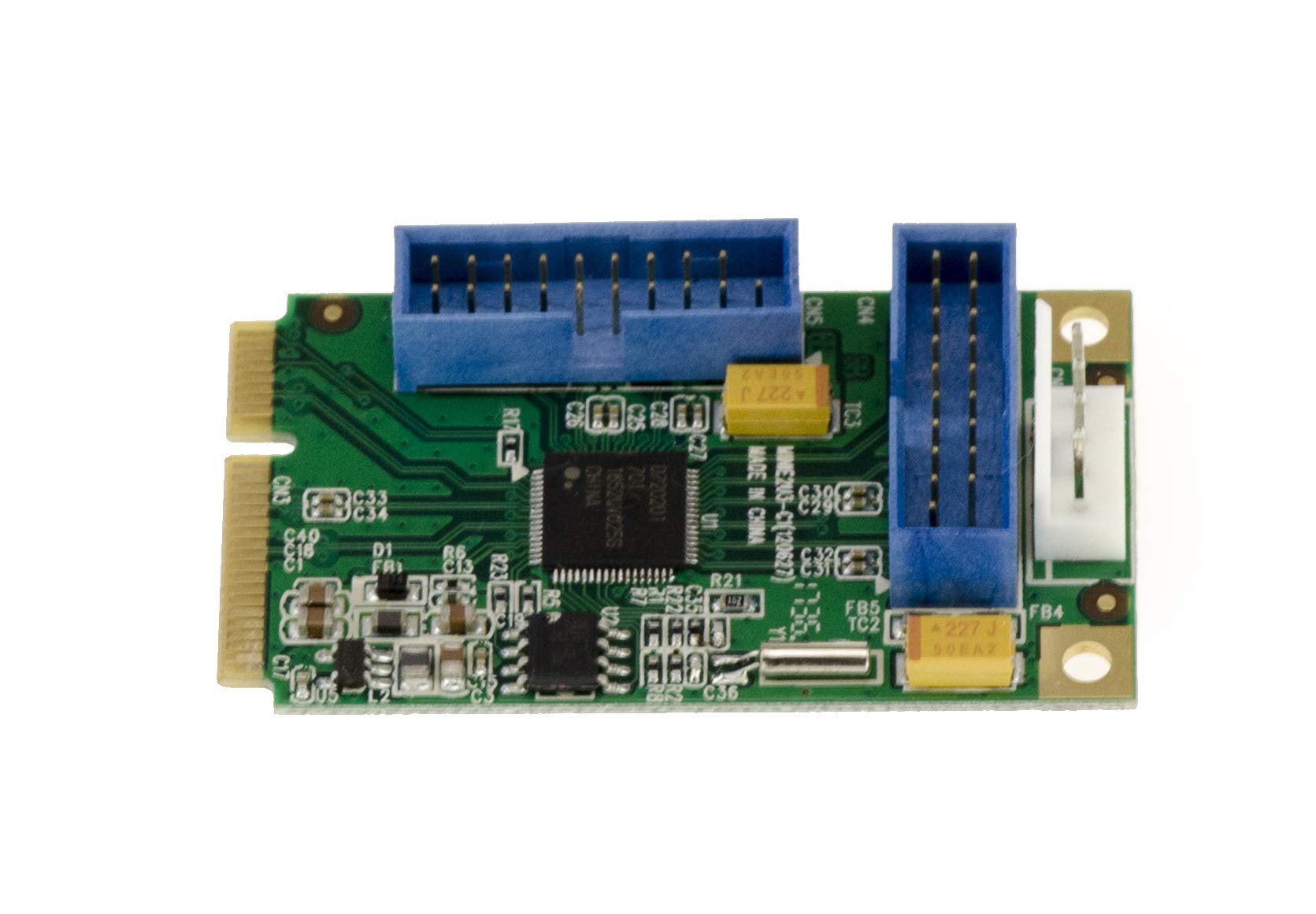

KALEA-INFORMATIQUE Mini PCI EXPRESS (MiniPCIE) 4 port USB 3.0 (USB3 5G) mPCIe card with NEC Chipset - Cables included

• Fits into the mini PCI EXPRESS slot on notebook PCs (52-pin); Drivers for Windows 10, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher.
• PCIe 2.0 (backward compatible 1.0a) Single lane PCIe, bandwidth 5.0/2.5Gbps Compatible MiniPCIe "full" or "Mini" Compatible with "PCI-E Mini Card Electromechanical specification revision 1.2" CHIPSET NEC RENESAS D720201
• USB 3.0 SUPERSPEED, 5 GBps full duplex Compatible with USB 2.0 High Speed (480Mbps) and USB 1.0 Full Speed (12 MBps) Compatible with power-saving devices (PCI-Bus Power Management Interface specification revision 1.2)
• The card has two 19-pin connectors, each supporting two USB3.0 ports, and we supply two 19-pin leads to "classic" USB A female plugs. XHCI 1.0 (Intel Extensible Host Controller Interface) compatible.
• Maximum power supply for USB3.0 ports: 900mA at 5V A floppy plug on the card allows you to connect an external power supply (optional) for more power.

Use: Mounts to the mini PCI Express port of laptops (52 pin) Compatibility: Drivers for Windows 11, 10, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher. Specifications: PCIe 2.0 (retro compatible 1.0a). Single lane PCIe, bandwidth 5.0/2.5Gbps. Compatible with MiniPCIe "full" or "Mini". Compatible with the specifications "PCI-E Mini Card Electromechanical specification revision 1.2". NEC RENESAS D720202 Chipset. Superspeed USB 3.0, 5 GBps full duplex. Supports USB 2.0 High Speed (480Mbps) and USB 1.0 Full Speed (12 Mbps). Compatible with energy-saving devices (PCI-Bus Power Management Interface specification revision 1.2). The card has two 19-point connectors supporting two USB3.0 ports, we provide the 19-point cords to "classic" USB A female plugs. Compatible with XHCI 1.0 (Intel Extensible Host Controller Interface). USB 3.0 port maximum power supply: 900mA at 5V. A molex plug on the board will allow you if you want to connect an external power supply (optional) for more power supply. The MiniPCIe card is sold with two USB3 brackets that connect to the 19-point ports and allow you to have two "classic" USB 3 A female plugs (per bracket) to connect any USB3 device simply.
