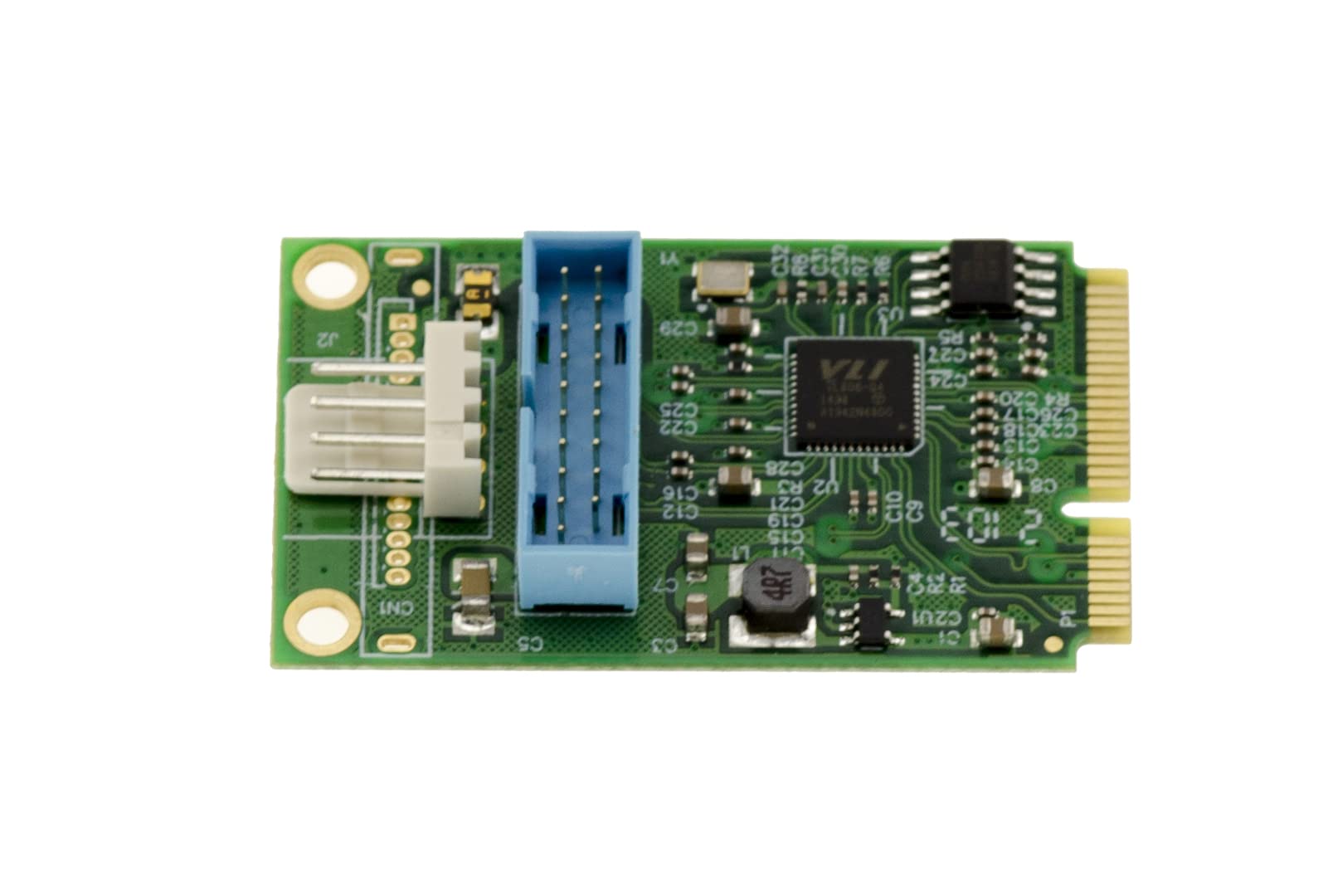

KALEA-INFORMATIQUE Mini PCI EXPRESS MiniPCIE card 2 USB 3.0 PORTS (USB3 SUPERSPEED 5Gbps) with Via Chipset - With bracket to 2x USB A

• Mounts on notebook PCs' mini PCI EXPRESS slot (52-pin); Drivers for Windows 10, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher
• PCIe 2.0 (backward compatible 1.0a) Single lane PCIe, bandwidth 5.0/2.5Gbps Compatible MiniPCIe "full" or "Mini" Compatible with "PCI-E Mini Card Electromechanical specification revision 1.2" CHIPSET VIA VL806
• USB 3.0 SUPERSPEED, 5 GBps full duplex Compatible with USB 2.0 High Speed (480Mbps) and USB 1.0 Full Speed (12 MBps) Compatible with energy-saving devices (PCI-Bus Power Management Interface specification revision 1.2)
• The card has a 19-pin connector supporting two USB3.0 ports, we supply a 19-pin angled cable to "classic" female USB A plugs XHCI 1.0 compatible (Intel Extensible Host Controller Interface)
• Maximum power supply for USB3.0 ports: 900mA at 5V A molex plug on the card allows you to connect an optional external power supply for extra power.

Use: Mounts to the mini PCI Express port of laptops (52 pin) Compatibility: Drivers for Windows 11, 10, 8, Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or higher. Specifications: PCIe 2.0 (retro compatible 1.0a). Single lane PCIe, bandwidth 5.0/2.5Gbps. Compatible with MiniPCIe "full" or "Mini". Compatible with the specifications "PCI-E Mini Card Electromechanical specification revision 1.2". Via VL806 Chipset. Superspeed USB 3.0, 5 GBps full duplex. Supports USB 2.0 High Speed (480Mbps) and USB 1.0 Full Speed (12 Mbps). Compatible with energy-saving devices (PCI-Bus Power Management Interface specification revision 1.2). The card has a 19-point connector supporting two USB3.0 ports, we provide a 19-point cord to "classic" USB A female plugs. Compatible with XHCI 1.0 (Intel Extensible Host Controller Interface). USB 3.0 port maximum power supply: 900mA at 5V. A molex plug on the board will allow you if you want to connect an external power supply (optional) for more power supply. The MiniPCIe card is sold with a USB3 bracket that connects to the 19-point port and allows you to have two "classic" USB 3 A female plugs to connect any USB3 device simply.
