KALEA-INFORMATIQUE Adapter for SSD M2 B Key SATA to SATA on DDR2 port

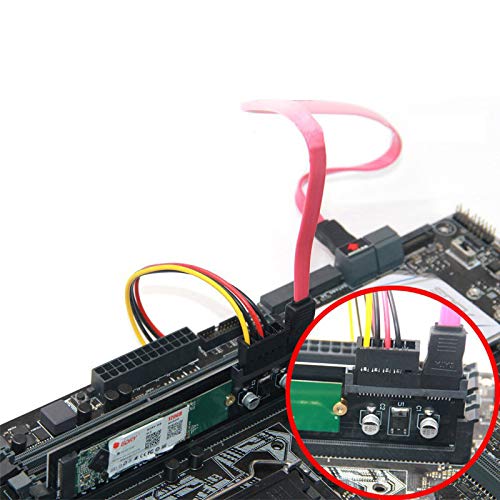

• M2 to SATA adapter powered by a DDR2 port. Allows the SSD to be mounted directly in a DDR2 memory slot. Simply connect the SATA connector to a SATA port on the motherboard to use the SSD as a conventional SATA drive with the performance of your SSD!
• For SATA M2 SSDs, will not support PCIe M2 SSDs. For B Key or B+M Key connector. SATA 1/2/3 compatible
• For 3.3V M.2 drives. DDR2 array format. Maximum bandwidth 6GB in SATA 3 (SATA revision 3.1).
• Supports M2 SSDs in the following formats: Type 2230-D2-B-M: 30mm(L) x 22mm(W) Type 2242-D2-B-M: 42mm(L) x 22mm(W) Type 2260-D2-B-M: 60mm(L) x 22mm(W) Type 2280-D2-B-M: 80mm(L) x 22mm(W)
• Fixing screw for SSD

M.2 (NGFF) to DDR 2.0 adapter Use: M2 to SATA adapter powered from a DDR2 port. Allows the SSD to be mounted directly in a DDR2 memory slot. Simply connect the SATA connector to a SATA port on the motherboard to use the SSD as a conventional SATA drive with the same performance as your SSD. Compatibility: For SATA M2 SSDs, will not support PCIe M2 SSDs. For B Key or B+M Key connector SATA 1/2/3 compatible Specifications: For M.2 drives in 3.3V Format of a DDR2 bar Maximum bandwidth 6GB in SATA 3 (SATA revision 3. 1) Supports M2 SSDs with the following formats: Type 2230-D2-B-M: 30mm(L) x 22mm(W) Type 2242-D2-B-M: 42mm(L) x 22mm(W) Type 2260-D2-B-M: 60mm(L) x 22mm(W) Type 2280-D2-B-M: 80mm(L) x 22mm(W) Fixing screws for the SSD New item with 1 year warranty, sold in an antistatic bag.
