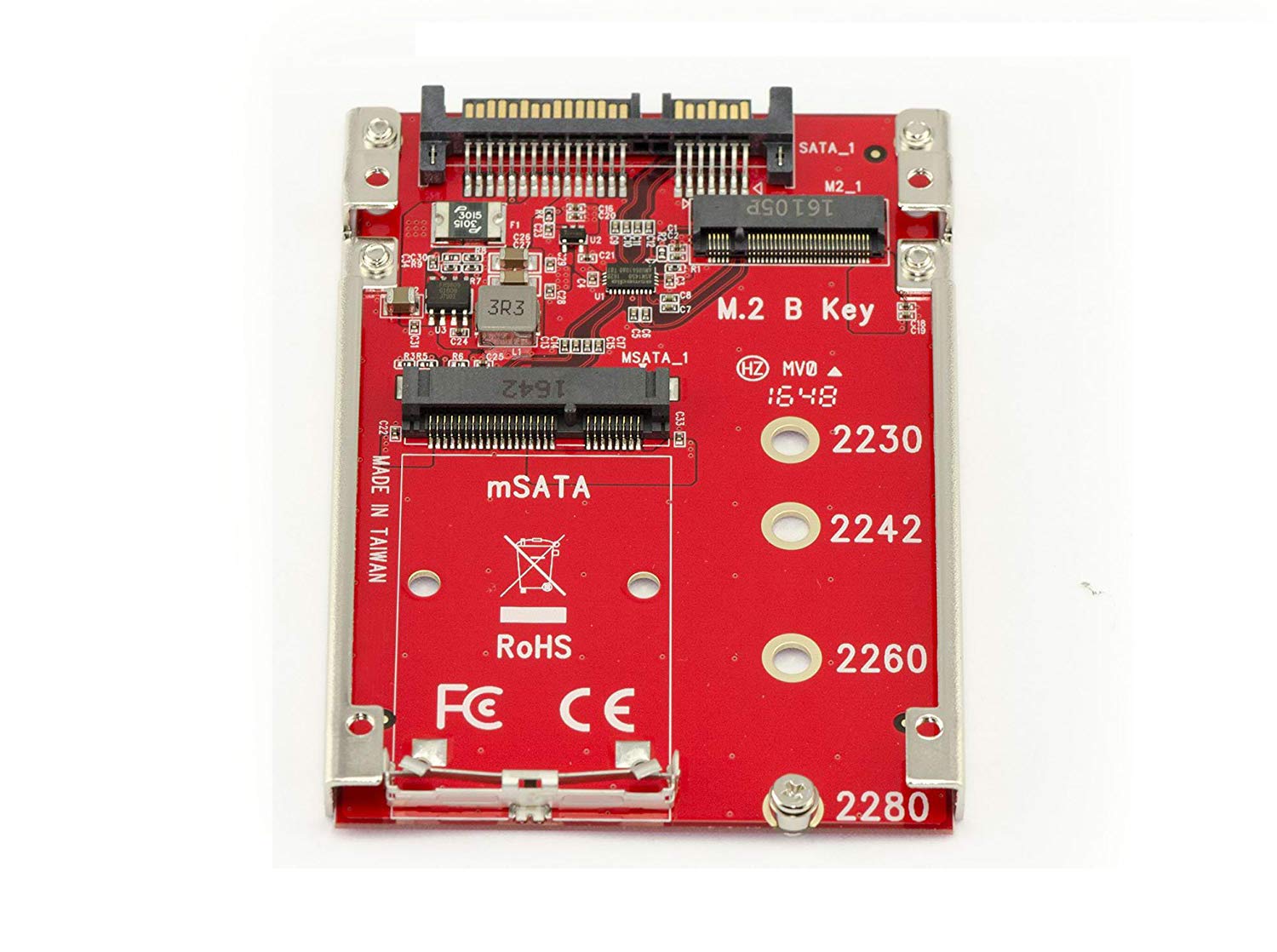

KALEA-INFORMATIQUE Adapter for SSD M2 NGFF SATA B or B+M Key and/or SSD mSATA to SATA, with chassis

• Conversion from mSATA or M2 SATA to SATA with a metal chassis in the format of a 2.5" drive. Compatible with mSATA full size and half size, and M2 SATA 2242/2260/2280.
• Compatible with double-sided SSDs, M2 type 2280-D5-B Bkey connector, mSATA full-size quick connector, 22-pin SATA connector (15+7). bootable card.
• 2.5" HDD format chassis with screw slots, 100.45mm x 69.85mm x 7mm, transparent for the operating system, no drivers required, compatible with all OS (Windows, Mac, Linux...).
• Power supply for SSDs and adapter from SATA connector, maximum SSD power supply 3.3V/4A, M2 SSD takes priority over SATA SSD.

M2 SATA and mSATA to SATA card with CHASSIS Professional range:The components in the Pro range offer above-average quality and performance for demanding enthusiasts and professionals. In addition to their quality of design and finish, these cards offer the special feature of having drivers pre-installed in their Bios chip, so they are automatically recognised and installed by your PC or MAC without having to resort to a driver CD or download from the Internet (see description below, the pre-installed drivers may vary depending on the model).Features:MSATA or M2 SATA to SATA conversion with metal chassis in 2. 5" drive,Compatible with mSATA full size and half size, and M2 SATA 2242/2260/2280,Compatible with double-sided SSDs,M2 type 2280-D5-B Bkey connector,MSATA full size fast connector , SATA 22-pin (15+7) connector, Bootable card, Chassis in 2.5" HDD format with screw slots, 100.45mm x 69. 85mm x 7mm, Transparent for the operating system, unnecessary drivers, compatible with all OS (Windows, Mac, Linux), Power supply for SSDs and adapter from the SATA connector, Maximum power supply for SSDs 3.3V/4A, SSD M2 takes priority over the SATA SSD. RoHS components Features: Convert mSATA or M.2 SATA SSD to standard 2.5? SATA drive Form Factor Supports Full Size mSATA SSD or SATA based M.2 80mm, 60mm, 42mm, 30mm SSD Latch type mSATA connector on board, no need the screw for the retention of mSATA SSD M.2 NGFF type 2280-D5-B B Key connector on board Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD Supports dual-sided M.2 SSD module 1.5mm component height on the top and bottom side 100% Compatible with 2.5? SATA drive mechanical spec 22 pin SATA (Signals and Power) male connector on board mSATA or M.2 SATA SSD can be the primary bootable device containing the OS and application. Includes 2.5 ? drive metal frame with 8 mounting holes and 4 HDD screws.
