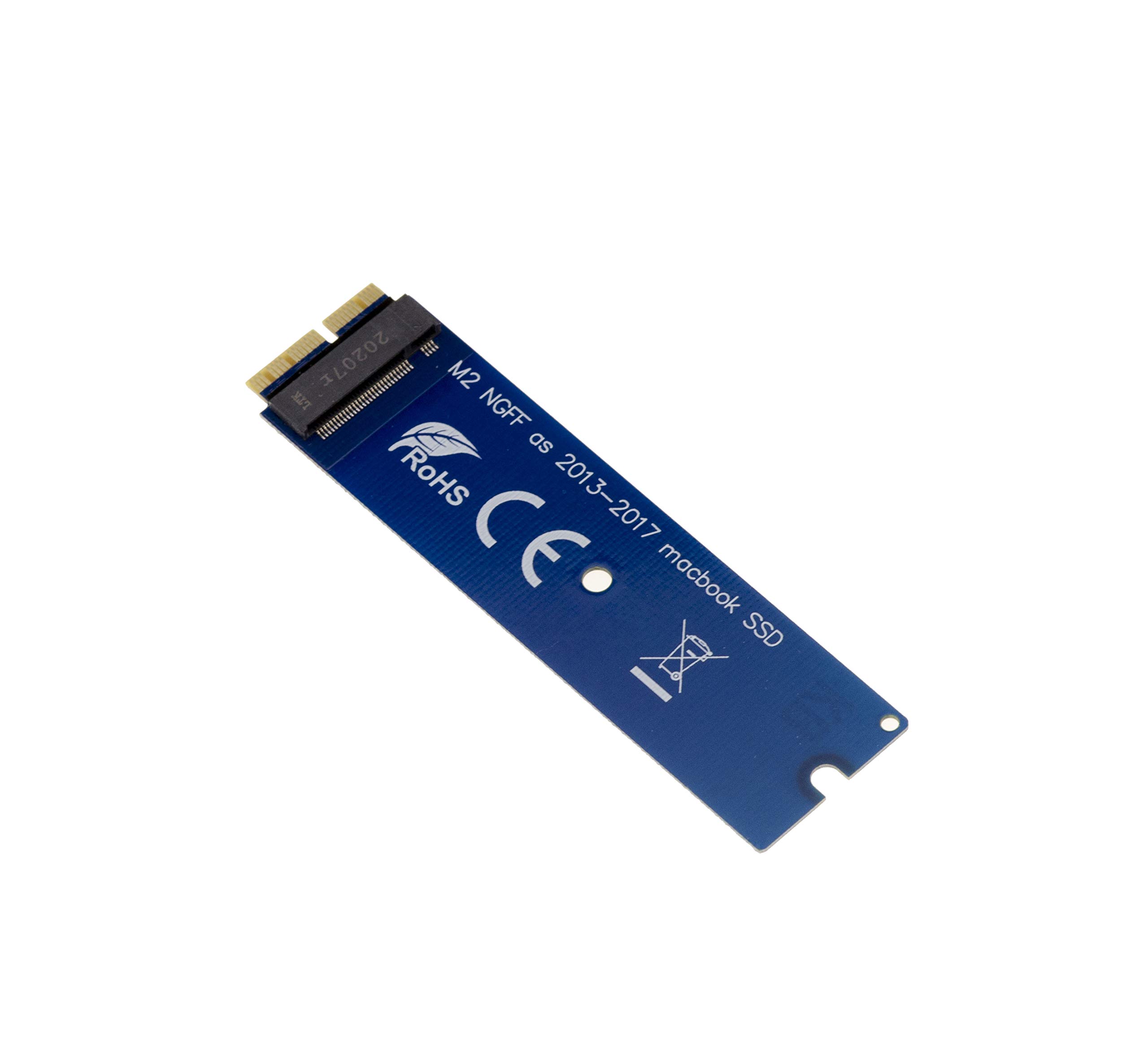

KALEA-INFORMATIQUE KIT Adapter for changing your Mac's 12+16-pin SSD produced after 2015 to an M2 NVMe

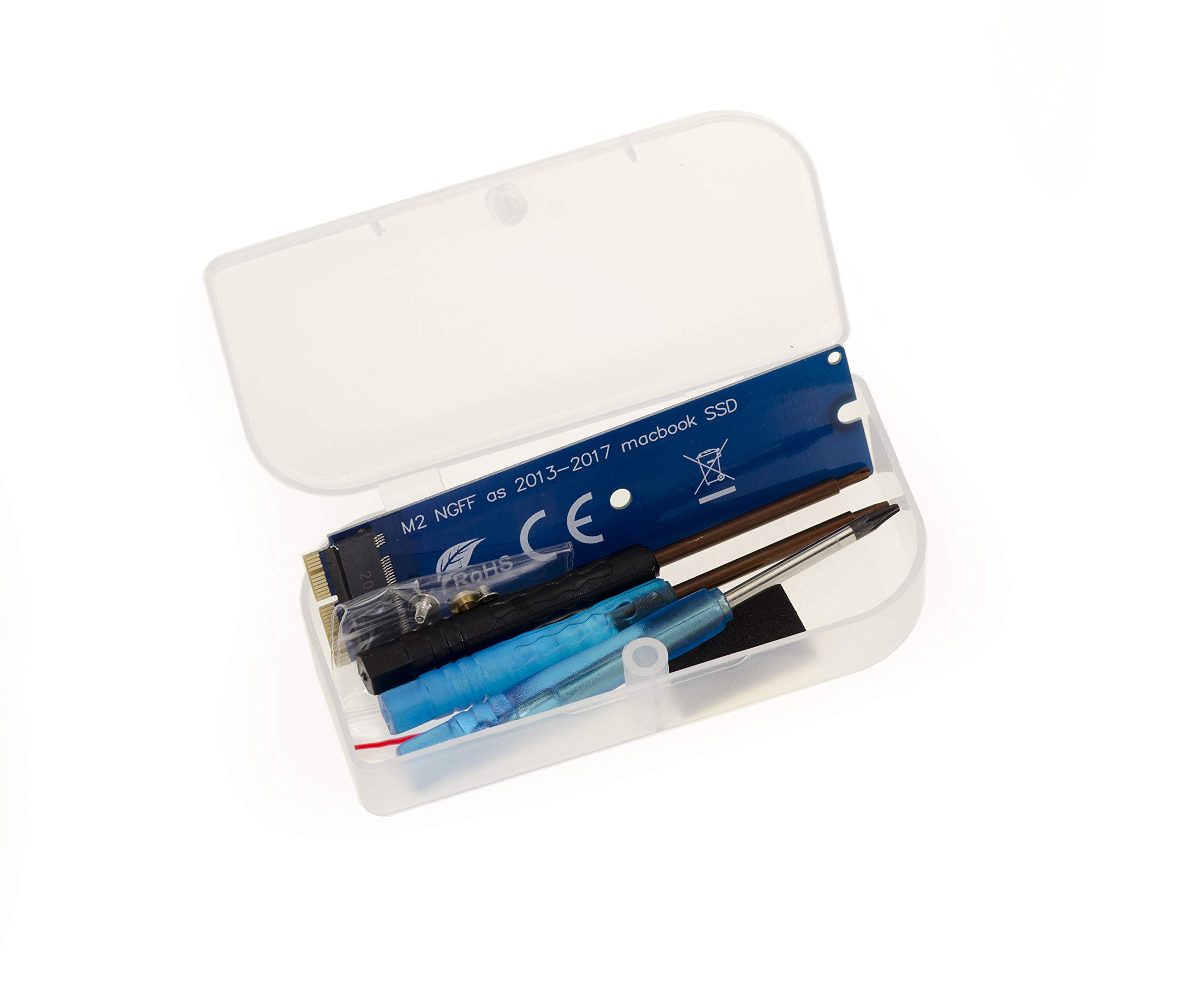

• To mount an M.2 M or B+M Key PCIe SSD card instead of the 12+16 pin SSD present on MacBook Air 2013 and above. Will not fit M.2 SATA type SSDs. Supplied as a kit, with the necessary screws and screwdrivers for assembly. Model manufactured by SINTECH for KALEA-INFORMATIQUE.
• For M.2 drives of PCIe, M or B+M key type only. The adapter will allow you to mount the M2 SSD instead of the original SSD on a MAC using a PCie SSD in 12+16 pins (Macbook produced after 2013).
• 2013, 2014, 2015 Macs do not support NVMe SSDs, so you will need to use an AHCI type SSD with this adapter.
• Macs of 2016 and 2017 type "AIR" and 2015, 2016, 2017 "PRO" support NVMe type SSDs. Rq: You have a way to know if your Mac supports NVMe SSDs via the "Harware" menu, if it is the case the mention "NVMExpress" will be on it.
• INSTALLATION TIPS: SEE DETAILS BELOW.

To mount an M.2 M or B+M Key PCIe SSD card instead of the 12+16 pin SSD present on MacBook Air 2013 and above. Will not fit M.2 SATA type SSDs. Supplied as a kit, with the necessary screws and screwdrivers for assembly. Specifications: For M.2 drives only PCIe, M or B+M Key The adapter will allow you to mount the M2 SSD instead of the original SSD on a MAC using a PCie SSD in 12+16 pins (Macbook produced after 2013). 2013, 2014, 2015 Macs do not support NVMe SSDs, so you will need to use an AHCI type SSD with this adapter. Example of supported SSDs: Samsung XP941 (MZHPU128HCGM MZHPU256HCGL MZHPU512HCGL), Samsung SM951 PCIE-AHCI (MZHPV128HDGM MZHPV256HDGL MZHPV512HDGL)... Macs of 2016 and 2017 type "AIR" and 2015, 2016, 2017 "PRO" support NVMe type SSDs. Example of supported SSDs: PM951 PCIE-NVME (MZFLV128HCGR MZFLV256HCHP MZFLV512HCJH), 950 PRO (MZVKV256 MZVKV512), 960 EVO (MZ-V6E250BW MZ-V6E500BW). ,MZ-V6 E1T0BW)... You will need to prepare a "USB DISK DRIVER" to use this adapter. See for example this article to learn how to create a Flash Recovery: http://www.macworld.co.uk/how-to/mac-software/create-mac-flash-recovery-drive-for-emergencies-3499802/. Rq: you have a way to know if your Mac supports NVMe SSDs via the "Harware" menu, if it is the case the mention "NVMExpress" will appear on it Plug and Play INSTALLATION TIPS: 1- prepare a "USB boot disk" - Download the image disk "High Sierra" and follow the instructions on the Apple website to create the USB boot module. 2- Install the SSD with the adapter. 3- Start the Mac by holding down the "option" key, then launch the USB boot disk. 4- When the installation starts, choose "Disk Utility Tool". 5- select "show all disk utility", create your partition. 6- Go back and then launch "install Mac OS". 7- Select the M2 SSD to install the OS. Note: Some Macs may encounter anomalies after hibernation, so it is advisable to disable hibernation mode.
