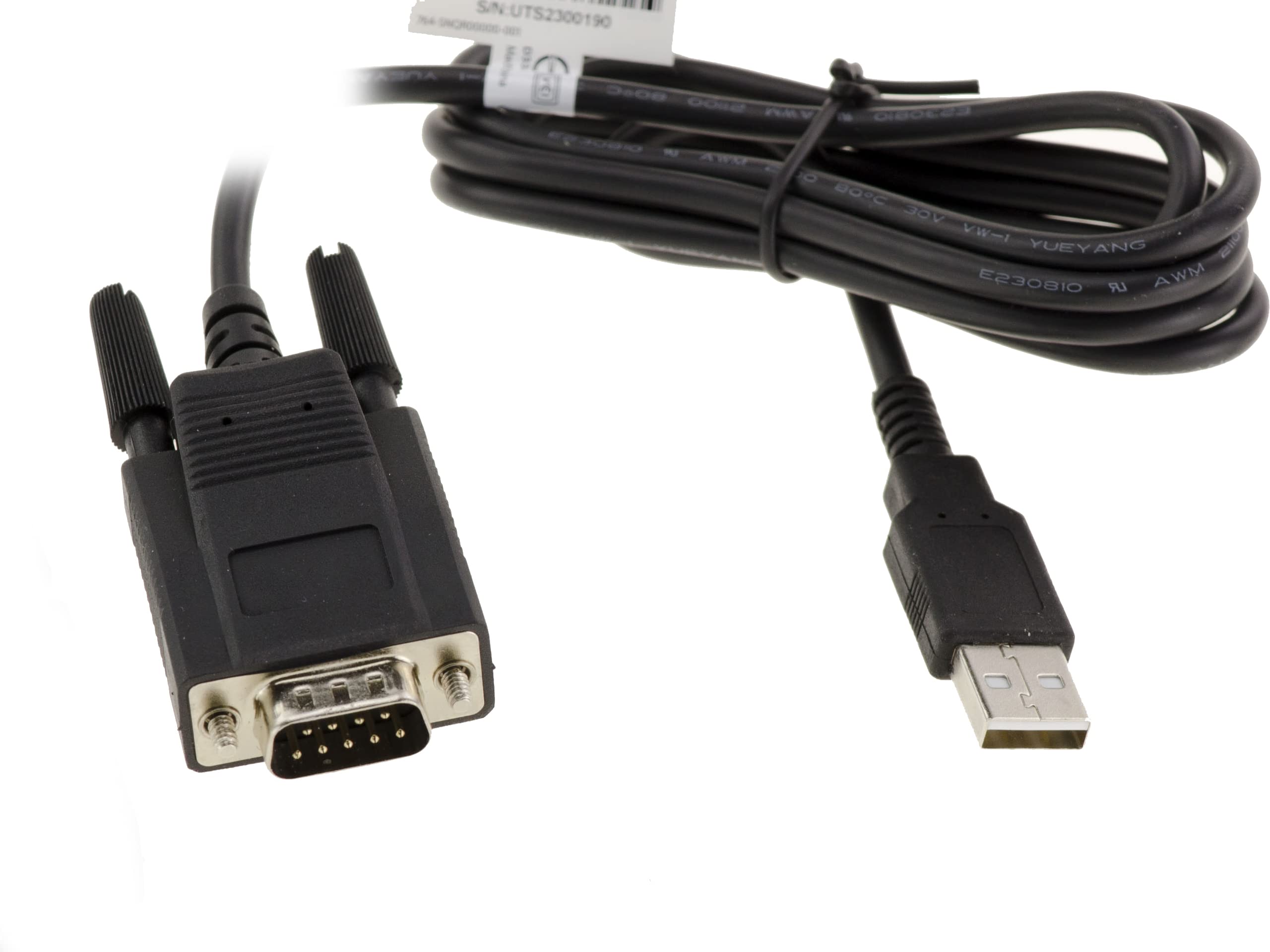

KALEA-INFORMATIQUE Industrial converter USB to RS232 COM DB9 SUNIX UTS1009GC with Chipset PROLIFIC PL2303GC

• Made by SUNIX (Reference UTS1009GC). Prolific PL2303GC chipset. Compatibility: Windows: 7 / 8.x / 10 (X86/X64) / 11. Windows Server: 2008 / 2008R2 / 2012 / 2012R2 / 2016 / 2019. Linux: Linux 2.4.3.1 and higher. MAC: MAC OS 10.9/11. This accessory emulates an RS232 serial port using a USB socket. The port will appear in the device manager as a 'real' serial port, whose addresses you can edit.
• 1 DB9 RS-232 port. Compatible with USB 1.1 full speed 12Mbps and USB 2.0/3.0/3.1. No system-assigned IRQ, DMA, I/O, IRQ & IO address resources required. FIFO: 768 byte buffer.
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND. Baud rate: 50~115.2Kbps. Data bit: 5, 6, 7, 8. Stop bit: 1, 1.5, 2. Parity: even, odd, none, mark, space.
• Protection: Antistatic protection 15 KV for each signal, Human Body Model (HBM), ±15KV IEC1000-4-2 Air Gap Discharge, ±8KV ESD IEC61000-4-2 Contact Discharge; Power supply via USB port. Power consumption standby <100 mA / 5 VDC, active <150 mA / 5 VDC. Operating temperature: 0 to 60°C (32 to 140°F). Operating humidity: 5 to 95% relative humidity. Storage temperature: -20 to 85°C (-4 to 185°F).
• Cable length: 1200 mm. CE, FCC, RoHS and Microsoft WHQL approved.

This accessory emulates an RS232 serial port using a USB plug. The port will appear in the device manager as a 'real' serial port, whose addresses you can work. Compatibility: Windows: 7 / 8.x / 10 (X86/X64) / 11. Windows Server: 2008 / 2008R2 / 2012 / 2012R2 / 2016 / 2019. Linux: Linux 2.4.3.1 and higher. MAC: MAC OS 10.9/11. Specifications: 1 RS-232 DB9 port. Made by SUNIX (Reference UTS1009GC). Prolific PL2303GC chipset. Compatible with USB 1.1 full speed 12Mbps and USB 2.0/3.0/3.1. No IRQ, DMA, I/O address resources required, IRQ & IO allocated by system. FIFO: 768 byte buffer. Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND. Baud rate: 50~115.2Kbps. Data bit: 5, 6, 7, 8. Stop bit: 1, 1.5, 2. Parity: even, odd, none, mark, space. Protection: 15 KV antistatic protection for each signal, Human Body Model (HBM), ±15KV IEC1000-4-2 Air Gap Discharge, ±8KV ESD IEC61000-4-2 Contact Discharge Power supply via USB port. Power consumption standby <100 mA / 5 VDC, active <150 mA / 5 VDC. Operating temperature: 0 to 60 °C (32 to 140 °F). Operating humidity: 5 to 95 % relative humidity. Storage temperature: -20 to 85 °C (-4 to 185 °F). Cable length: 1200 mm. Certified CE, FCC, RoHS and Microsoft WHQL approved.
