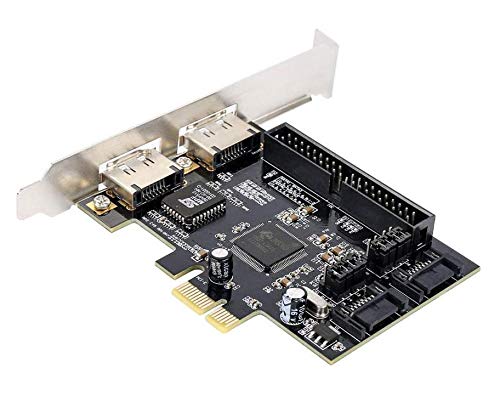

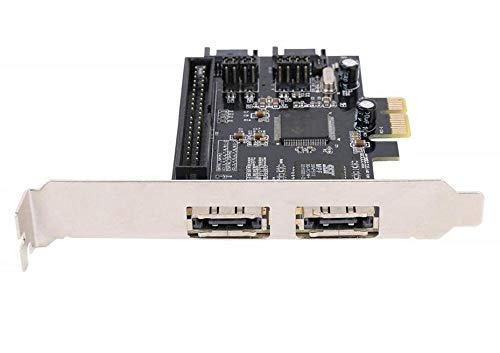

KALEA-INFORMATIQUE SATA or eSATA and IDE controller card on PCI Express PCIe slot - 2 SATA (or eSATA) ports + 2 IDE ATA ports

• For DESKTOP PCs with PCI EXPRESS slot. Adds 2 SATA ports for connecting 1 to 2 SATA peripherals, either internally on a SATA port or externally on an eSATA port. Can also be used to add two IDE peripherals (one port accepts a ribbon cable supporting two peripherals).
• This PCI-E 1x card (PCIe 1.0, PCIe 1.0/2.0/3.0 compatible) supports 2 SATA ports and one IDE (PATA) port. The SATA ports can be routed to either an internal SATA socket or an external eSATA socket via jumpers on the card. Accepts up to 4 peripherals in total, either individually or in RAID POSSIBLE RAID FUNCTIONS 0,1,0+1,JBOD
• PCI Express 1x Chipset JMICRON. Drivers included for WINDOWS 95, 98SE, Me, NT, 2000, XP, Vista, Seven, 8, 10, Linux, DOS.
• 2x SATA ports: 3Gbps bandwidth, maximum speed 300MB/s Supports Hot Plug NCQ compatible
• 1x IDE ports: One IDE socket supporting up to two IDE peripherals UDMA compatible up to UDMA6 !!!!

For desktop PCs on PCI Express port. Allows you to add 2 SATA ports to connect 1 to 2 SATA devices either internally on SATA port or externally to eSATA port. Additionally, add two IDE devices (one port that accepts a ribbon supporting two devices). Compatibility: All SATA devices (maximum speed 300MB/s). All IDE devices. Drivers included for all Windows 32 and 64 bit + Mac. Features: This 1x PCI-E card (PCIe 1.0, PCIe 1.0/2.0/3.0 compatible) supports 2 SATA ports and one IDE (PATA) port. The SATA ports can be connected to either an internal SATA socket or an external eSATA socket via jumpers on the board. Accepts up to 4 devices in total, either individually or in RAID. POSSIBLE RAID FUNCTIONS 0,1,0+1,JBOD. PCI Express 1x JMICRON Chipset. 2x SATA Ports: 3Gbps bandwidth, maximum throughput 300MB/s, Supports Hot Plug, NCQ compatible. 1x IDE ports: One IDE socket supporting up to two IDE devices, Compatible with UDMA up to UDMA6! !! !.
