KALEA-INFORMATIQUE Serial RS232 and Parallel PCI Express PCIe controller card with 4 RS-232 DB9 COM ports and 1 IEEE1284 DB25 LPT port. SUNIX SUN1999 (MIO5499A) chipset

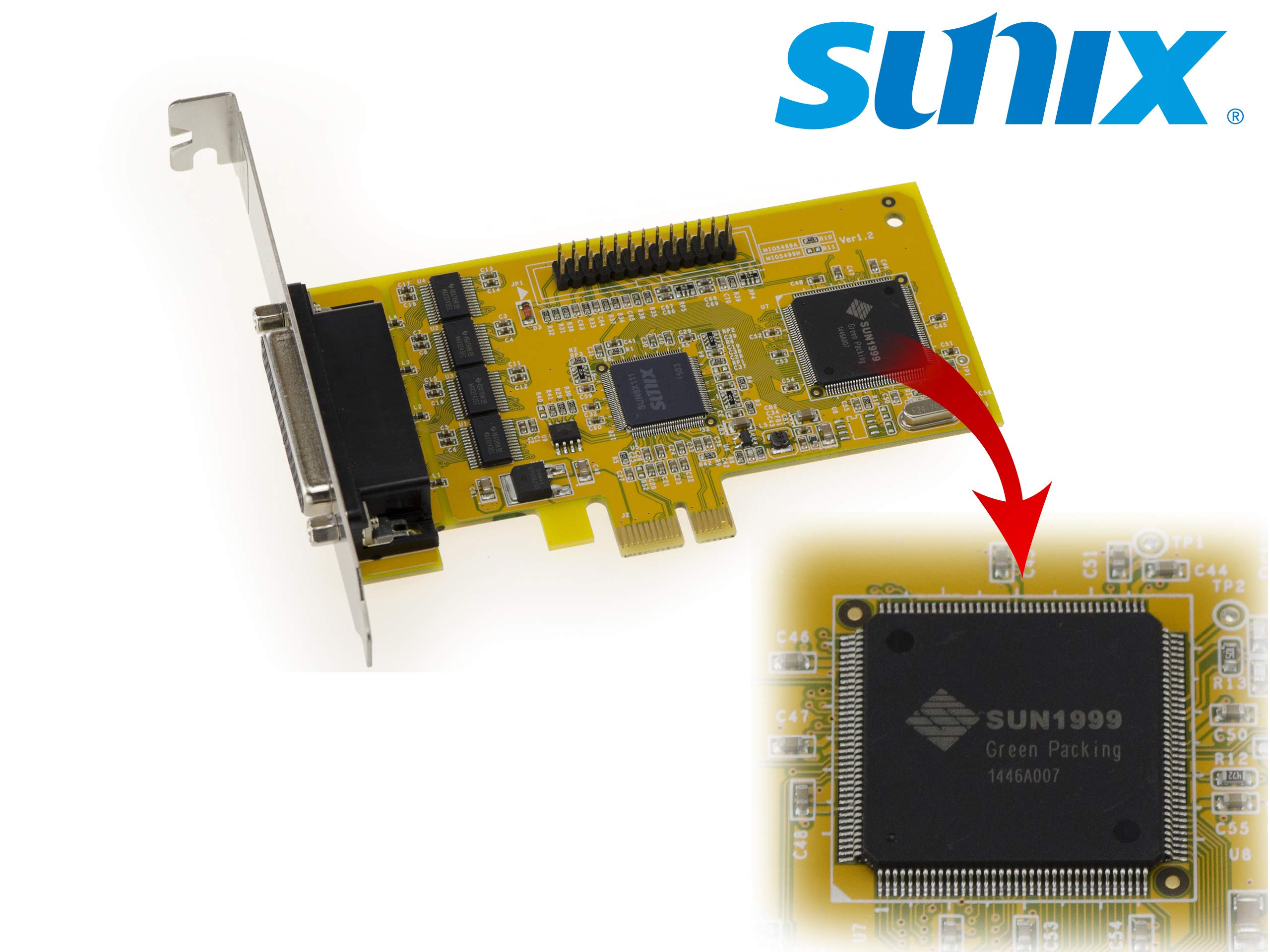

• Made by SUNIX (Reference MIO5499A). SUNIX SUN1999 CHIPSET. PCIe 2.0, 1x

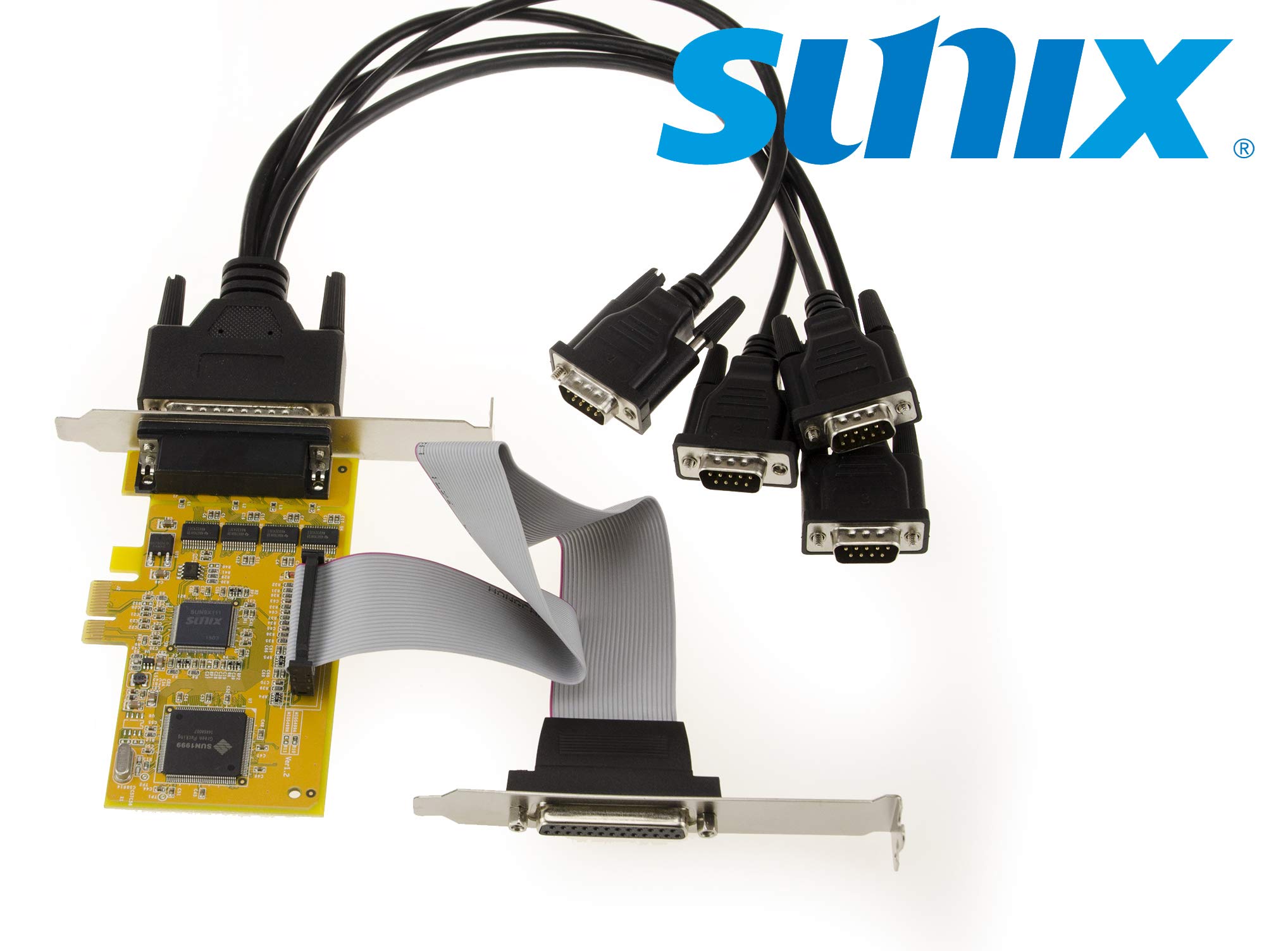

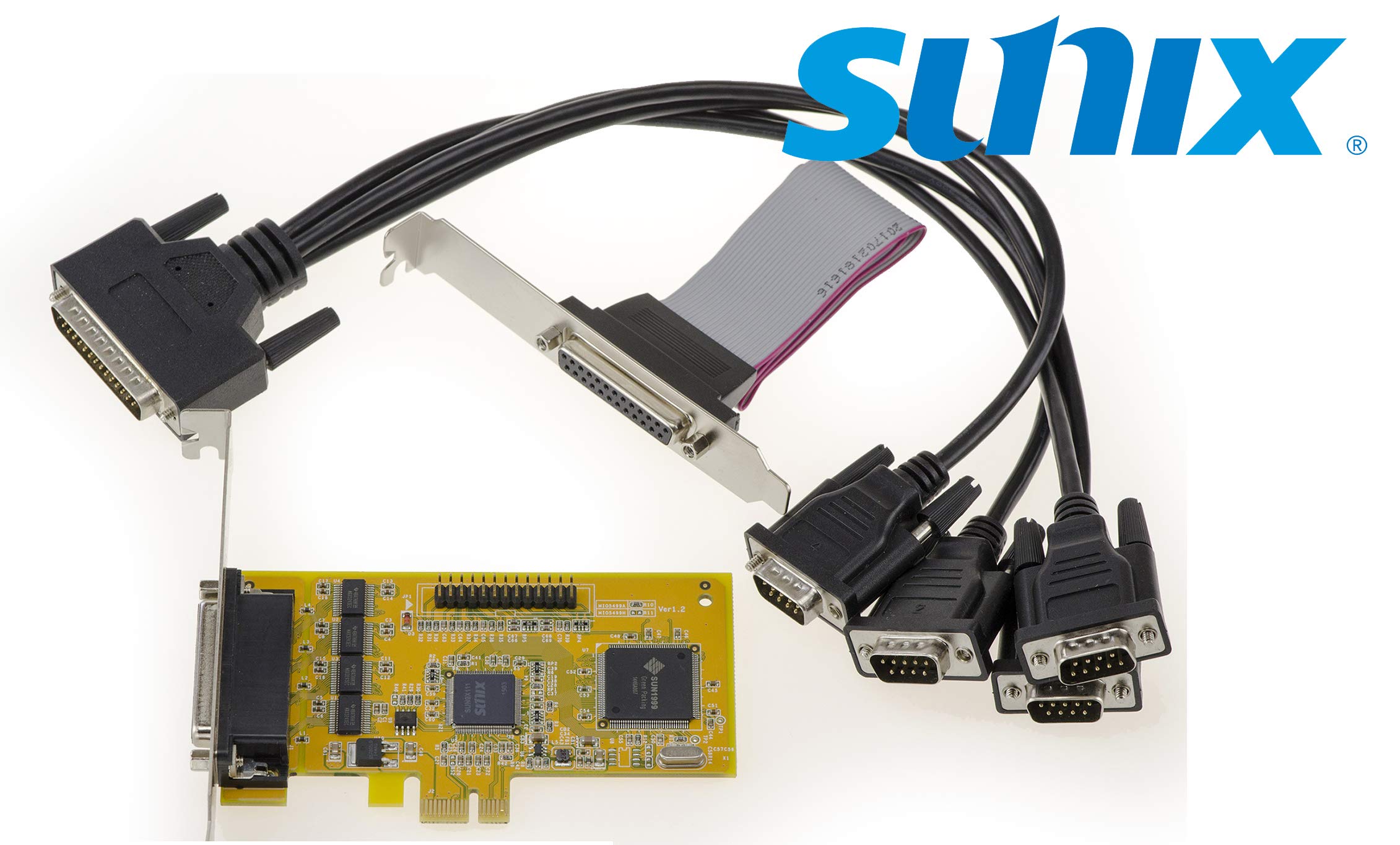

• RS232 IRQ and IO assigned by FIFO 128 byte Hardware Signals DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI Transfer rate 50bps ~ 115.2Kbps Data Bit 5,6,7,8 Stop Bit 1, 1. 5, 2 Parity even, odd, none, mark, space Flow Control None, Xon/Xoff, RTS/CTS Protections: ±2KV ESD (HBM) 1 DB44 Female Connector (supplied with DB44 to 4x DB9 cable)
• PARALLEL IEEE1284 interface 1 x 16-byte FIFO port (hardware) SPP/ECP/EPP/BPP signals Maximum data rate 1.8Mbps DB25 connector (on cable to be inserted into 2x13 connector on PCB)
• Drivers for: XP/Vista/7/8.x/10(X86/X64) - Server 2003/2008/2012/2016 (x64) - Embedded XP Embedded/POSReady 2009/POSReady/Embedded System 2009 - Linux 2.x / 3.x / 4. x - DOS - FreeBSD 5.3~5.5/6.0~6.4 - QNX 6.3.2/6.4.0.Standards: CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, RoHS. Environment: 0 to 60°C (operating), 5 to 95% RH, -20 to 85°C (storage). Card dimensions 65 x 69 mm
• Rq: Does not support "Key Locker" on parallel interface / Legacy 278/378 ISA modes are only supported in DOS mode / ECP/EPP/SPP/BPP modes are only supported by Windows, under Linux only SPP mode will be supported.

Features: Made by SUNIX (Reference MIO5499A). CHIPSET SUNIX SUN1999. PCIe 2.0, 1x. RS232 : IRQ and IO assigned by the system, FIFO 128 byte Hardware, Signals DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI, Transfer rate 50bps ~ 115.2Kbps, Data Bit 5,6,7,8, Stop Bit 1, 1. 5, 2, Parity even, odd, none, mark, space, Flow Control None, Xon/Xoff, RTS/CTS, Protections: ±2KV ESD (HBM), 1 DB44 Female Connector (supplied with DB44 to 4x DB9 cable). PARALLEL: IEEE1284 1 port interface, FIFO 16 byte (hardware), SPP/ECP/EPP/BPP signals, Maximum data rate 1.8Mbps, DB25 connector (on cable inserted into 2x13 connector on PCB). Drivers for: XP/Vista/7/8.x/10(X86/X64) - Server 2003/2008/2012/2016 (x64) - Embedded XP Embedded/POSReady 2009/POSReady/Embedded System 2009 - Linux 2. x / 3.x / 4.x - DOS - FreeBSD 5.3~5.5/6.0~6.4 - QNX 6.3.2/6.4.0. Standards: CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, RoHS. Environment: 0 to 60°C (operating), 5 to 95% RH, -20 to 85°C (storage). Card dimensions 65 x 69 mm. Rq : Does not support "Key Locker" on parallel interface / Legacy 278/378 ISA modes are only supported in DOS mode / ECP/EPP/SPP/BPP modes are only supported by Windows, under Linux only SPP mode will be supported.
