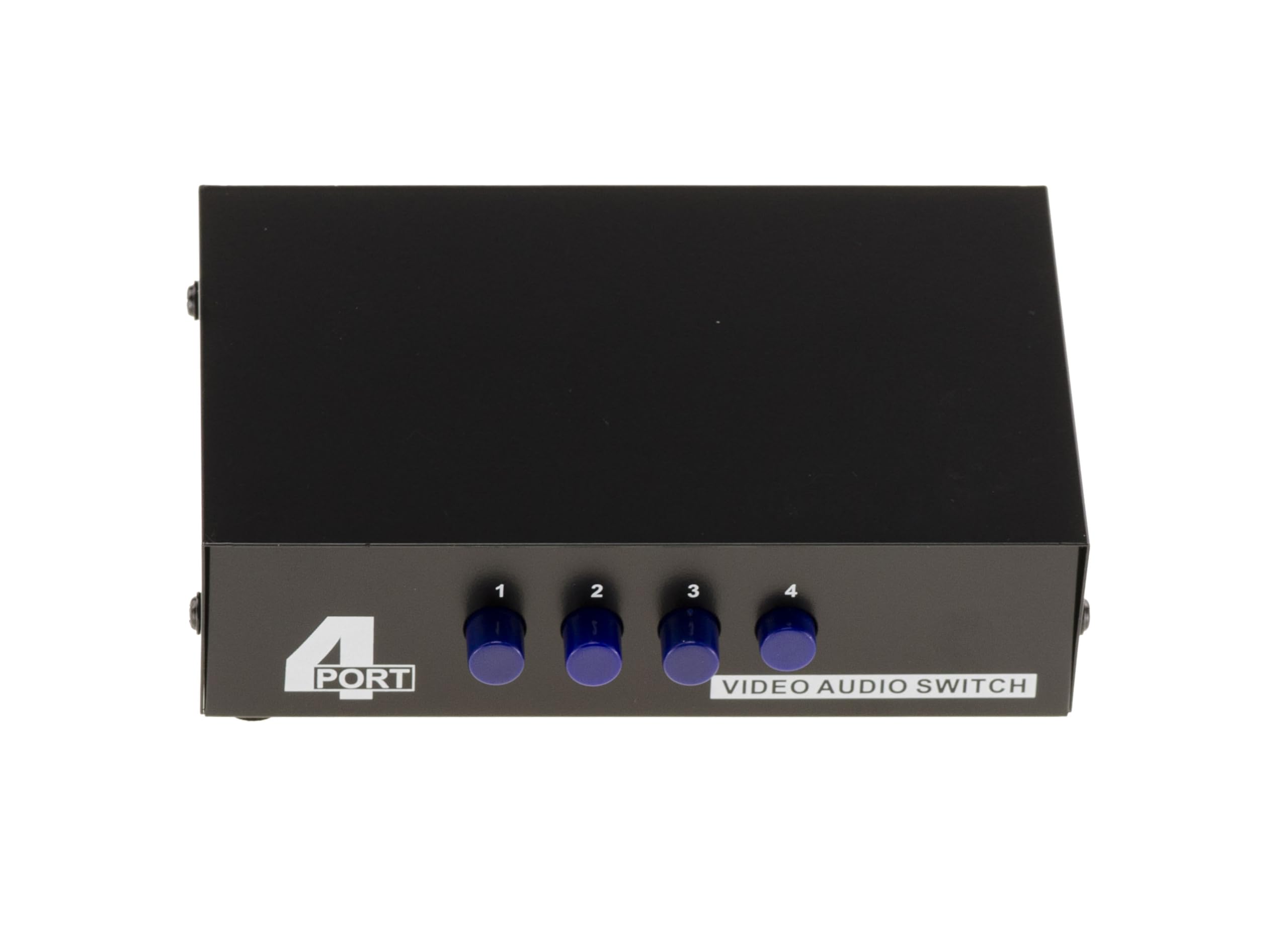

KALEA-INFORMATIQUE switch-type audio video splitter box for routing 1 input to 4 outputs or 4 inputs to 1 output

• Usage: This system works like a switch from a single source to one of four possible outputs, or from one of 4 possible sources to a single output.
• Specifications: 1 Input/Output: 1 composite channel + 2 sound channels (left channel + right channel), 4 Outputs/Inputs: each channel has 1 composite + 2 stereo. The switch is passive: it does not touch the signal or amplify it. Frequency range 10Hz-20KHz. Maximum resolution supported 1024x768 at 85Hz in composite.
• Metal case. Dimensions: 135 x 85 x 45 mm.

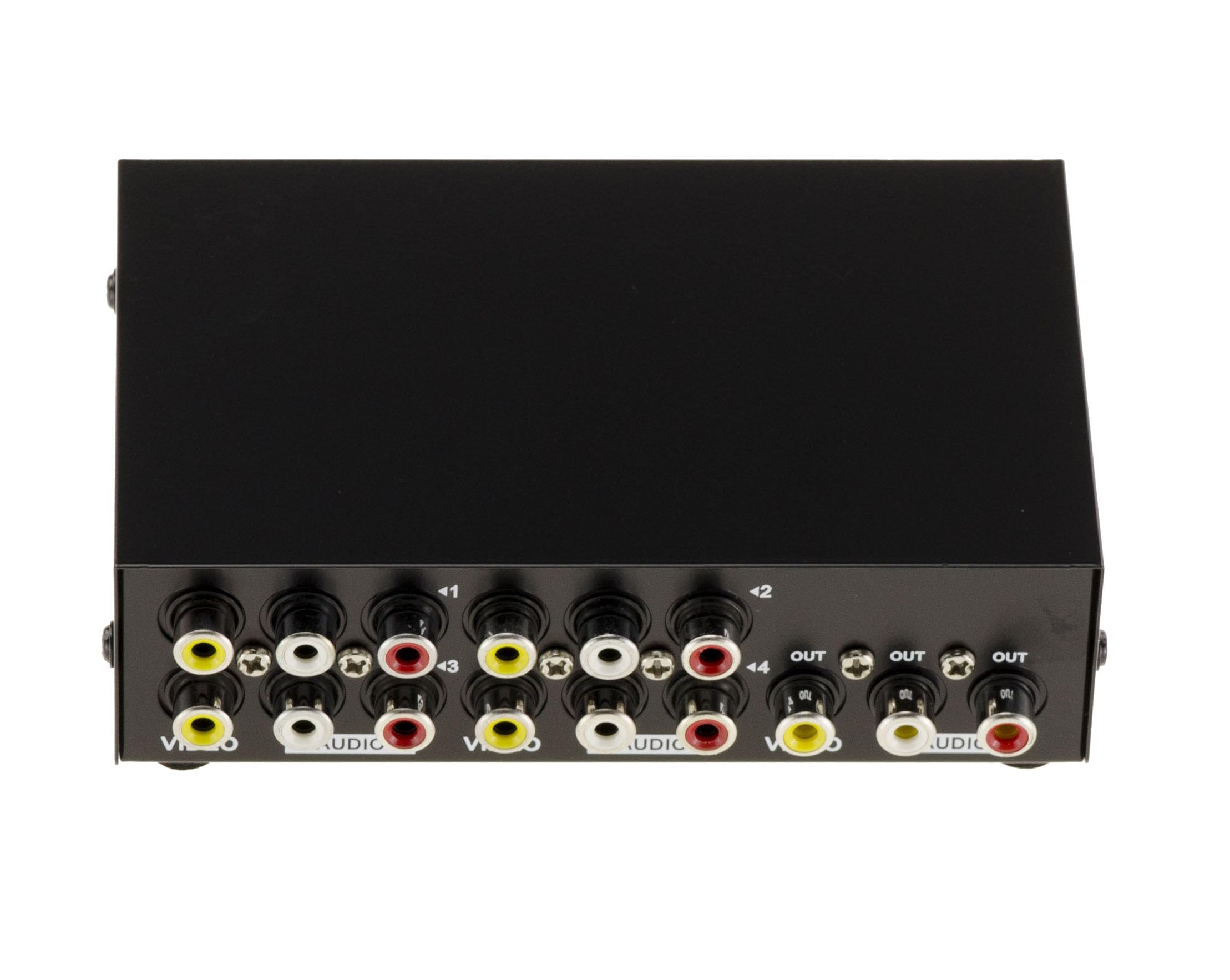

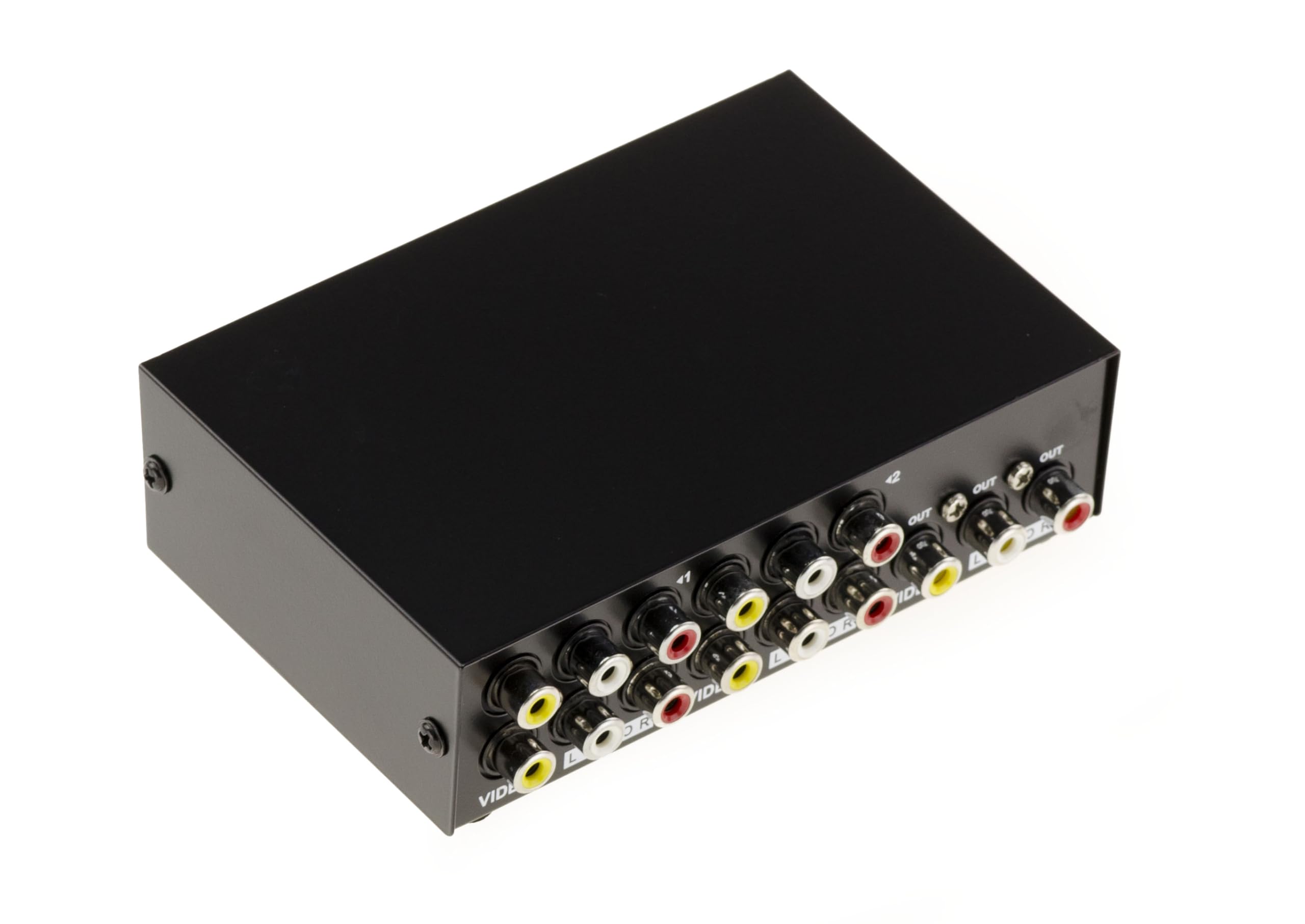

This system works as a switch: - from a single source to one output out of four possible - from one of four possible sources to a single output. Specifications: 1 Input/Output: 1 RCA Composite Channel + 2 Way Sound (Left + Right Channel) RCA. 4 Outputs/Inputs: Each channel has 3 RCA, 1 Composite + 2 Stereo. The switch is passive: it does not touch the signal, nor amplifies it. Frequency band restored 10Hz-20KHz. Maximum resolution supported 1024x768 at 85Hz composite. Metal case. Dimensions: 135 x 85 x 45 mm.
