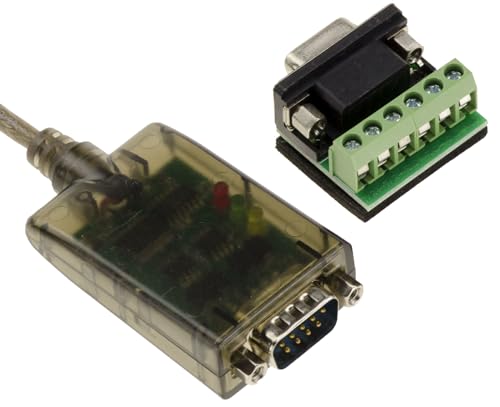

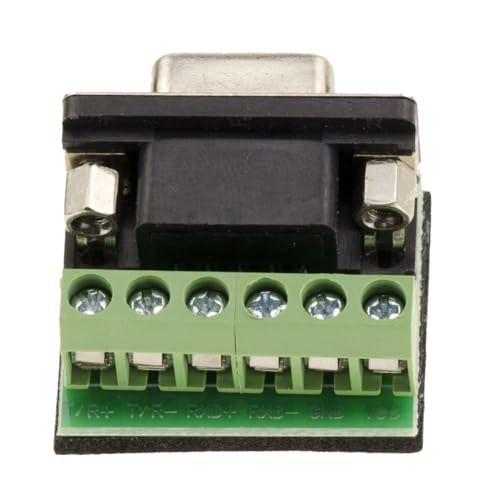

KALEA-INFORMATIQUE USB to RS-422 RS-485 converter with FTDI FT232 Chipset. Wire to wire or DB9 plug mounting

• FTDI CHIPSET TYPE FT232 - FDTI chipsets are very popular for their stability in processes USB UART Standard USB 2.0, compatible with USB 1/2/3
• RS-485,RS-422 TIA/EIA USB signals: VCC, DATA+, DATA-, GND and FG RS-422 signals: T/R+,T/R-,RXT+,RXD-,GND RS-485 signals: T/R+,T/R-.GND
• Supported modes: asynchronic, point/point, point/multipoint (2 half duplex wires or 4 full duplex wires) Automatic data flow control (data-flow direction) Supported speeds from 300 baud to 921600 baud; UART interface 7/8 data bits,1 or 2 stop bits, even/odd/mark/space/none
• Flow control types none, hardware and xon/xoff. Transmission distance RS-485/422 side: 1.2 km (300bps-921600bps), and USB side: Max 5 m (we do not recommend the use of USB extension cords) Protection ±15KV ESD Activity diodes: Power (PWR), Sending (TXD) Reception (R). XD)
• Windows XP,Vista,7,8,10,11 32/64-bit Windows Server 2K3,2K8,2K12 32,64-bit Windows XP Embedded Windows CE 4.2, 5.0 and 6.0 Mac OS-X Linux 3.2 and more Android

RS-485 and RS-422 to USB Complete Converter, Braided Cord 1.2 m - WITH CHIPSET FDTI FT232 Use: This adapter allows you to connect an RS485-422 system to a USB port. Specifications: FTDI CHIPSET TYPE FT232 - FDTI chipsets are very popular for their stability in USB UART processes. USB 2.0 standard, compatible with USB 1/2/3. RS-485,RS-422 TIA/EIA USB signals: VCC, DATA+, DATA-, GND and FG. RS-422 signals: T/R+,T/R-,RXT+,RXD-,GND. RS-485 signals: T/R+,T/R-.GND. Supported modes: asynchronic, point/point, point/multipoint (2 half duplex wires or 4 full duplex wires) Automatic data flow control (data-flow direction). Supported speeds from 300 baud to 921600 baud. UART interface 7/8 data bits,1 or 2 stop bits, even/odd/mark/space/none. Flow control types none, hardware and xon/xoff. Transmission distance from RS-485/422 side: 1.2km (300bps-921600bps), and USB side: Max 5m (we do not recommend using USB extension cords). Protection ±15KV ESD. Activity diodes: Power (PWR), Sending (TXD) Receive (RXD). Windows XP,Vista,7,8,10,11 32/64-bit Windows Server 2K3,2K8,2K12 32.64-bit Windows XP Embedded Windows CE 4.2, 5.0 and 6.0 Mac OS-X Linux 3.2 and more Android.
