KALEA-INFORMATIQUE M2 to MiniPCIe adapter for WIFI or Bluetooth card, Intel 7260NGW compatible

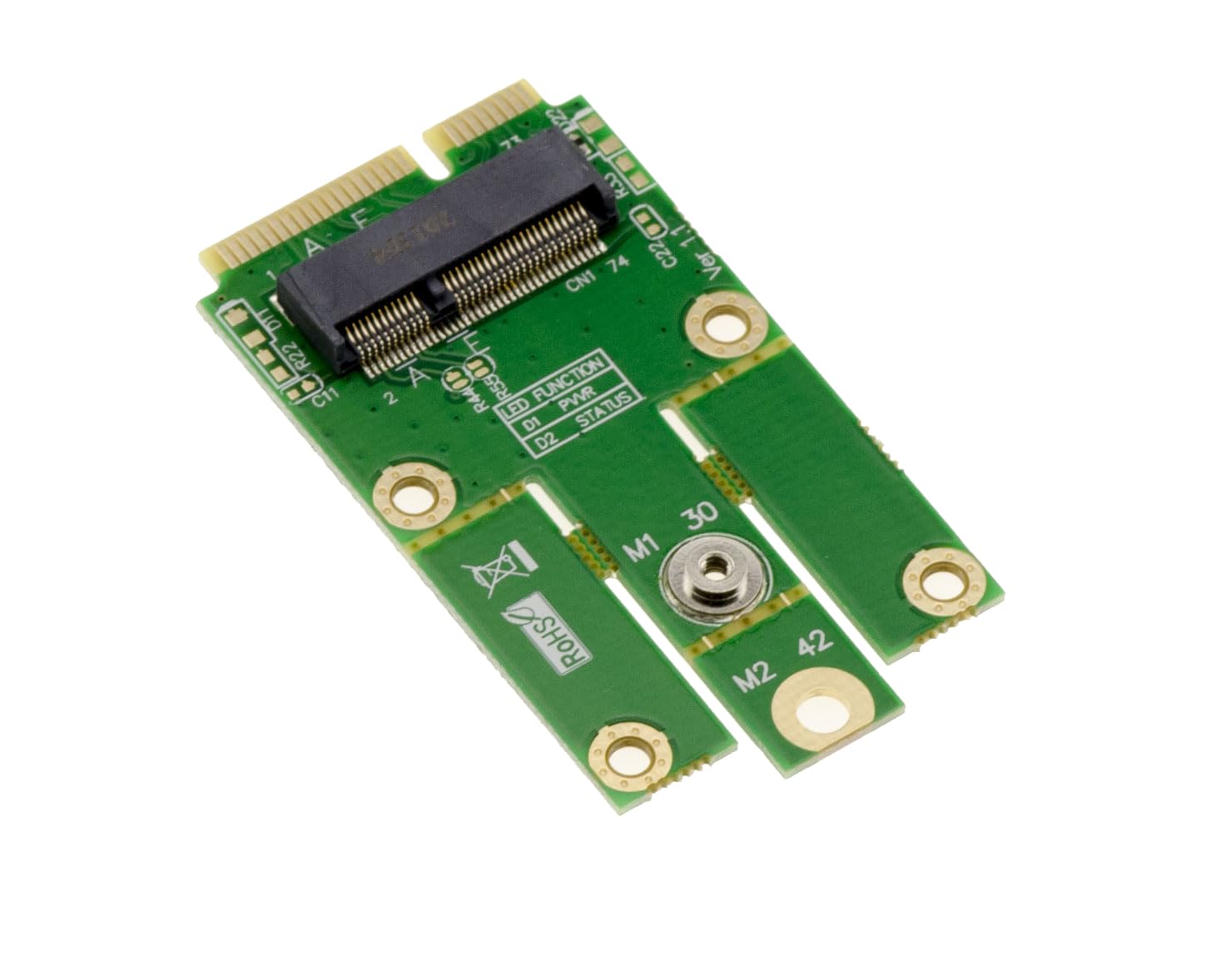

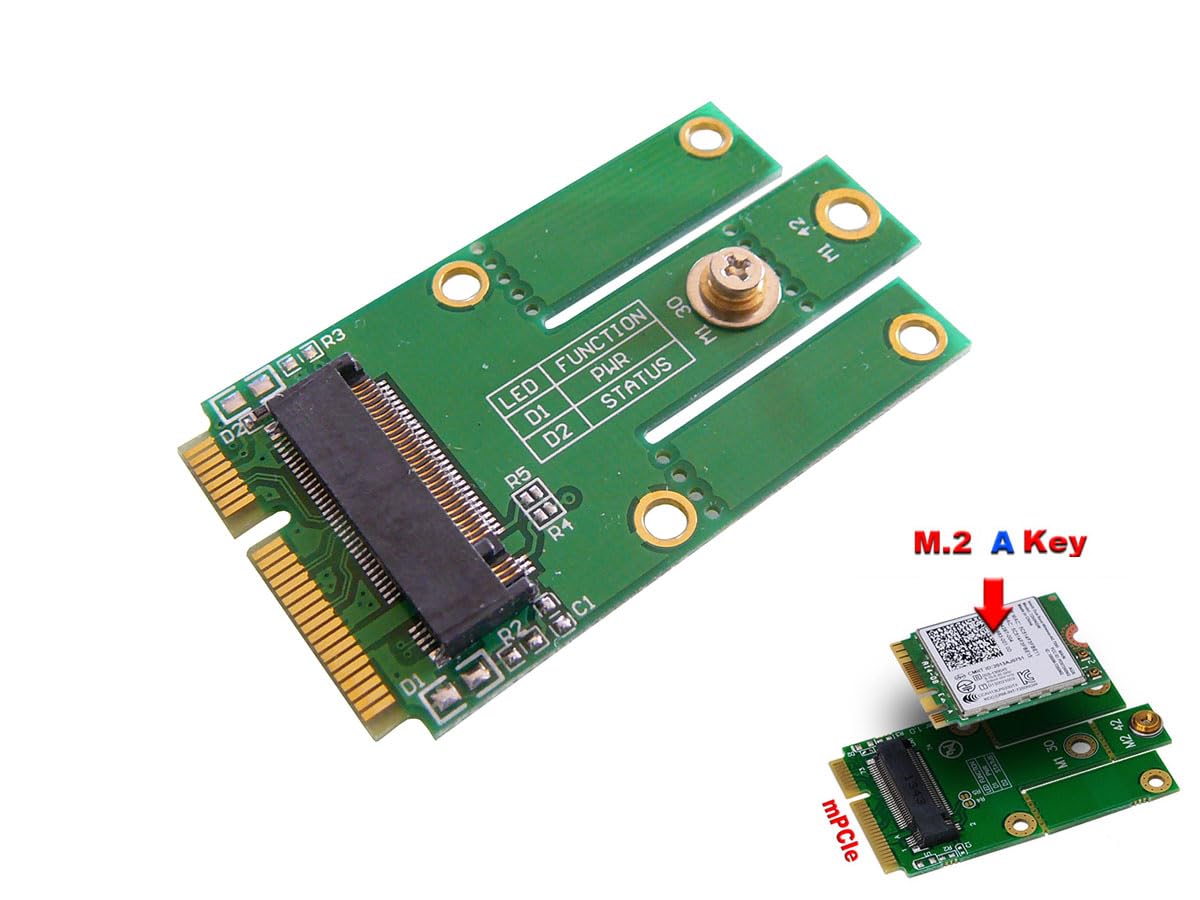

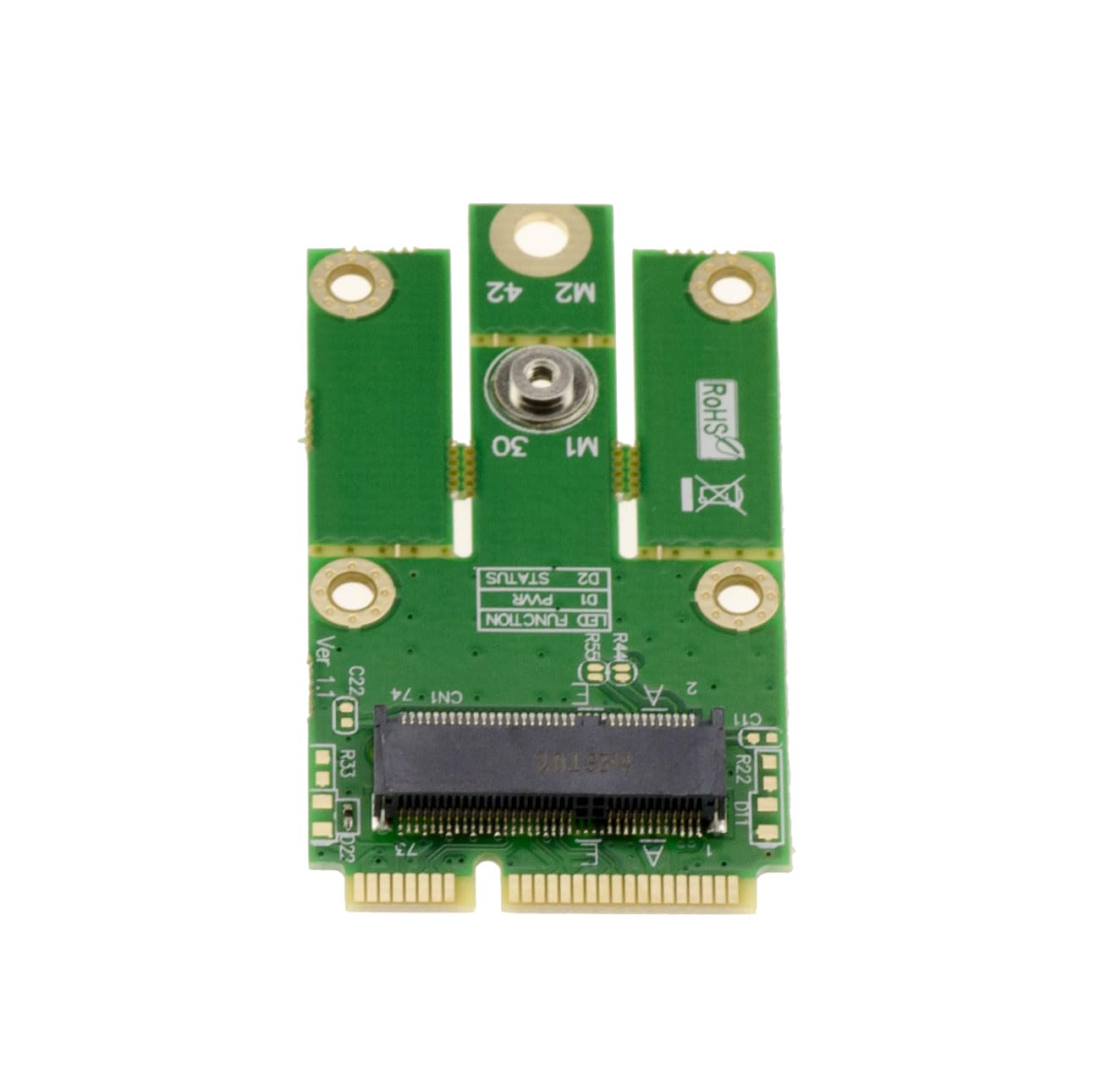

• To mount a WiFi or Bluetooth extension card on a miniPCIe type port. Be careful not to confuse miniPCIe and mSATA, these ports are alike but you cannot mount a card on an mSATA slot to support an SSD. Total dimensions of the card: 55 x 30 mm (shortest 26 x 30 mm because the card is breakable) Mounting screws for the M2 card.
• MiniPCIe port 1.1 (2.5 GBPs maximum) compatible with full and half size mPCIe slots. Will work on PCIe or USB type ports.
• Will support M2 type 3030 and 3042 M2 Socket 1 module formats.
• Example of supported cards if the mPCIe interface is USB Type: 3G, CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card. Example of supported cards if the mPCIe interface is PCIe type: IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac.
• Compatible with Intel 7260NGW cards with 802.11ac WiFi & Bluetooth 4.0

For mounting a device expansion card Wifi or Bluetooth to a miniPCIe port. Please note: Do not confuse miniPCIe mSATA, they look very similar but you won't ride this card on a mSATA slot for SSD bearing. miniPCIe port 1.1 (up to 2.5 Gbps) Compatible with full size and half size mPCIe slots. Works Access to mPCIe PCIe or USB port. Will withstand the supported media formats M2 Type 3030 and 3042 M2 socket 1 Module example if the mPCIe interface is USB Type: 3G, CDMA, Bluetooth, HSPA WWAN, GPS, mobile, Mini Card.. Supported Media if the mPCIe interface is PCIe include:IEEE WLAN802.11 a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac Compatible with Intel 7260NGW with 802.11ac WiFi & Bluetooth 4.0 of the overall dimensions of the card: 55x30 mm (Short 26x30 mm, because this card is breakable) fixing screws for the M2 card
