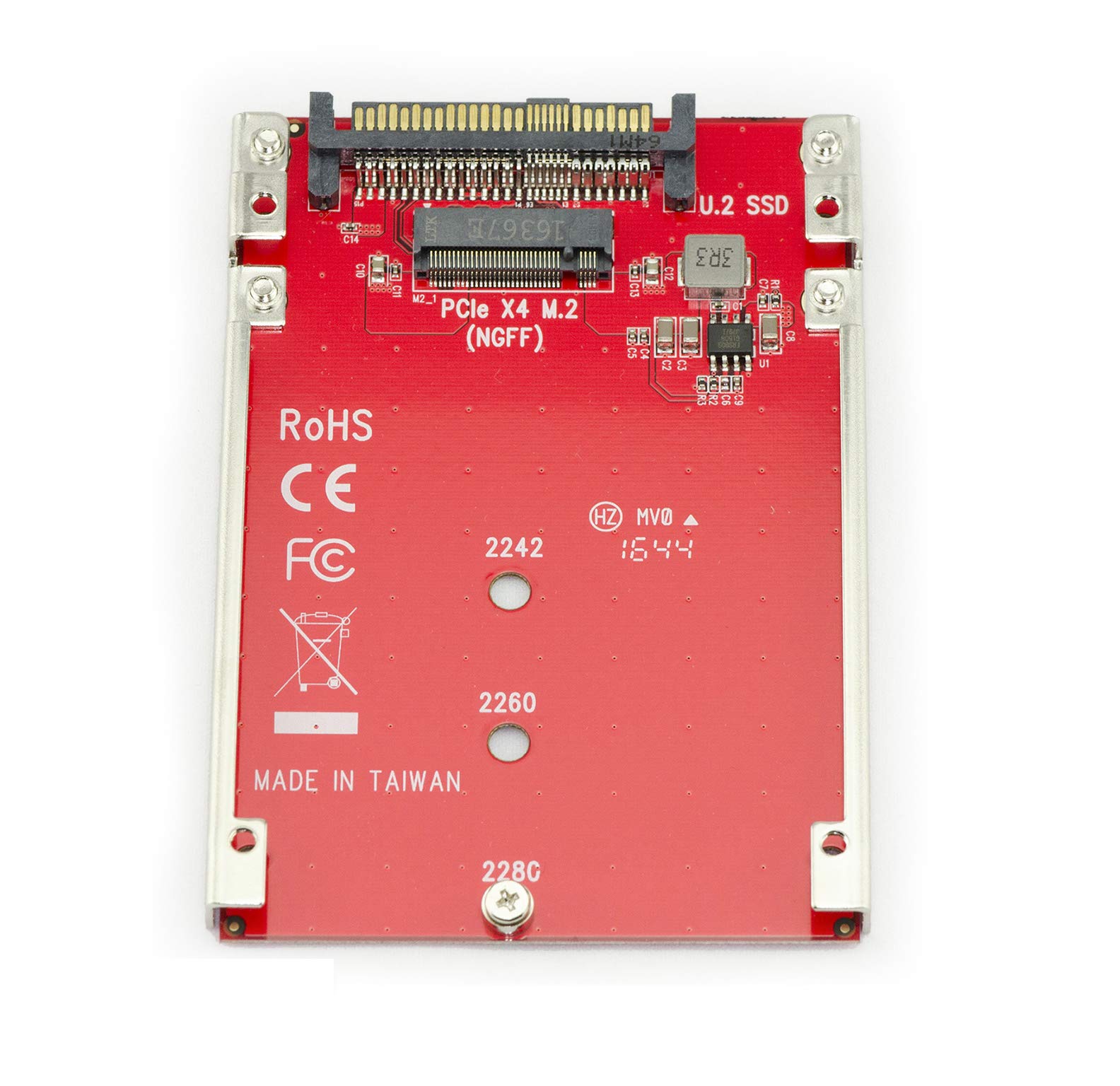

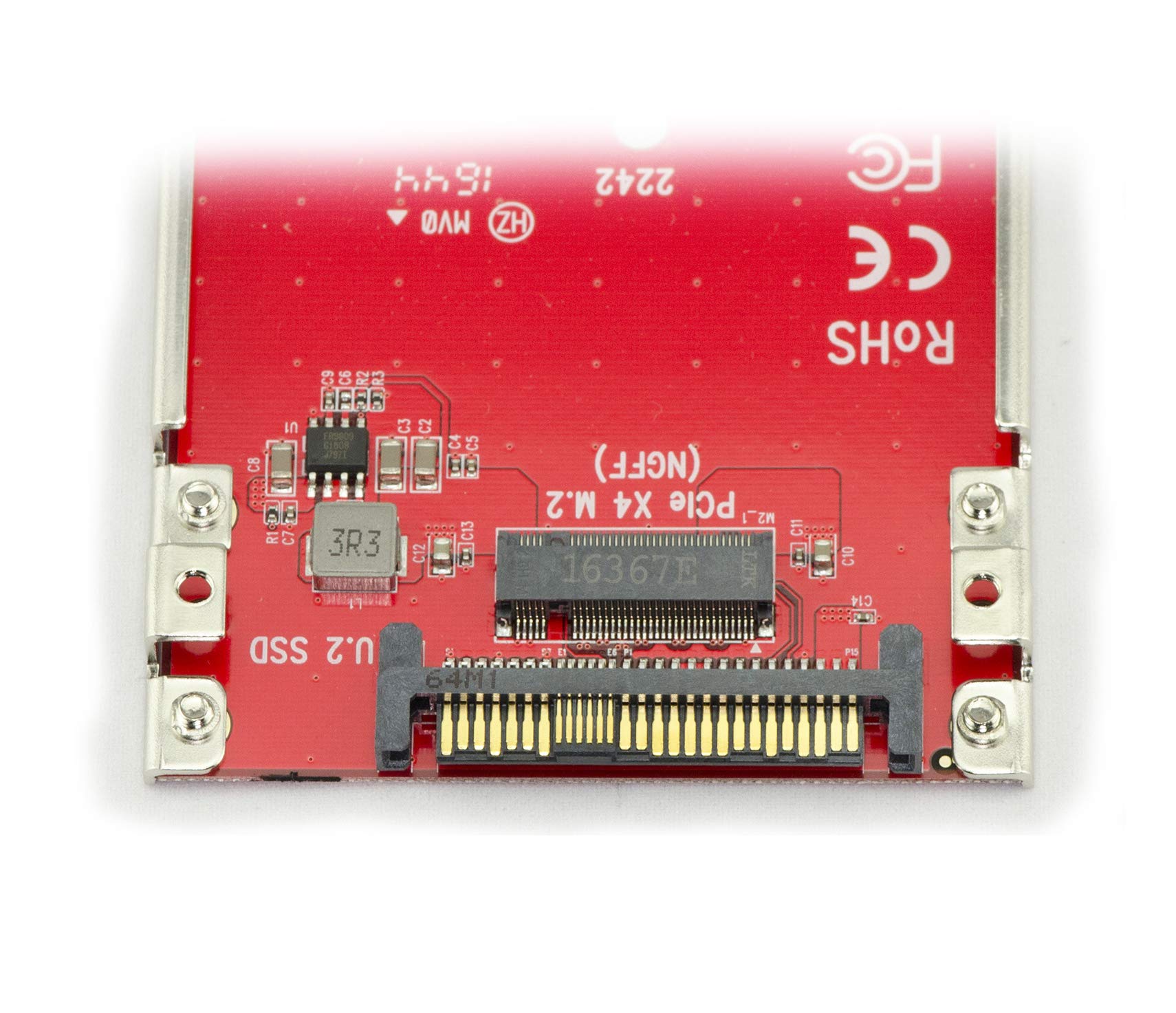

KALEA-INFORMATIQUE Adapter converter for mounting an M.2 NVMe SSD on a U.2 SSD port. M2 M Key to U2 68Pin conversion SFF-8639

• Converts M2 PCIe SSD to U2 2.5" SSD SFF-8639 - For 80, 60 or 42mm M2 PCIe Gen 3.0 SSDs. WARNING THIS IS NOT AN NVMe TO SATA CONVERTER (which does not exist), BUT NVMe TO U.2.
• PCIe 3.0. M2 connector type 2280-D5-M. U.2 68-pin connector SFF-8639
• Brackets for 3 possible sizes: 2242, 2260 and 2280. Compatible with double-sided M2 SSDs with components on both sides. 2.5" metal chassis with fixing screws
• Compatible with M2 SSDs requiring a 3.3V 5A high power supply. RoHS components
• Transparent device for the operating system, compatible with all operating systems - update required for Windows to support latest-generation SSDs (https://support.microsoft.com/en-us/kb/2990941)

Convert PCIe-NVMe M.2 SSD to NVMe U.2 2.5" SFF-8639 SSD o Compliant with PCI Express 3.0 x4 Lane o M.2 NGFF type 2280-D5-M M Key socket on board o Supports PCIe Gen3 x4 M.2 80mm, 60mm, 42mm NVMe SSD o 68Pin U.2 SFF-8639 interface to PCIe-NVMe Host o Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 SSD o Supports dual-sided SSD module 1.5mm component height on the top and bottom side o Includes 2.5" drive metal frame with 8 mounting holes and 4 HDD screws o Dimension of PCBA with 2.5" frame : 100.45 mm x 69.85 mm x 7 mm o Transparent to the operating system and no board driver required o Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support NVMe SSD o Microsoft (https://support.microsoft.com/en-us/kb/2990941) Update to support NVM Express by using native drivers in Windows 7 or Windows Server 2008 R2 o Provides 3.3V5A High Power to M.2 NVMe SSD o Require a SFF-8643 to U.2 Cable connection to similar PCIe x4 NVMe Host PE-131 (http://www.lycom.com.tw/PE-131.htm) or directly attached to PE-132 (http://www.lycom.com.tw/PE-132.htm) o Fully RoHS compliant
