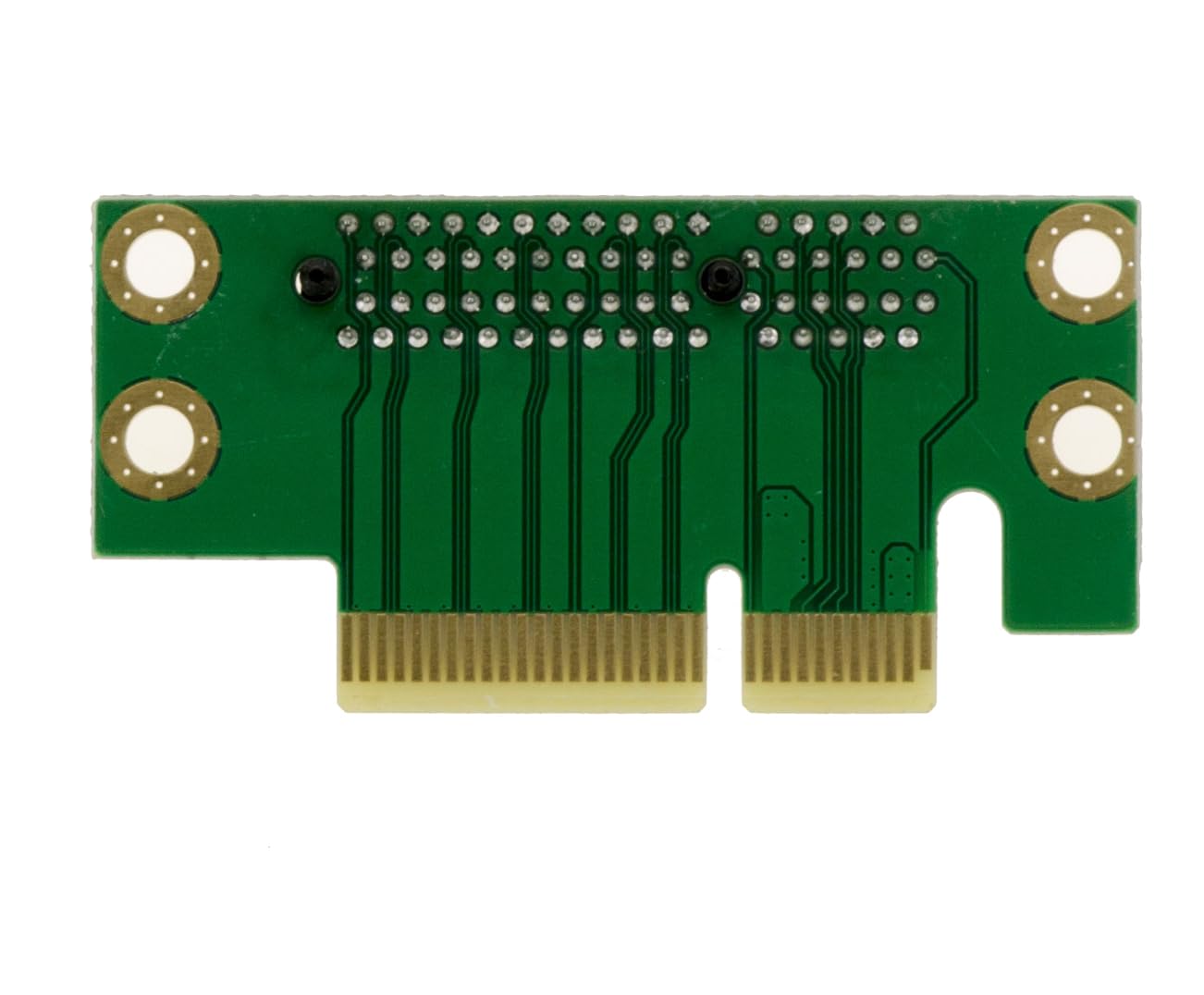

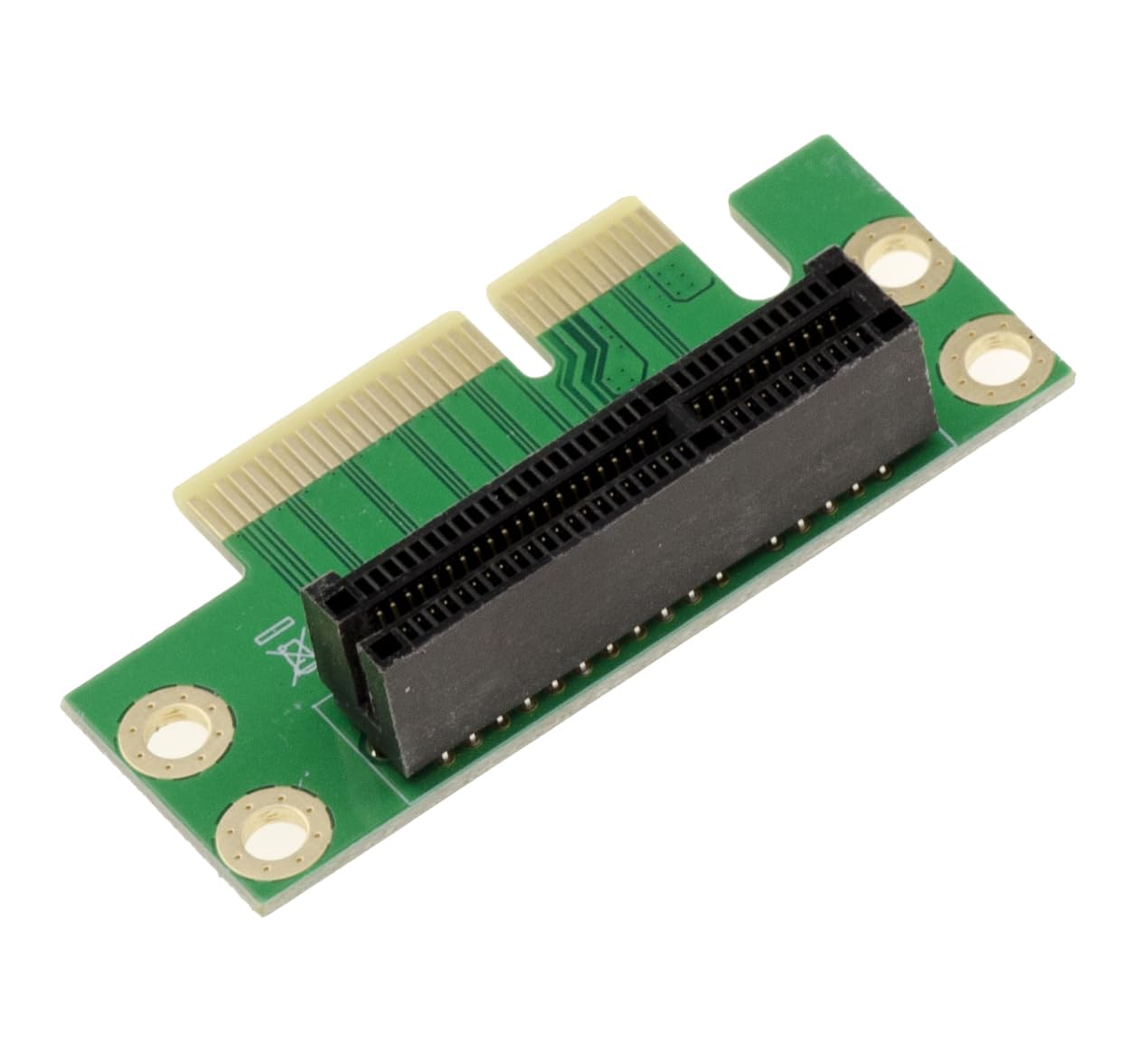

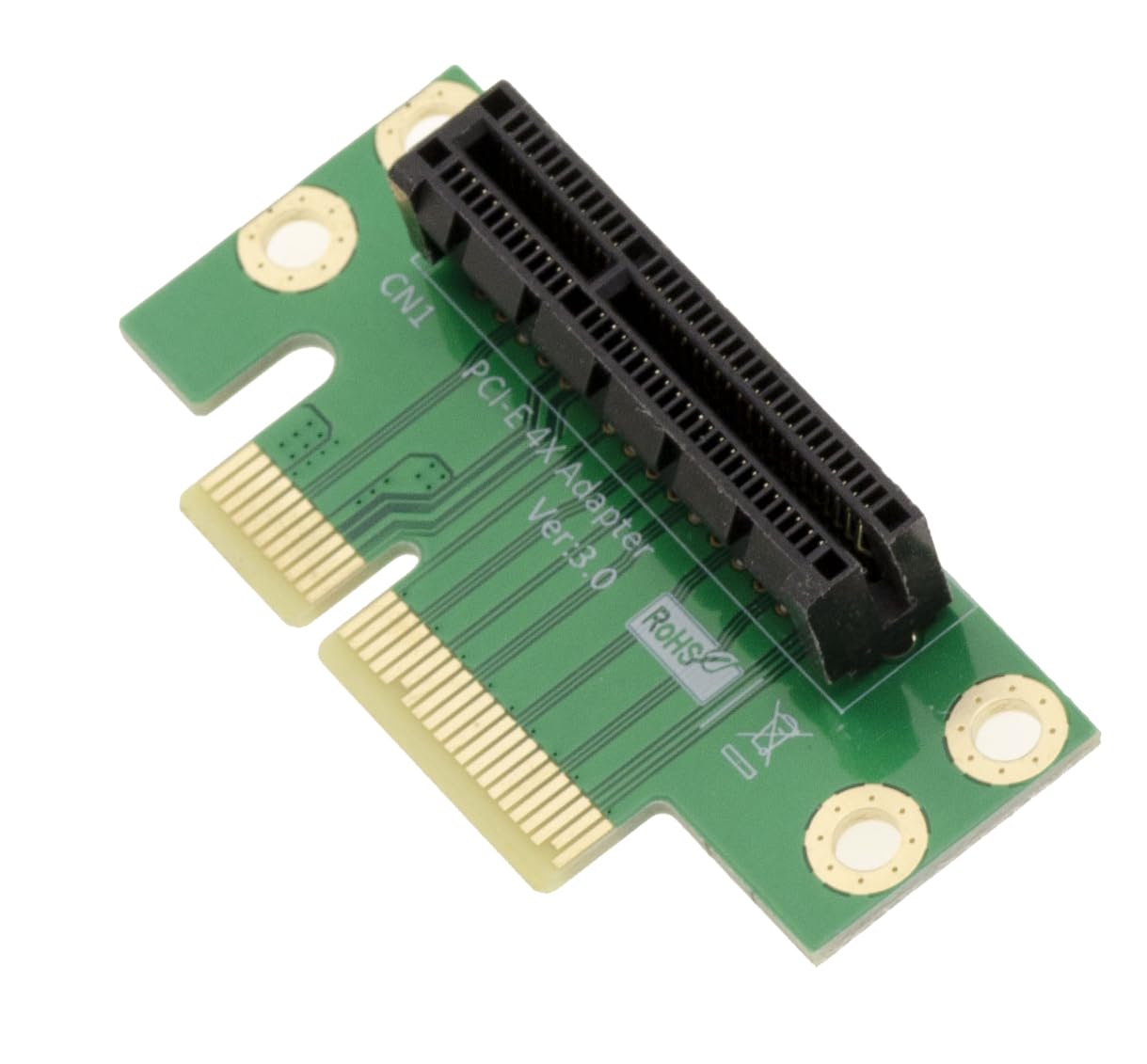

KALEA-INFORMATIQUE 90° riser adapter for PCIe slot x4. For horizontal mounting of a PCI Express card x1 x2 x4

• PCI-E 1 port bracket - 90° angle PCI EXPRESS 4x. For placing a PCI-E card horizontally to obtain an extra-flat case.
• Fits any server or desktop PCI Express 4x, 8x or 16x slot, Supports all PCI Express cards, Mylard insulation on rear of riser.
• Total height from bottom of connector to top 30mm,
• Total height from bottom of connector to centre of PCIE slot 23mm,
• Total depth 15mm / Total length 60mm

PCI-E 1 Port Angle Bracket 90° PCI Express 4x Use: To place a PCI-E card horizontally to obtain an extra flat case. Features: Fits on any 4x,8x or 16x PCI Express server or desktop PC slot, Supports all PCI Express cards, Mylard insulation on the back of the riser. Total height from bottom of connector to top 30mm, Overall height from bottom of connector to center of PCIE slot 23mm, Total depth 15 mm Total length 60 mm Gold-plated contacts (better connectivity because resistance to oxidation over time).
