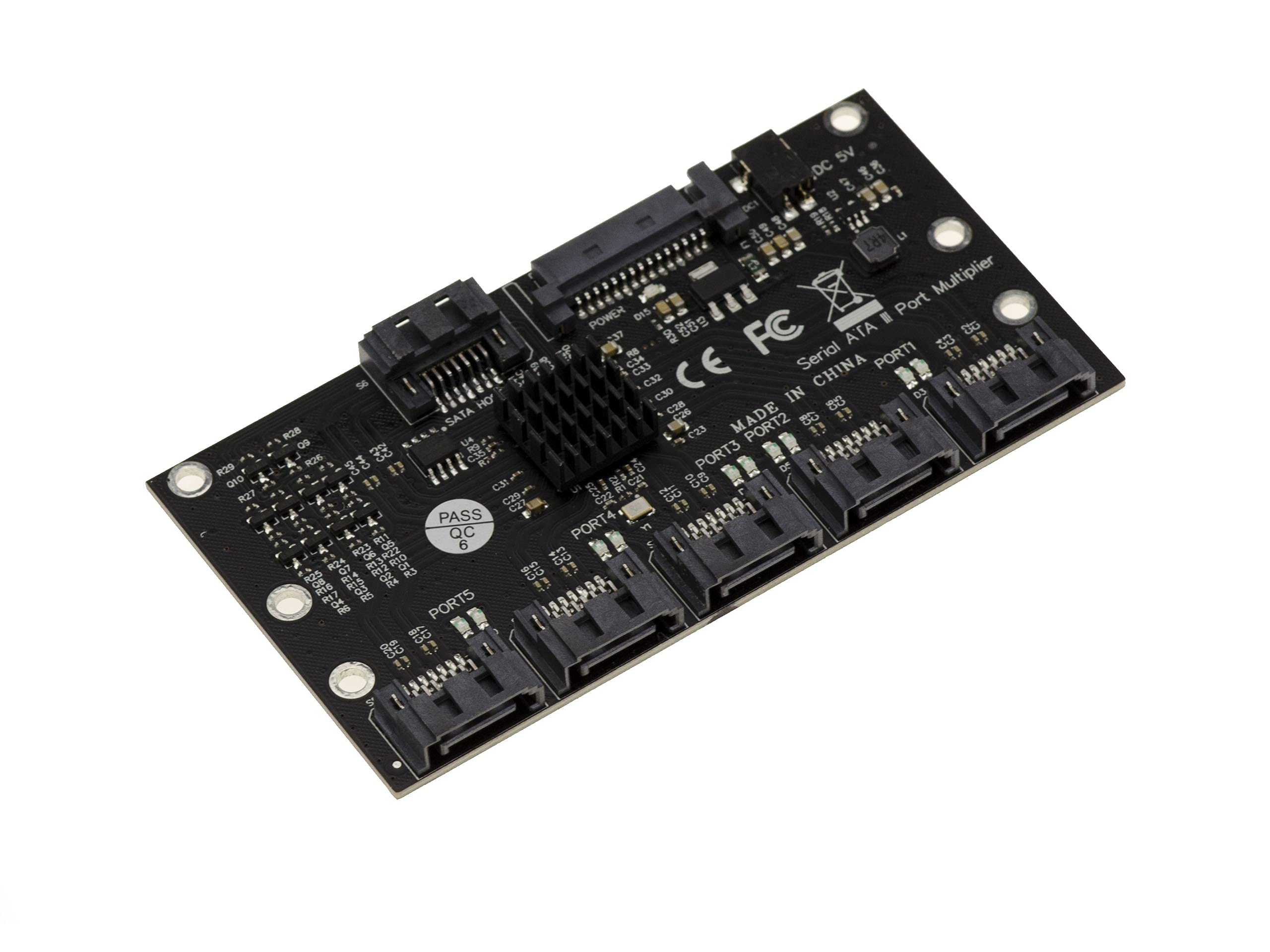

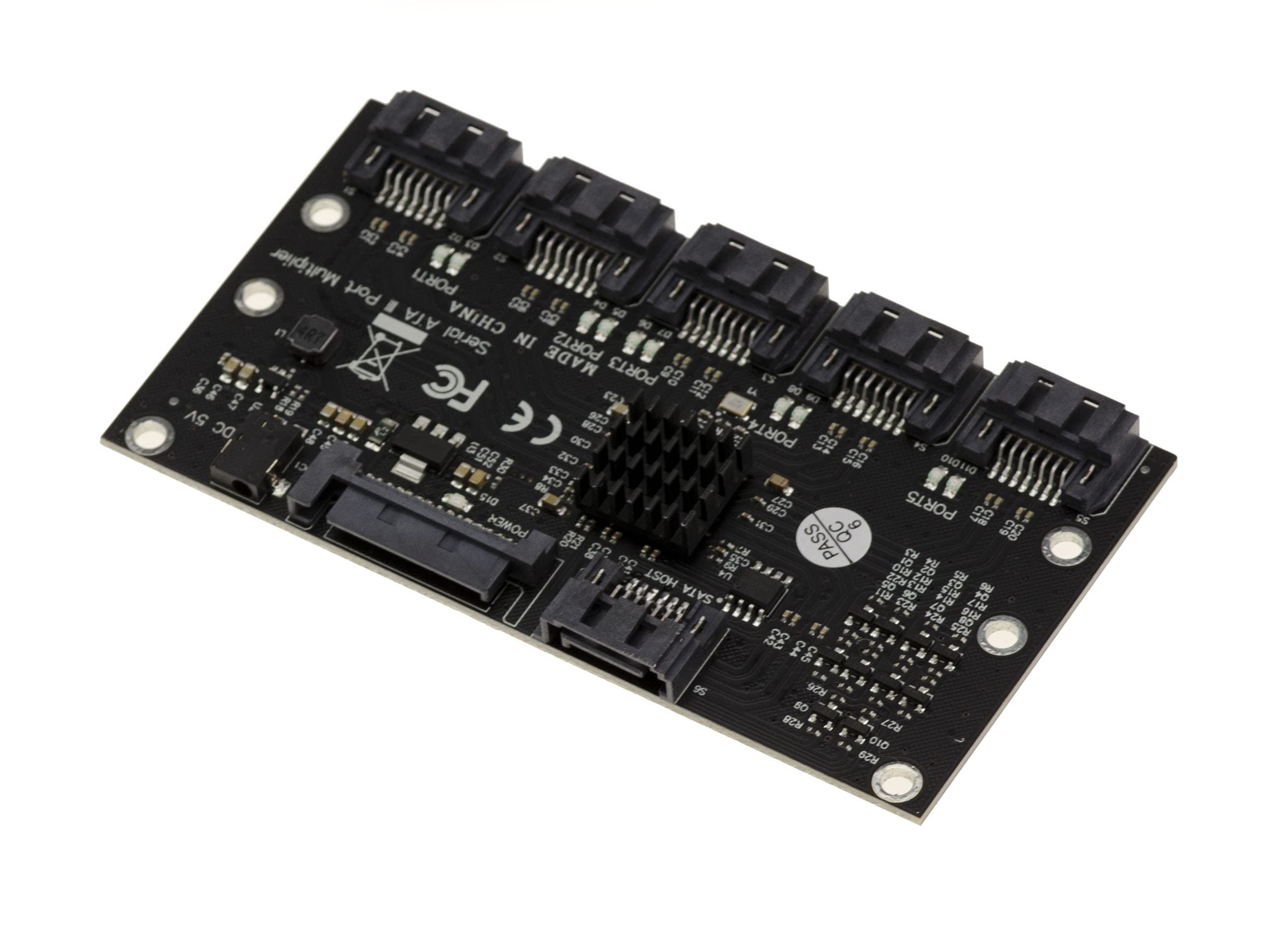

KALEA-INFORMATIQUE Port Multiplier 5 Port SATA Replicator with JMB575 Chipset

• This tool enables five SATA drives to be mounted on a single SATA port on a motherboard. Requires a motherboard supporting Port Multiplier devices.
• Compatibility: Port Multiplier-compatible motherboard, Supported by all operating systems (Windows, Mac, DOS, etc.), 100% hardware adapter, Compatible with all SATA 1, 2 or 3 drives.
• JMICRON JMB575 CONTROLLER. 5-port SATA host adapter, Serial ATA specifications 3.0 compatible.
• Expands any "port multiplier" compatible SATA port to 5 SATA ports, works as a simple multi-socket ! Compatible with FIS-based port multiplier and command-based switching devices, compatible with any type of SATA 1/2/3 disk or drive.
• Auto-negotiation 1.5Gbps, 3Gbps and 6Gbps depending on the type of SATA device used, NCQ, Hot Plug compatible. Powered by 15-pin SATA connector or cable (supplied) that connects to a USB port. CAUTION: YOUR MOTHERBOARD MUST SUPPORT "PM" (PORT MULTIPLIER).

Supports 6-port 6.0 Gbps SATA III interface Output balance control and auto calibration impedance for SATA III PHY. Supports asynchronous recovery signal. Supports spread spectrum overclocking. Supports partial / slumber power saving mode. Supports BIST and loopback mode. Supports staggered spin-up (optional). Hot-Plug Mounts. Supports asynchronous notification. ATAPI brackets units. Supports base-based command and FIS-based switch. Interface: SATA 7PIN
