KALEA-INFORMATIQUE 16-port COM RS232 UART PCIe controller card with EXAR XR17V358 chipset

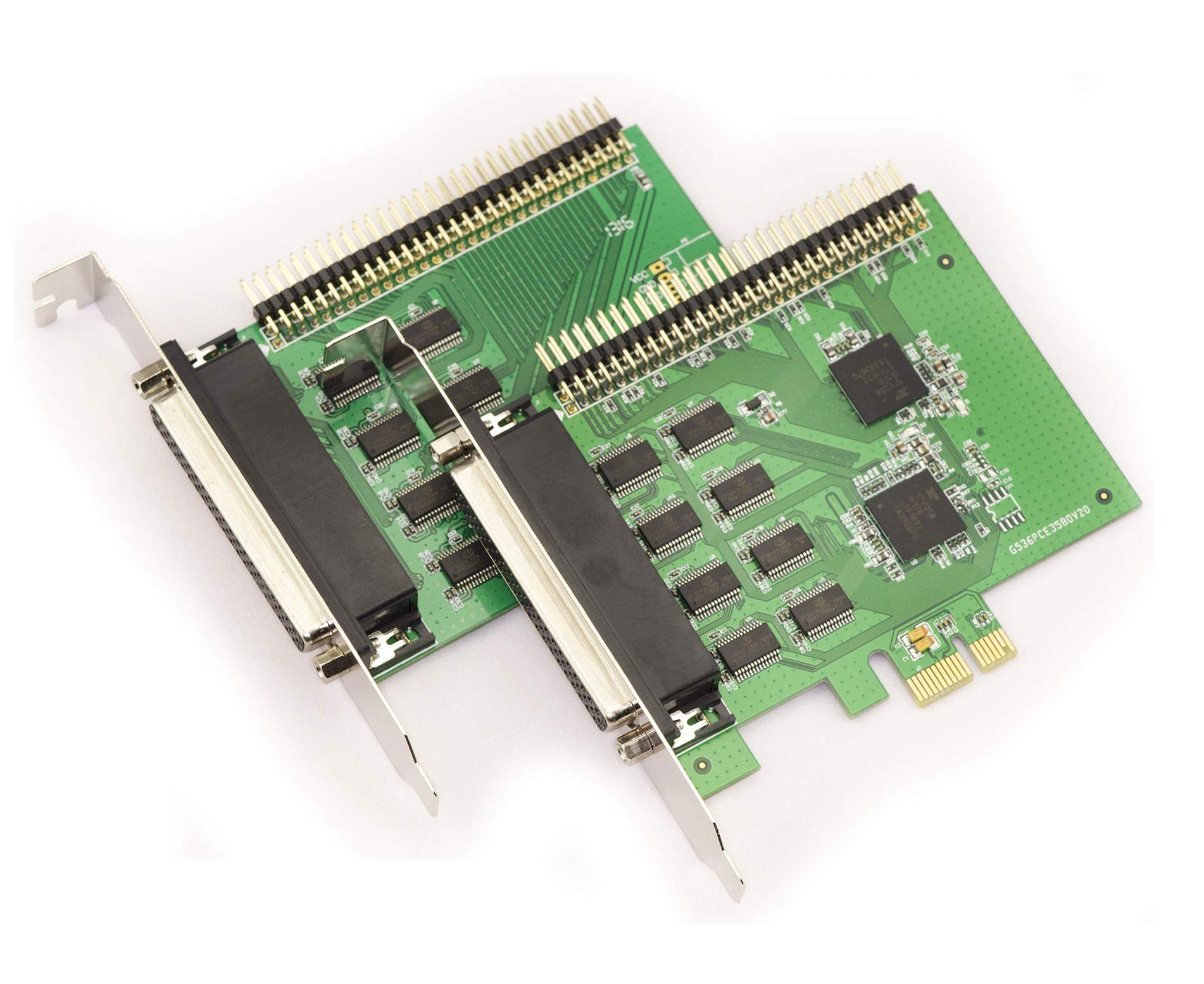

• For DESKTOP PCs on PCIE 1x port (PCIe 2.0) - Set consisting of two cards, one connected to the PCIe port, the other connected to the first by a ribbon cable supplied. Each card supports 8 RS232 ports. Drivers included for : LINUX - WINDOWS XP / VISTA / SEVEN / 8 / 8.1 / 10 / 11 (32/64)
• For PCIe 1x port (PCIe 2.0) Transfer rate 25Mbps per port 8 multi-purpose inputs/outputs (MPIOs) Sleep mode and Wake Up mode
• Supports 8 independent 9-pin RS232 ports 256-byte TX and FIFOs TX and RX Programmable trigger levels TX/RX FIFO counters Automatic flow control RTS/CTS or DTR/DSR
• Automatic Xon/Xoff software flow control Multi drop with automatic address detection
• Manufacturer details: http://www.exar.com/connectivity/uart-and-bridging-solutions/pcie-uarts/xr17v358/

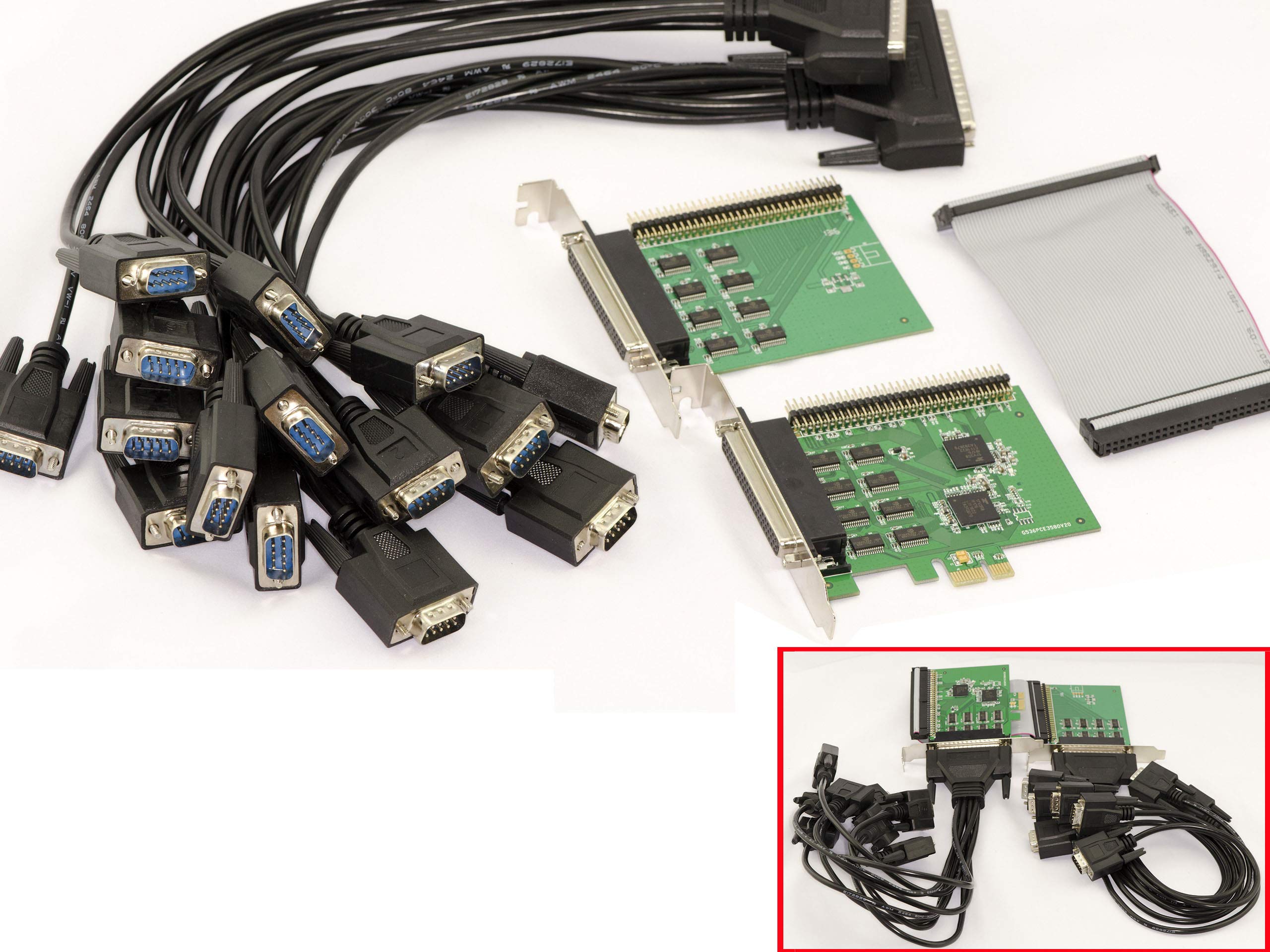

For DESKTOP PCs on PCIE 1x (PCIe 2.0) ports. Allows you to add 16 SERIAL ports to your desktop PC. Compatibility: Compatible with all motherboards and serial peripherals. Drivers included for : LINUX - WINDOWS XP / VISTA / SEVEN / 8 / 8.1 / 10 / 11 (32/64) . Features: For PCIe 1x port (PCIe 2.0). Dual simplex, 2.5GBps in each direction. Comprises two cards, one connected to the PCIe 1x port, the other connected to the first. Each card supports a cord with 8 serial ports. Transfer rate 25Mbps per port. 16 multi-purpose inputs/outputs (MPIOs). Sleep mode and Wake Up mode. Supports 16 independent 9-pin RS232 ports. <256-byte TX and FIFOs Programmable TX and RX Trigger Levels TX/RX FIFO counters Automatic RTS/CTS or DTR/DSR flow control Automatic Xon/Xoff software flow control Multi-drop with automatic address detection
