KAITOK 6 pin 12mm Strip-to-Wire Quick Connection LED Connector for Non-Waterproof RGBCCT/WW 5050 LED Strips Lights (Non-Waterproof)

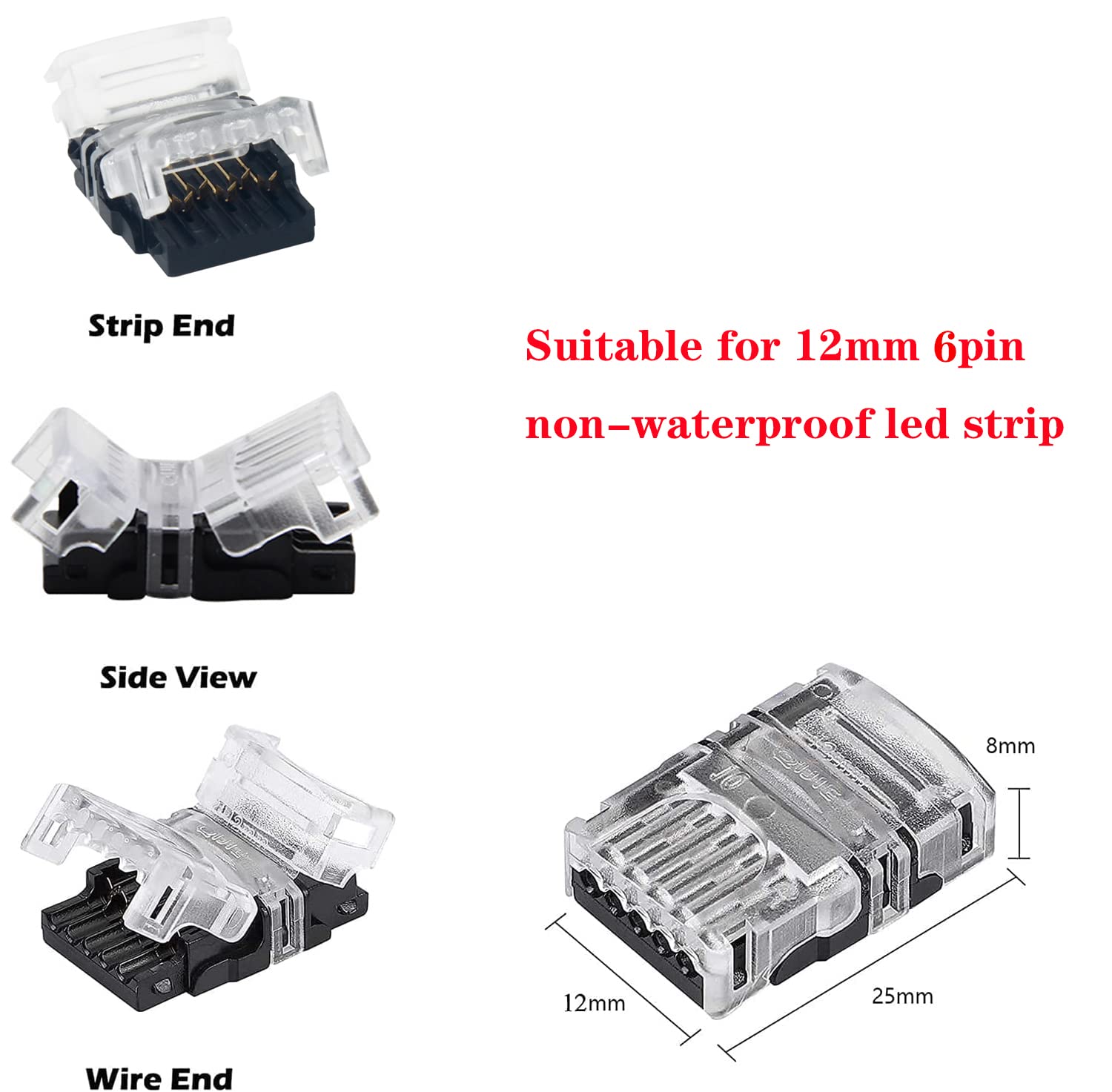

• 【Compatible】 Work for NON-waterproof 12mm width 5050 RGBW 6pin strip light, Tips:Those 6 pin led connectors can be the connection bewteen led light strip and extension cable but not be the connection bewteen two led light strips
• 【Application】You can use these 6 pin led connector with the 6 core extension cable to get lighting exactly where you want it. Free from the limit of terminal position,it can be used as board to wire input or strip to strip jumper
• 【Rugged yet durable】 The main material of LED corner connector is quality plastic and tinned copper, sturdy and durable, not easy to break or damage, non-toxic for safe use, with high working performance, which ensures that light connectors kit can be firmly connected to the light strip.
• 【Easy to use】 you just need to put the led strip and wire above the interface of tunable led strip connector, and then press it down with your hand or pliers to complete the connection, no welding or other tools are required; 6 Pin LED strip connectors are not powered, please check whether the voltage of your light strip and power supply match before use
• 【Package includes】 6pcs Strip to Wire Connectors for 12mm Width NON-Waterproof 6 Pin LED Strip Light

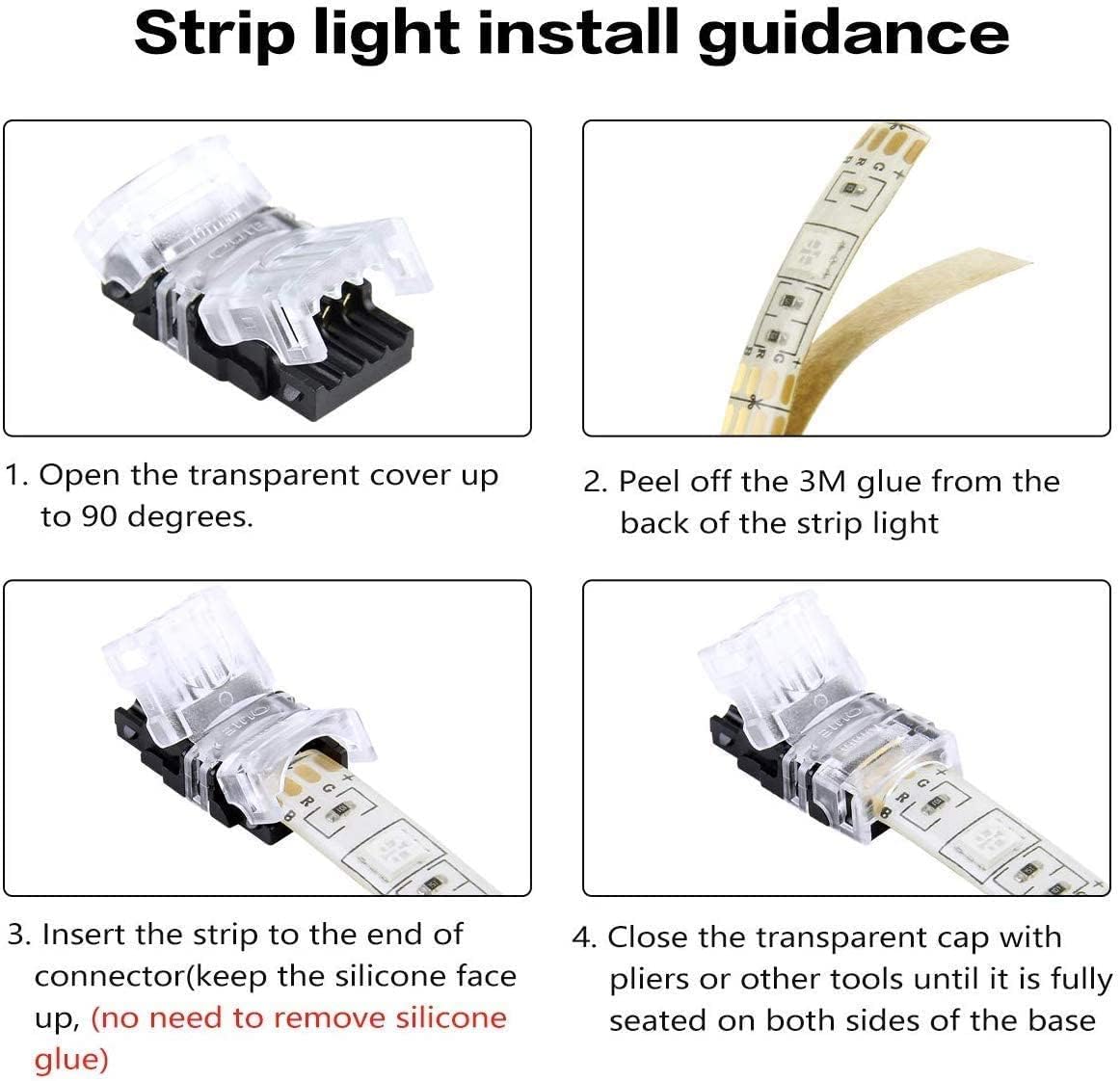

NOTE: 1. Make sure your LED light strip is 12mm width 6 pin non-WATERPROOF strip light. Not work for waterproof 12mm width led strip lights. 2. Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm and without stripping wire. 3.Peel off the 3M tape around the cutting line area on the back of the LED strip, then insert the LED light strip Installation Guides --Strip End 1.Ensure your LED light strip is non-waterproof 12mm width and has 6 contacts (+, -). All contacts are clean and cut the strip straightly. 2.Open the transparent cover of connector up to 90 degrees. -Wire End 1.Cut the desired wire length you need and separated the 6 wires (20-22AWG) around connection part. 2. Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to correct wires. 3.Close the transparent cap with a pliers until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. Positive wire is matched to "+" input power mark on the strip light surface)
