BNC Crimp Tool Set,BNC/TNC Ratched Crimp plie & Rotary Coaxial Cable Stripper with 10pcs BNC Male Crimp connectors for RG59,Red

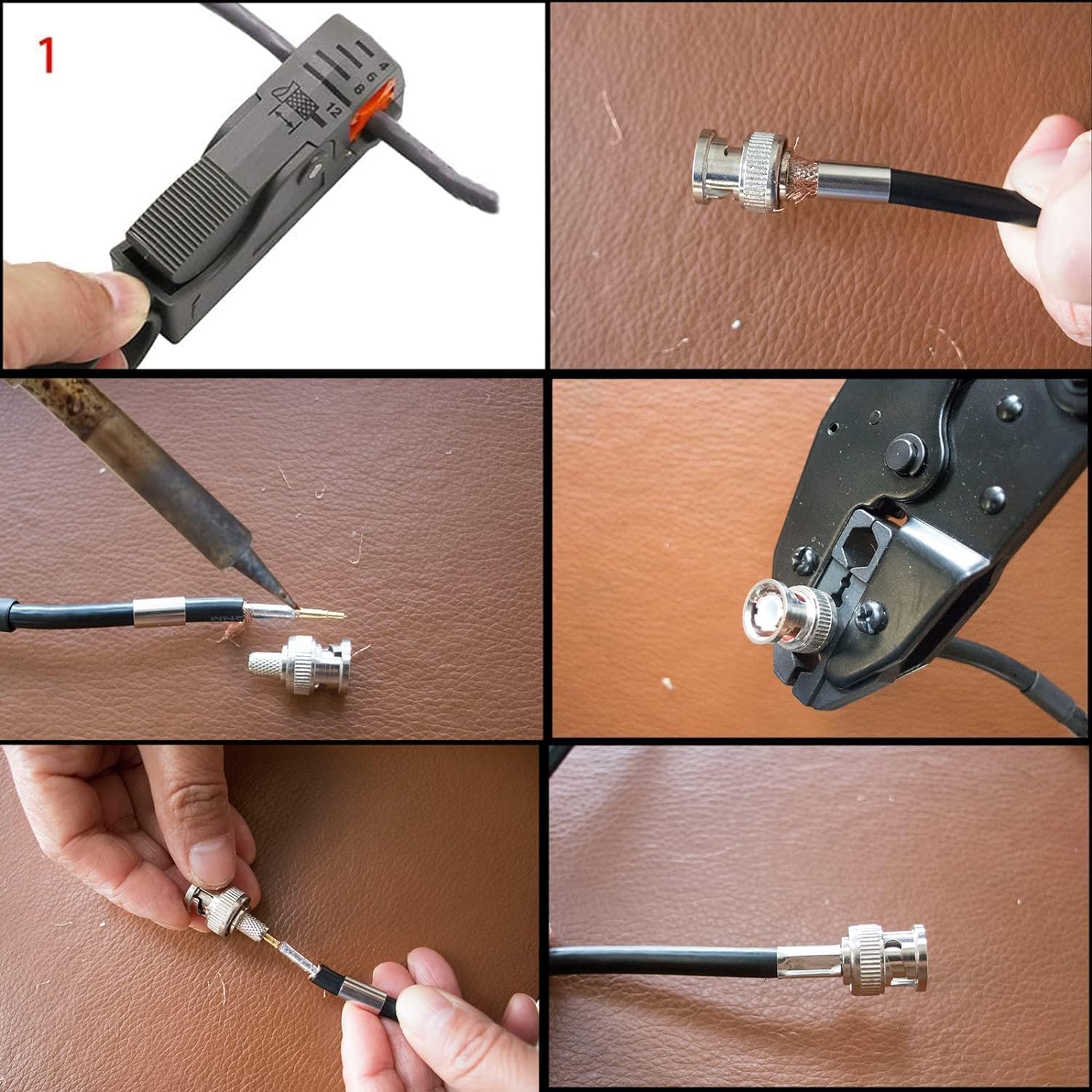

• 1. BNC Crimping Tool Kit The crimping kit includes 10 x RG59 BNC male connectors and heat shrink tubes, 1 x BNC crimping plier, 1 x RG59 coaxial cable stripper and 1 x replaceable jaw. Let your SDI cable or RG59 coaxial cable cut, strip, crimp, and manufacture comfortably.

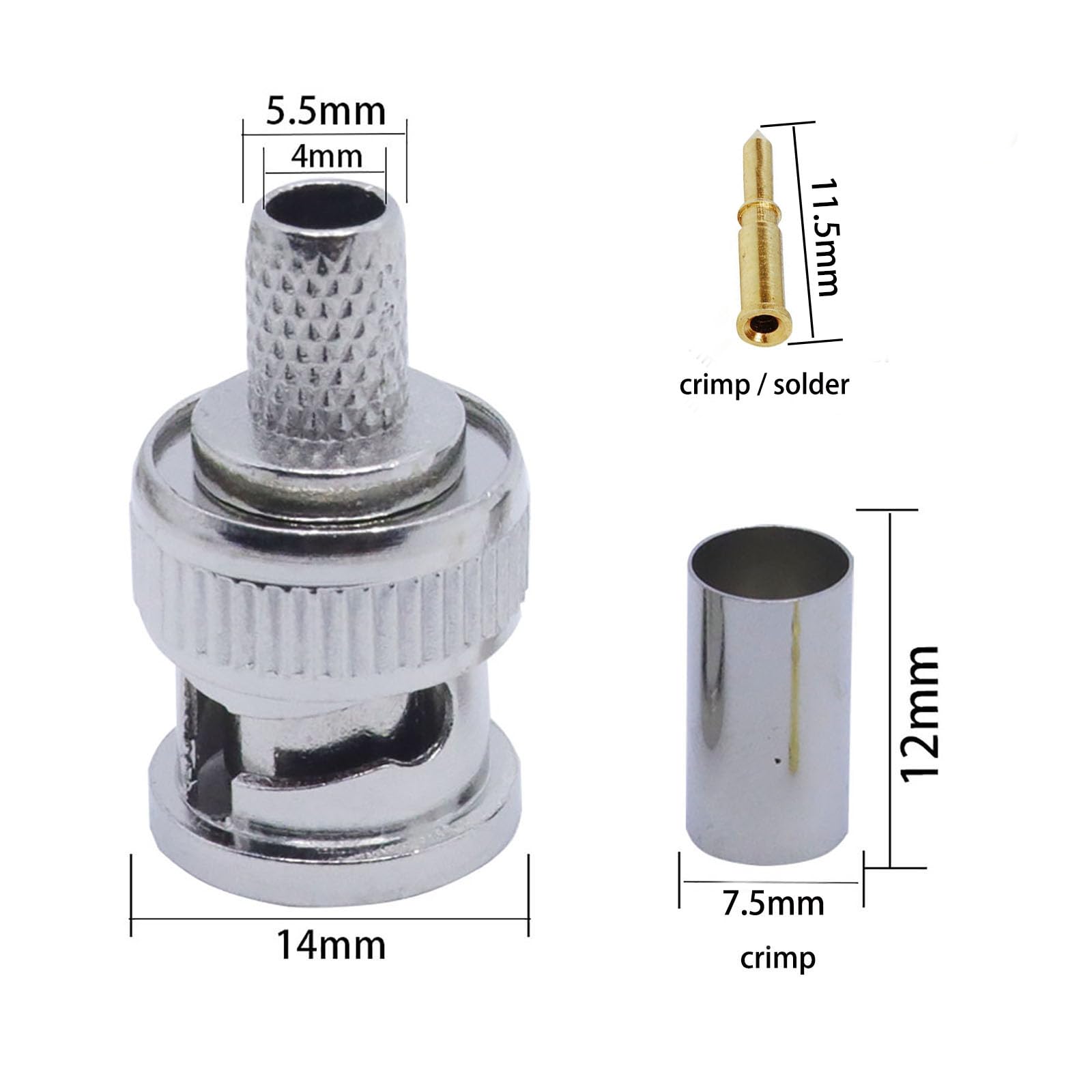

• 2. Set of 10 nickel-plated zinc alloy 75 ohm BNC crimp connectors, works with RG59, LMR240, CNT240 coaxial cable for RF signal and CCTV DVR connections. Please note that the outer ring must be crimped while the center pin must be soldered.

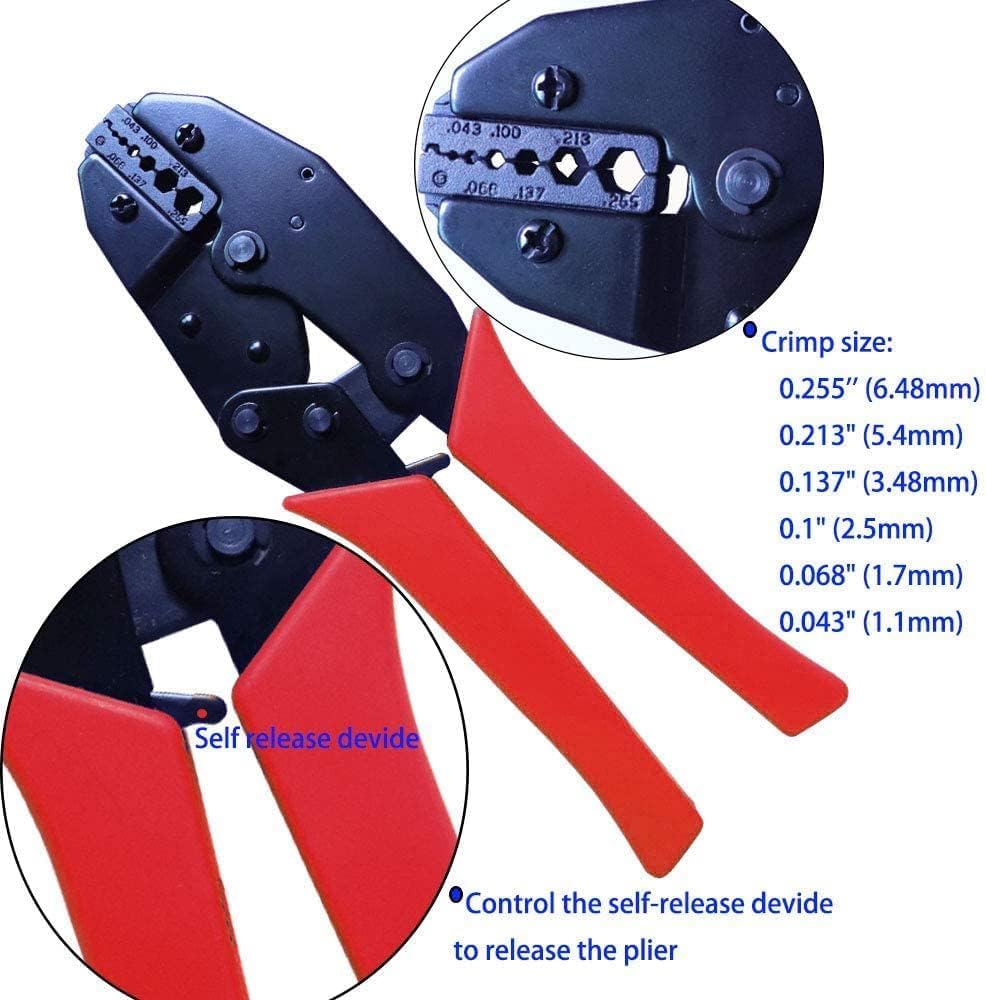

• 3. Hexagonal Crimping Pliers, 1.72 mm, 2.5 mm, 5.41 mm, 6.48 mm, 8.22 mm, very well suited for crimping coaxial cables RG59, RG58, RG62, RG6. Press the locking lever to loosen the clamp

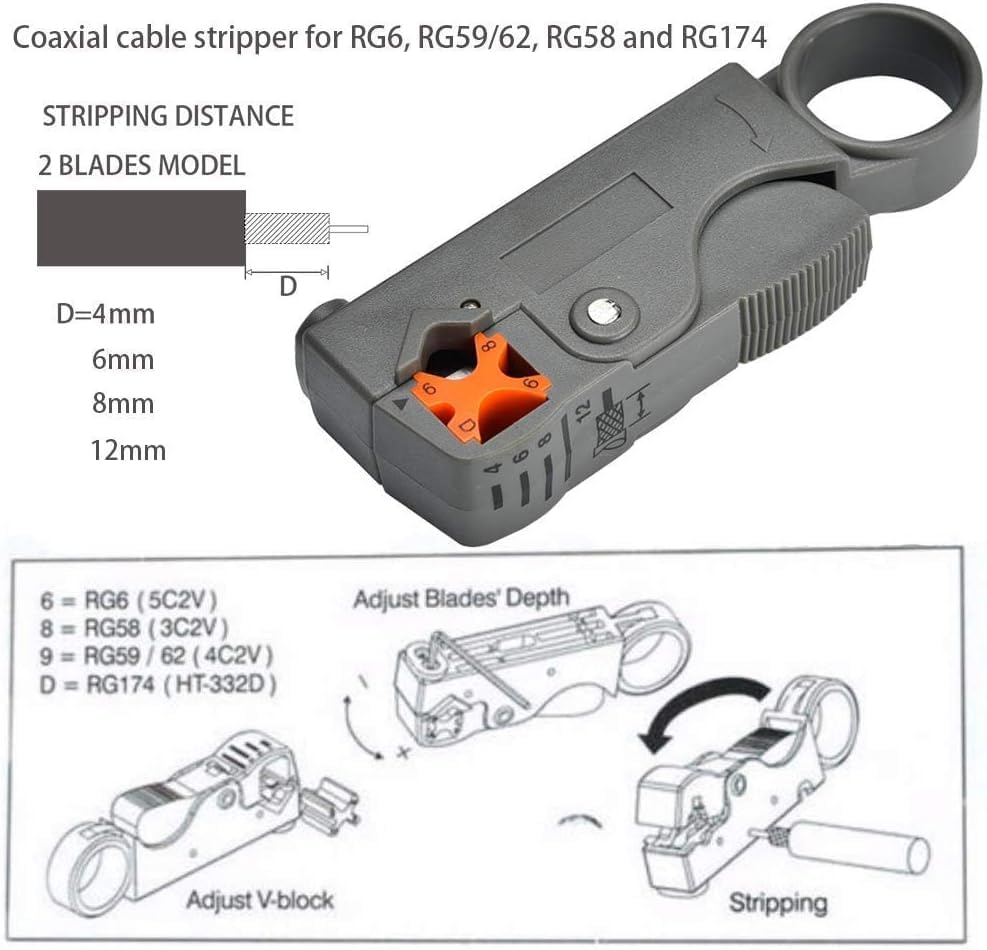

• 4. Double blade coaxial cable stripper eliminates 4, 6, 8 and 12mm insulation for RG58, RG6, RG59/62 and RG174 cables.
• 5. BNC Crimping Pliers Kit is a good solution for RG59 DIY coaxial cable + video cable for video surveillance camera of any length

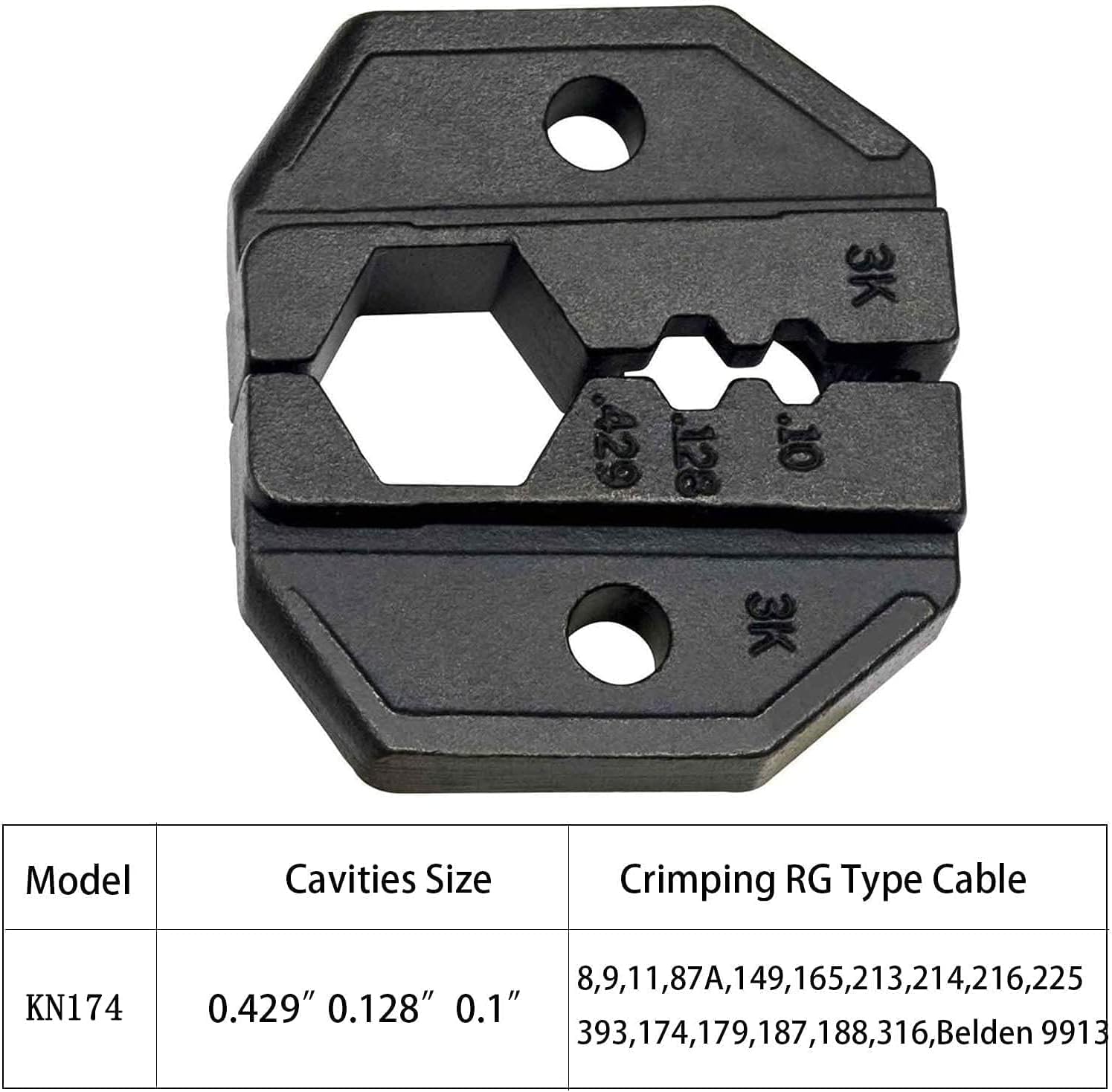

Rg59 BNC Plug Crimp Connector: 1. Impedance: 75 Ohm 2.Material: Copper, Zinc alloy 3. Style: A locking RF connector, fit RG59 male crimp style 4. Used on test equipment, avionics, analog and serial digital interfaces as well as video signals Coaxial cable stripper: 1.Size: 10 x 3 x 1.9cm 2.Material: Carbon Steel & Plastic 3.Adjustable & Replaceable double blades 4.Remove 4, 6, 8 and 12mm Insulation (adjustable) 5.Lightweight ergonomic design, easily used, lock the tool over the cable, spin clockwise, then pull off the unwanted portion BNC crimping tool: 1.Color: Red 2.Weight: 520g 3.Length: 215CM 4.Applicable cable: RG6 RG59 RG62 RG58 RG142 223 LMR195 syv50-3 CNT195 5.Fit terminals: Range of monitoring video terminals BNC interface 6.Crimping specifications: 0.255" / 0.213" / 0.100" / 0.137" /0.069" /0.043"(6.48mm / 5.41mm / 2.54mm / 3.5mm/1.75mm/1.09mm) Interchangeable Jaw: 1.Crimping specifications: 0.429" / 0.128" / 0.100"(10.9mm / 3.25mm / 2.54mm) 2.Applicable cable: RG8 RG9 RG11 RG87A RG149 RG165 RG213 RG214 RG216 RG225 RG393 RG316 RG400 BELDEN9913 Package Included: 1.BNC Connector Crimping Tool x 1 2.Rotary Coaxial Cable Stripper Tool x 1 3.Rg59 Male BNC Plug Crimp Connectors (connector, pin and ferrule) x 10 4.Heat shrink tubes x10pcs 5. Interchangeable Jaw x 1
