Kagni BNC Crimp Tool Set, BNC/TNC Ratched Crimp Plie and Rotary Coaxial Cable Stripper with 10pcs BNC Male Crim Connectors for RG58

• BNC Crimping Tool Kit: Crimp set included 10pcs RG58 BNC male connectors and heat shrink tubes,1pcs BNC crimping plier, 1pcs RG58 coax cable stripper and 1pcs interchangeable jaw. Let you cut, strip, crimp and make your SDI cable or RG58 coax cable conveniently.
• BNC Ratchet Crimping Tool: BNC crimp plier is made of tempered and hardened carbon steel，high quality and heavy-duty. Hex. Die sizes: 1.72mm,2.5mm,5.41mm,6.48mm,8.22mm. Perfect for crimp RG58 RG59 RG62 RG6 coaxial cable.

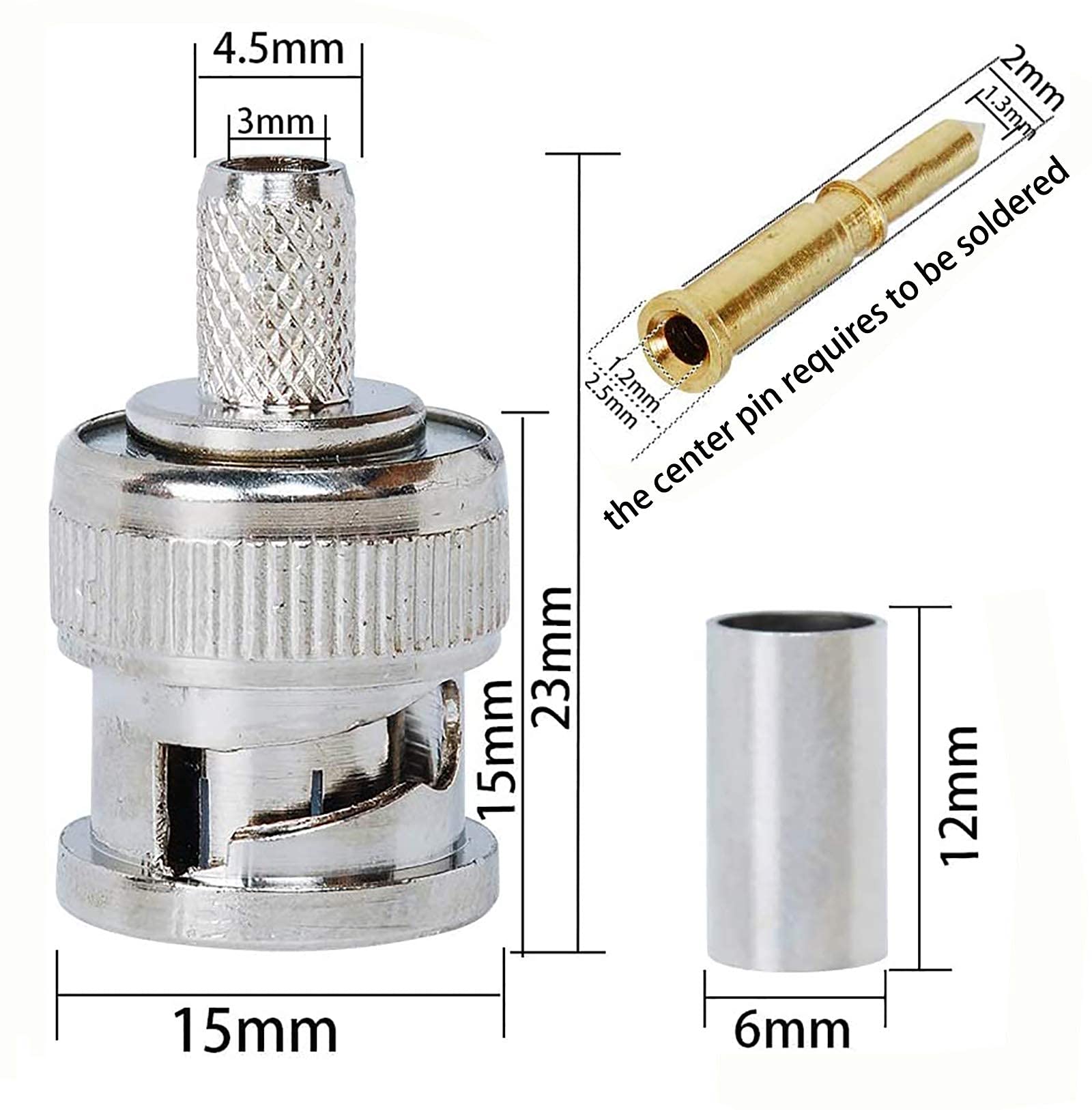

• RG58 BNC Connector: Rg58 BNC male plug crimp on connectors made of nickel-plated copper, perfect for make RG58, RG142,223, LMR195 coaxial cable. Please note the outer ring requires to be crimped, while the center pin requires to be soldered.

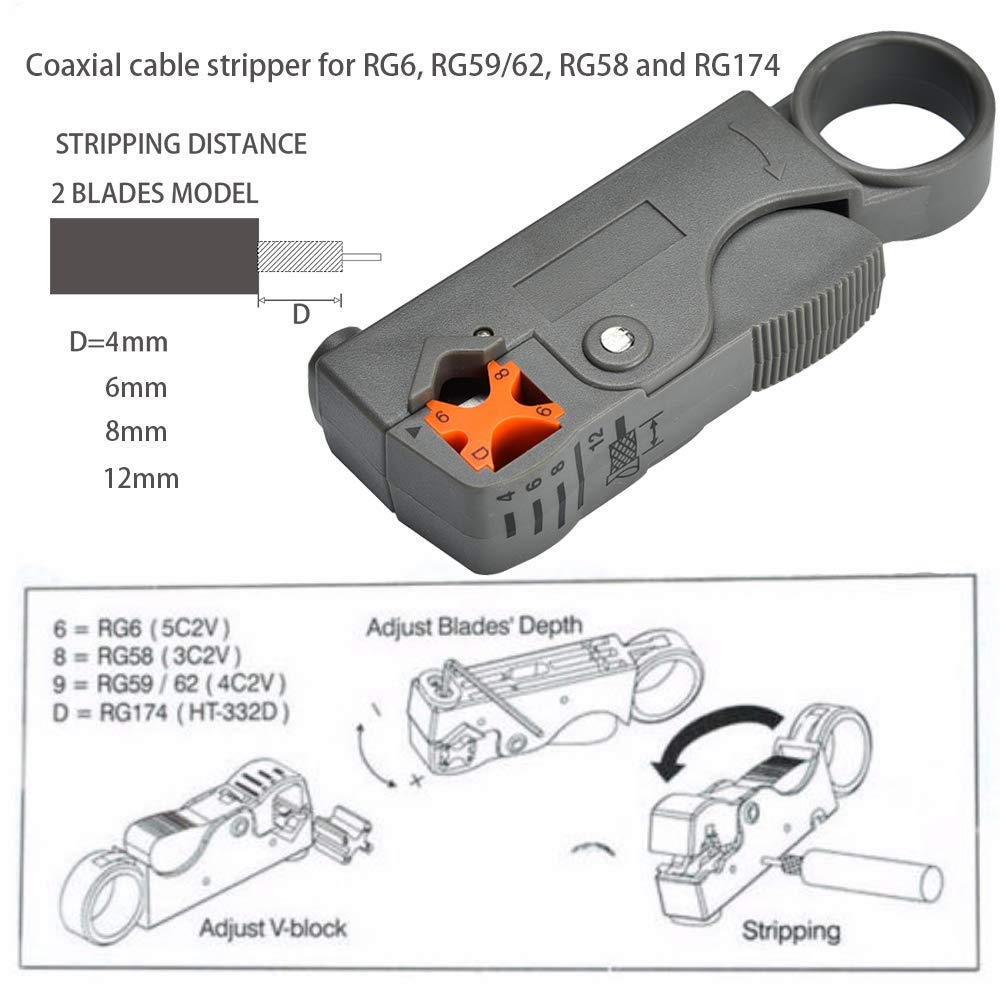

• Coaxial Cable Stripping Tool: Double blades spin coaxial cable stripper can remove 4, 6, 8, and 12mm Insulation for RG58, RG6, RG59, RG62, and RG174 coax wire.
• BNC crimping tool set,ideal for DIY Extension RG58 coax cable

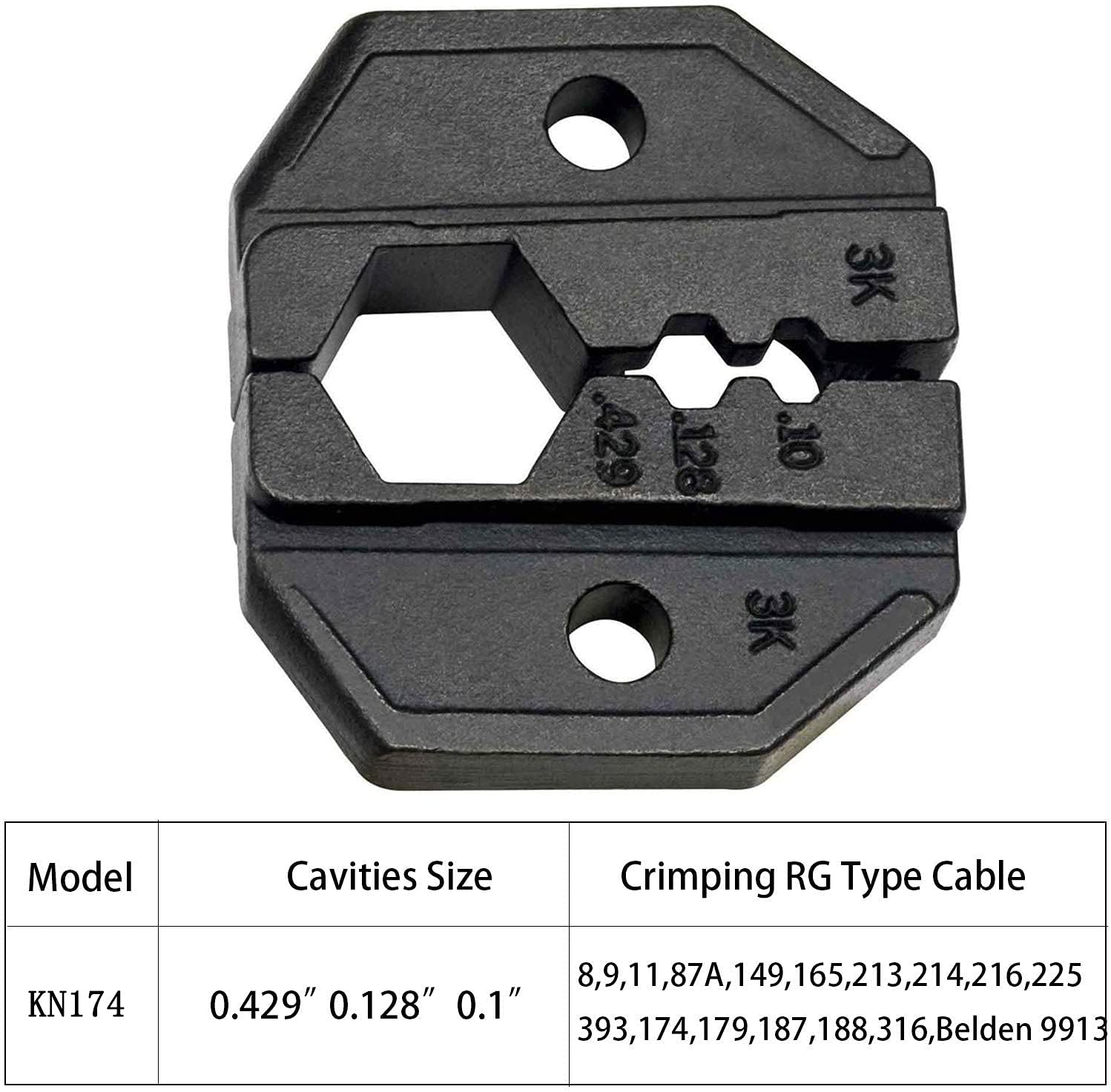

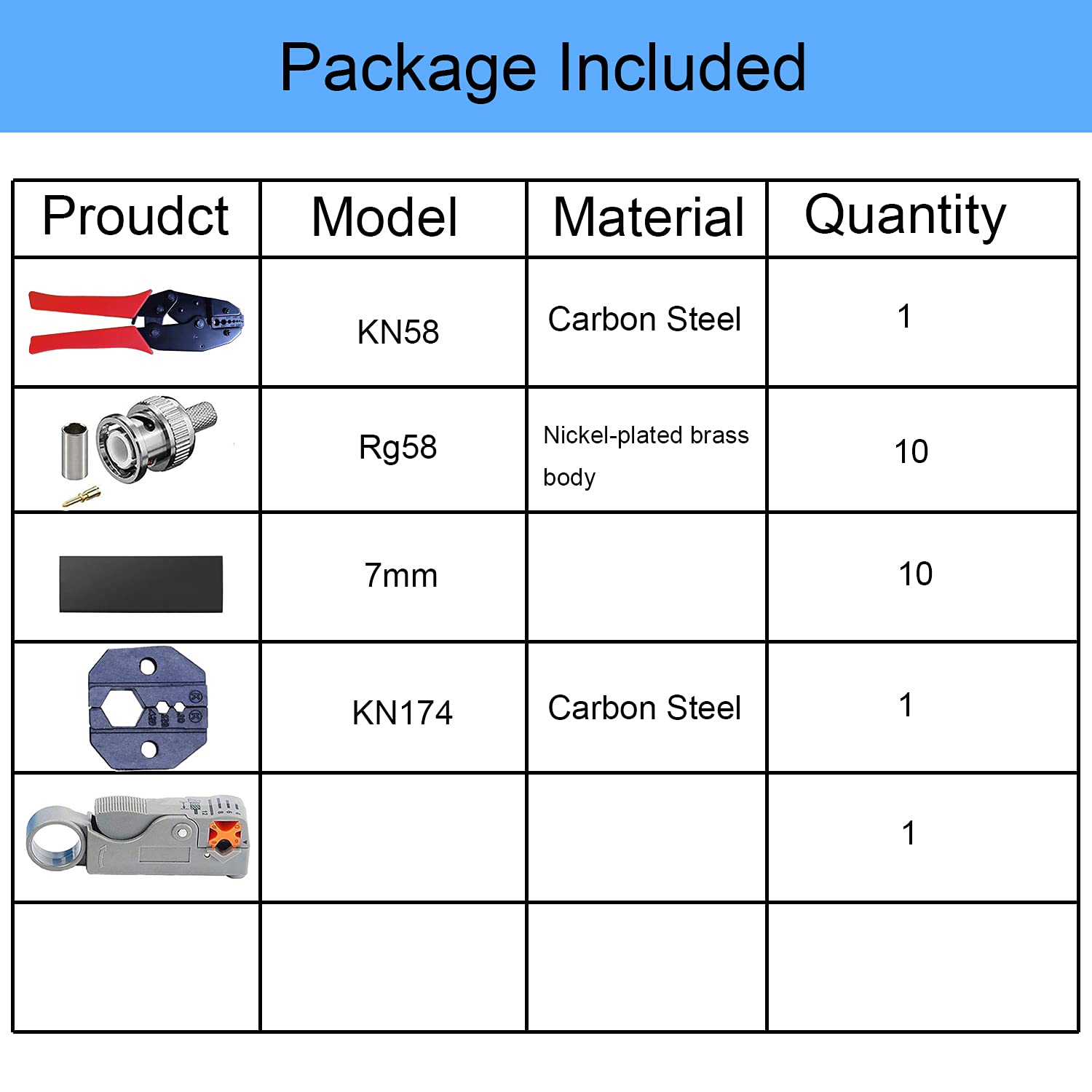

Rg58 BNC Plug Crimp Connector: 1. Impedance: 50 Ohm 2.Material: Nickel plated copper 3. Style: A locking RF connector, fit RG58 male crimp style 4. Used on test equipment, avionics, analog and serial digital interfaces as well as video signals Coaxial cable stripper: 1.Size: 10 x 3 x 1.9cm 2.Material: Carbon Steel & Plastic 3.Adjustable & Replaceable double blades 4.Remove 4, 6, 8 and 12mm Insulation (adjustable) 5.Lightweight ergonomic design, easily used, lock the tool over the cable, spin clockwise, then pull off the unwanted portion BNC crimping tool: 1.Color: Red 2.Weight: 520g 3.Length: 215CM 4.Applicable cable: RG6 RG59 RG62 RG58 RG142 223 LMR195 syv50-3 CNT195 5.Fit terminals: Range of monitoring video terminals BNC interface 6.Crimping specifications: 0.255" / 0.213" / 0.100" / 0.137" /0.069" /0.043"(6.48mm / 5.41mm / 2.54mm / 3.5mm/1.75mm/1.09mm) Interchangeable Jaw: 1.Crimping specifications: 0.429" / 0.128" / 0.100"(10.9mm / 3.25mm / 2.54mm) 2.Applicable cable: RG8 RG9 RG11 RG87A RG149 RG165 RG213 RG214 RG216 RG225 RG393 RG316 RG400 BELDEN9913 Package Included: 1.BNC Connector Crimping Tool x 1 2.Rotary Coaxial Cable Stripper Tool x 1 3.Rg59 Male BNC Plug Crimp Connectors (connector, pin and ferrule) x 10 4.Heat shrink tubes x 10pcs 5. Interchangeable Jaw x 1
