Kagni 5pcs N Type Male Connector and Crimping Tool Set, 50 ohm N Plug RF Coax Connector and Ratchet Crimp Compression Tool Coaxial Crimper Plier Kit for RG8 RG9 RG11 RG174 RG213 Belden9913 LMR400

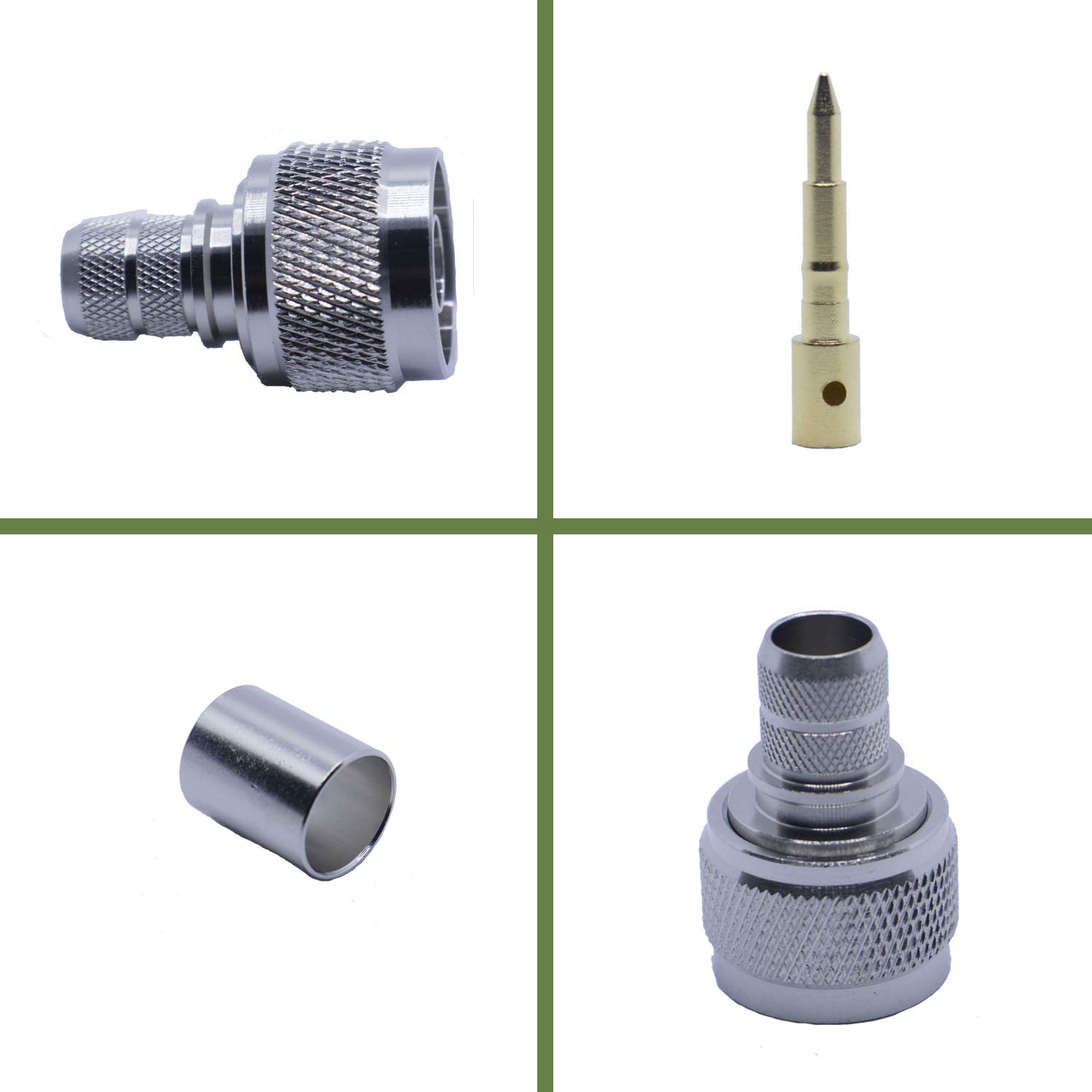

• 1. N type male crimp on connector:5pcs N male connectors,50 Ohm,brass body nickel plated, gold plated pin with good conductivity .for build or repair LMR400 RG-8 Belden 9913 N type male antenna cable.d, gold plated pin let it can give you low loss reliable signal every time . Work with RG8, RG9, RG11, RG174, RG223, belden9913, LMR-400 coaxial cable

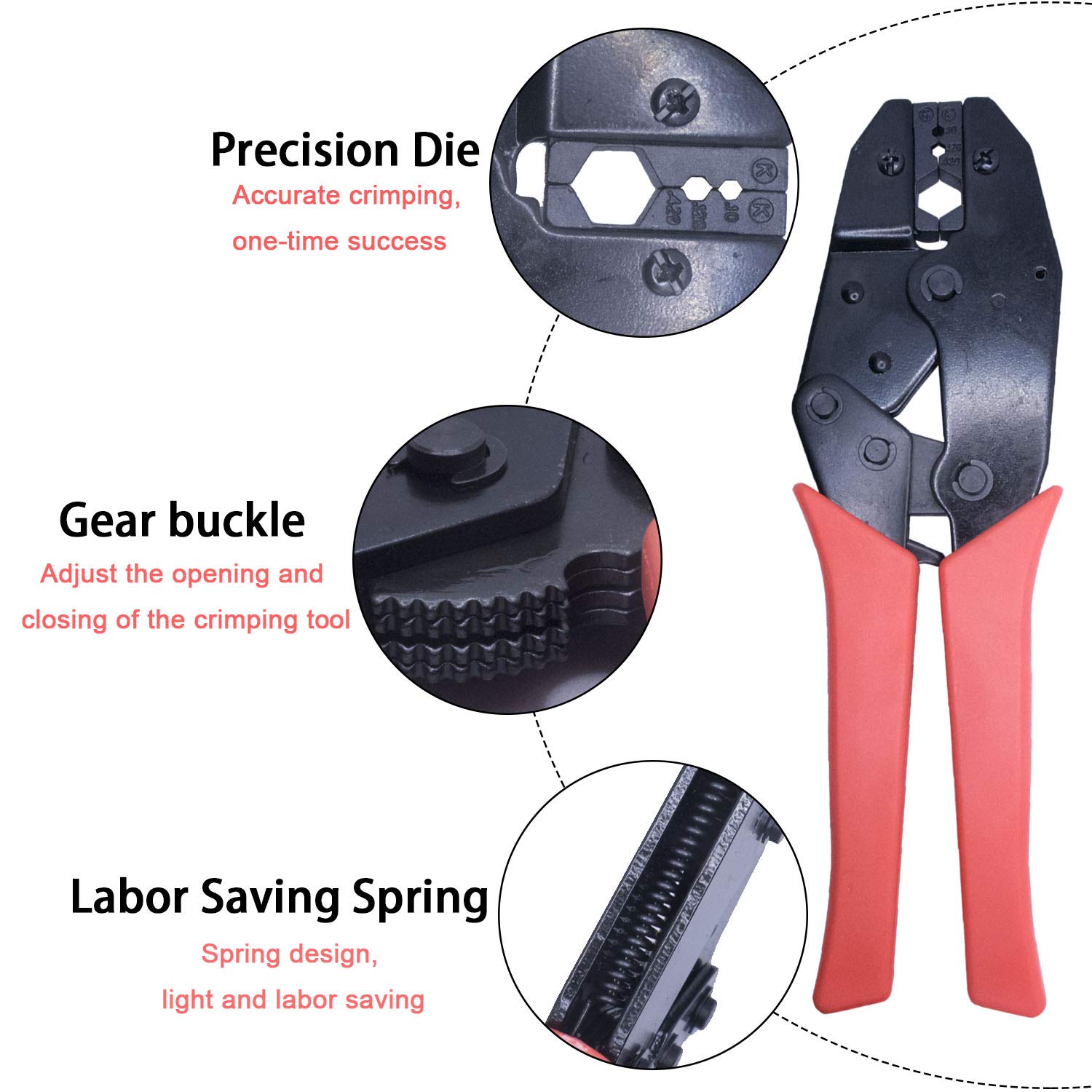

• 2. Heavy Duty Coax Cable Crimper: lmr400 crimp tool made of carbon steel with integral locking design to ensure high quality crimping effect.10.9mm cavity size compatible with all 400 cables.

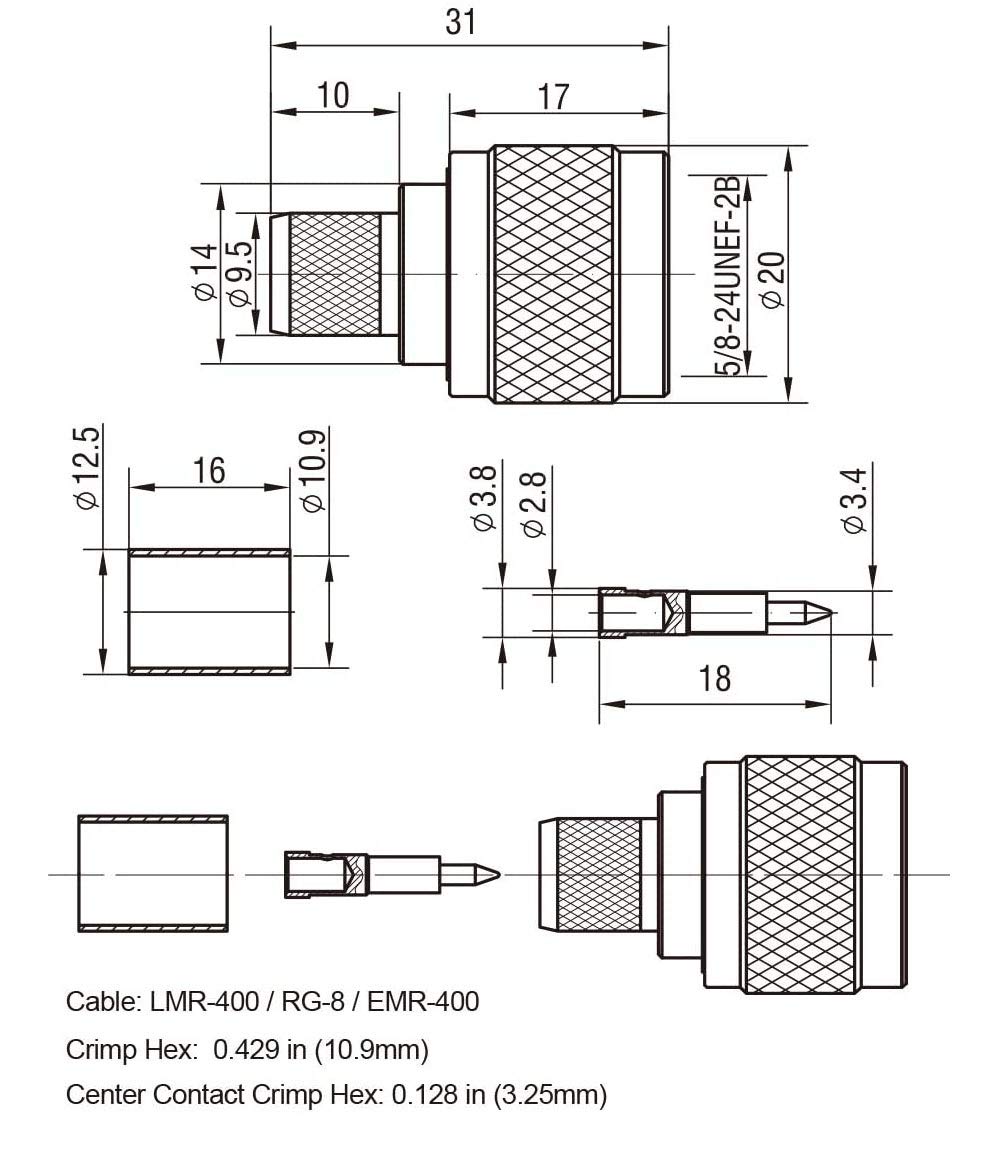

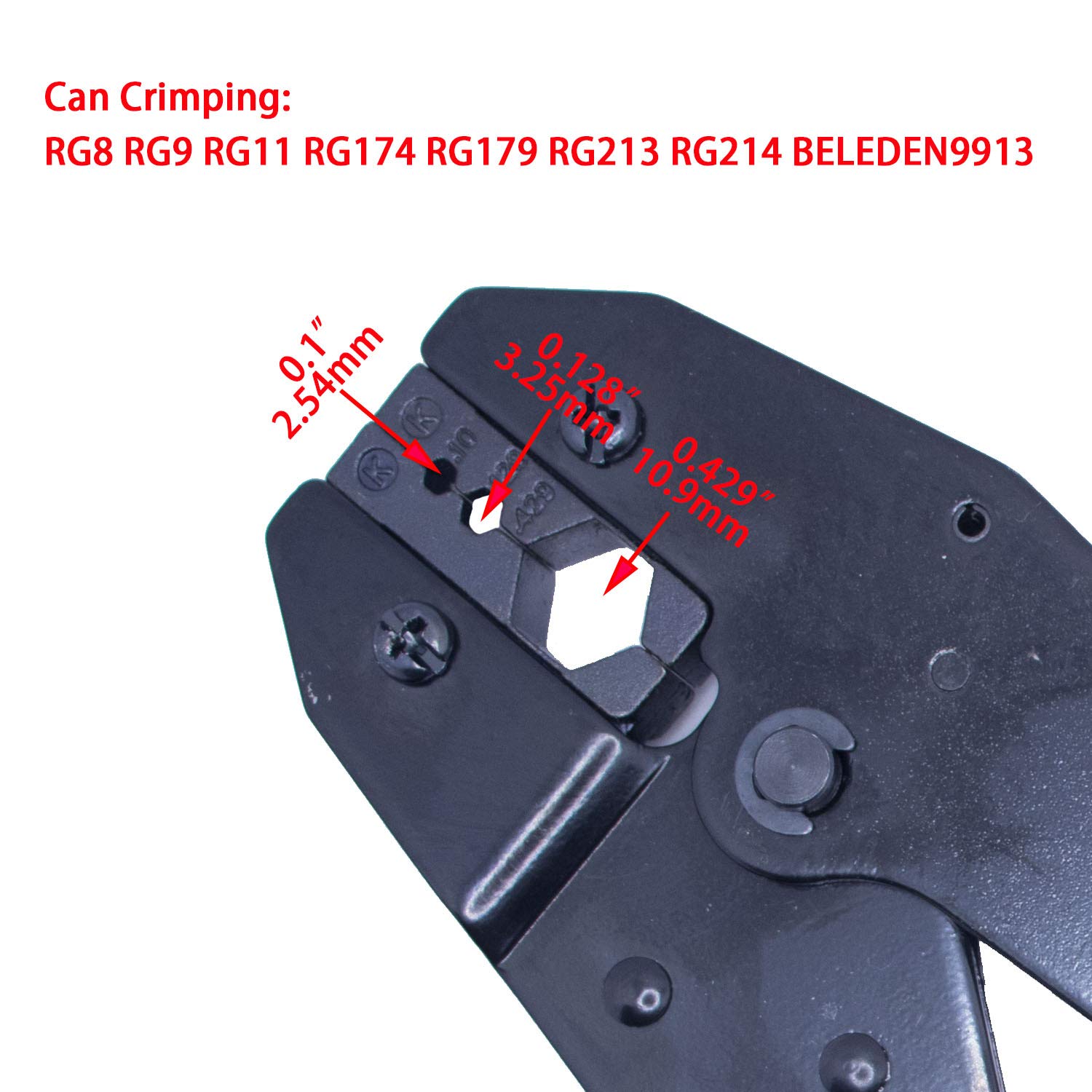

• 3. N connector crimper: hex dia sizes:0.429" (10.90mm) ,0.128" (3.25mm) and 0.100" (2.54mm),for cable types: LMR400 ( or other 400-style),RG8, RG9, RG11, RG174, RG213,RG214, RG316 and Belden9913.
• 4. This N Type male connectors and N connector crimping tool help to DIY your own N Type male antenna cable for LMR400 RG8 Belden 9913 which is widely used in Wireless communications systems,short antenna feeder runs or any other application.
• 5. Crimping set included 5pcs Rg8/lmr400 n plug connectors and 1pcs crimping plier for N type WiFi antenna extension cable used in most of connections between 50-Ohm amplifiers & accessories and antenna.

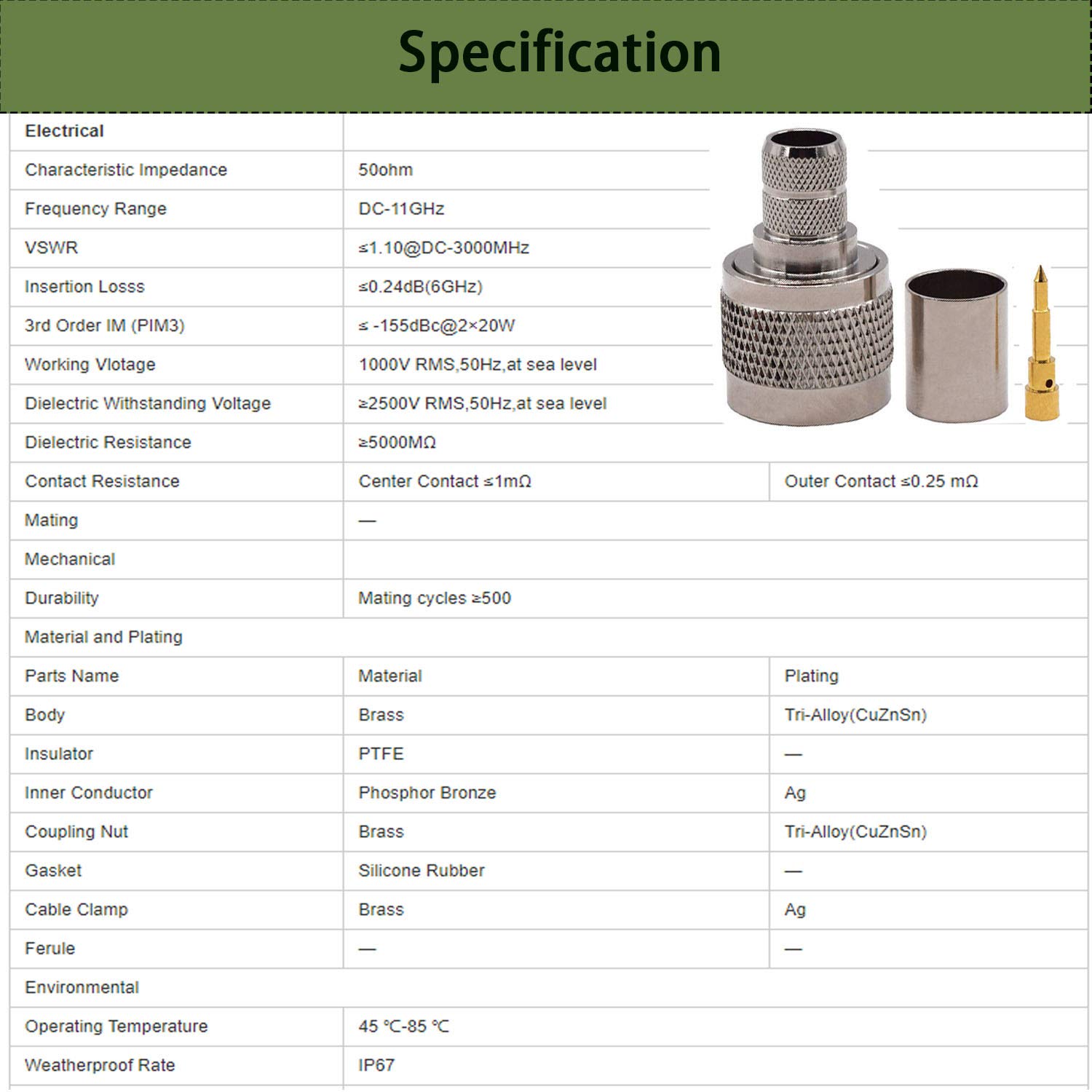

Kagni N Type Male Connector and Crimping Tool, Let You Freely DIY N Connector Coaxial Cable with Your Want Length to Fit You Need. Specification: Crimp Tool: 1.Color: Red 2. Cavity sizes: .100”/.128”/.213””/.429” (2.54/3.25/10.9mm) 3.Fit coaxial cable:RG8, RG9, RG11, RG174, RG223, belden9913, LMR-400 N Type Male Connector 1.Materials : Brass body nickel plated, brass pin gold plated 2. Impedance:50 ohm 3. Dielectric Withstanding Voltage:2500V (RMS) 4.Temperature range: -40°C to +85 °C 5.Salt spray test: 48 hours 6.VSWR: below 1.3(DC-6G) Package include: 1. N type connector x 5 2. Crimping Tool x 1
