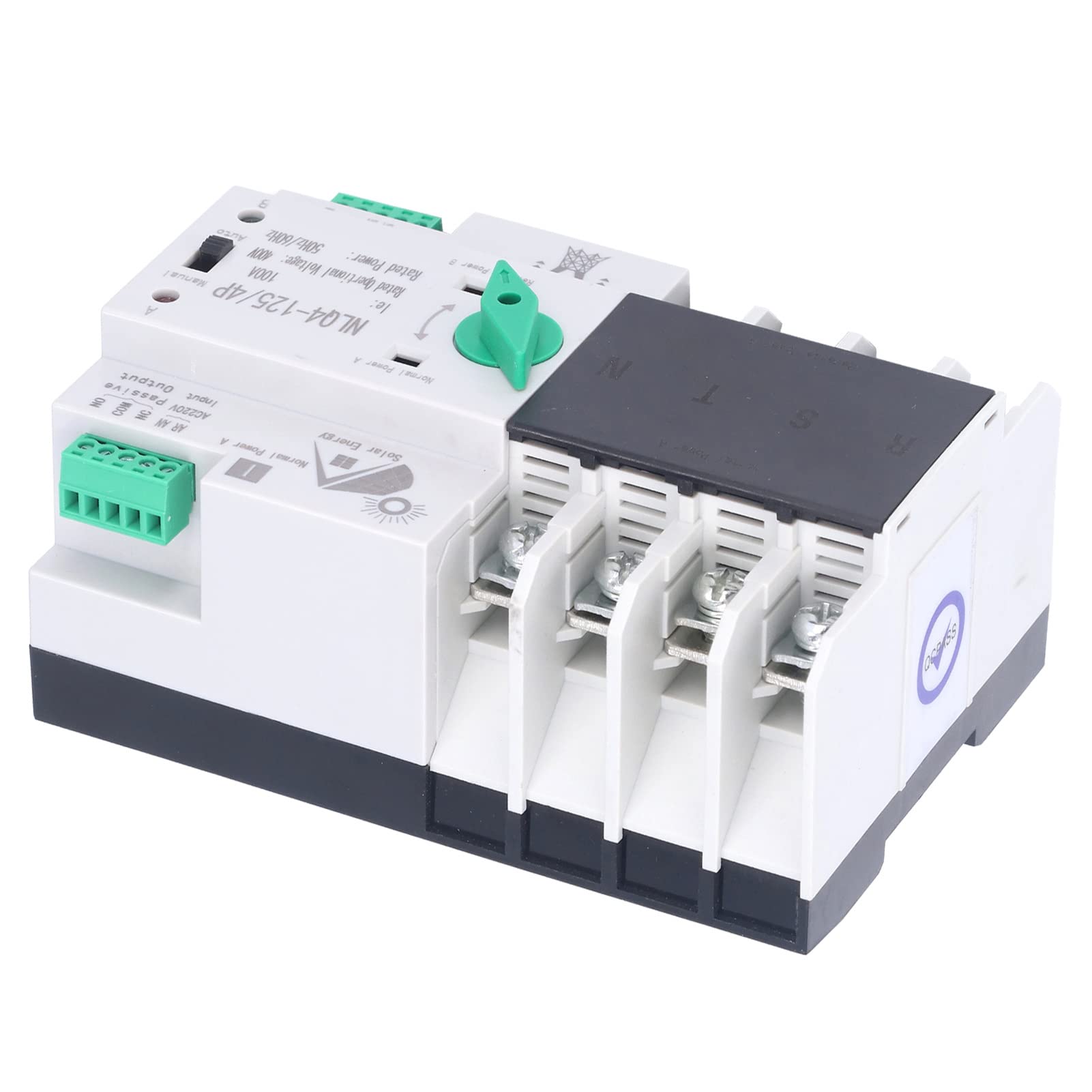

Kadimendium Dual Power Automatic Transfer Switch Millisecond Circuit Fast Controller Generator Changeover Switch 100A 220V

• Milliseconds switching: the is mainly used for testing whether normal or spare power is normal or not, when the normal power supply is abnormal, the backup power supply works immediately, and the power supply is in milliseconds without interruption, which the continuity, reliability and of the power supply
• Silver contacts: the use of silver contacts in this product can greatly improve the conductivity and service life of the product, in transfer

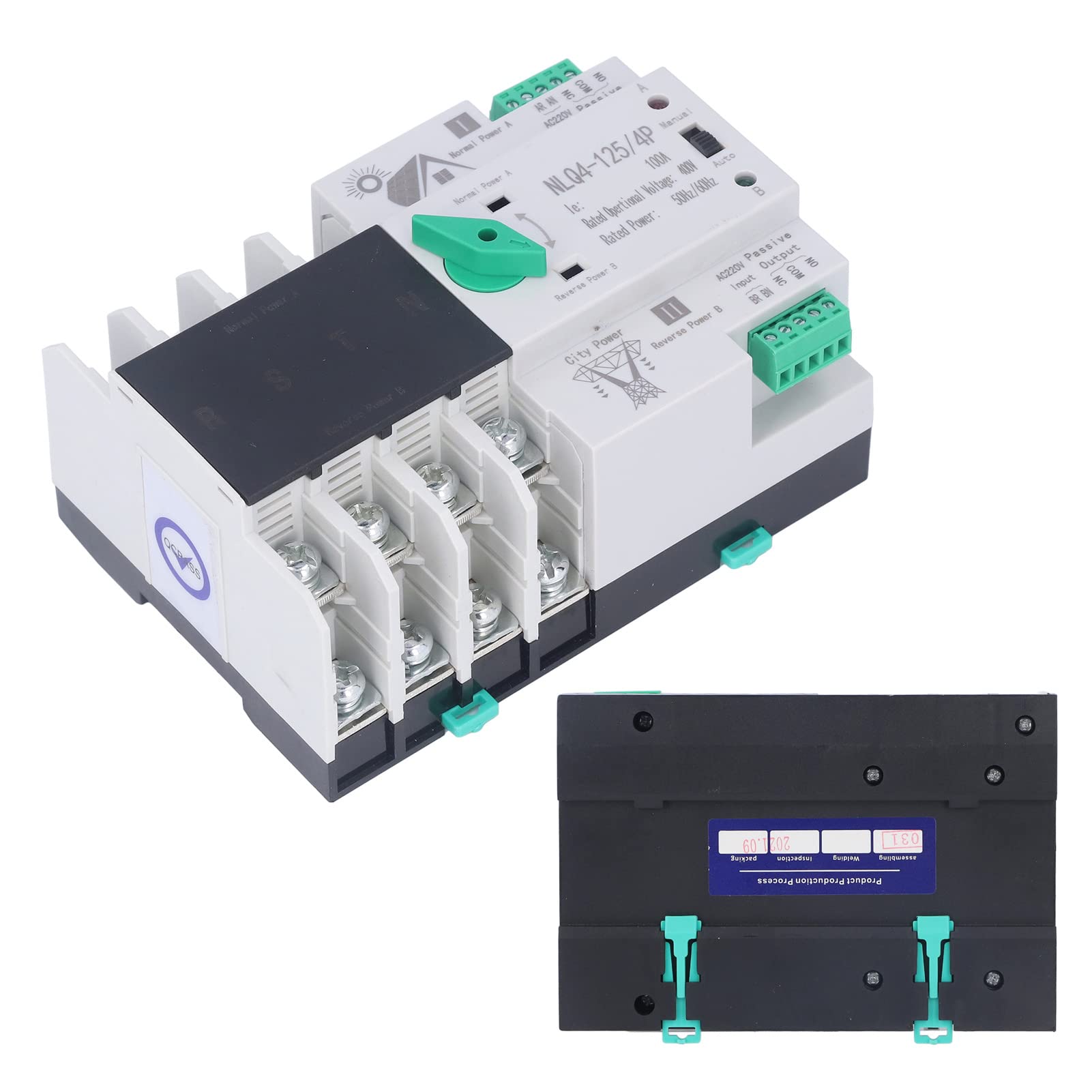

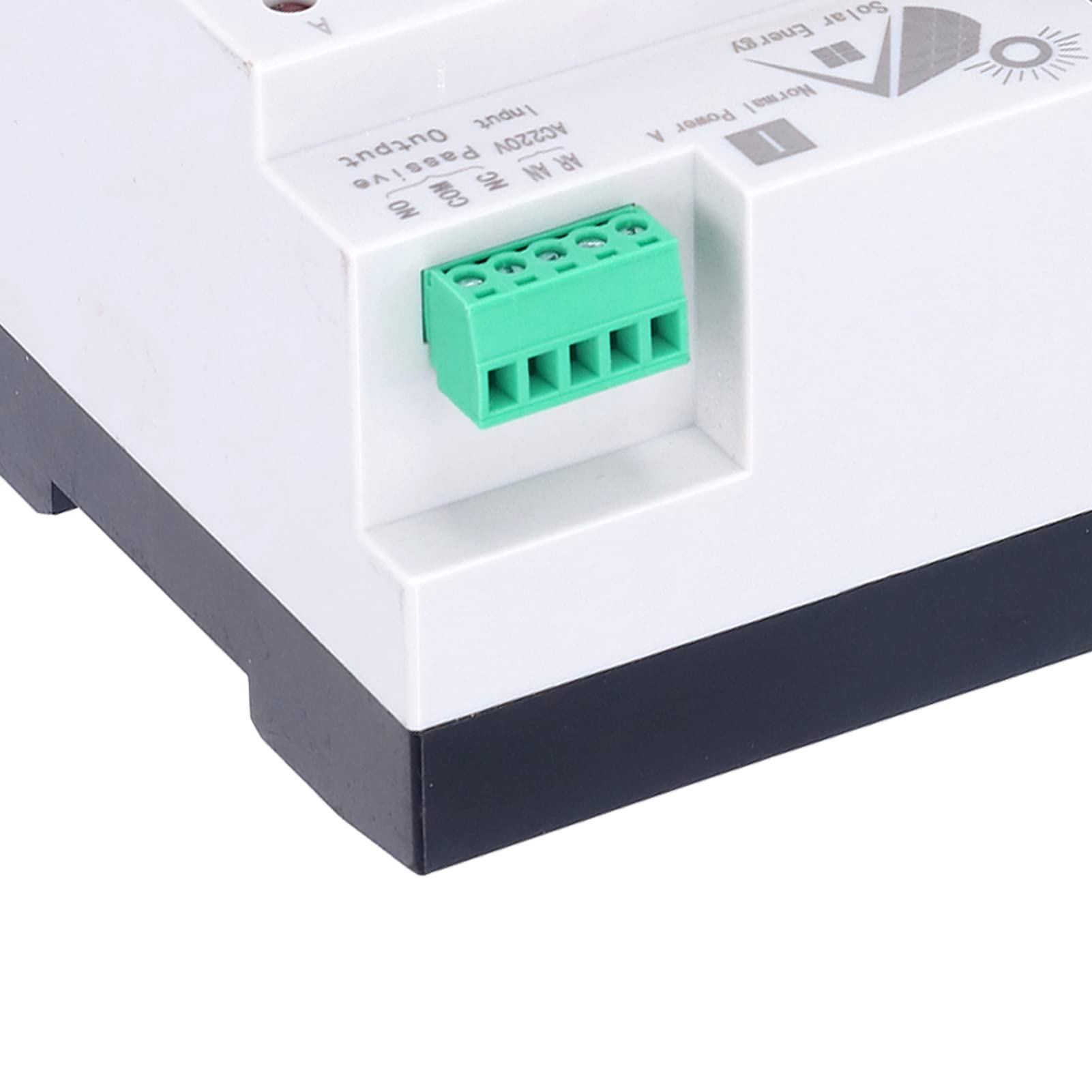

• Convenient observation: built in timing standby open output port, which can be connected to a indicator light, convenient for observation outside the cabinet, rail type installation
• Flame retardant materials: made of good quality flame retardant plastic materials, possess good insulation, high temperature, aging, and
• For various places: to the backup power supply when there is a power failure, and to the main power supply when power recovery. widely used in various places where continuous power failure is not allowed, like factories, shopping malls, nurseries, etc

How to Use: Please check the integrity of the ATS before installation, turn the ATS on or off with the operating handle, check the flexibility of the transmission and detect the normal and backup power load generation and disconnection conditions at each stage. Specification: Item Type: Dual Power Automatic Transfer Switch Product Model: NLQ4-125/4P Switch Type: Secondary power distribution Rated Current: 100A Rated Voltage: 400V AC Insulation Voltage: 690V AC Rated Frequency: 50Hz/60Hz Electrical Grade: PC grade isolation type Service Life: Electrical: 2000 Times; Mechanical: 5000 Times Rated Short Circuit Current: 50kA SCPD RT16-00-63A Rated Impulse Withstand Voltage: 8kV Control Circuit: Rated Control Voltage Us: AC220 V 50Hz Normal Working Condition: 85% Us-110% Us Auxiliary Circuit: 2 Independent relays, each relay includes 2 sets of transformer contacts Contact Capacity: AC220V 50Hz Touch Time: <50ms Operation Transition Time: <50ms Return Time: <50ms Off Time: <50ms Note: 1. The maximum ambient temperature should not exceed 40℃, the minimum should not be lower than ‑5℃, and the average temperature within 24 hours should not be higher than 35℃.When the maximum temperature reaches 40℃, the relative humidity of the installation site should not exceed 50%; when the temperature is the lowest temperature of ‑5℃, the relative humidity is higher, for example, if the temperature is 25℃, the relative humidity is 90%. Special measures should be taken to deal with occasional condensation on product surfaces due to temperature changes. 3. During conversion, the internal switch will lose the coil in the control circuit. The coil can work normally at 85%‑110% of the rated working voltage. If the voltage in the coil is too low, it may cause the coil to heat up or burn out.
