JZK 4x 110lbs Load Cell 50KG, Half-bridge Body Load Cell Weight Strain Sensor Resistance, Body Scale Sensor with wire leads for DIY body scale

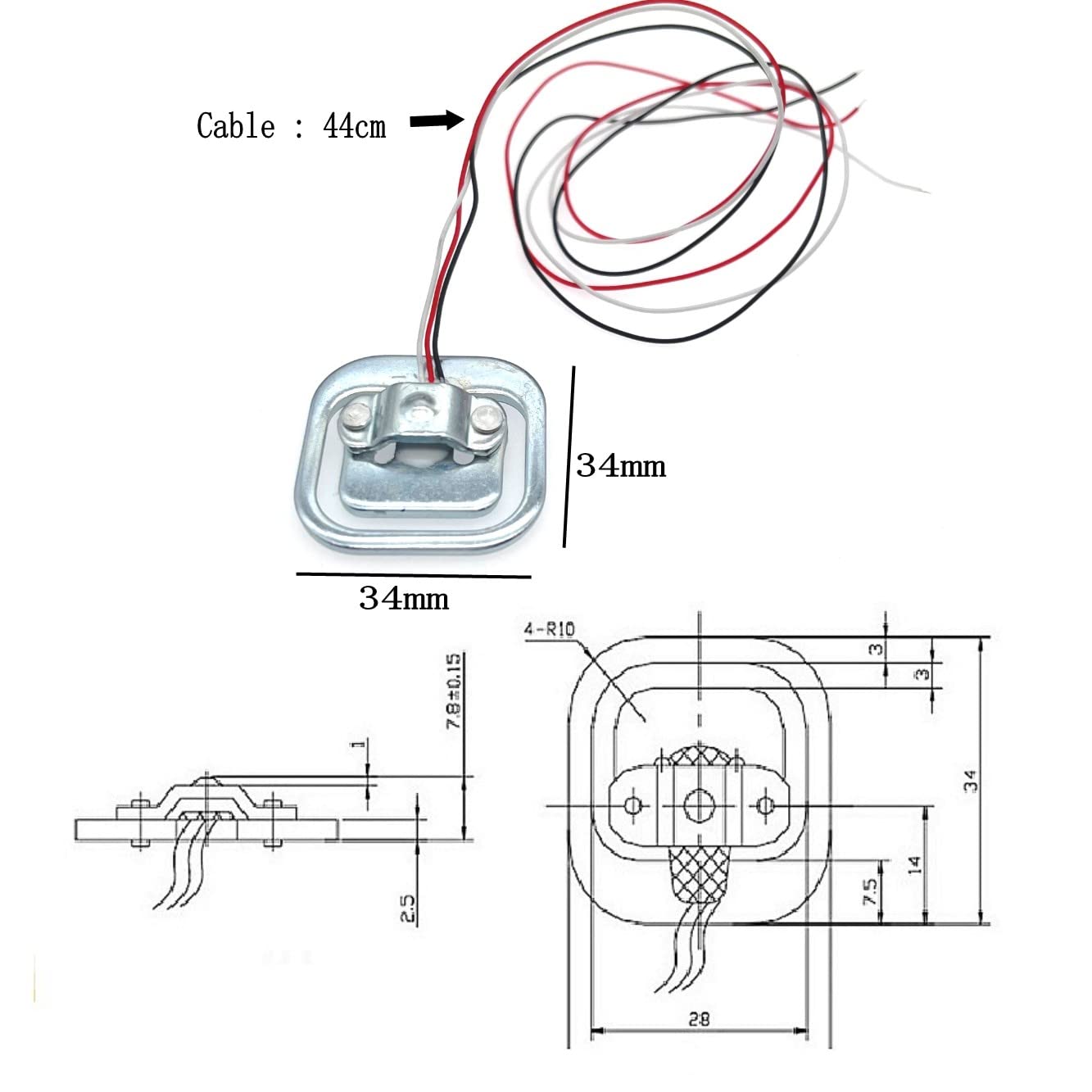

• Internal 1000 Ohm half bridge strain gauge, range is 50kg weighing cell, half-bridge structure. Package Included: 4 pieces of 50kg body scale load cell. Each size: 3.4 x 3.4 x 0.78mm. Cable leads length: 44cm.
• This sensor is a group of half bridge strain gauge, using the method can have the following three: (This product does not provide technical support, non-technical personnel should not buy it.)
• 1, Use one sensor and an external resistor to form a full bridge measurement, the range is the range of a sensor: 50kg. Higher requirements for external resistance.
• 2, Use two sensor, the range is the sum of the ranges of two sensors: 50kgx2= 100kg.
• 3, Use four sensor, the range is the sum of the ranges of four sensors: 50kgx4 = 200kg

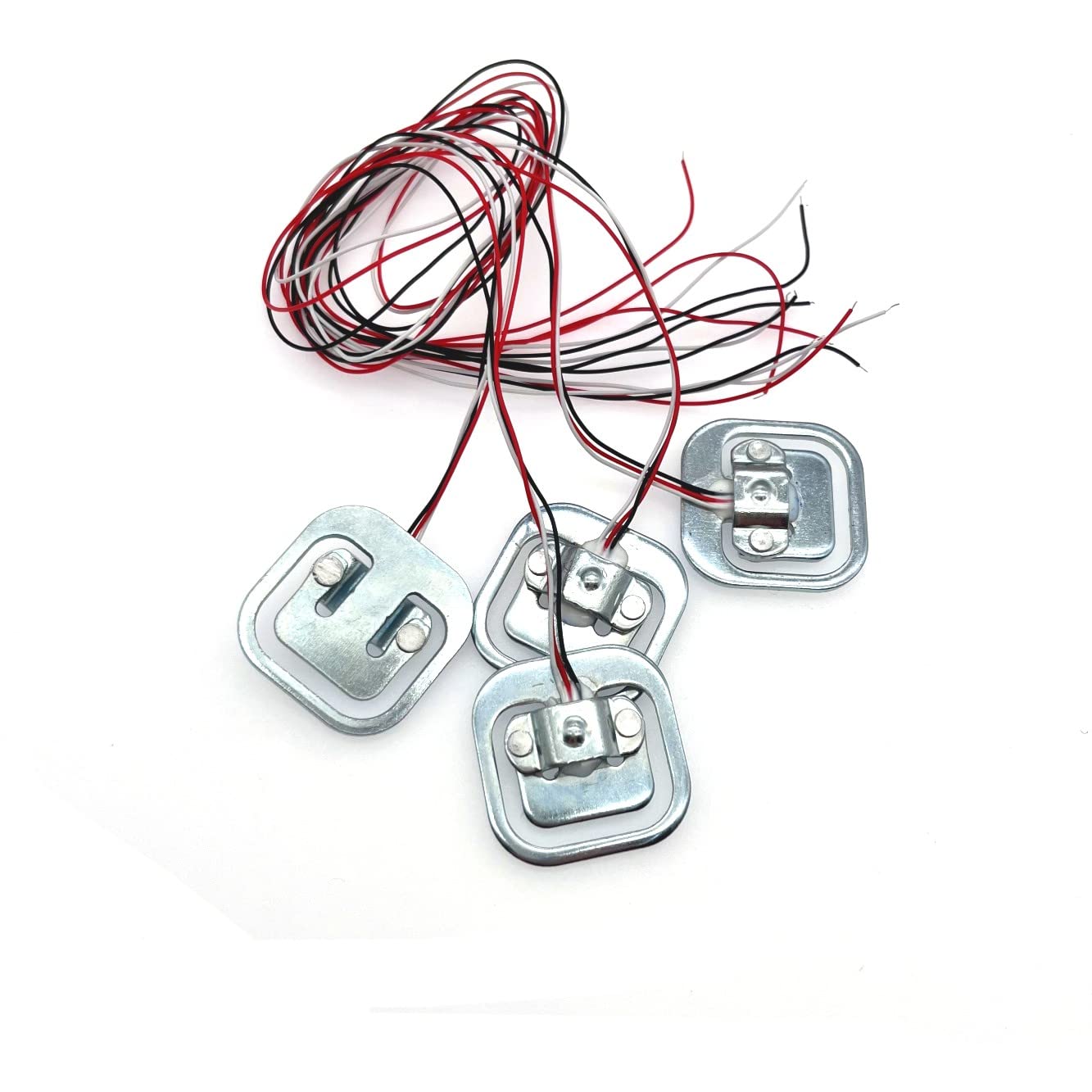

Package Included: 4 pieces of 50kg body scale load cell. Each size: 3.4 x 3.4 x 0.78cm. Cable leads length: 44cm. Each weight: 18g Internal 1000 Ohm half bridge strain gauge, range is 50kg weighing cell, half-bridge structure. This sensor is a group of half bridge strain gauge, using the method can have the following three: (This product does not provide technical support, non-technical personnel should not buy it.) 1, Use one sensor and an external resistor to form a full bridge measurement, the range is the range of a sensor: 50kg. Higher requirements for external resistance. 2, Use two sensor, the range is the sum of the ranges of two sensors: 50kgx2= 100kg. 3, Use four sensor, the range is the sum of the ranges of four sensors: 50kgx4 = 200kg
