JZK 20A Intelligent Solar Charge Controller with LCD Display, USB Port, Battery Protection for LED Lighting

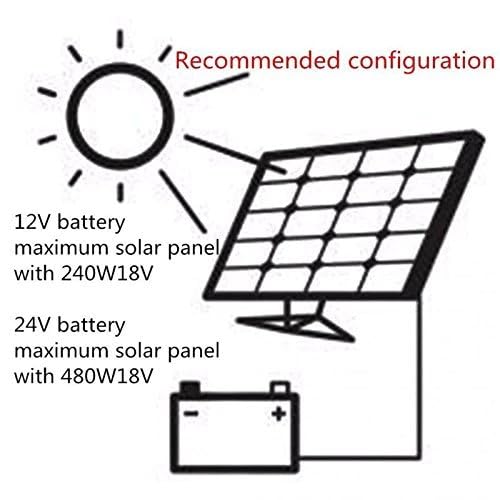

• Rated voltage: 12V/24V vehicle identification. Rated current: 20A. Maximum PV voltage: 46V. Maximum PV input power: 260W (12V) / 520W (24V)

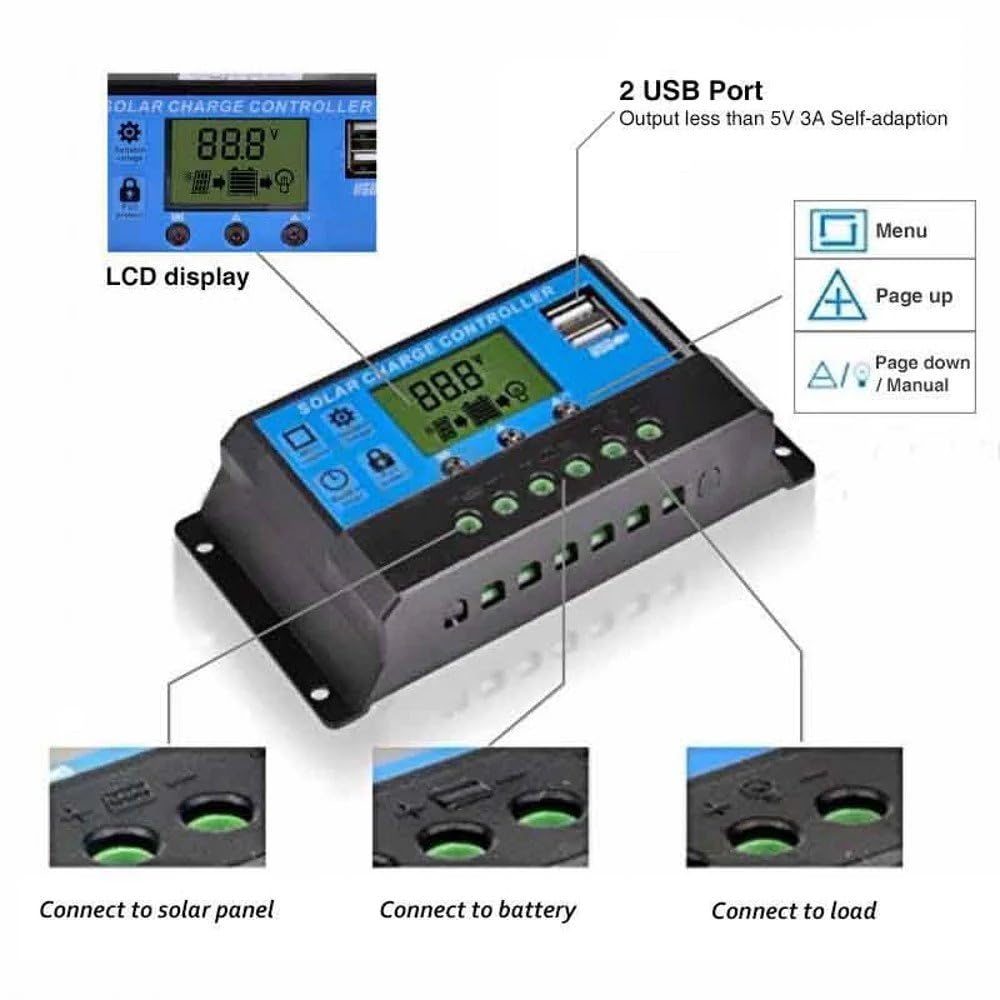

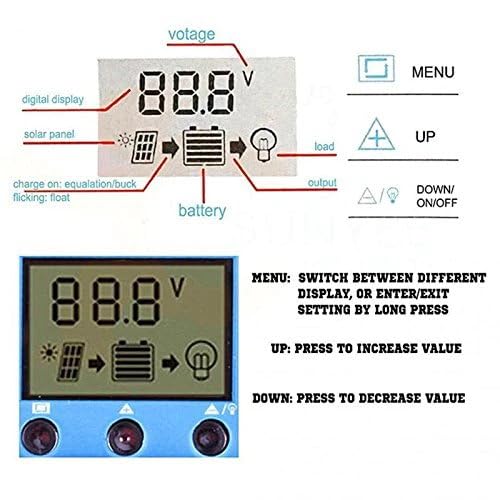

• This solar panel charge controller features a large LCD display, voltage display, battery status lights and dual USB charging interface
• This solar charge controller has built-in overcurrent protection, short circuit protection, open circuit protection and backflow protection.
• The charging and discharging parameters are adjustable. Light control and time delay are adjustable. Dual MOS intrusion prevention circuit, extremely low temperature development, low failure rate.

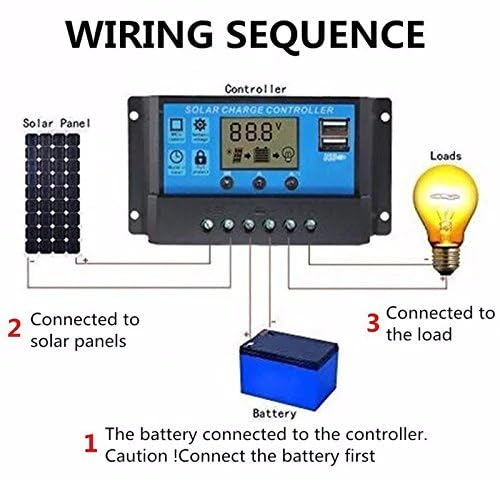

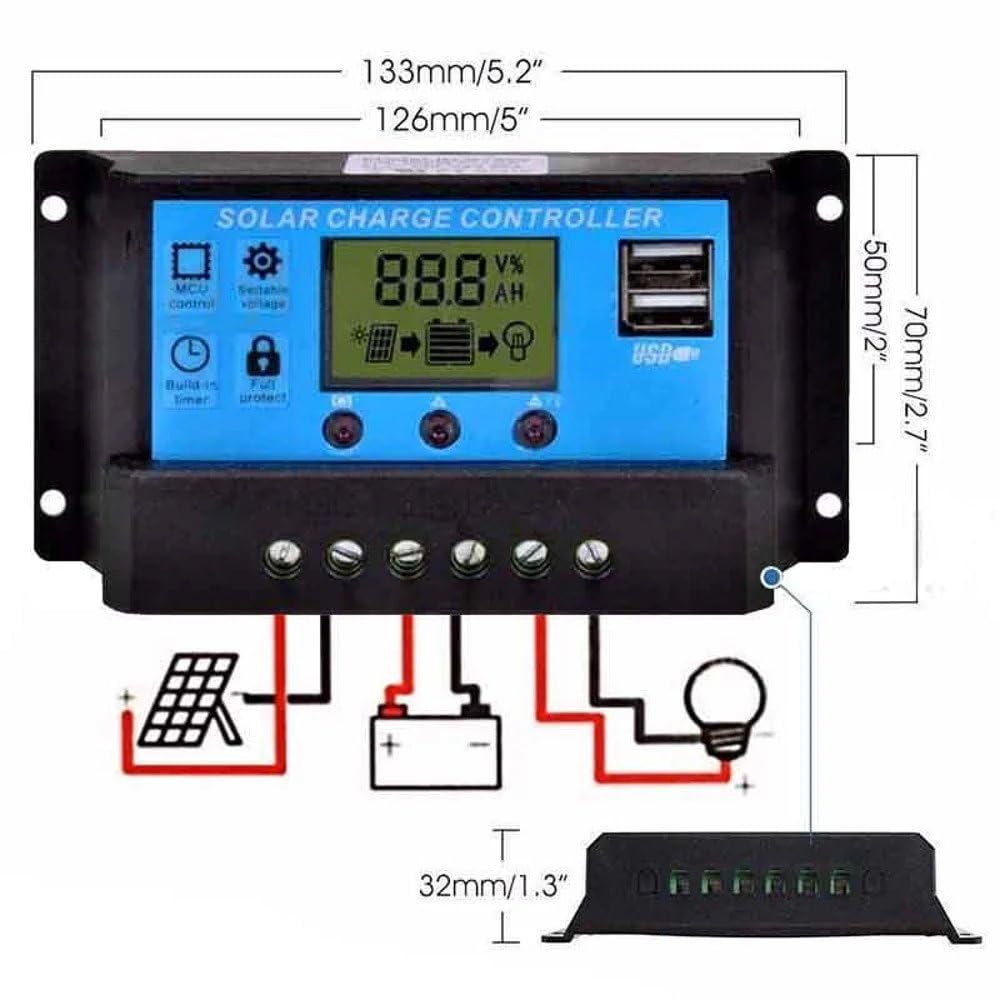

• The solar charge controller is easy to install and use. Dimensions: 135 x 70 x 32 mm Weight: 150 grams Suitable for household, industrial, commercial, etc.

**This solar panel charge controller has built-in over-current protection, short circuit protection, open circuit protection and reverse protection. * This solar charge controller has a large LCD display, * Displays the voltage. * Show battery power. * Dual USB charging interface. *Charging parameters and discharging parameters are adjustable. * Light control and time delay are adjustable. * Dual MOS intrusion prevention circuit, extremely low heat generation, low failure rate. * Fully 4-stage PWM charging management. * The solar charge controller is easy to set up and use. * All necessary protective devices are available. * Adjustable control parameter of the system. *This solar panel charge controller has a low failure rate and lasts a long time. *This solar panel controller is electronically secured and requires no replacement parts. *This solar controller is protected with a moisture-resistant coating, minimizing damage from moisture and insect nesting. Rated voltage: 12V/24V, automatic detection. Rated current: 20 A. Max. PV voltage: 46 V. Max. PV input power: 260W (12V) / 520W (24V) Working temperature: -35 °C to + 60 °C. Application: Home, Industrial, Commercial Standby current: <10 mA. 12 volt system (if it is a 24 volt system, data x2): Float charge: 13.7 V (standard, adjustable). Discharge stop: 10.7 V (standard, adjustable). Reconnect discharge: 12.6V (default, adjustable). Size: 135 x 70 x 32 mm. Weight: 150g. The package includes: 1 x solar charge controller. 1 x English User Manual
