JYUDAUFU 775 Micro Motor DC 12V 10000RPM 24V 20000RPM Electric Double Ball Bearings High Power 150W Mini/Small Motor with 6.3 Spring Wire, for RC Toy Car/Robot/Mini Fan/Electric Drill/UAV/DIY/Test

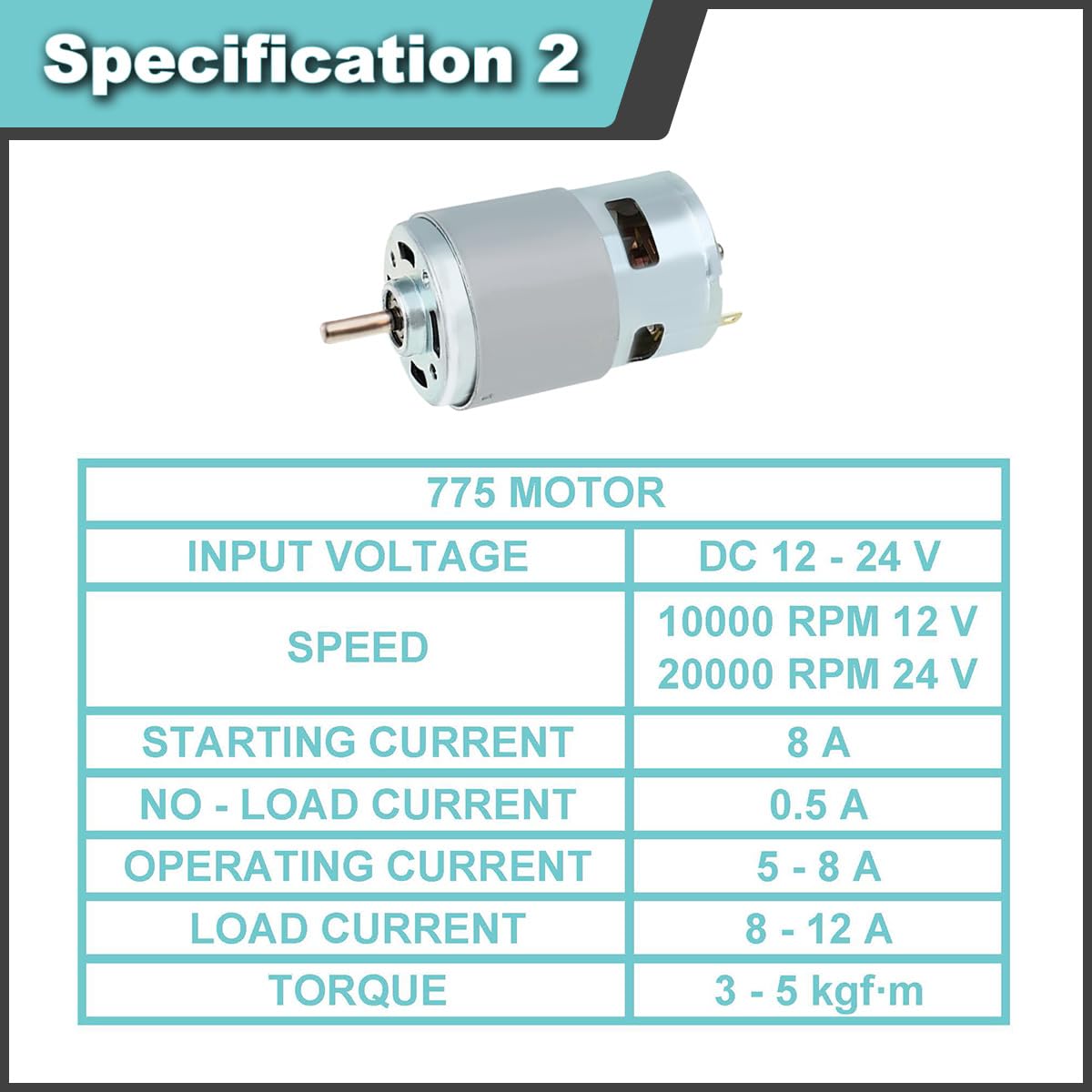

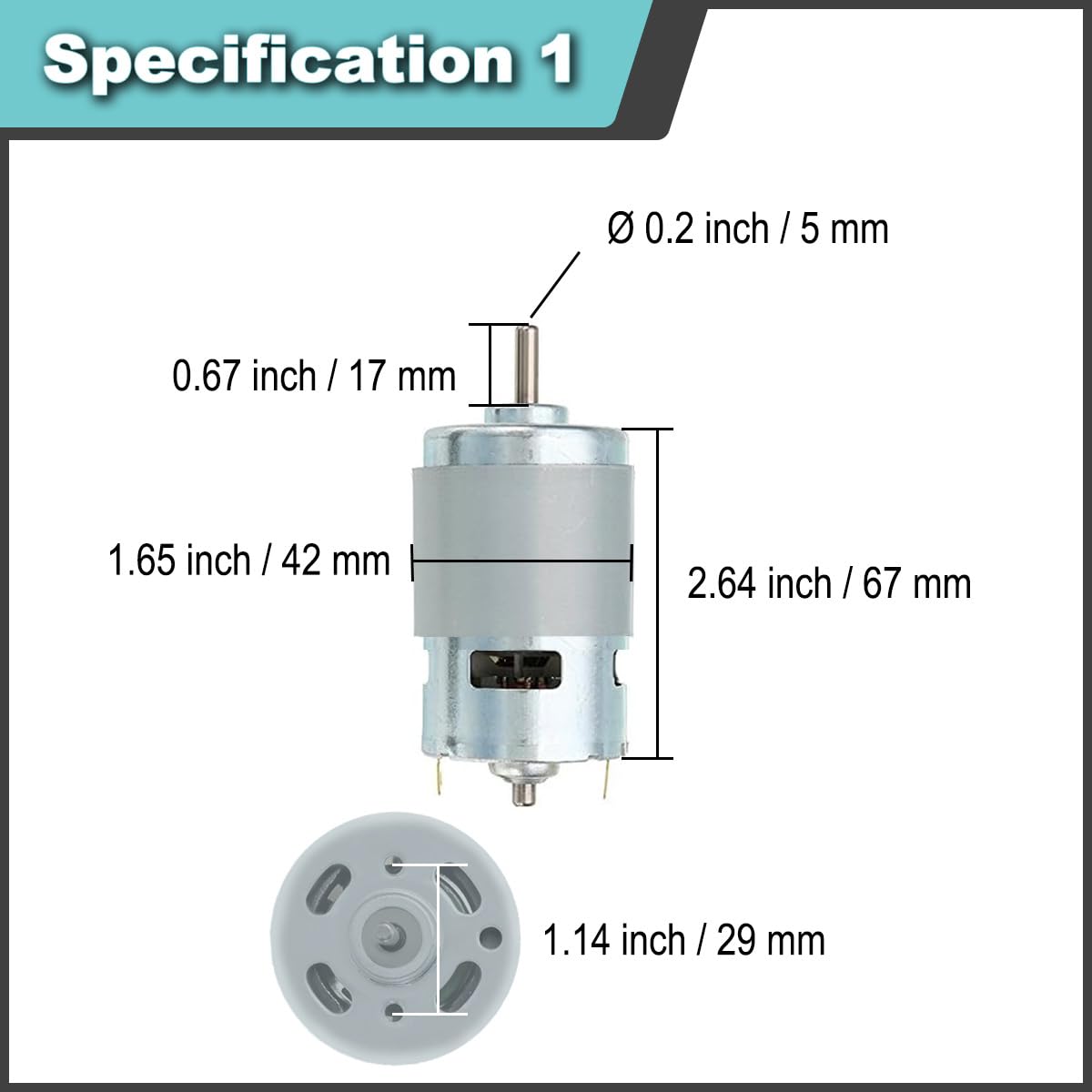

• Specification: Body Size ( D × H ): 1.65 × 2.64 inch / 42 × 67 mm; Shaft Size ( D × H ): 0.2 × 0.67 inch / 5 × 17 mm; Input Voltage: DC 12 - 24 V; Speed: 10000 RPM ( 12 V ), 20000 RPM ( 24 V ); Starting Current: 8 A; No - Load Current: 0.5 A; Operating Current: 5 - 8 A; Load Current: 8 - 12 A; Torque: 3 - 5 kgf·m; Distance between Mounting Holes: 29 mm
• Application: The 775 Micro Motor can be used for electronic equipment, toy car, mini fan, robot ,aerial camera and so on. It is applicable with DIY, Test etc.
• Feature 1: The motor works with low noise; High-quality strong magnetic sheets ensure that electrical energy is converted into efficient mechanical energy.
• Feature 2: Considerate and durable: Thickened carbon brushes ensure stable current and longer life; The pin tail shell is dust-proof and drop-proof, and has good heat dissipation.
• Feature 3: The motor is easy to install. With built-in fan, it is compact and well-made.
• Note: Be careful that the Voltage Motor supports is DC 12 - 24 V, greater than this range it will reduce the service life of the motor.

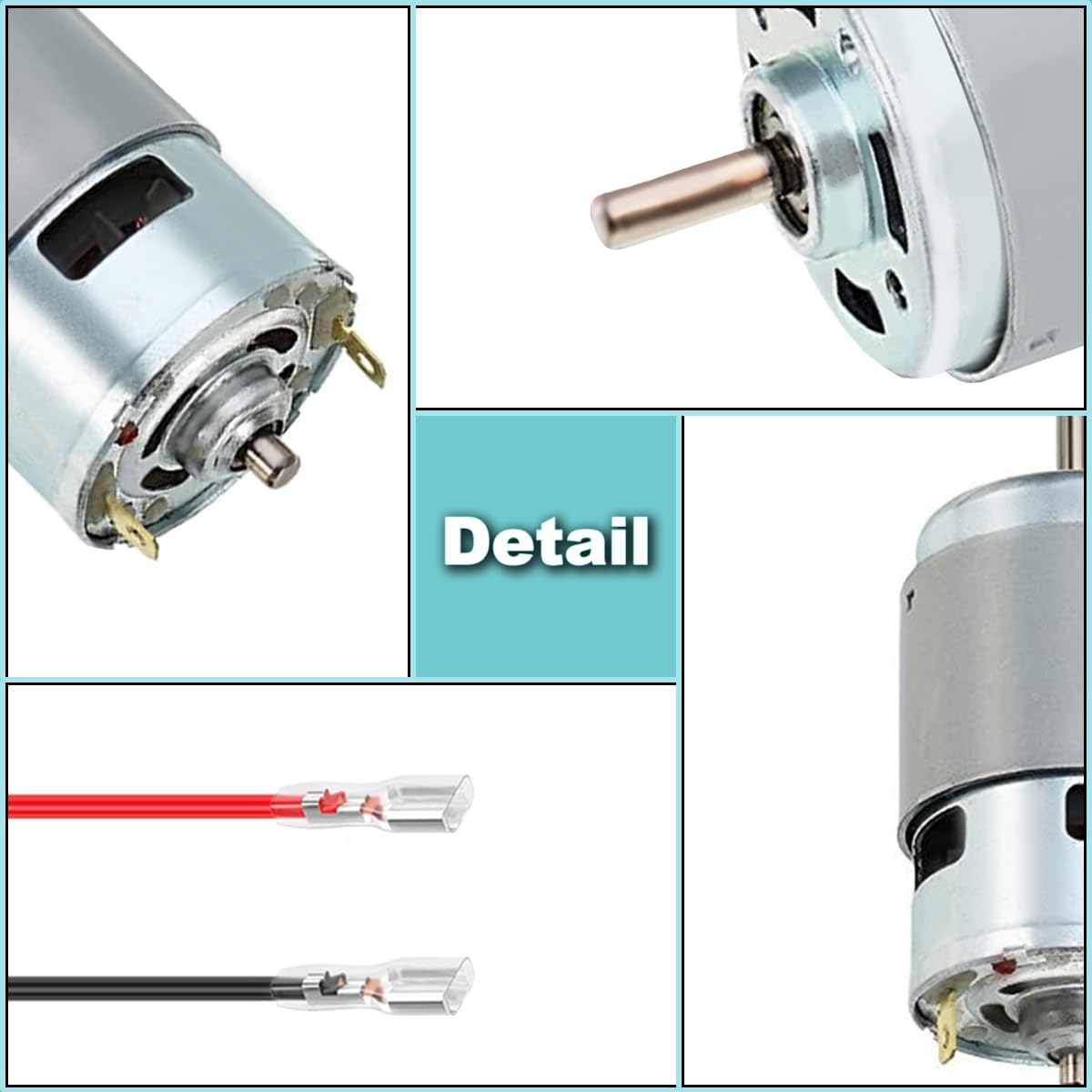

• Package Included: 1 x 775 Micro Motor; 2 x 6.3 Spring Wires.

Specification Body Size ( D × H ): 1.65 × 2.64 inch / 42 × 67 mm Shaft Size ( D × H ): 0.2 × 0.67 inch / 5 × 17 mm Input Voltage: DC 12 - 24 V Speed: 10000 RPM ( 12 V ), 20000 RPM ( 24 V ) Starting Current: 8 A No - Load Current: 0.5 A Operating Current: 5 - 8 A Load Current: 8 - 12 A Torque: 3 - 5 kgf·m Distance between Mounting Holes: 29 mm Application The 775 Micro Motor can be used for electronic equipment, toy car, mini fan, robot ,aerial camera and so on. It is applicable with DIY, Test etc. Feature 1. The motor works with low noise; High-quality strong magnetic sheets ensure that electrical energy is converted into efficient mechanical energy 2. Considerate and durable: Thickened carbon brushes ensure stable current and longer life; The pin tail shell is dust-proof and drop-proof, and has good heat dissipation 3. The motor is easy to install. With built-in fan, it is compact and well-made Package Included 1 x 775 Micro Motor 2 x 6.3 Spring Wires
