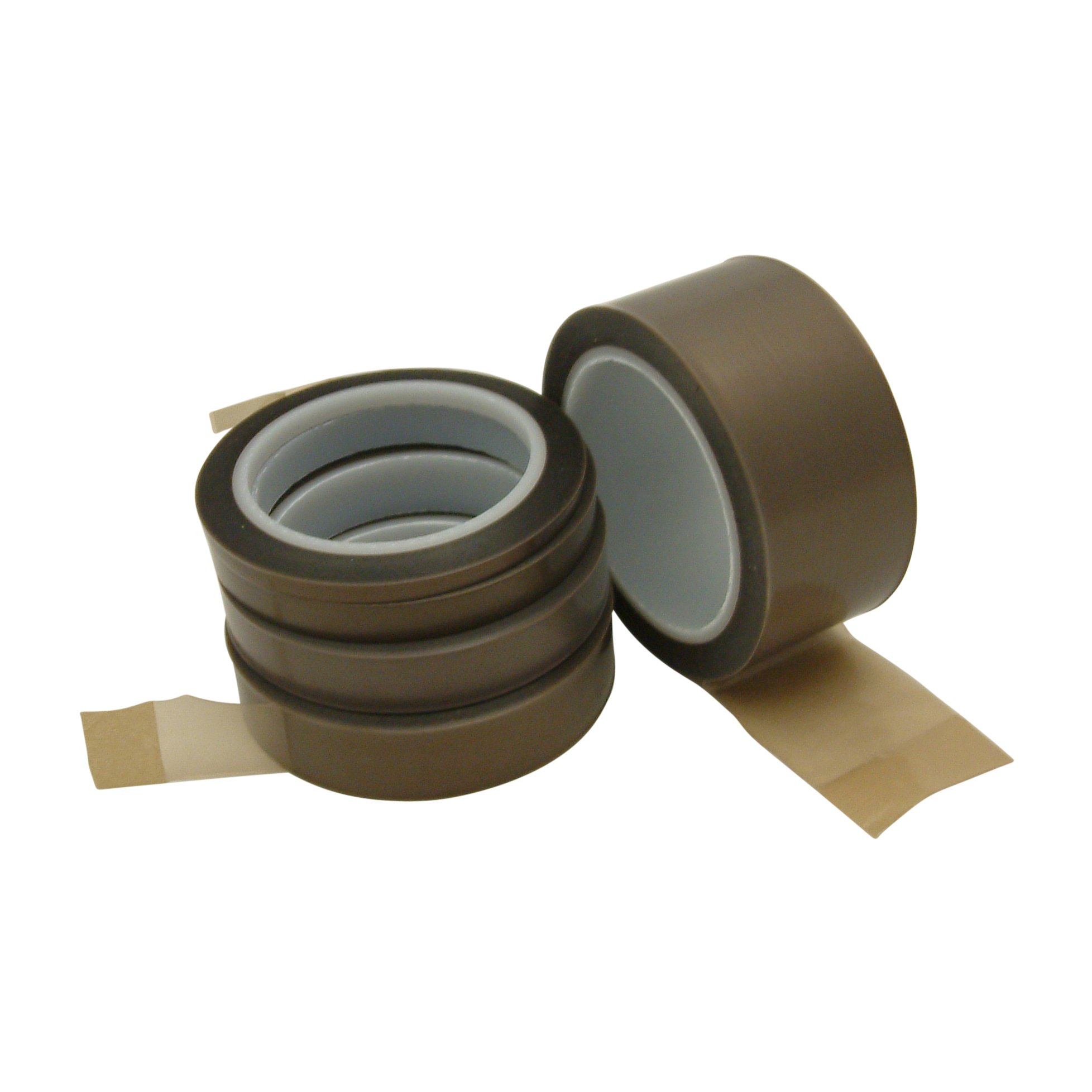

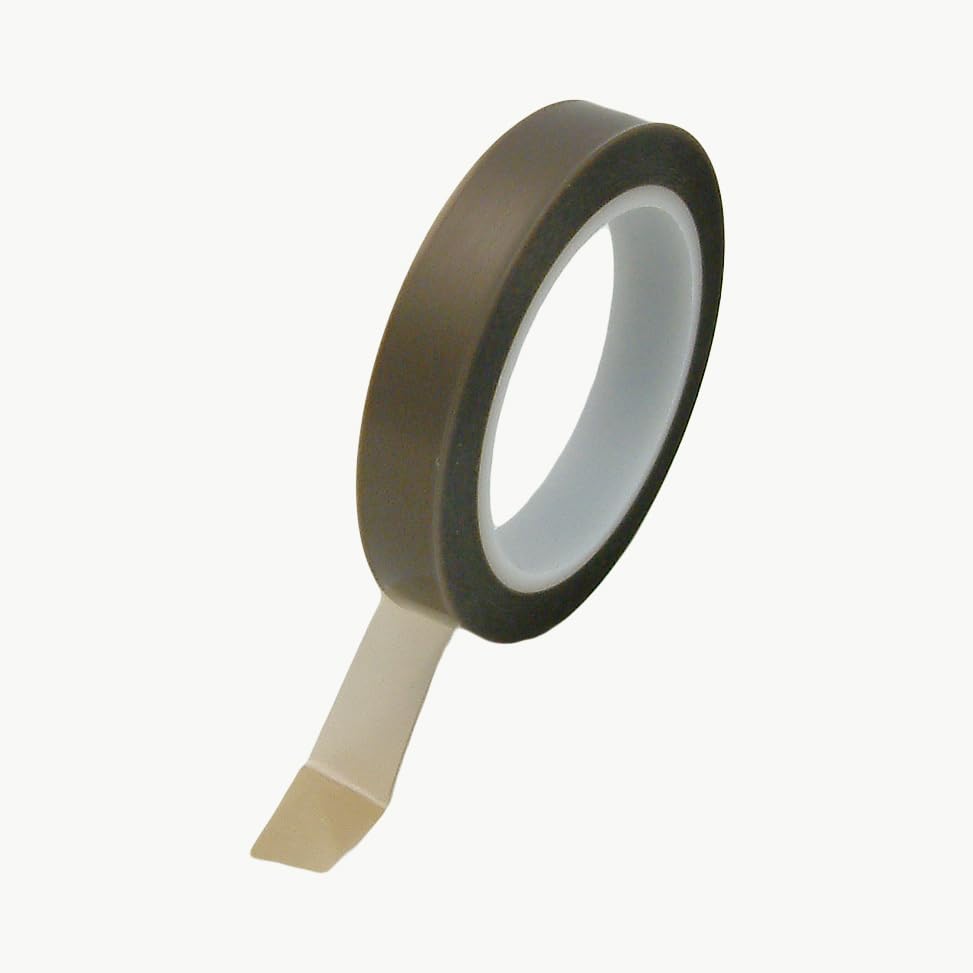

JVCC Skived PTFE Film Tape [High Density, 2 mil Carrier] (PTFE-2HD): 2 in. x 36 yds. (Milky Grey)

• JVCC PTFE-2HD Skived PTFE Film Tape is a 2 mil high density tensilized pure skived PTFE film tape coated with a high-temperature silicone adhesive.
• Used in electrical applications such as harness/coil wraps & separators, transformers and slot liners where good insulation and heat resistance are required. Also used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip, and lubricity are required.
• JVCC PTFE-2HD provides higher tensile strength, lower elongation, and higher dielectric strength than regular skived film. It is primarily used for electrical applications listed above and for roll protection in flat die extrusion
• Carrier/Backing: polytetrafluoroethylene (PTFE) film / pure skived. Adhesive: silicone. Thickness: 3.5 mils (carrier, adhesive) 2 mils (carrier).
• Adhesion: 25 ounces per inch (to stainless steel test panel). Tensile Strength: 30 pounds per inch (longitudinal). Dielectric Breakdown: 8000 volts. Service/Operating Temperature: -100F to 500F. Elongation: 100%. Standards Met: MIL-I-23594C Type 1 (revised spec. CID A-A-59474). Core: 3-inch diameter.

JVCC PTFE-2HD Skived PTFE Film Tape is a 2 mil high density tensilized pure skived PTFE film tape with a high-temperature silicone adhesive. It comes self-wound without a liner. Used in electrical applications such as harness/coil wraps & separators, transformers and slot liners where good insulation and heat resistance are required. Also used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip, and lubricity are required. JVCC PTFE-2HD provides higher tensile strength, lower elongation, and higher dielectric strength than regular skived film. It is primarily used for electrical applications listed above and for roll protection in flat die extrusion. Country of Origin: United States. If not otherwise specified widths shown in dropdown are in inches. The color name grey can also be spelled as gray.
