JSADZKJ 2-Pack IEC320 C14 Terminal Block Socket,IEC C14 AC Power Plug 10A/250V, 3-Pin Terminal Straight-Through Adapter Plug Power Socket,Suitable for Computer Cabinets,Printers (White)

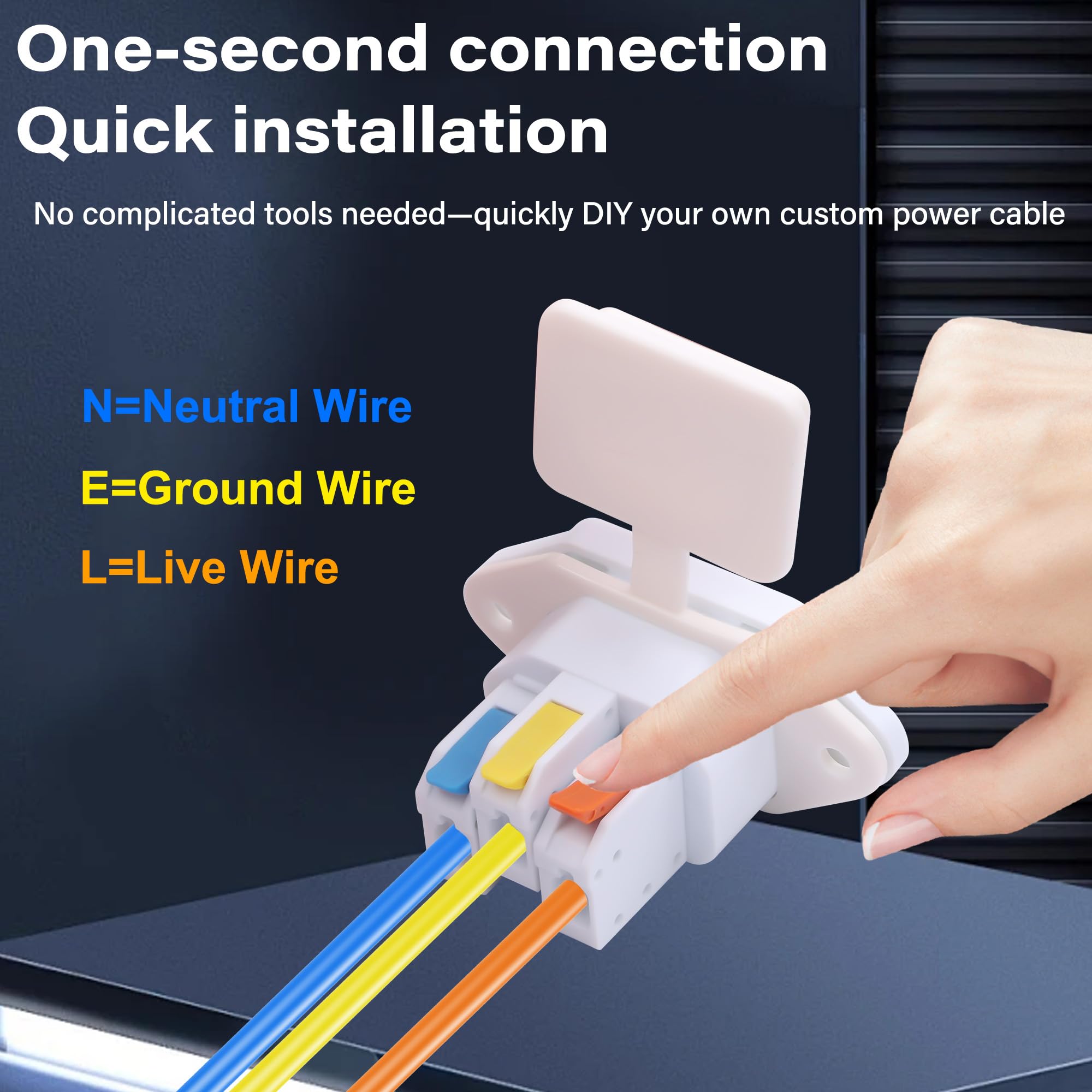

• Installation in Seconds: This IEC320 C14 socket features an innovative booster quick-install mechanism—no tools required. Simply press the booster to open the cable installation port, insert the prepared cable into the hole, and press the booster down by hand to complete installation. Installation Steps

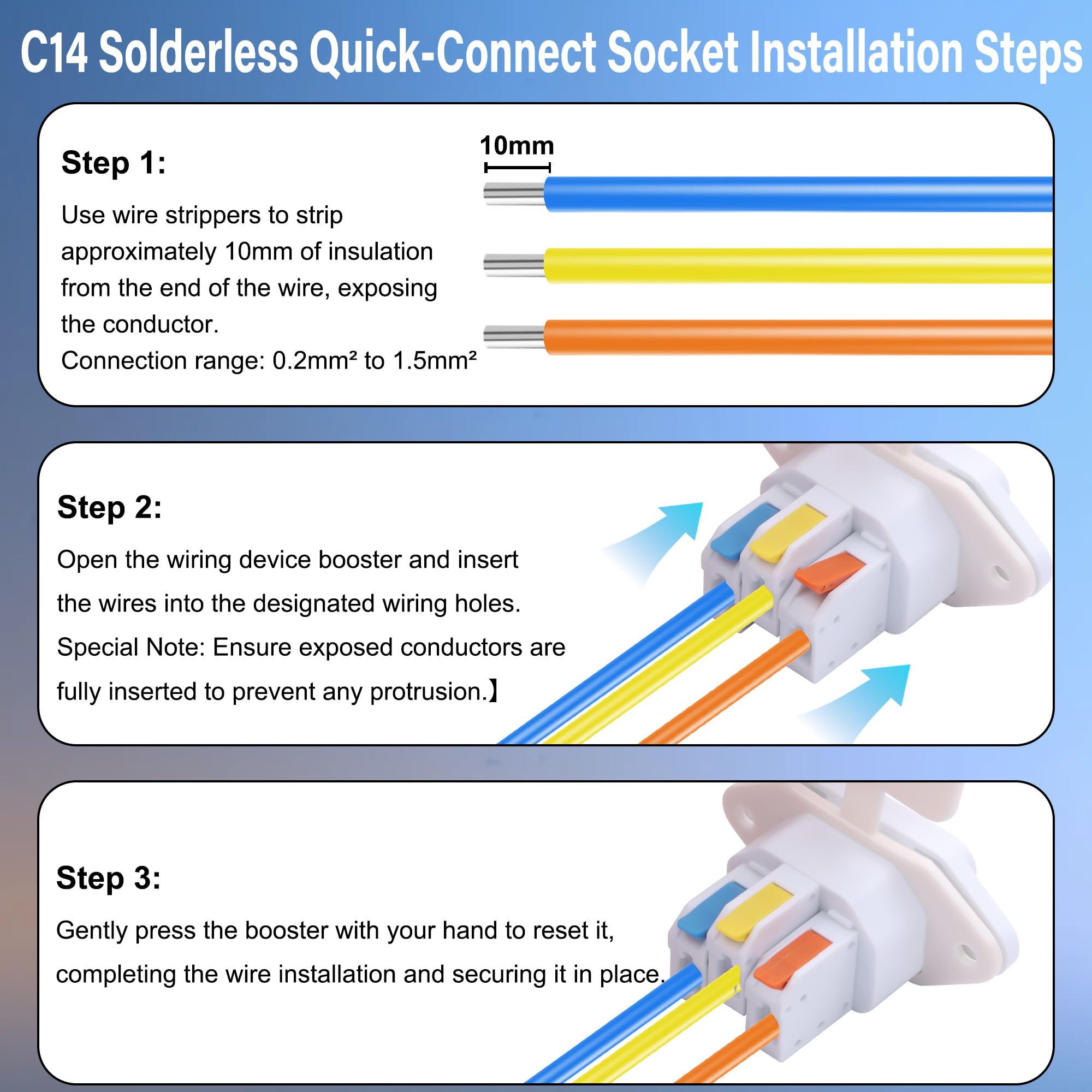

• 1. Wire Preparation: Use a wire stripper to remove approximately 10mm of insulation from the wire end, exposing the conductor. Wire range: 0.2mm² to 1.5mm². 2. Open the connector's booster mechanism and insert the wire into the designated terminal hole. [Important: Ensure the exposed conductor is fully inserted to prevent protrusion.] 3. Gently press the booster to reset it, completing the installation.
• Robust Specifications: The IEC320 C14 terminal socket supports 100-250V AC input voltage with a rated current of 10A, safely meeting device power supply or charging needs. Its nickel-plated brass internal conductors ensure excellent conductivity and corrosion resistance for reliable operation.
• Multi-scenario Compatibility: Widely used in computer hosts, servers, printers, switches, router racks, automation equipment, medical devices, and various electrical appliances to meet diverse power connection needs.

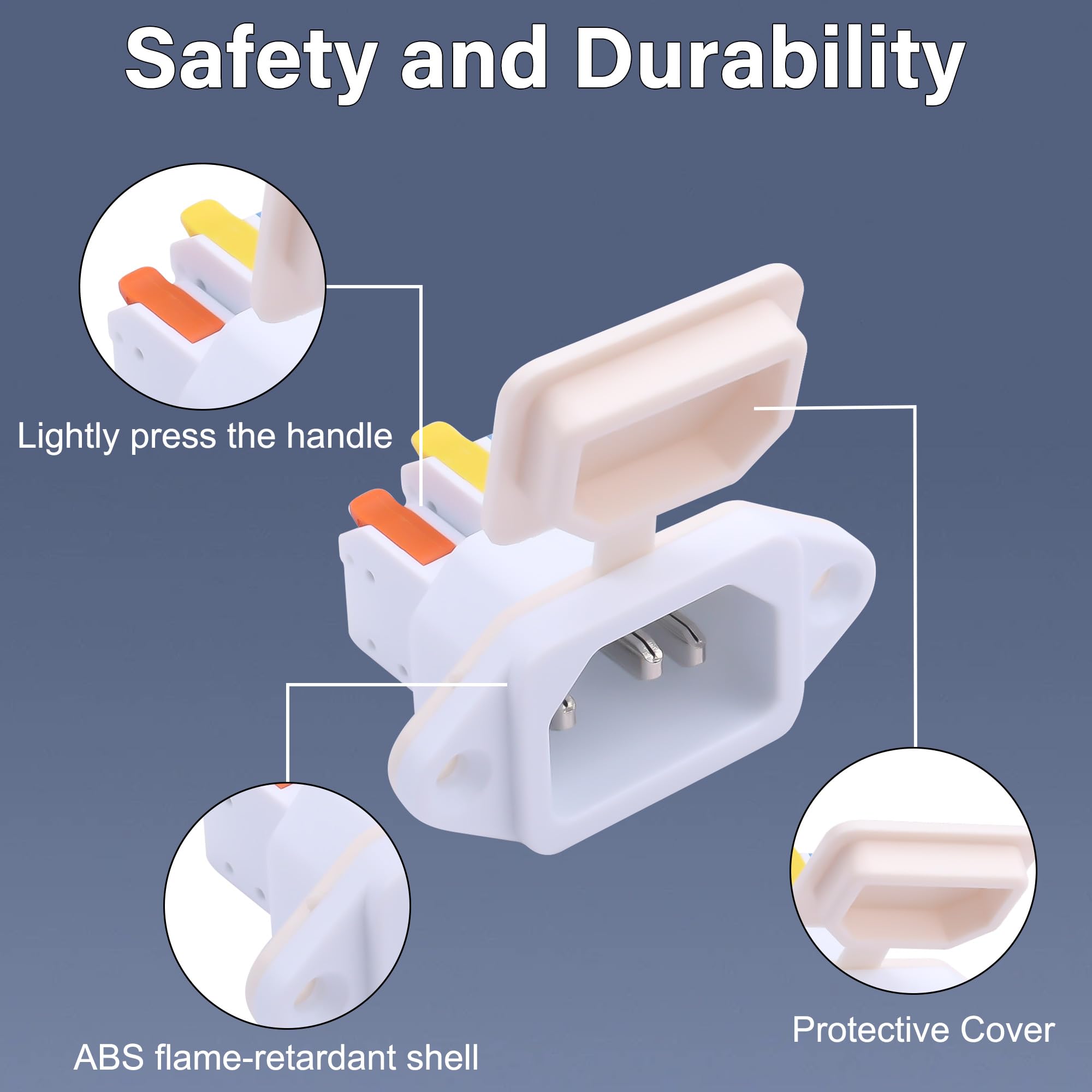

• Safety and Durability: The C14 socket body is constructed from premium high-strength ABS insulating material, offering excellent fire resistance and wear resistance. It features a protective cover that effectively blocks dust and foreign objects from entering, maintaining internal cleanliness.

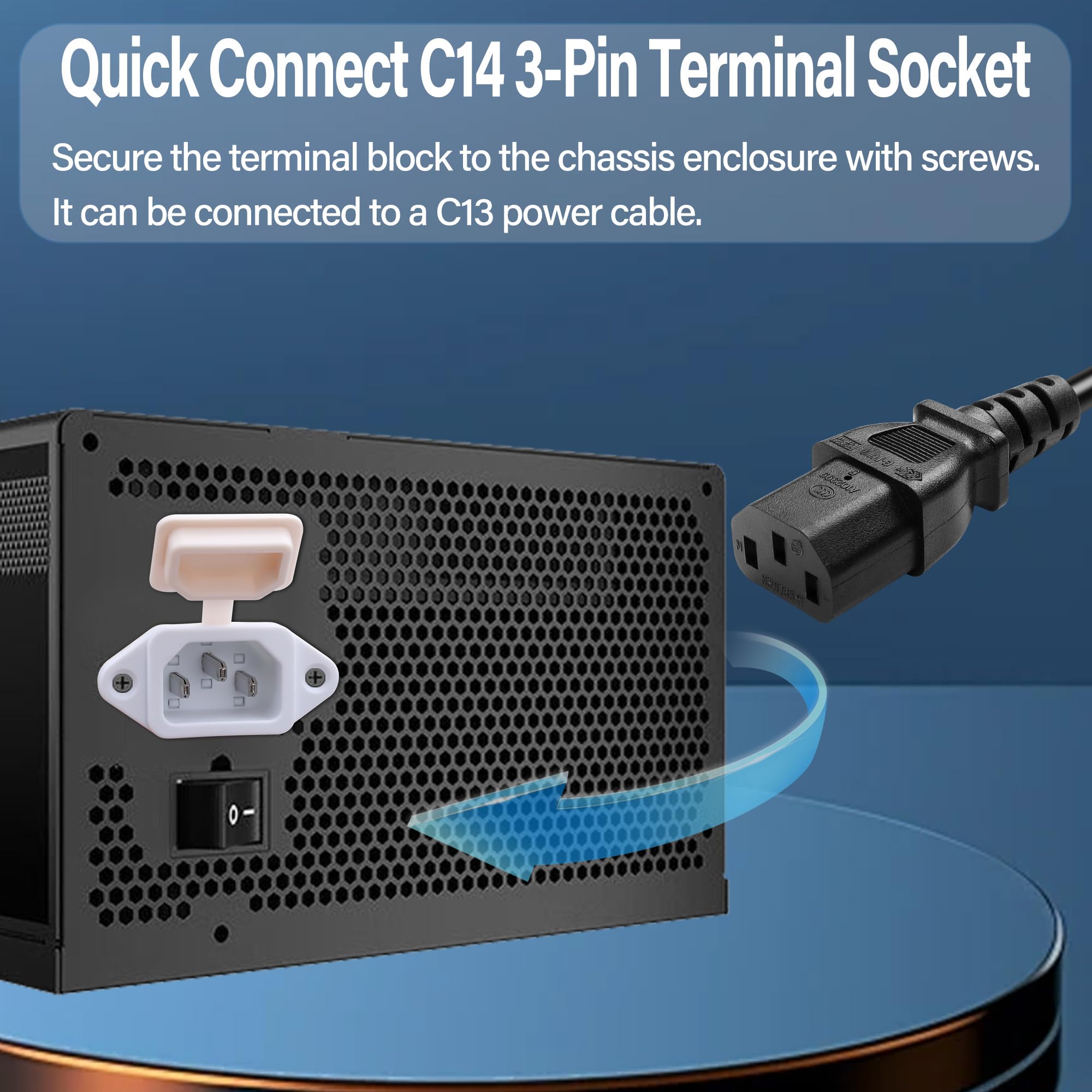

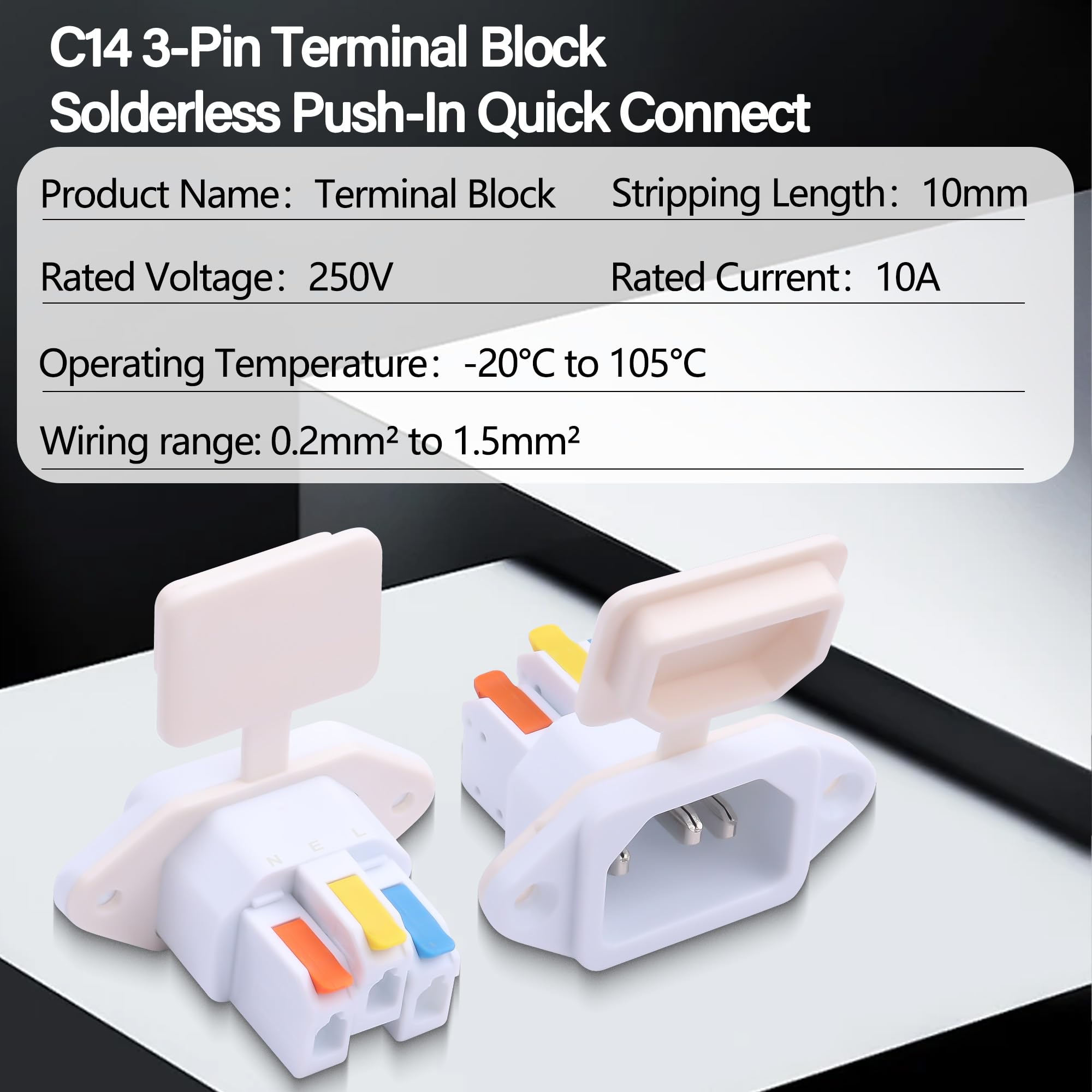

JSADZKJ IEC 60320 C14 terminal socket This C14 socket can be connected to a C13 standard power cord, providing power to your desktop computer, monitor, server, printer, and other office equipment Different from traditional terminal sockets, the C14 terminal socket is equipped with a booster design, bidding farewell to the tedious screw turning steps. No tools required, simply press the booster lightly to easily open the cable installation port, insert the cable into the corresponding installation port to complete the installation The screw fixed panel can be firmly fixed to the equipment casing, which is very suitable for vibration or shaking scenarios The front of the adapter socket is clearly marked with ground wire, live wire, neutral wire, and installation connection Product parameters: Interface type: IEC60320 C14 terminal socket Rated current: 10A Rated voltage: 250 Shell: Flame retardant ABS Inner core: brass Stripping length: 10mm Wiring range: Soft and hard wire 0.2mm ² -1.5mm ² Packaging: 2xIEC320 C14 AC power socket adapter plug
