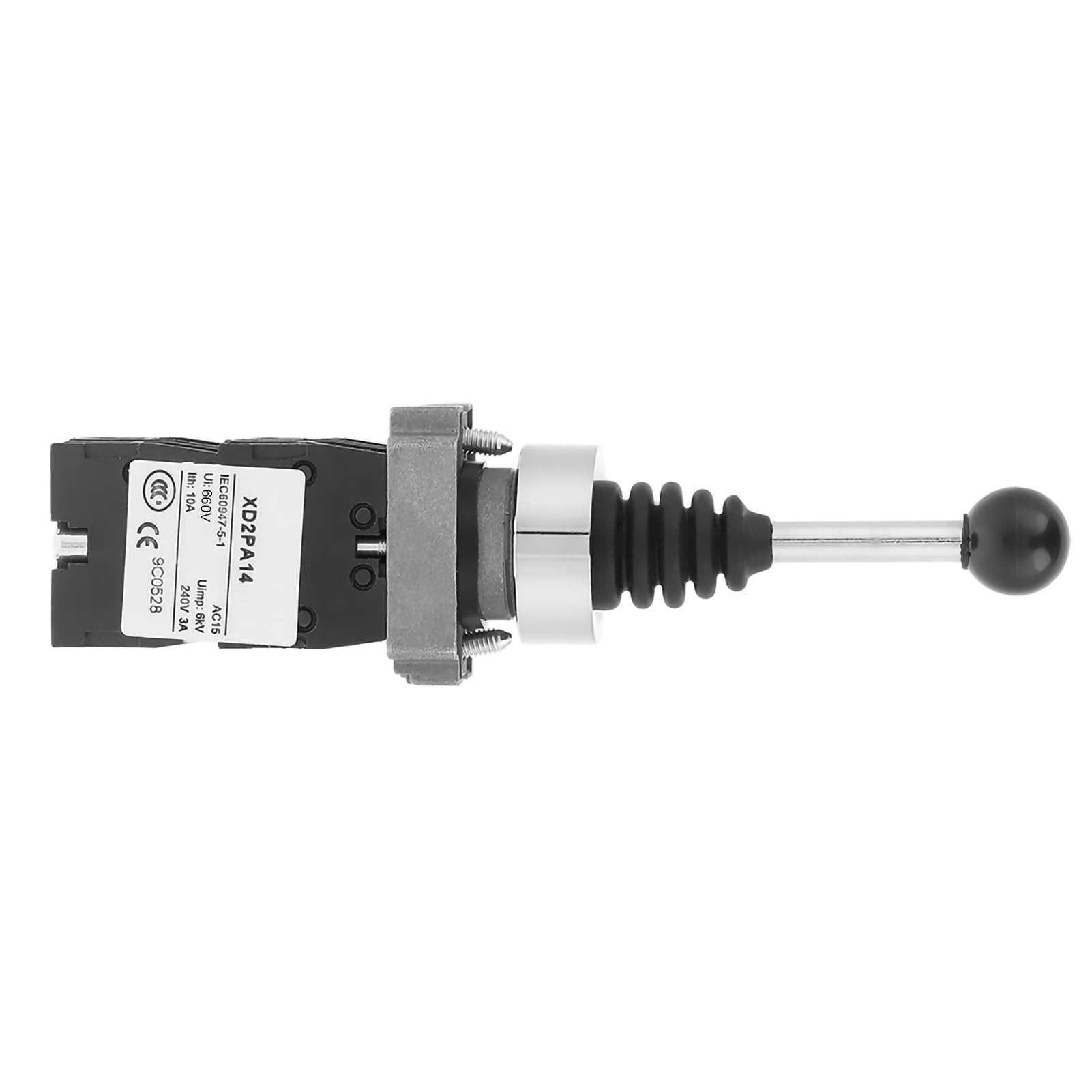

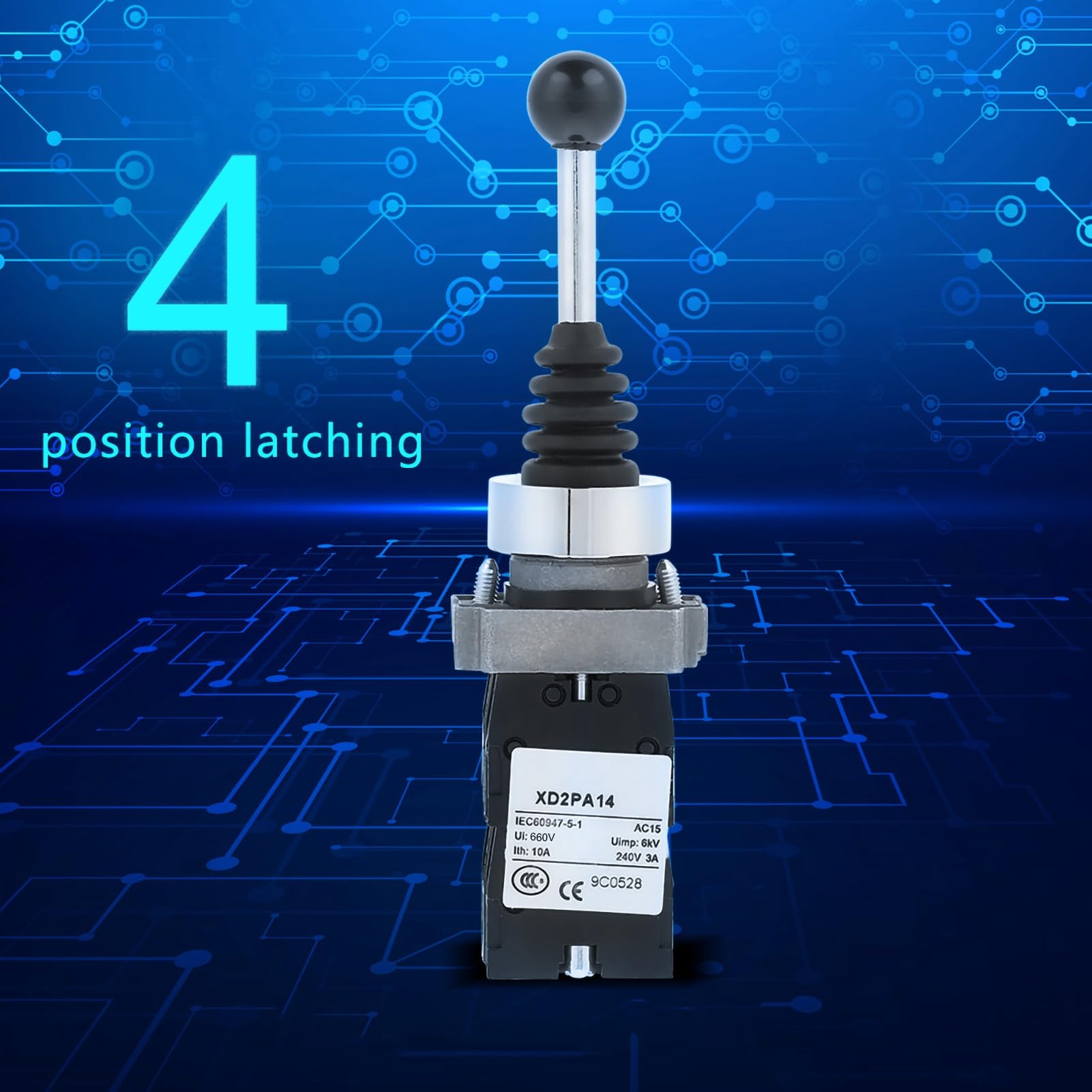

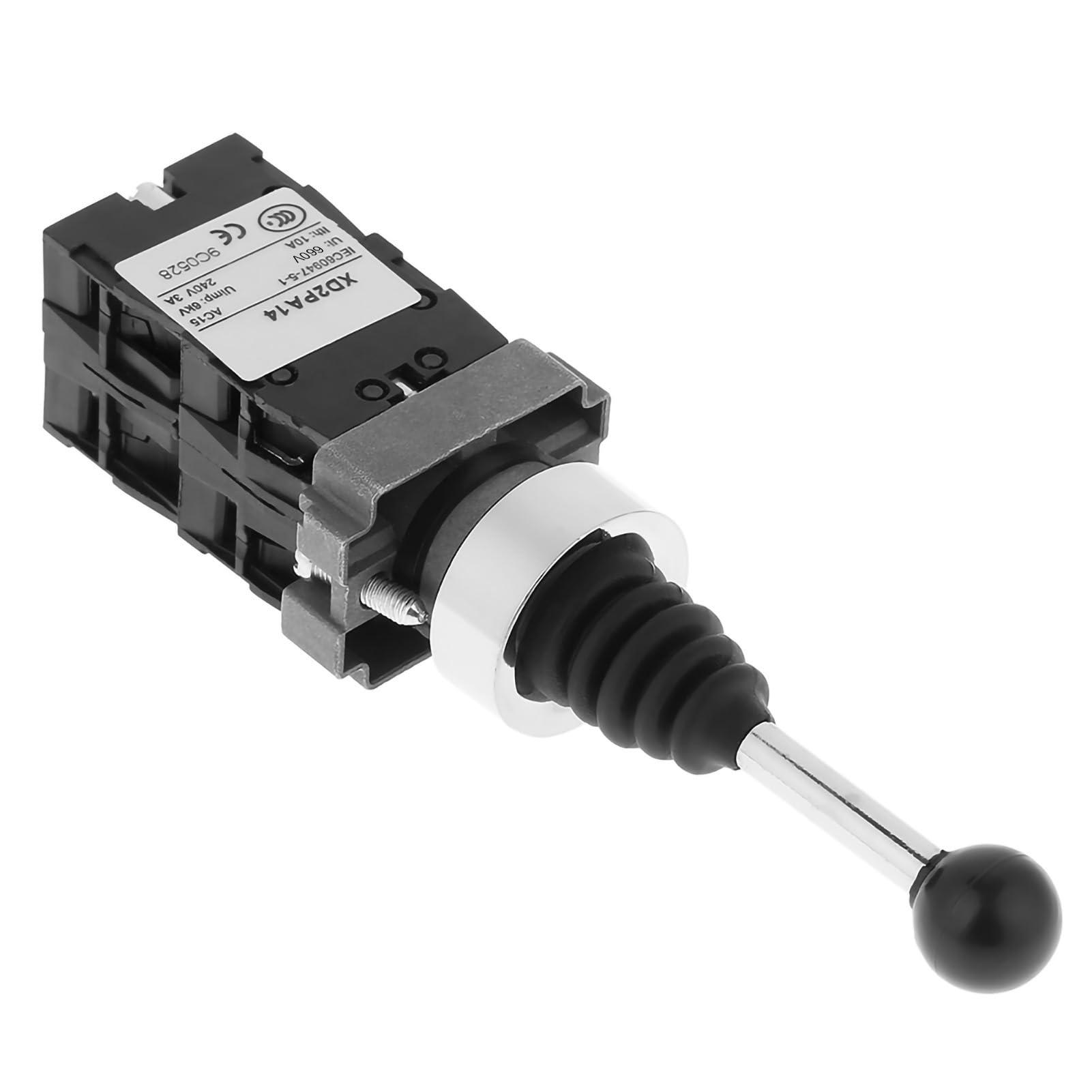

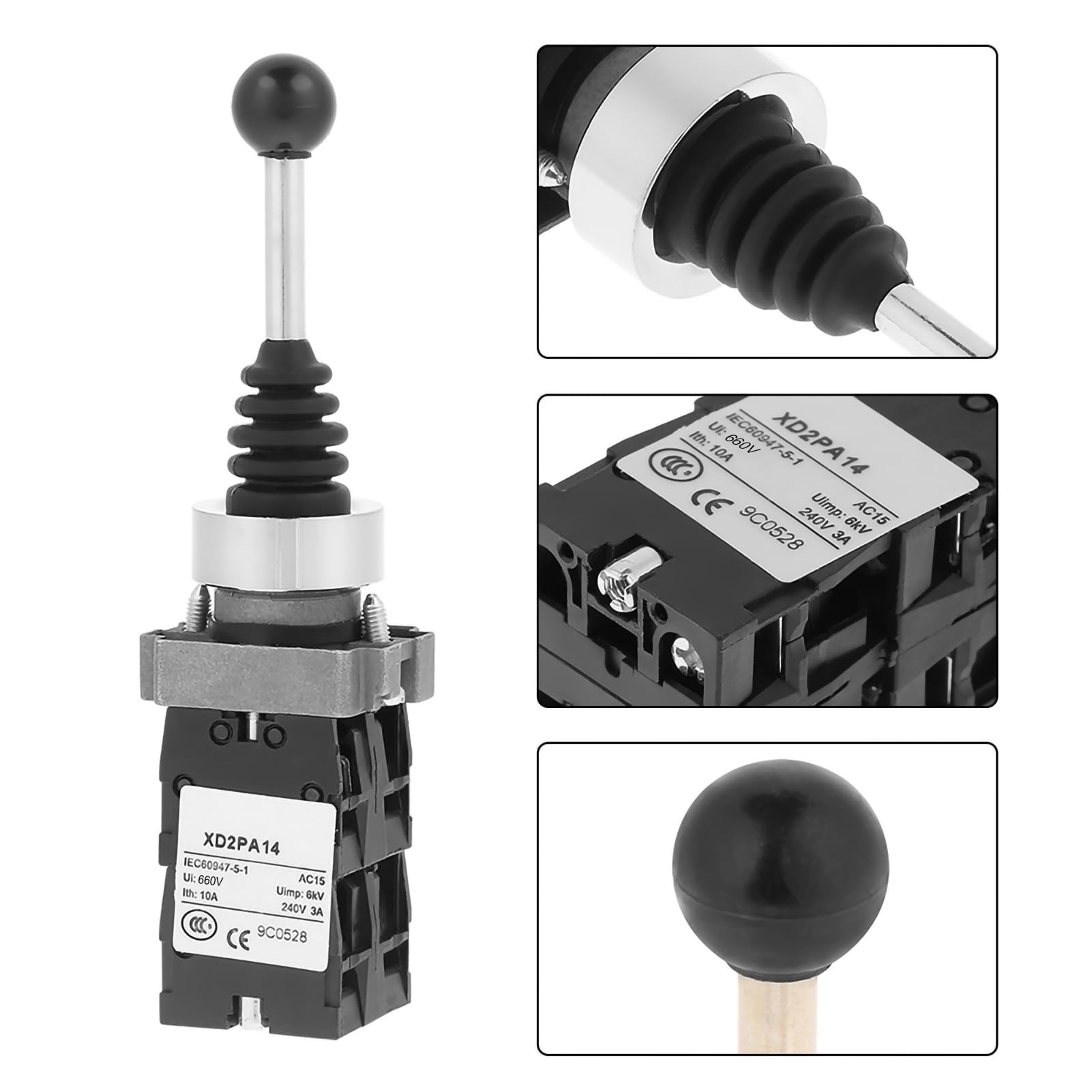

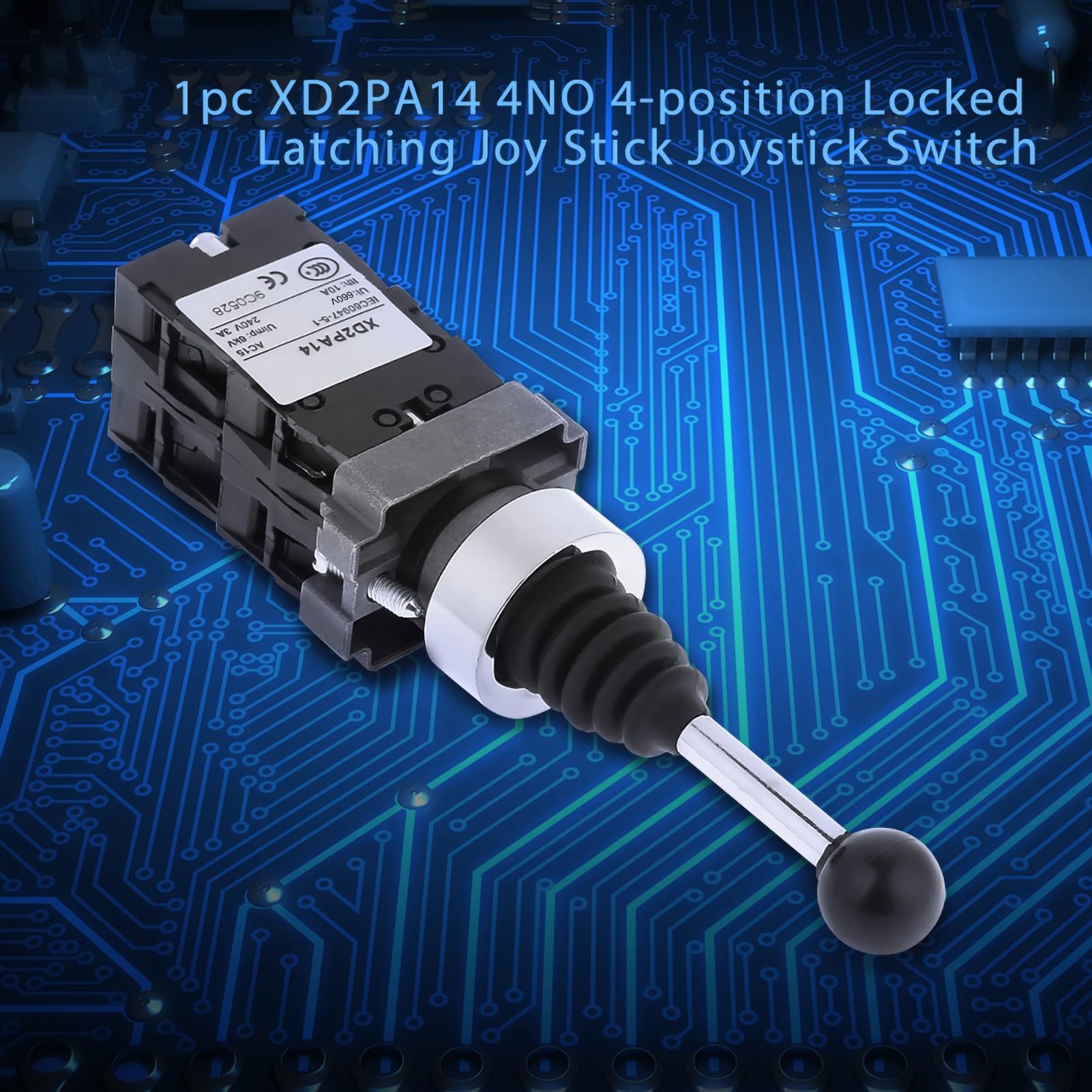

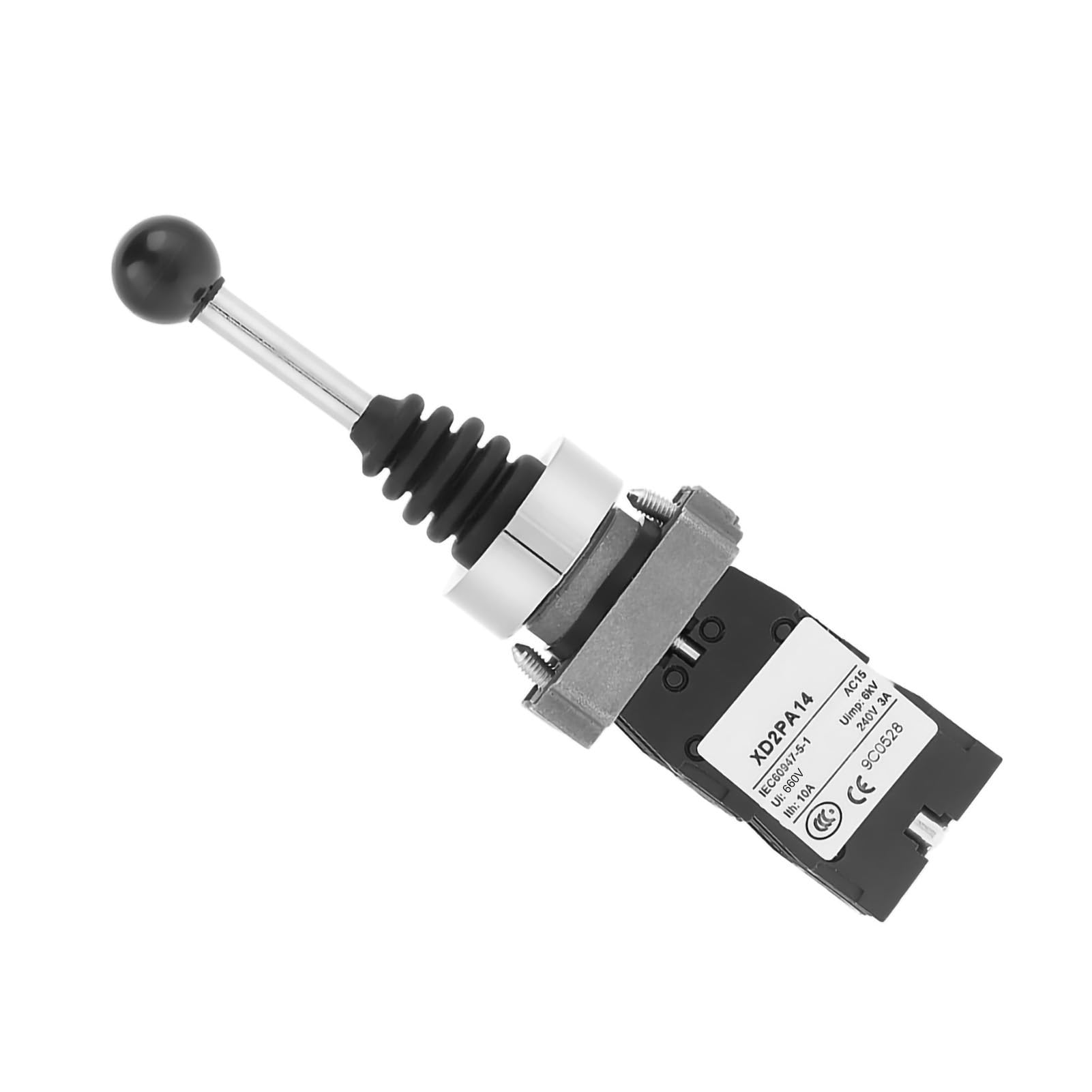

Joystick Switch,Locked Joystick Switch 1pc XD2PA14 4NO 4-Position Locked Latching Joy Stick Joystick Switch

• The joystick switch is a latching switch that has 4 normally open contacts
• Made of high quality material, this switch is and has good performance

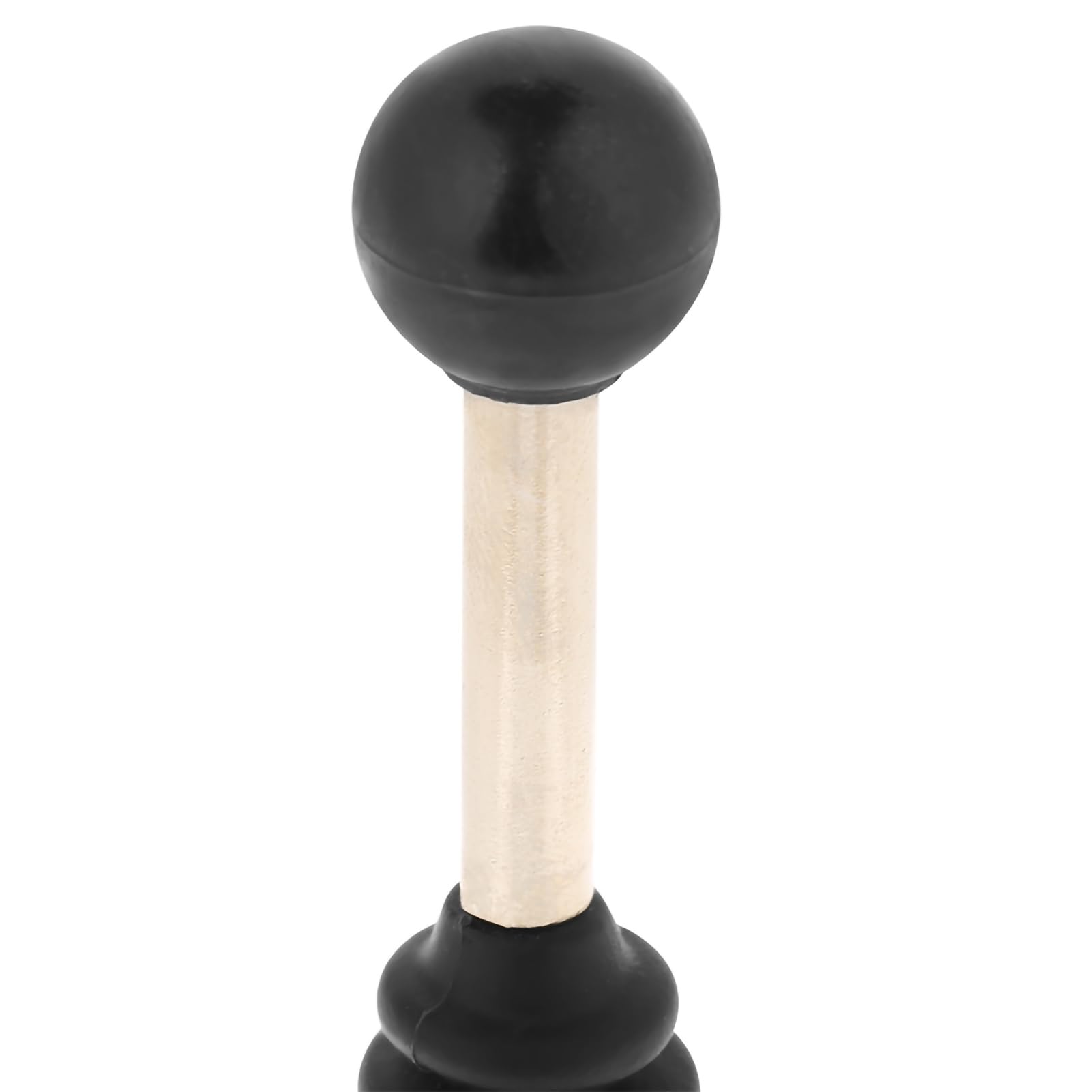

• Rubber sleeve cover on stick is resistant to water, oil and dust
• Widely used for industrial control AC 50Hz and DC circuits
• It can control magnetic starter, contactor, relay and other electrical circuits

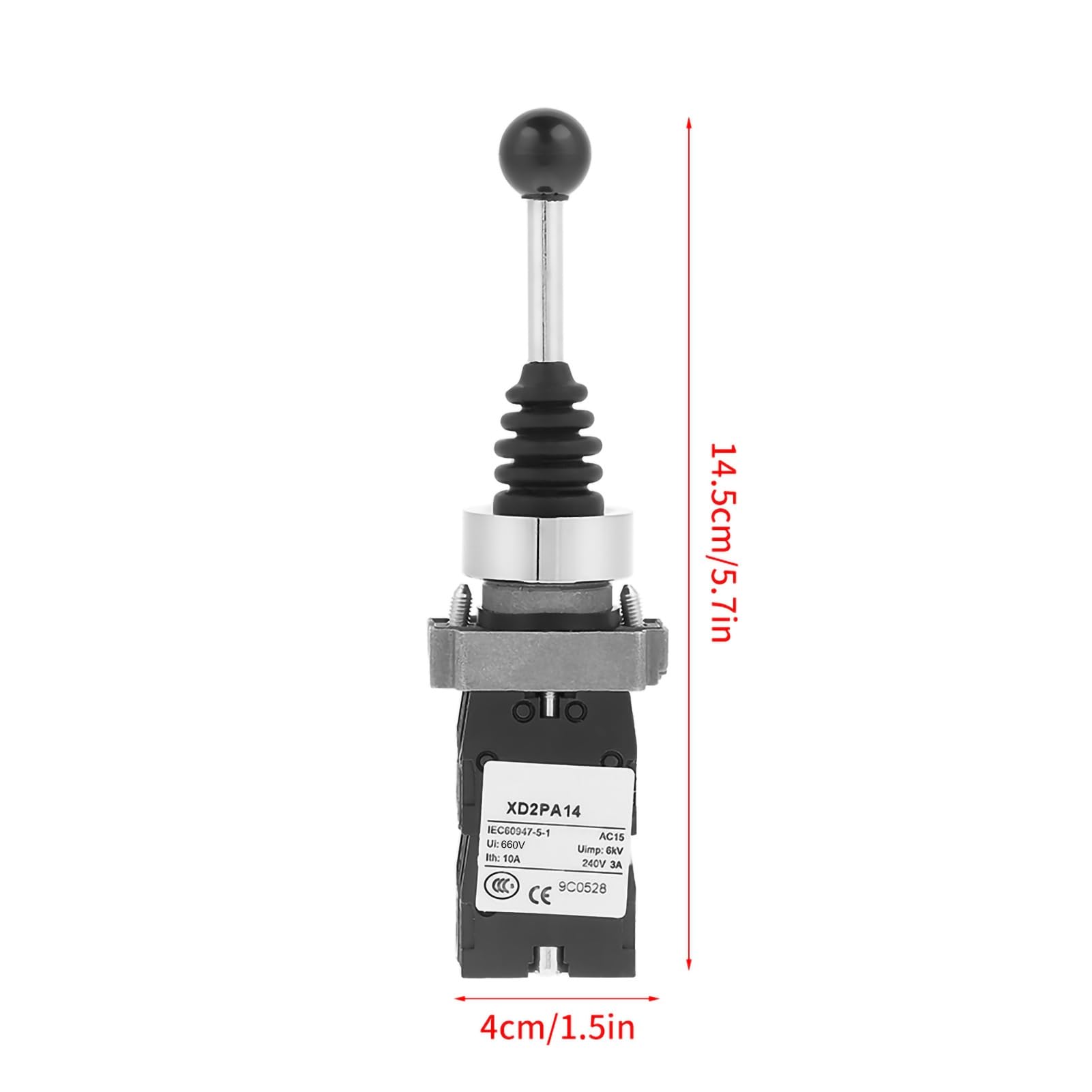

Features: The joystick switch is a latching switch that has 4 normally open contacts. Made of high quality material, this switch is and has good performance. Rubber sleeve cover on stick is resistant to water, oil and dust. Widely used for industrial control AC 50Hz and DC circuits. It can control magnetic starter, contactor, relay and other electrical circuits. Specifications: Model: XD2PA14 Type: 4-position latching Contact: 4NO Rated Voltage: 0~380V AC (50Hz); 0~220V DC Mounting Hole Diameter: 22mm Rated Isolation Voltage(Ui): 600V Rated Impulse Withstand Voltage(Uimp): 6Kv Thermal Current Rating (Ith): 10A Operating Temperature: -25~+55℃ (no ice) Operating Humidity: 45~85%RH (no condensation) Contact Resistance: ≤50mΩ Isolation Resistance: ≥100Ω Max. Withstand Voltage: 3000V, AC 50Hz Vibratility: 50Hz, amplitude is about 1mm Shock Resistance: >10m/s² (about 10G) Electrical Life: >3,000,000times Mechanical Life: 1,000, 000times Size: 14.5*4cm/5.7*1.6in IP Rating: IP40 Weight: 151g(approx.) Package Includes: 1 x Switch
