JOYLIT DMX512 Decorder 4 Channel 4x4A 192W RGBW LED Controller DC 12V-24V for RGBW 5050 3528 LED Strip Light

• Input 12V, working current 16A / 4 channels
• Decoder is designed to convert the universal standard DMX512/1990 signal into analog signal to control our RGB Flex Strips
• User addressable DMX interface-with easy dip-switch settings and testing modes
• High power output, 4 output channels, 4A per channel

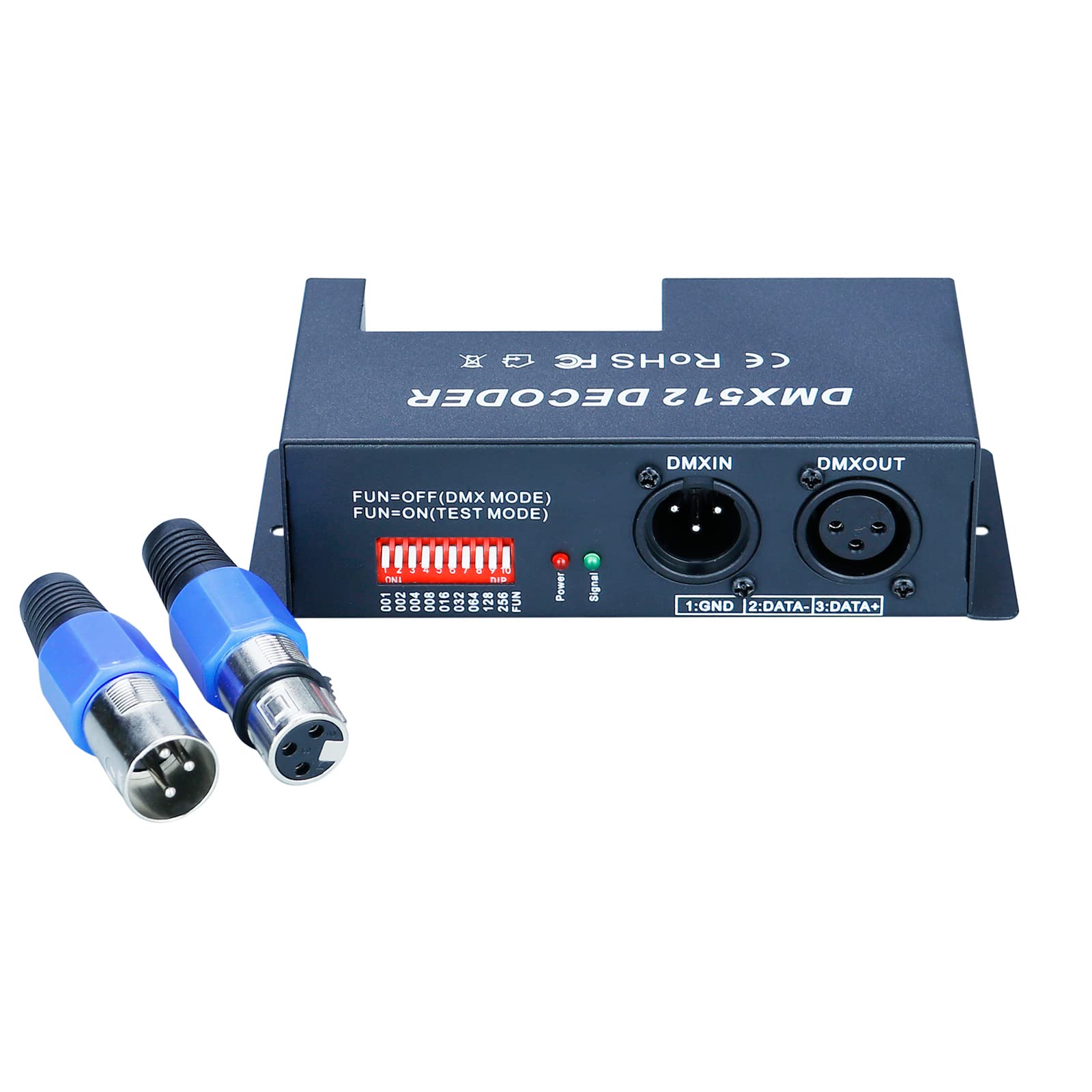

• DMX pass through and in/out connector for daisy chain configurations

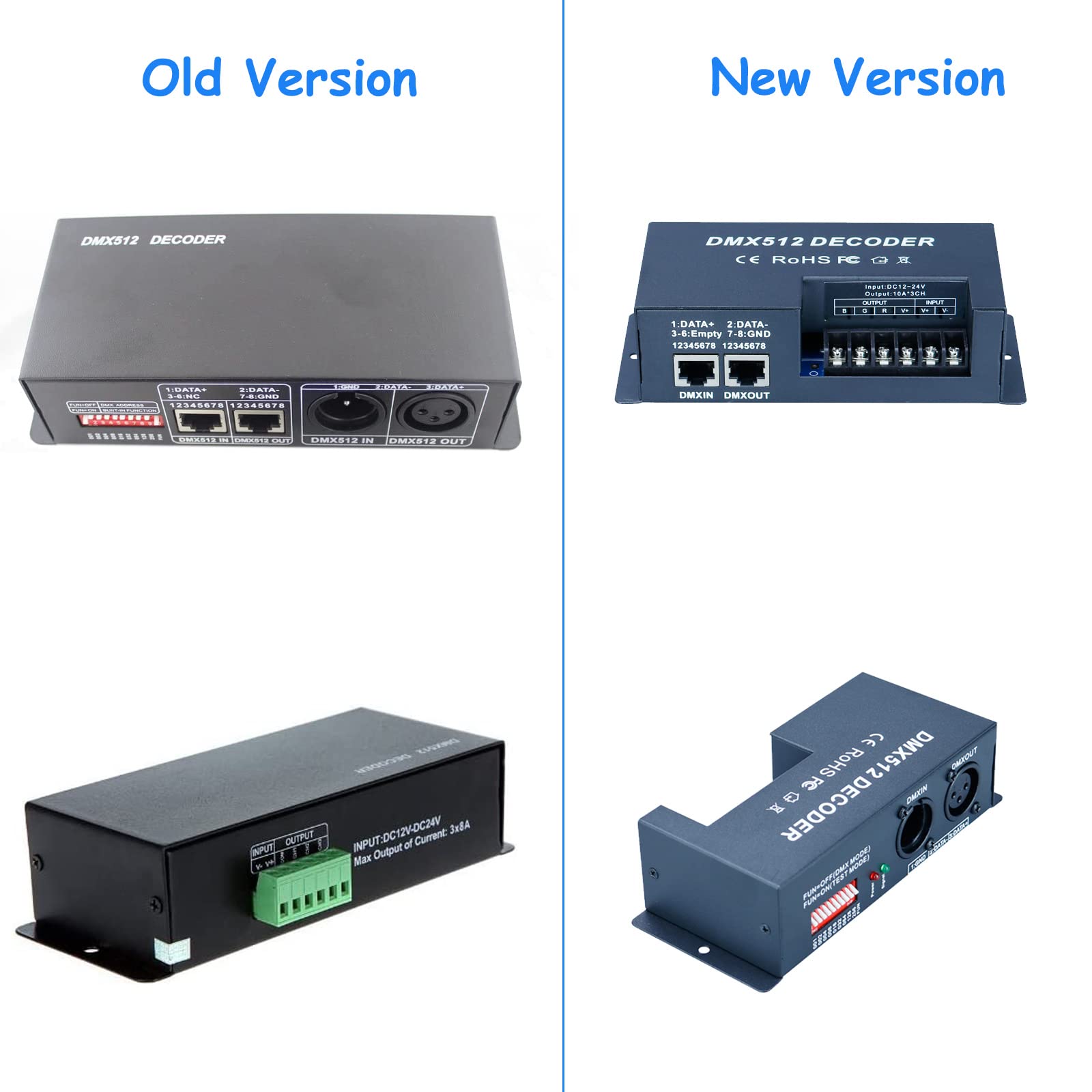

• Upgrade new version, you man get the old and new versions at random.

Each DMX common controller occupied 4 DMX address, adopt coding switch is setting DMX original address code from 1 to 9, 1 is the lowest, and 9 is the highest , 511 address code could be setted in all. This DMX common controller adopts the advanced micro control unit, receives standard DMX-512 digital control signal and transformed it into PWM signal to driving LED With over 30 preprogrammed color changing patterns, including gradual changing, screening and jumping, our DMX controller offers a variety of display options.. As a powerful color managing controller, it will enable you to choose the desired pattern and appropriate speed to manage your RGB LED lighting fixtures.With 0 to 100 dimming grades, you can also control the color and brightness according to your requirements easily, and mix up to 1 million different colors.The LCD monitor on the controller offers an easy and visible managing method; the mounting bracket will enable the operator to easily fix the controller onto any place. >>>Specifications: -Working temperature: -20 to +60 centigrade -Output: 4 CMOS drain-open output -Connecting mode: common anode -Input Voltage: 12~24V DC -Output Current:<4A(each circuit) _Output Power:4A -5V:<80W, 12V:<192W, 24V:<384W (4 circuit) -Static power consumption:<1W -Product size: L166*W67*H41mm -Net weight: 340g >>>Application: This controller gives any uses full lighting manipulation to meet almost all applications need by allowing users to control all colors, hue, and brightness of the RGB strip light.
