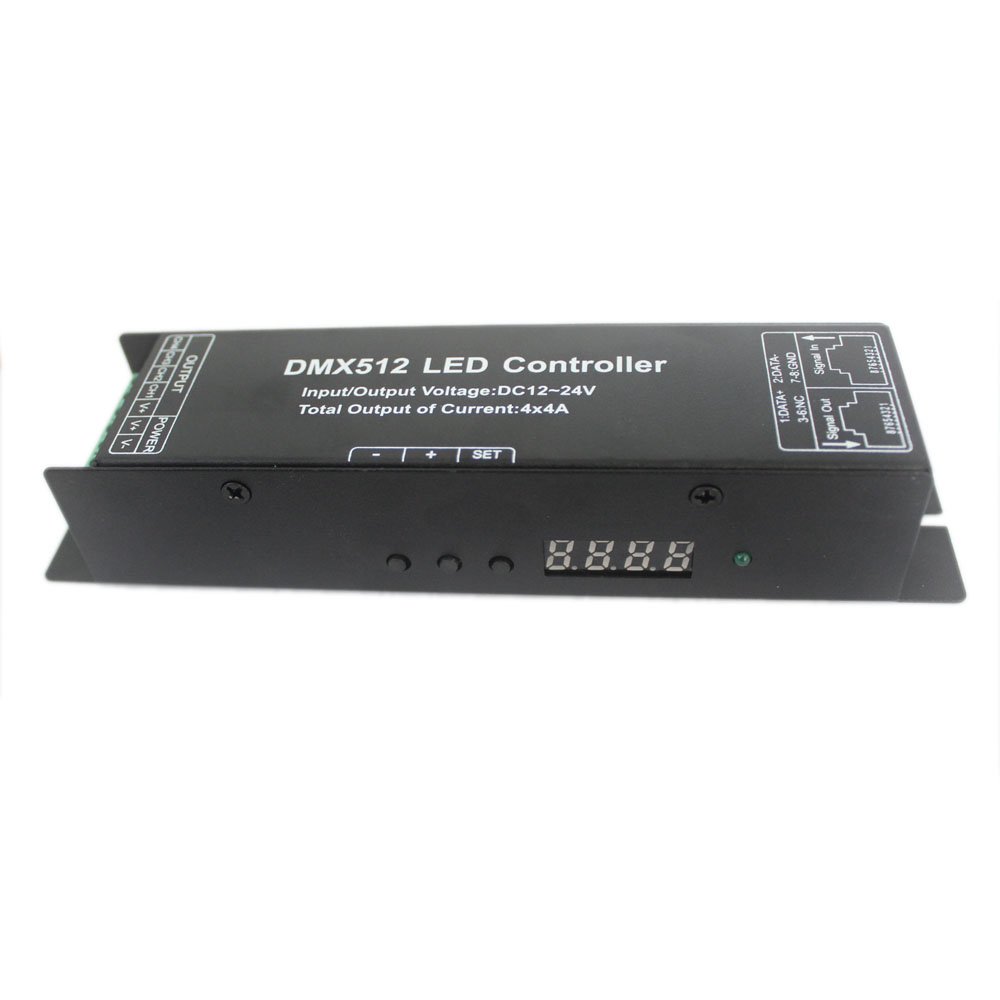

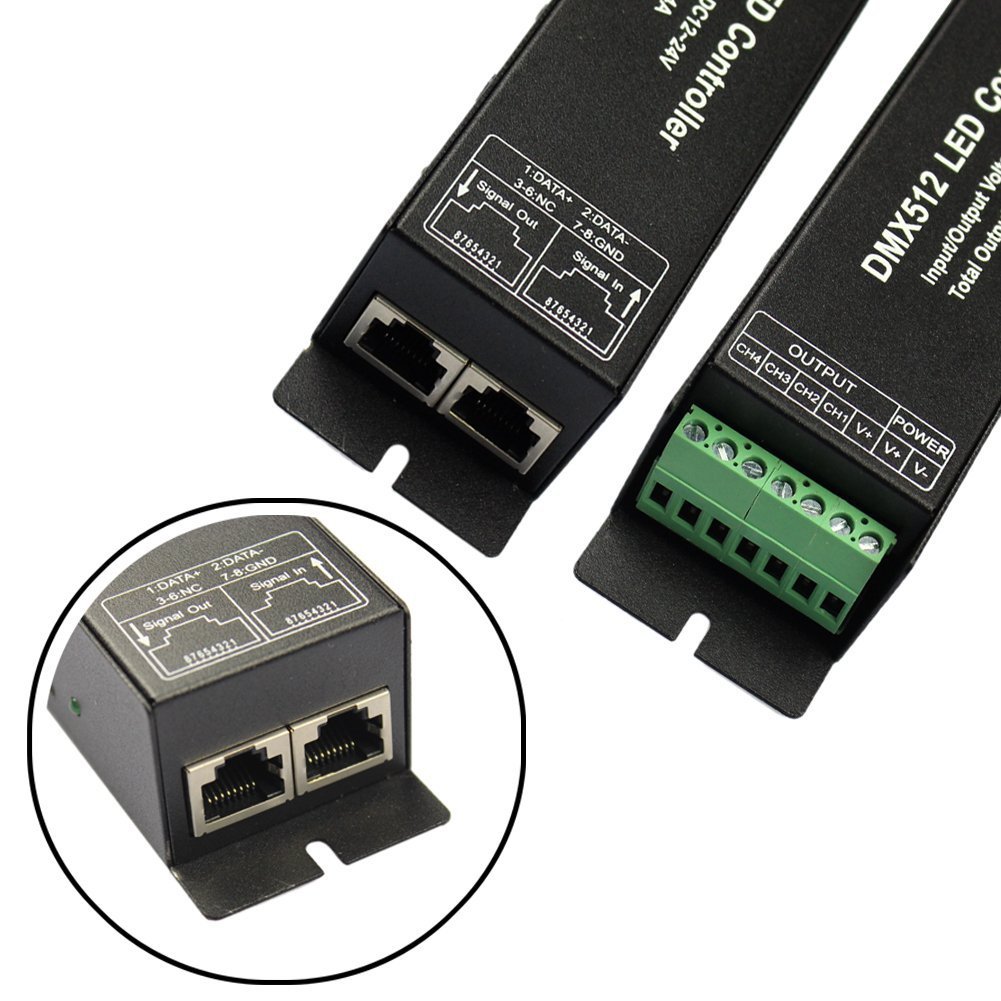

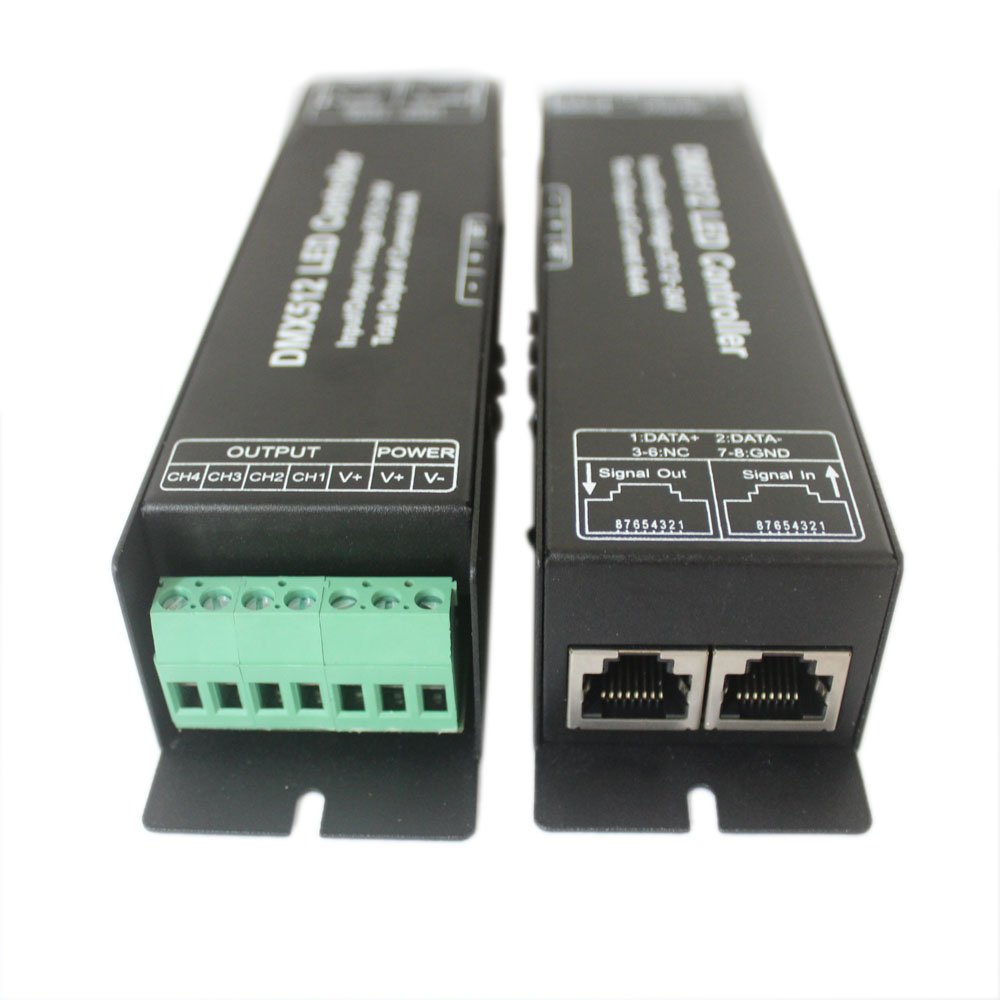

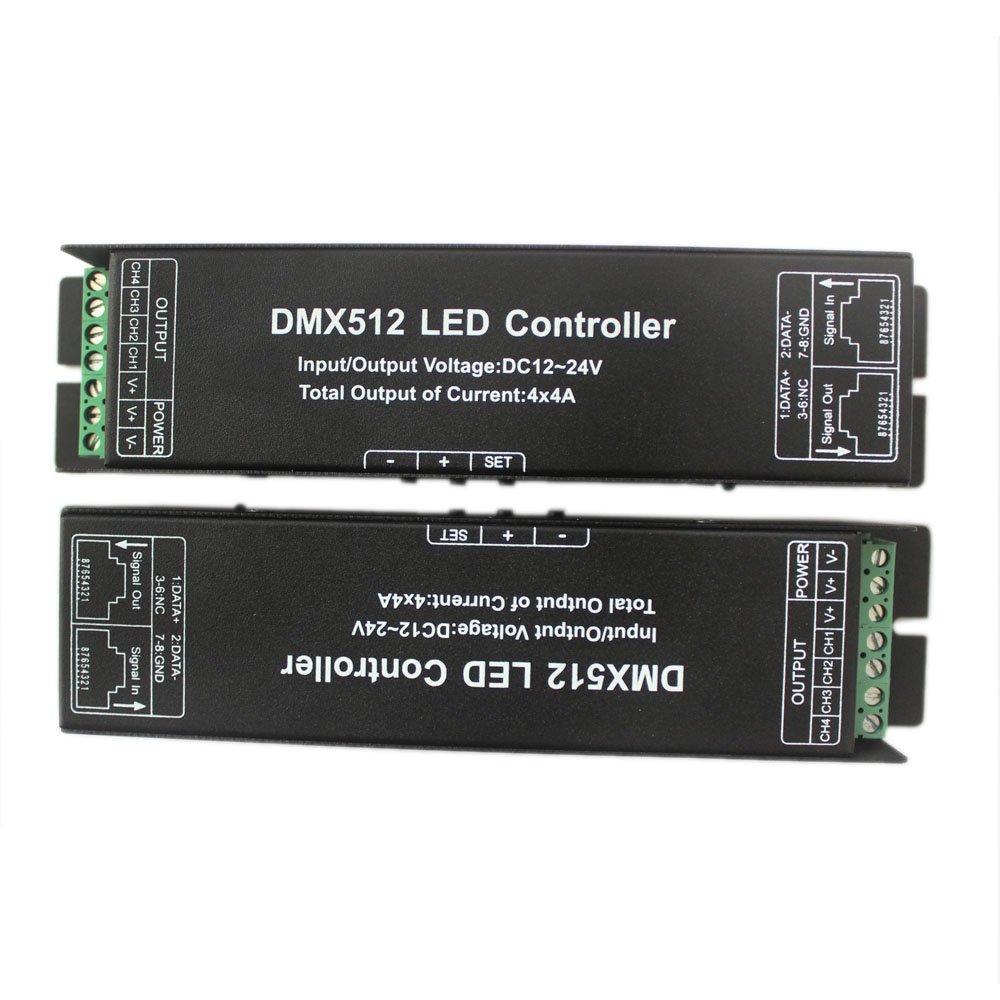

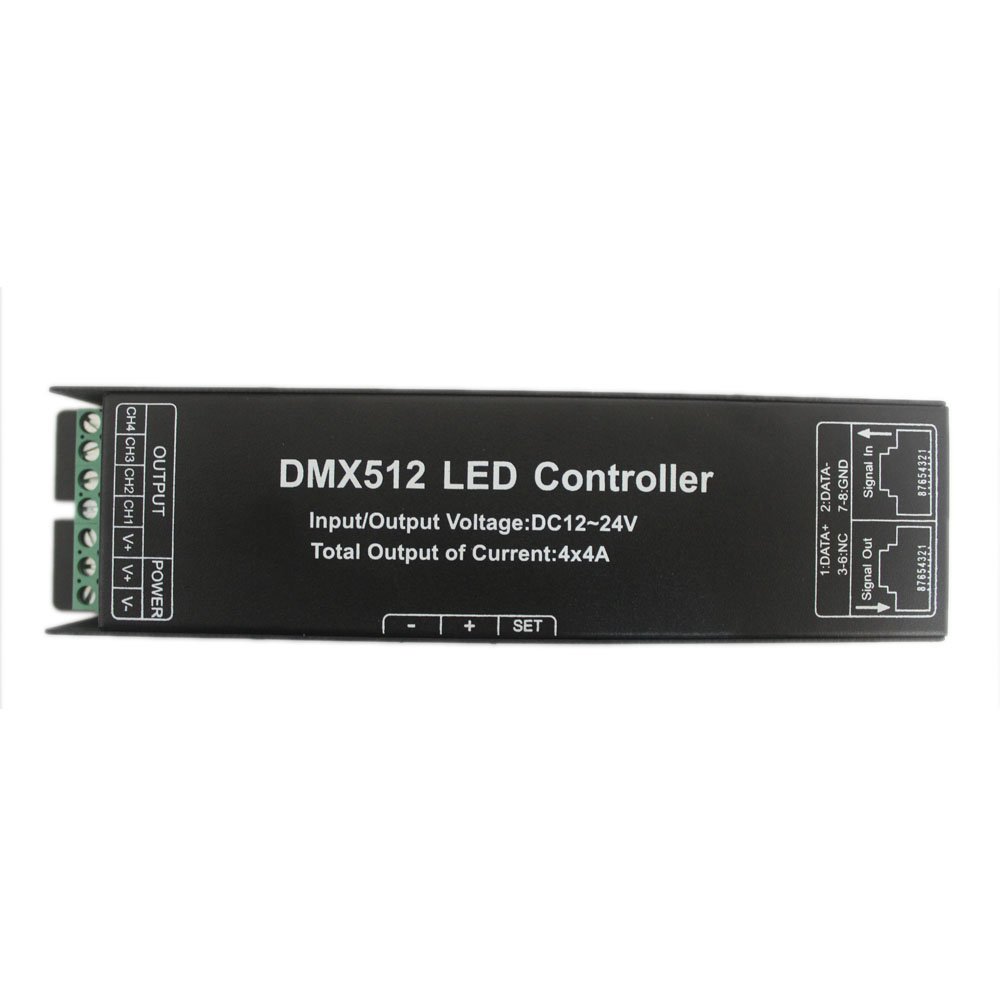

JOYLIT DMX512 LED Decoder 4CH 4A 192W with Digital Display, DC 12/24V DMX Controller for 5050,3528 RGBW LED Strip, LED Module, Stage Lighting

• Meets DMX512
• 256-levels brightness, full-color with driver controls
• Can achieve asynchronous color changes effect under working with controller.
• With the light color selected mechanism, and be able to control the light with 1~4 colors
• Modularizing and can be matched with different LED module neatly

Each DMX common controller occupied 4 DMX address, adopt coding switch is setting DMX original address code from 1 to 9, 1 is the lowest, and 9 is the highest , 511 address code could be setted in all. This DMX common controller adopts the advanced micro control unit, receives standard DMX-512 digital control signal and transformed it into PWM signal to driving LED With over 30 preprogrammed color changing patterns, including gradual changing, screening and jumping, our DMX controller offers a variety of display options.. As a powerful color managing controller, it will enable you to choose the desired pattern and appropriate speed to manage your RGB LED lighting fixtures.With 0 to 100 dimming grades, you can also control the color and brightness according to your requirements easily, and mix up to 1 million different colors.The LCD monitor on the controller offers an easy and visible managing method; the mounting bracket will enable the operator to easily fix the controller onto any place. >>>Specifications: -Working temperature: -20 to +60 centigrade -Output: 4 CMOS drain-open output -Connecting mode: common anode -Input Voltage: 12~24V DC -Output Current:<4A(each circuit) _Output Power:4A -5V:<80W, 12V:<192W, 24V:<384W (4 circuit) -Static power consumption:<1W -Product size: L177*W42*H33mm Net weight:201g >>>Application: This controller gives any uses full lighting manipulation to meet almost all applications need by allowing users to control all colors, hue, and brightness of the RGB strip light.
