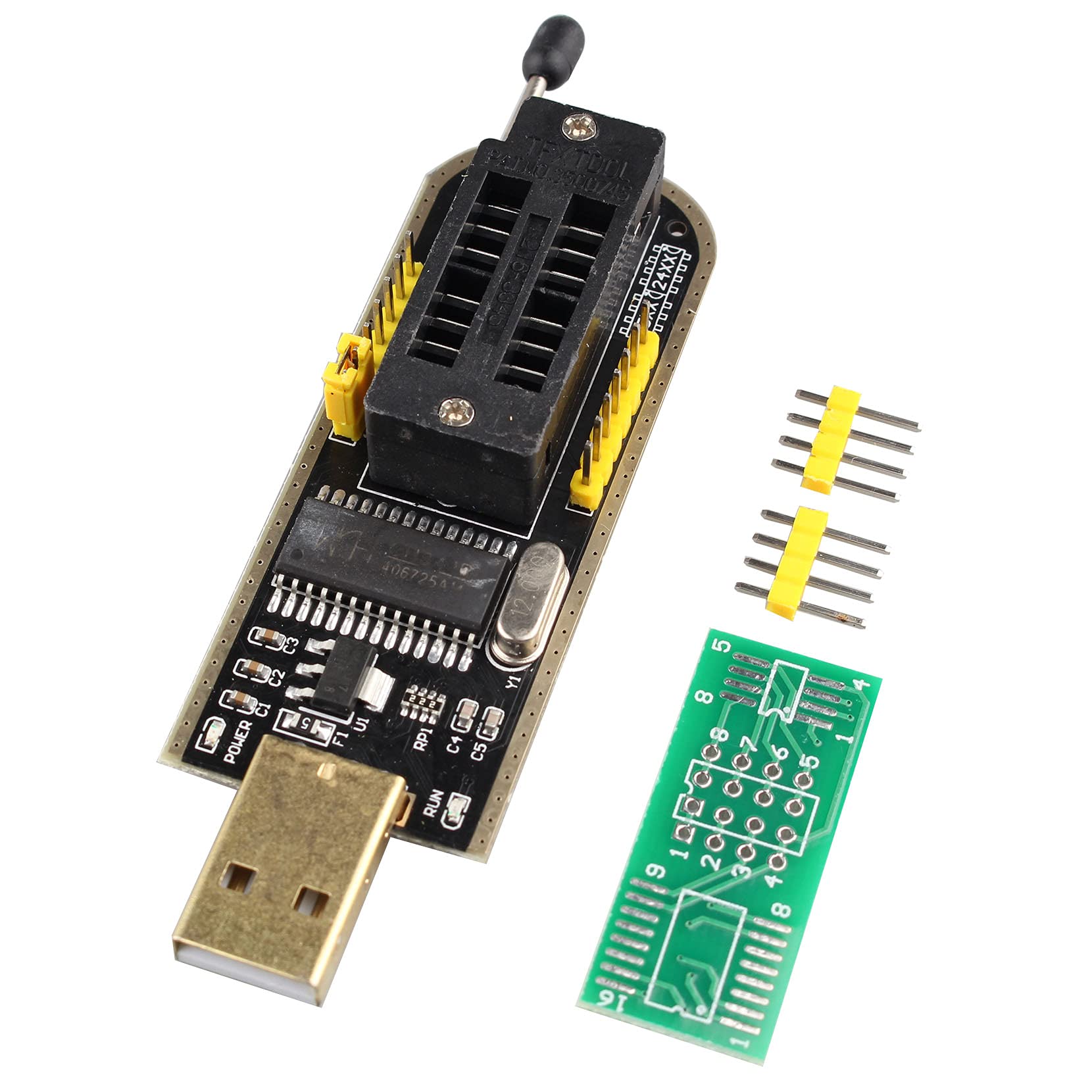

Jopto USB Programmer CH341A 24 25 Series Burner Chip 24 EEPROM BIOS Writer 25 SPI Flash + SOP8 SOIC8 Test Clip Adapter Module for EEPROM 25CXX / 24CXX

• The main purpose of the CH341A Programmer is to back up, erase, program, calibrate and other actions on various software.

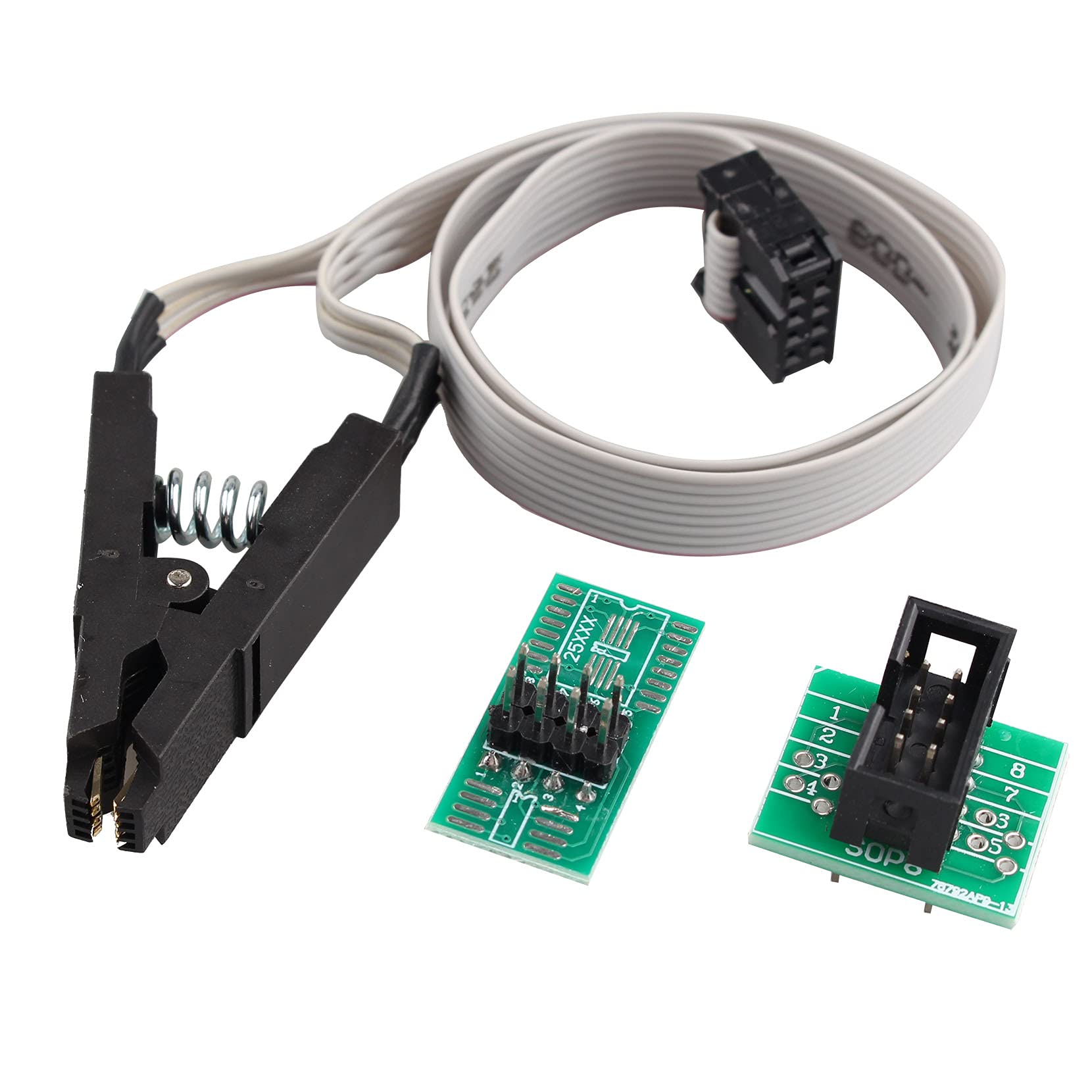

• The SOP8 clip enables in-circuit programming of EEPROM without disassembling the chip, making flashing the BIOS simpler and more efficient.
• The CH341A Programmer support most 24 / 25 Series EEPROM BIOS SOP8 SOP16 chip on the market.
• Support downloading STC series procedure of single chip. With SPI PIN for Multi-function Extension.
• A professional USB chip of CH341A production. Original CH341A chip with stable performance.

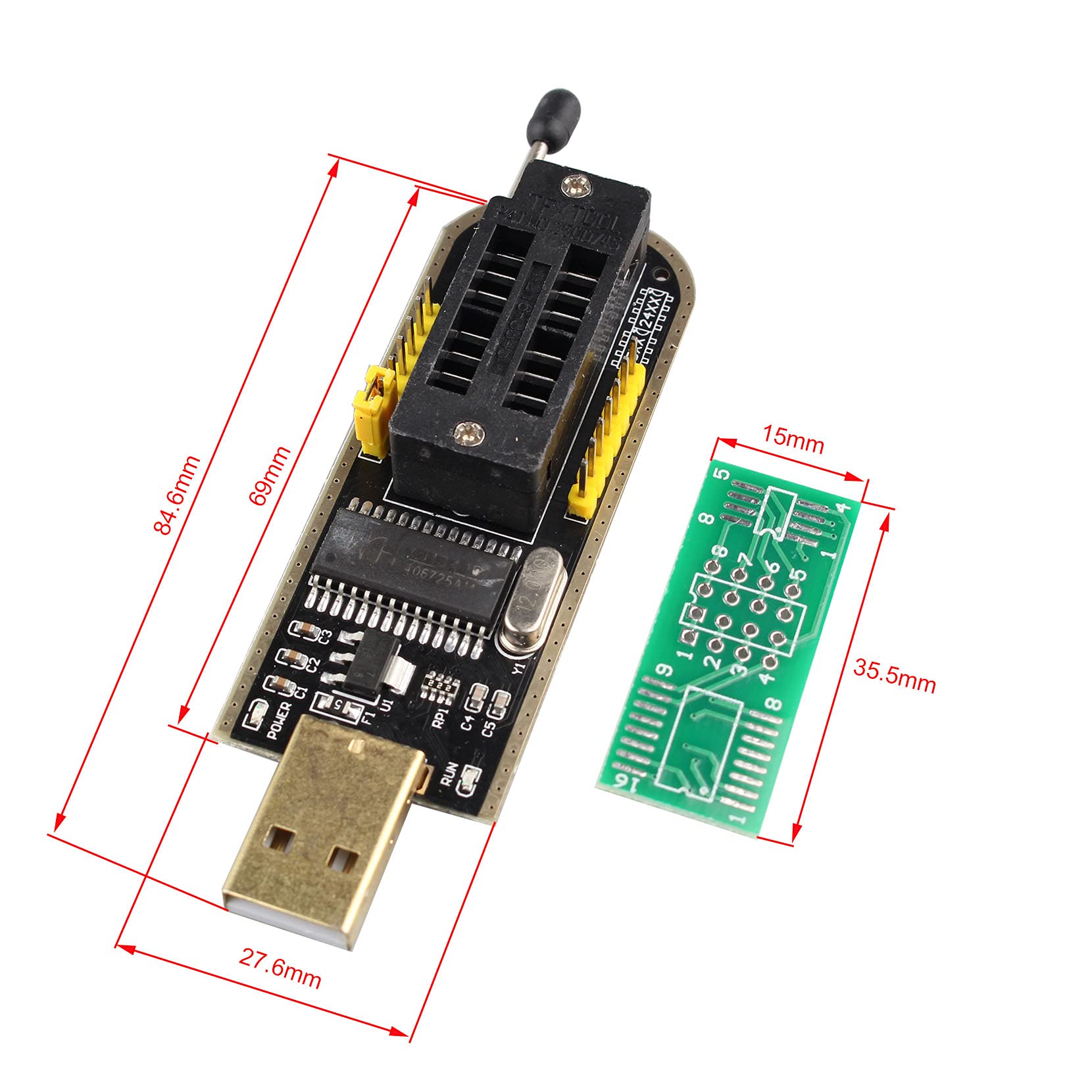

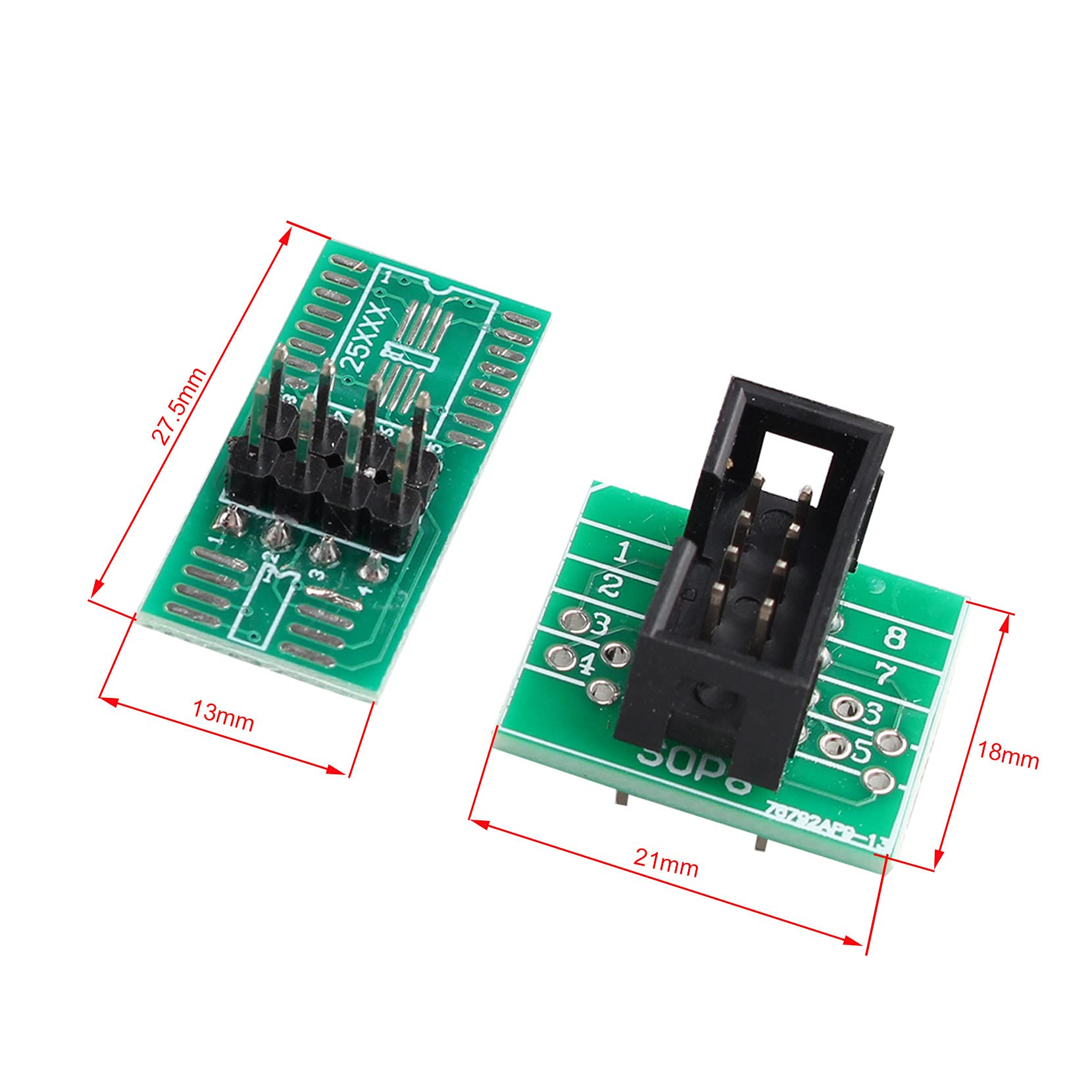

Features: USB Programmer Support 24EEPROM and 25 SPI flash 8pin/16pin chip USB to TTL port, can getroot online With CH341A chip Recognize 25 series chip automatically And support download STC series procedure of singlechip With 24/25 status indicator lamp SPI pin to support expanding the utility CH341A USB Programmer Size: 84.6 x 27.6 x 14.5 mm Pinboard Size: 35.5 × 15 mm Adapter 1 Size: 21 × 18 × 20 mm Adapter 2 Size: 27.5 × 13 × 18 mm Clip Cable Length: about 35 cm Kit Weight：41.6 g Note for Test Clip: 1. Some motherboards can directly clip the chip, but some chips are affected by peripheral circuits and cannot be operated like this. Check the chip location on the motherboard before purchasing! 2. The test clip can basically be used with many high-power programmers. When a programmer with a protected function is encountered, the clip cannot be read at normal voltage. You need to add a 3.3V voltage. How to use: Hold the chip first, and add a 3.3V voltage to the pin corresponding to the 8th pin of the chip. Generally, the 3.3V power supply has two wires, the VCC is connected to the clip, and the other wire is grounded. 3. Do not forcibly press down when clamping, first open the clip and clip it from the left and right sides of the chip. When disassembling, please don’t pull it out directly. First separate the clips left and right, then take them out so that they won't break the tip of the clip. Package Content: 1 x CH341A USB Programmer 1 x SOP8 SOIC8 Test Clip 1 x 8Pin to 8Pin Converter 2 x SOP8 SOP16 to 8Pin Converter 2 x 2.54mm 4Pin header
