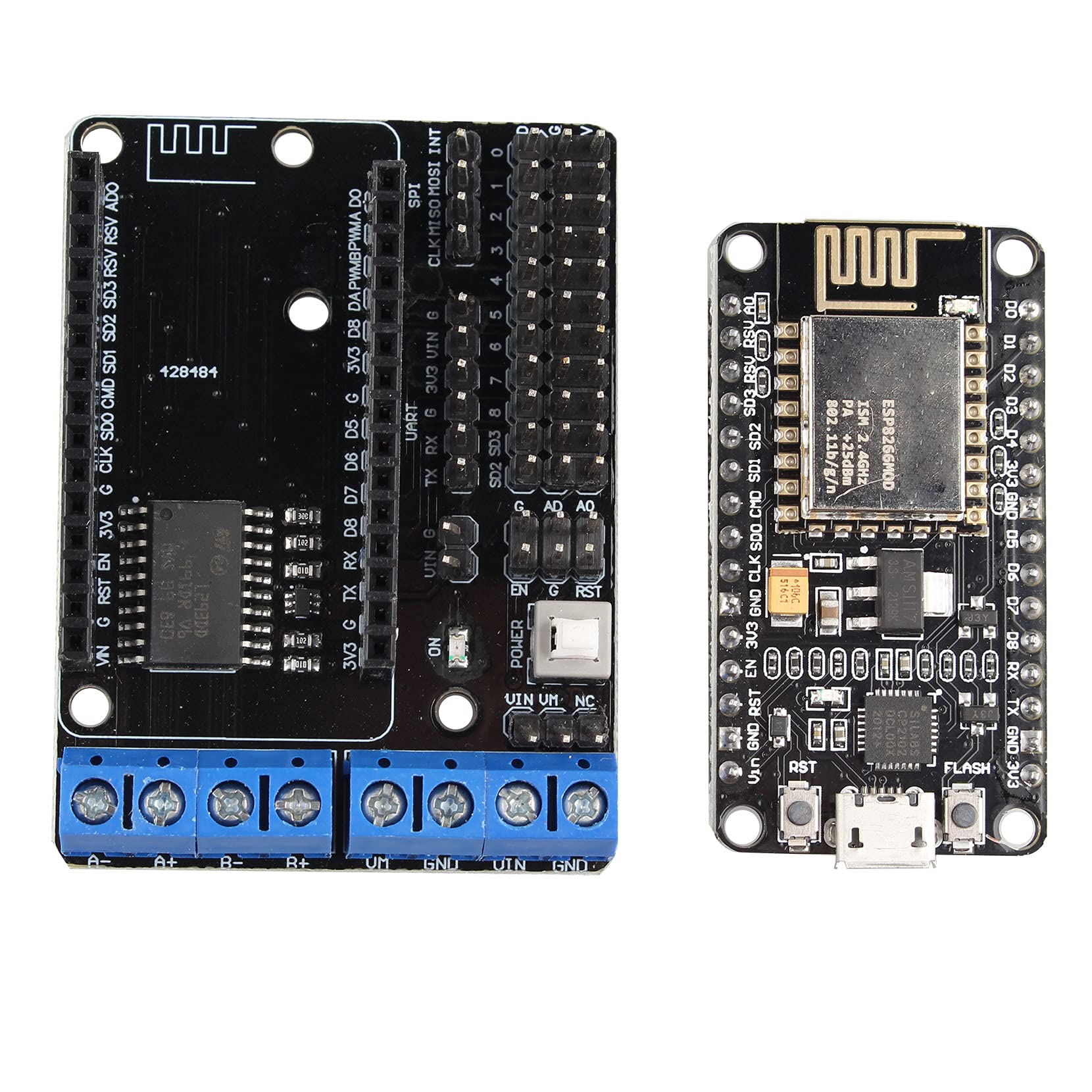

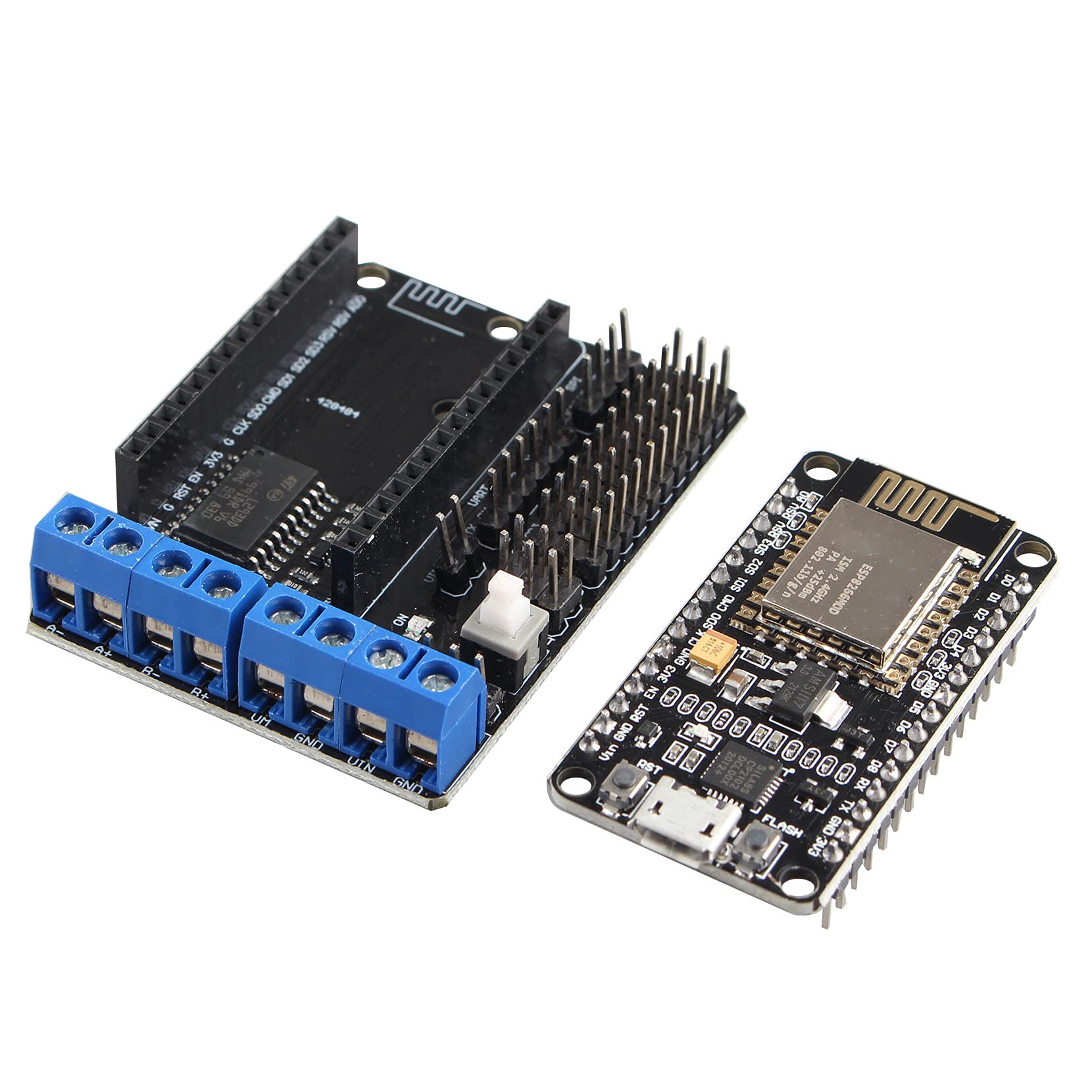

Jopto Development Kit for ESP8266 ESP-12E 2102 Development Board + L293D WiFi Motor Drive Expansion Board Shield Module Compatible with NodeMCU ESP-12E ESP8266

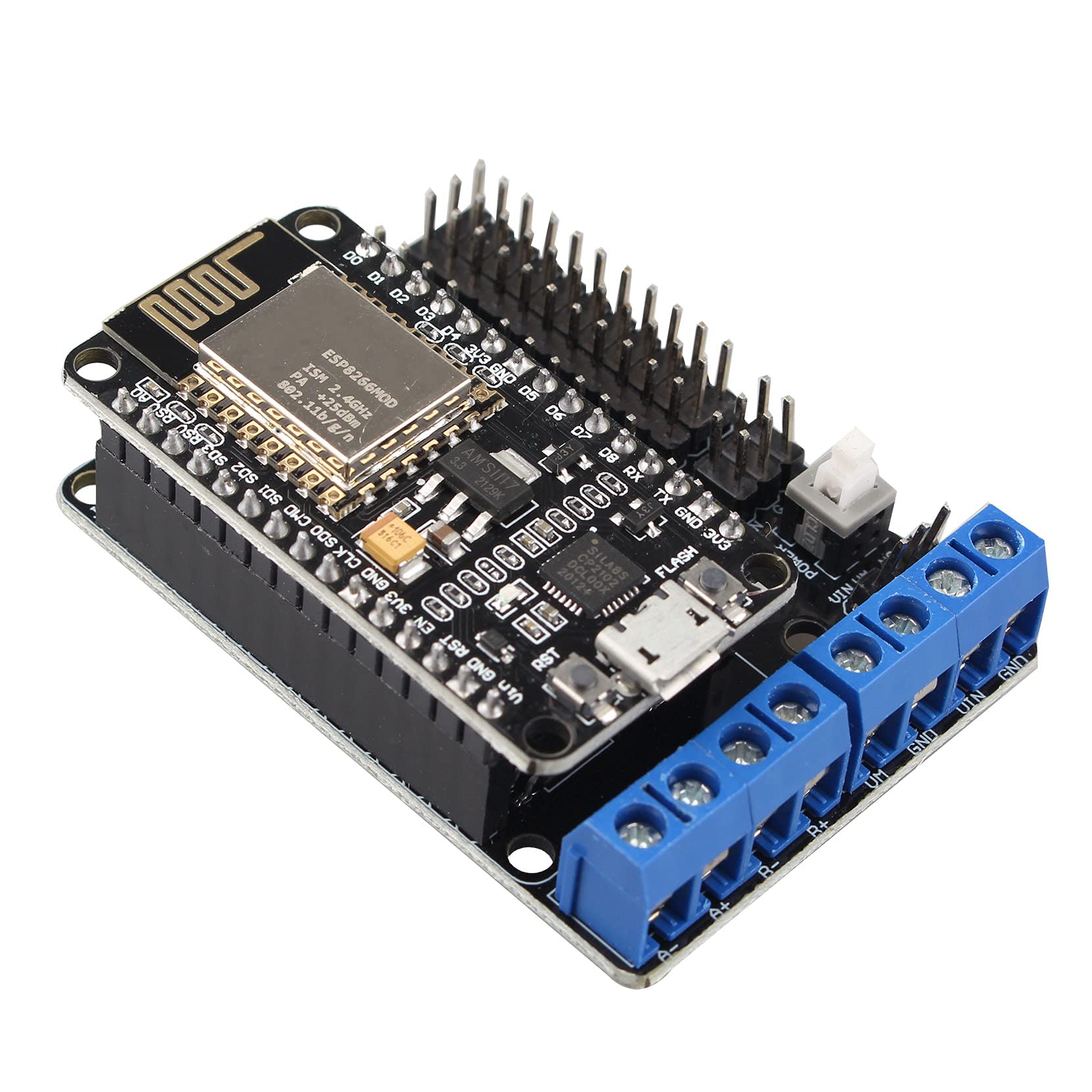

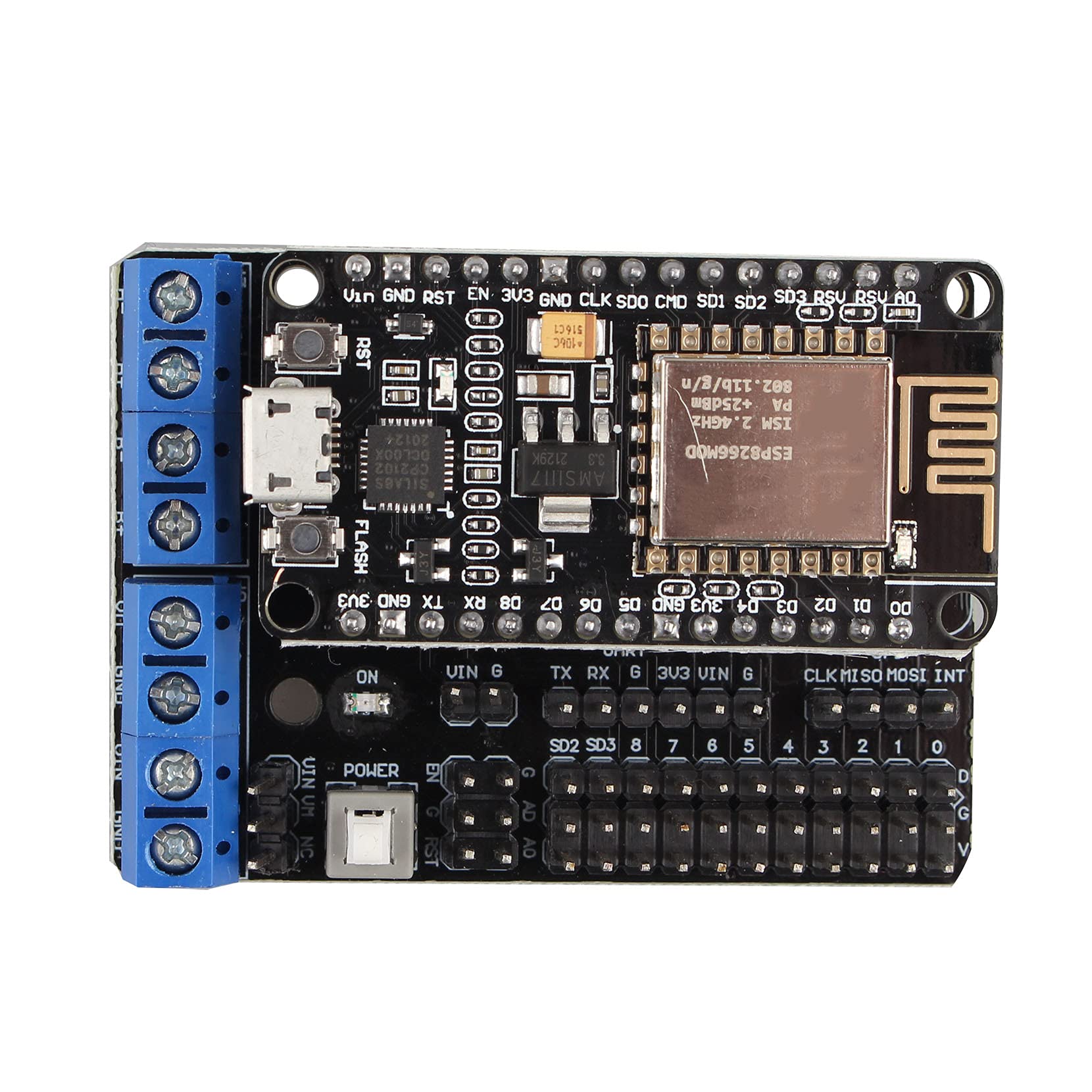

• ESP12E Motor shields is a compatible ESP12E Dev Kit and for a large current Motor driver module. Module adopts fold plug-in circuit board design, can be directly access ESP12E Dev Kit or for module.
• Lead out all function pins of ESP12 DEV KIT: SPI, UART, GPIO, AI and 3.3V power interface;
• Extend two-way motor drive, which can directly drive two-way motor.
• Motor power supply range: 4.5V~36V; Control power supply range: 4.5V~9V
• The motor power supply and control power supply are separated; in the experiment, the short-circuit block can be combined to short-circuit VIN and VM, and supply power to the motor and the control board at the same time.

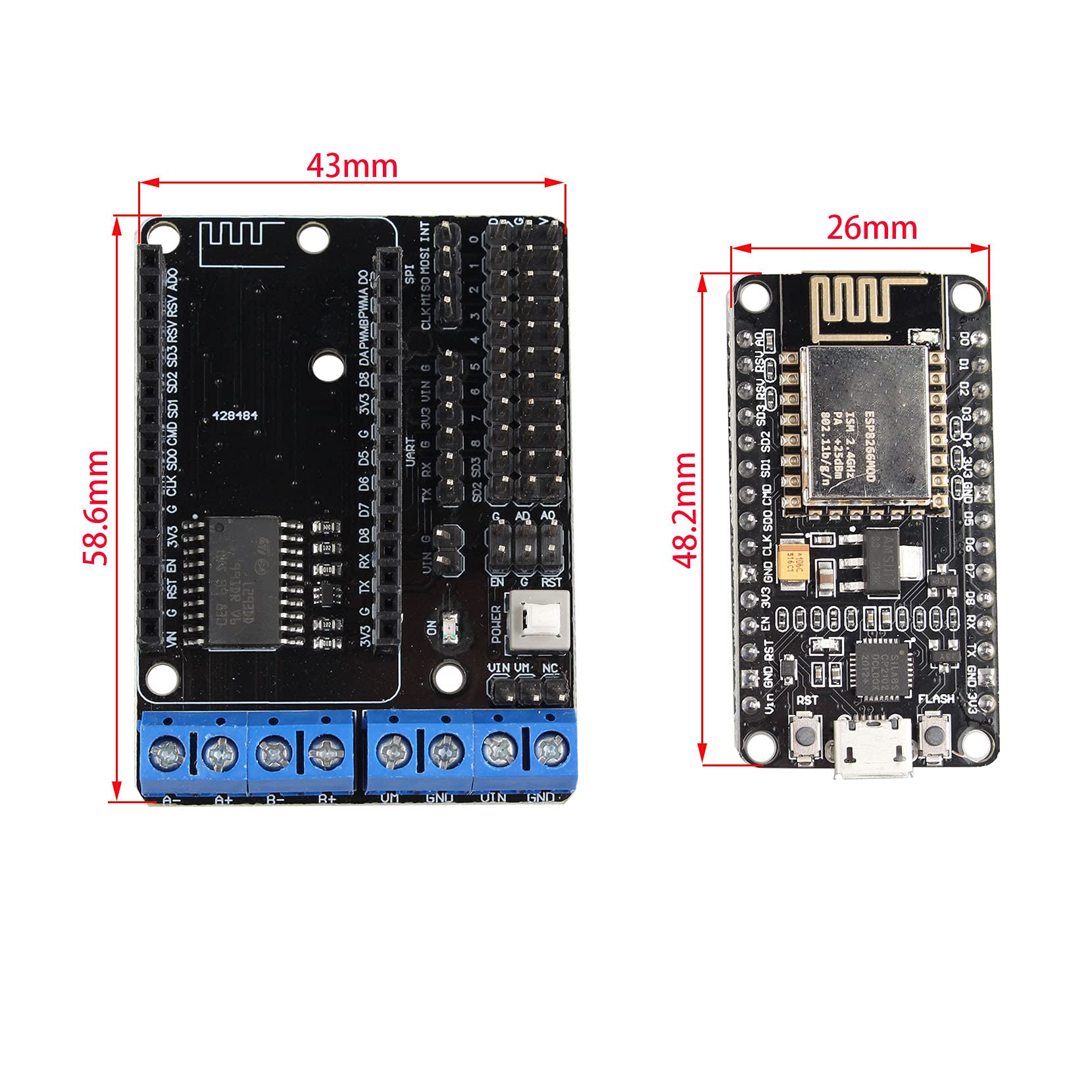

Feature: ESP12 DEV kit development board expansion module; Lead out all function pins of ESP12 DEV kit: SPI, UART, GPIO, AI and 3.3V power interface; Extend two-way motor drive, which can directly drive two-way motor; Onboard power switch; Motor power supply range: 4.5V~36V; Control power supply range: 4.5V~9V; The motor power supply and control power supply are separated; in the experiment, the short-circuit block can be combined to short-circuit VIN and VM, and supply power to the motor and the control board at the same time. ESP-12E Development Board Size: 49 × 26 × 13 mm Motor Drive Expansion Board：58.6 × 43 × 13.7 mm Kit Weight: 28.9 g Package Content: 1 x ESP8266 ESP-12E 2102 WiFi Serial Development Board 1 x L293D WiFi Motor Drive Expansion Board Shield Module
