Jopto 5PCS Mini SR602 Motion Sensor Detector Module Pyroelectric Infrared Sensory Switch Body Infrared Sensor Module Pyroelectric Probe Inductive Switch Sensor Compatible with Arduino PI

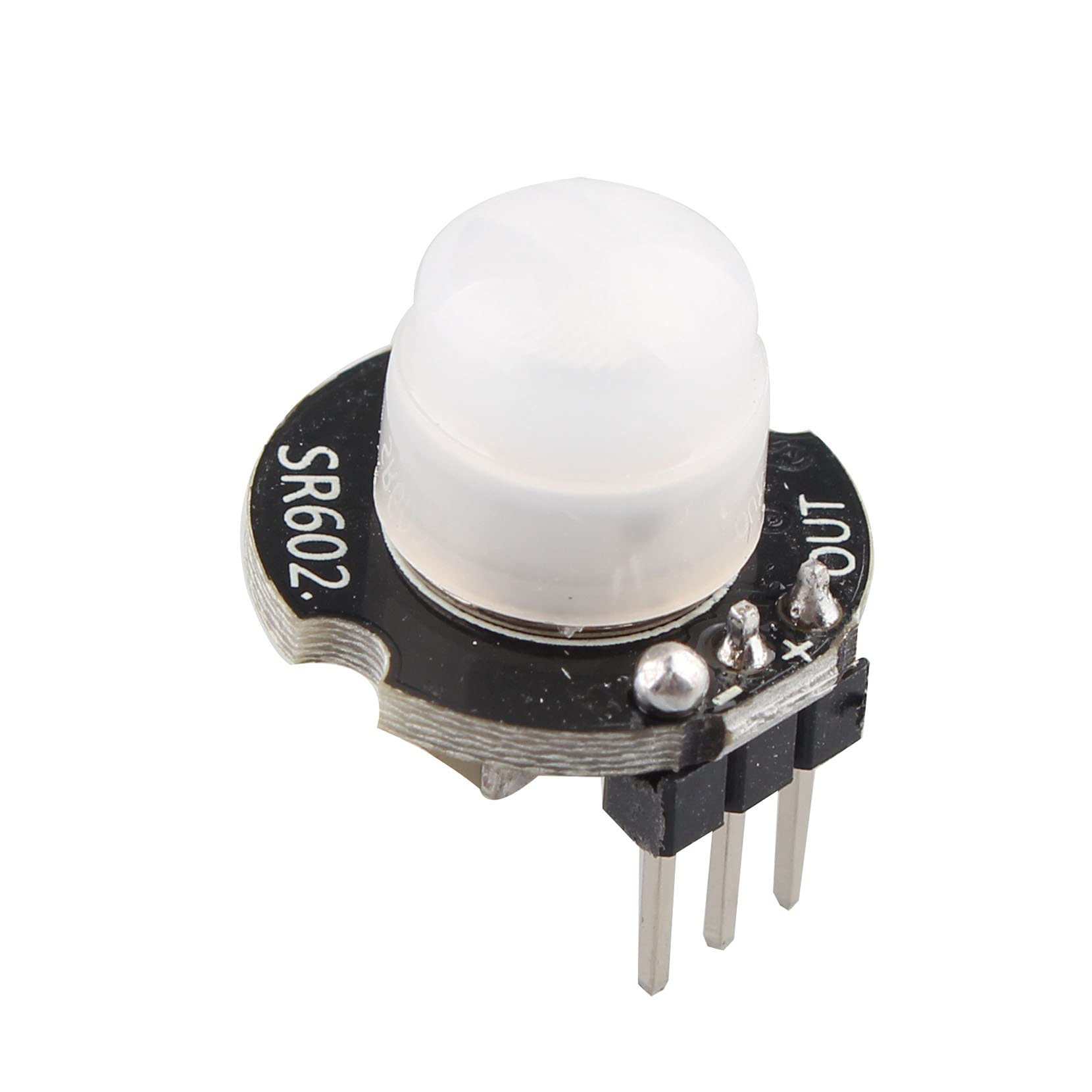

• Pyroelectric human body infrared sensor module, model: SR-602
• Sensing distance: up to 5 m. Recommended 0-3.5 m.
• Output: high level, H=3.3V, L=0V.
• Power supply DC: 3.3V-15V.
• Quiescent current: 20uA.

Feature: 1. The high level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the default setting of output time 2.5 seconds, and you can change one chip resistor if you need to change it. 2. Blocking time is 2 seconds, not adjustable. 3. The factory is defined as repeatable trigger and cannot be changed. 4. The supply voltage of this module is 3.3 V to 15 V, and the limit voltage is 2.8 V to 18 V. 5. Output timing is: output high level for 2 seconds after power-on, then go low, enter standby status. If the delay time is changed, the time when the module outputs a high level after power-on will increase accordingly, which can be understood as the startup time after entering the normal working state after the electric power will increase. 6. After installing the photosensitive element, it does not work during the day, work at night, does not contain photosensitive components, and works all day. It is considered that there is no photosensitive element installed. 7. This module is very sensitive, pay attention to the installation position, try to avoid the heat source radiation source (air outlet / direct sunlight). 8. The sensitivity of this module is adjustable, and you need to change a chip resistor. 9. This module has high sensitivity, fast response, small static power consumption, small size, easy to install. It can be used for human body induction lamps, alarms, security, access control on-demand imaging, agriculture and forestry mining automatic equipment, etc. Specification: Model: SR-602 Sensing distance: up to 5 m. Recommended 0-3.5 m Output: high level, H=3.3V, L=0V Power supply DC: 3.3V-15V Quiescent current: 20uA Size: 19.5 × 16 × 16 mm Weight: 2 g Package Content: 5 x SR602 Pyroelectric Body Infrared Sensor Module
