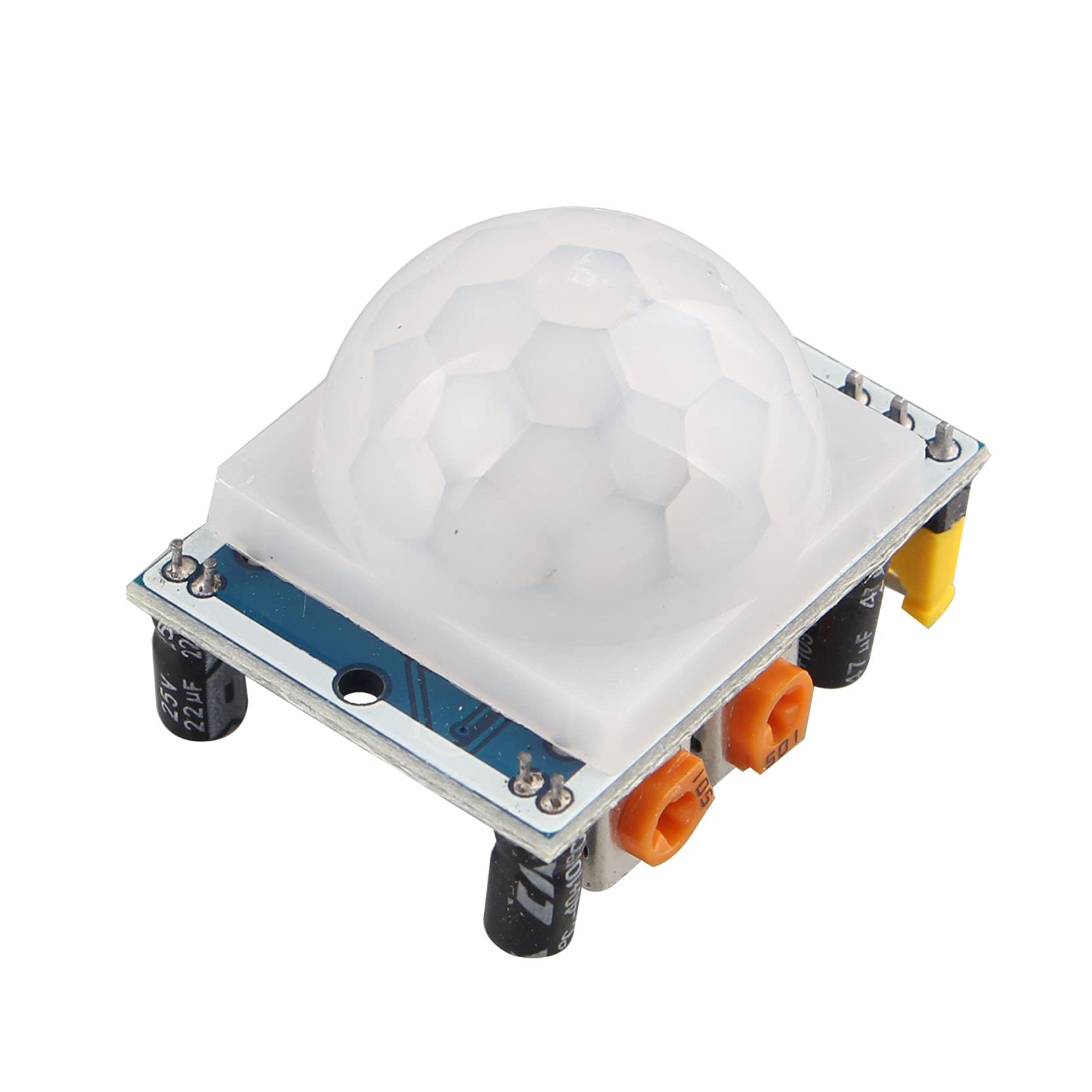

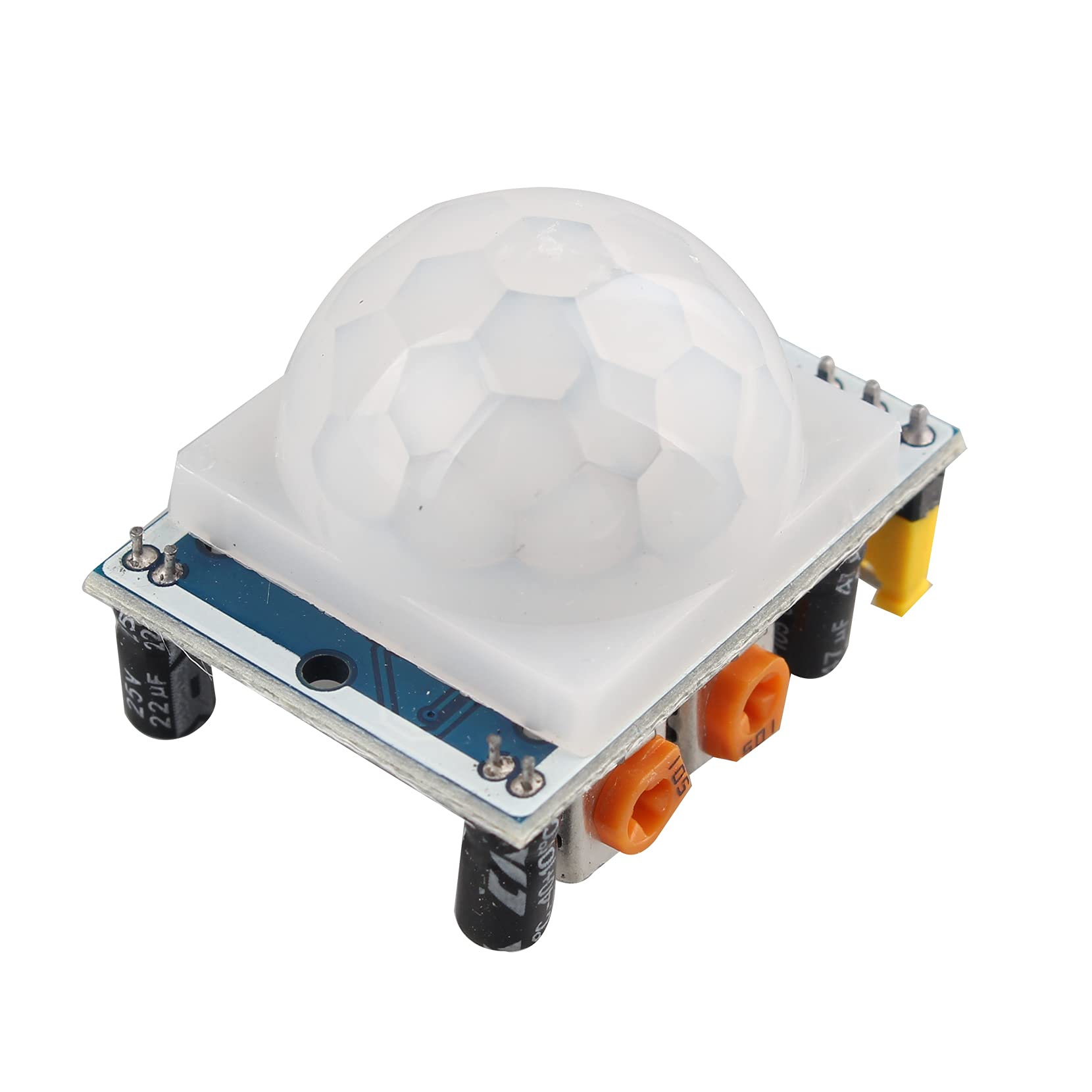

Jopto 5PCS HC-SR501 Human Body Pyroelectric Infrared PIR Motion Detection Sensor Detector Module PIR IR Module Pyroelectric Infrared Motion Sensor Module Detector

• Operating voltage range: DC 5-20V; Compatible with Arduino, Raspberry Pi and more.
• Trigger: L can not be repeated trigger/H can be repeated trigger
• Fully automatic induction: When someone enters its sensing range, it will input high level, and when someone leaves its sensing range, it will automatically delay high level and output low level.
• The module has a reserved position, which can be set for photosensitive control, and does not sense during the day or in strong light. Photosensitive control,optional, factory is not set.
• Applied to the corridor, bathroom, basement, warehouse, garage and other places’ automatic lighting, can also be applied to enterprises, hotels, shopping malls’ alarm system.

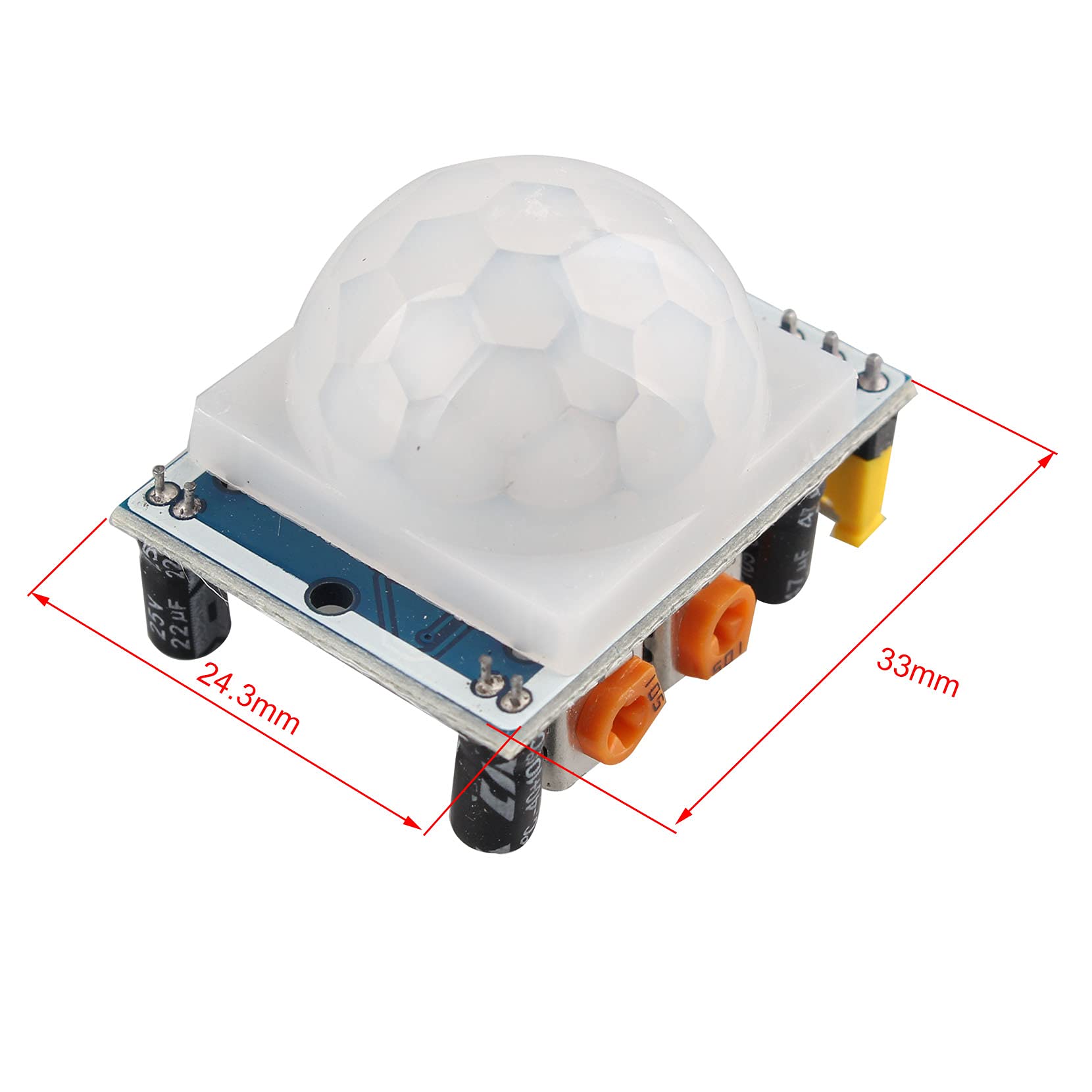

Specification: Operating voltage range: DC 5-20V Quiescent Current: <50uA Level output: High 3.3 V /Low 0V Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger) Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second) Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds Angle Sensor: <100 degree cone angle Operation Temp: -15-+70 degrees Lens size sensor: Diameter:23mm Module Size: 33 × 24.3 × 24.5 mm Weight: 6.8g Application: Automatic lighting hallways, corridors, bathrooms, basements, warehouses, garages, and other places, automatic ventilation exhaust fan and other electrical appliances (incandescent, fluorescent, buzzer, automatic doors, electric fans, dryers and automatic washing machine) especially for use in businesses, hotels, shopping malls, warehouses, sensitive areas or security zones and alarm systems. Can also be used for security purposes. Package Content: 5 x HC-SR501 Motion Sensor Module
