Jopto 3PCS NRF24L01 + PA + LNA Antenna Wireless Transceiver 2.4G RF Transceiver Module With Antenna Detection Distance 1100m Compatible with Arduino

• NRF24L01P+PA+LNA is a high-power and high-sensitivity wireless data transmission module specially developed for long-distance data transmission.
• The NRF24L01P+PA+LNA wireless module works in the license-free 2.4GISM frequency band, which can be used in point-to-point applications and can also form a star network.
• The digital transmission chip NRF24L01+ adds high-power PA and LNA chips, RF switches, band-pass filters, etc. to form a professional full two-way RF power amplifier, which greatly expands the effective communication distance.

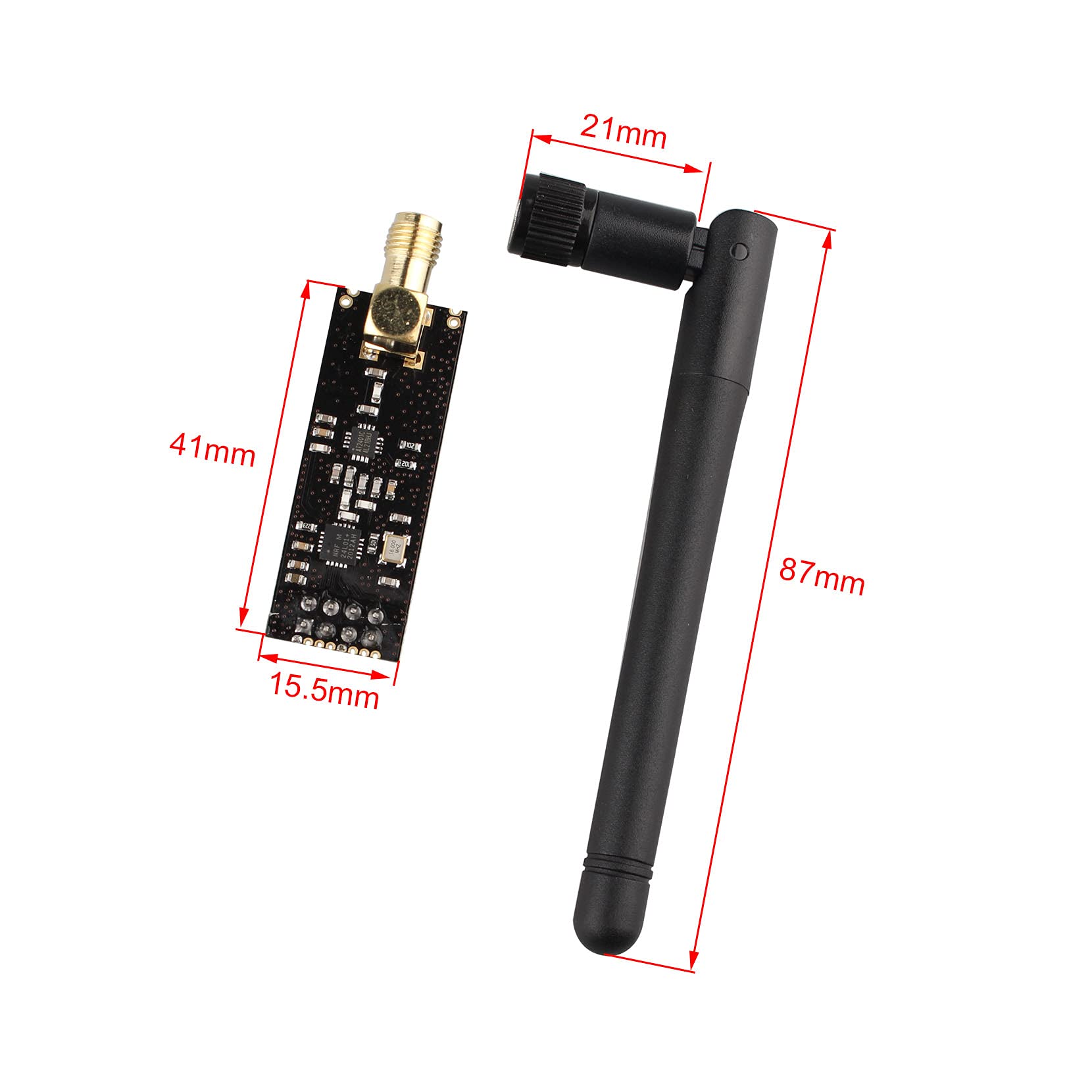

• NRF24L01P + PA + LNA wireless module integration is extremely high, the size is 41mm x 15.5mm to make conveniently embedded.
• 5V tolerant inputs which allows for direct connection of SPI pins to the ArduinoIDE.

Introduction: NRF24L01P+PA+LNA is a high-power and high-sensitivity wireless data transmission module specially developed for ultra-long-distance data transmission. The NRF24L01P+PA+LNA wireless module works in the license-free 2.4GISM frequency band, which can be used in point-to-point applications and can also form a star network. The digital transmission chip NRF24L01+ adds high-power PA and LNA chips, RF switches, band-pass filters, etc. to form a professional full two-way RF power amplifier, which greatly expands the effective communication distance. Specification: Frequence: 2.4GHz~2.5GHz PA Gain：20dB LNA Gain：10dB Operating voltage: 3 ~ 3.6V Max Transmit Operating Current（Max）：115mA Receiving Operating Current（Max）：45mA Multi-frequency: 125 frequency Board Size: 41 × 15.5 × 11 mm Antenna Length: 108 mm Weight: 11.3 g Package Content: 3 x Wireless module 3 x Antenna
