Jopto 3PCS CJMCU-103 Rotation Angle Sensor Module SV01A103AEA01R00 Trimmer 10K Potentiometer Analog Voltage Output Compatible with Arduino — image 1

Jopto 3PCS CJMCU-103 Rotation Angle Sensor Module SV01A103AEA01R00 Trimmer 10K Potentiometer Analog Voltage Output Compatible with Arduino

$30.99
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

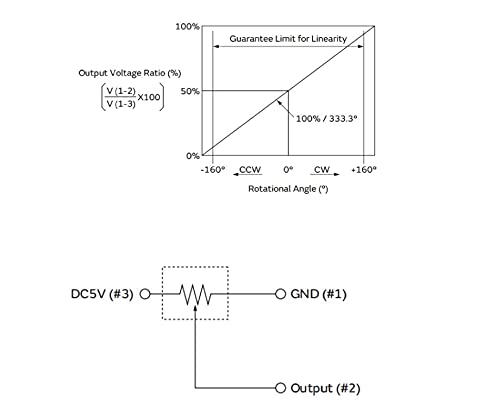

  • The rotation angle sensor uses a linear potentiometer. The change in the rotation angle reflects the change in the resistance of the potentiometer, and the output voltage also changes accordingly.
  • For Measuring: Rotary Position
  • Output: Analog Voltage Output
  • Rotation angle: 0℃-333.3℃; Resistance (Ohms): 10k
  • Low power consumption, small size, easy to install.
Product description

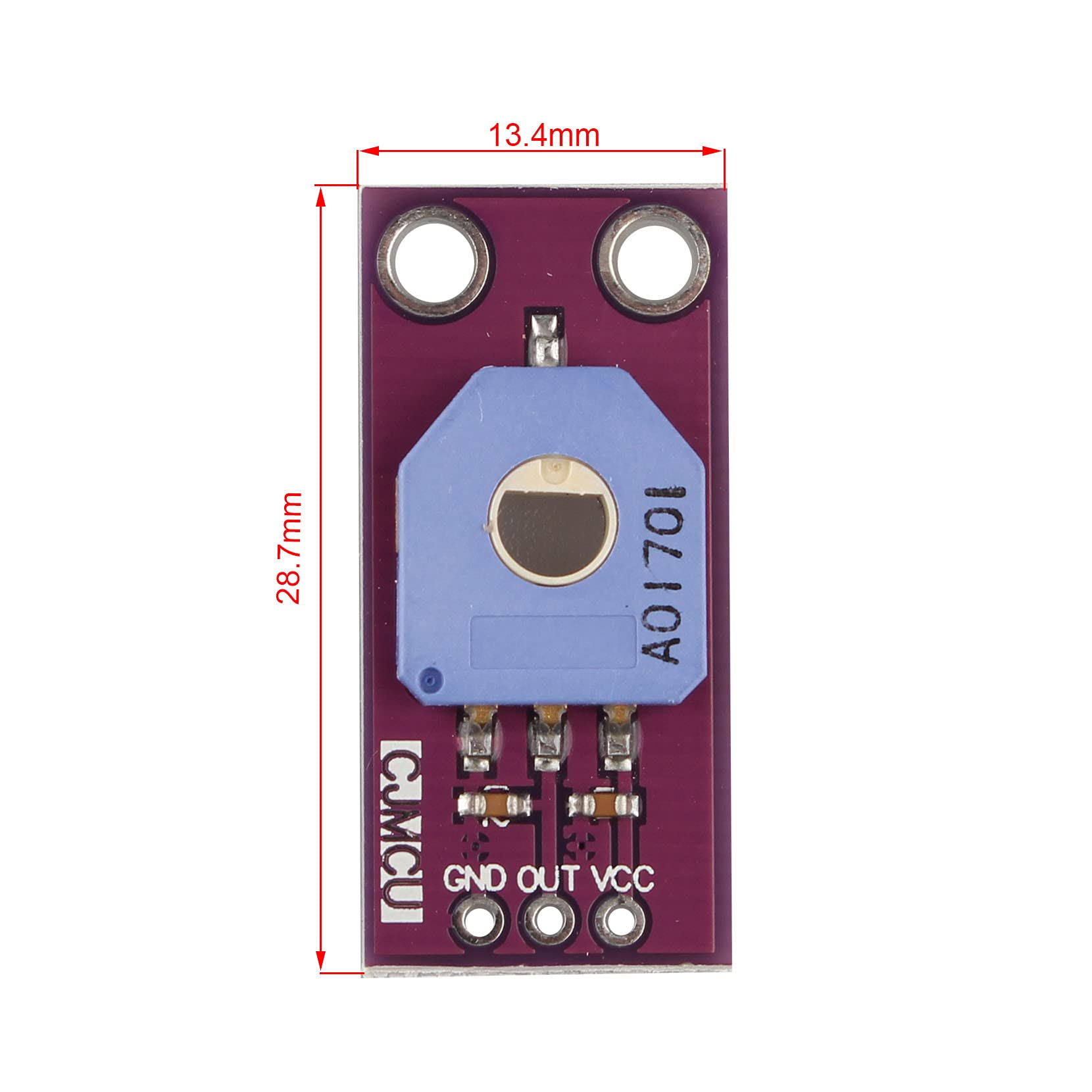

Introduction: The rotation angle sensor uses a linear potentiometer. The change in the rotation angle reflects the change in the resistance of the potentiometer, and the output voltage also changes accordingly. Specification: Category: Sensors, Transducers Family: Position Sensors - Angle, Linear Position Measuring Series: SV01 For Measuring: Rotary Position Technology: Resistive Rotation Angle - Electrical, Mechanical: 0° ~ 333.3°, Continuous Output: Analog Voltage Output Actuator Type: Hole for Shaft Linearity: ±2% Resistance (Ohms): 10k Resistance Tolerance: ±30% Mounting Type: Surface Mount Termination Style: (SMT) Tab Operating Temperature: -40°C ~ 85°C Supply voltage: 5V Rotation life: 300K times Rotation torque: 1mN.m (Ref.: 10.5gf.cm) Size: 28.7 × 13.4 × 3.6 mm Weight: 1.8g Package Content: 3 x Rotation Angle Sensor Module

Product details
Brand
Jopto
Manufacturer
Jopto
Material
Resistive Material
Weight
0.00 kg
Model number
SV01A103AEA01R00
Part number
JY-3DP-210
