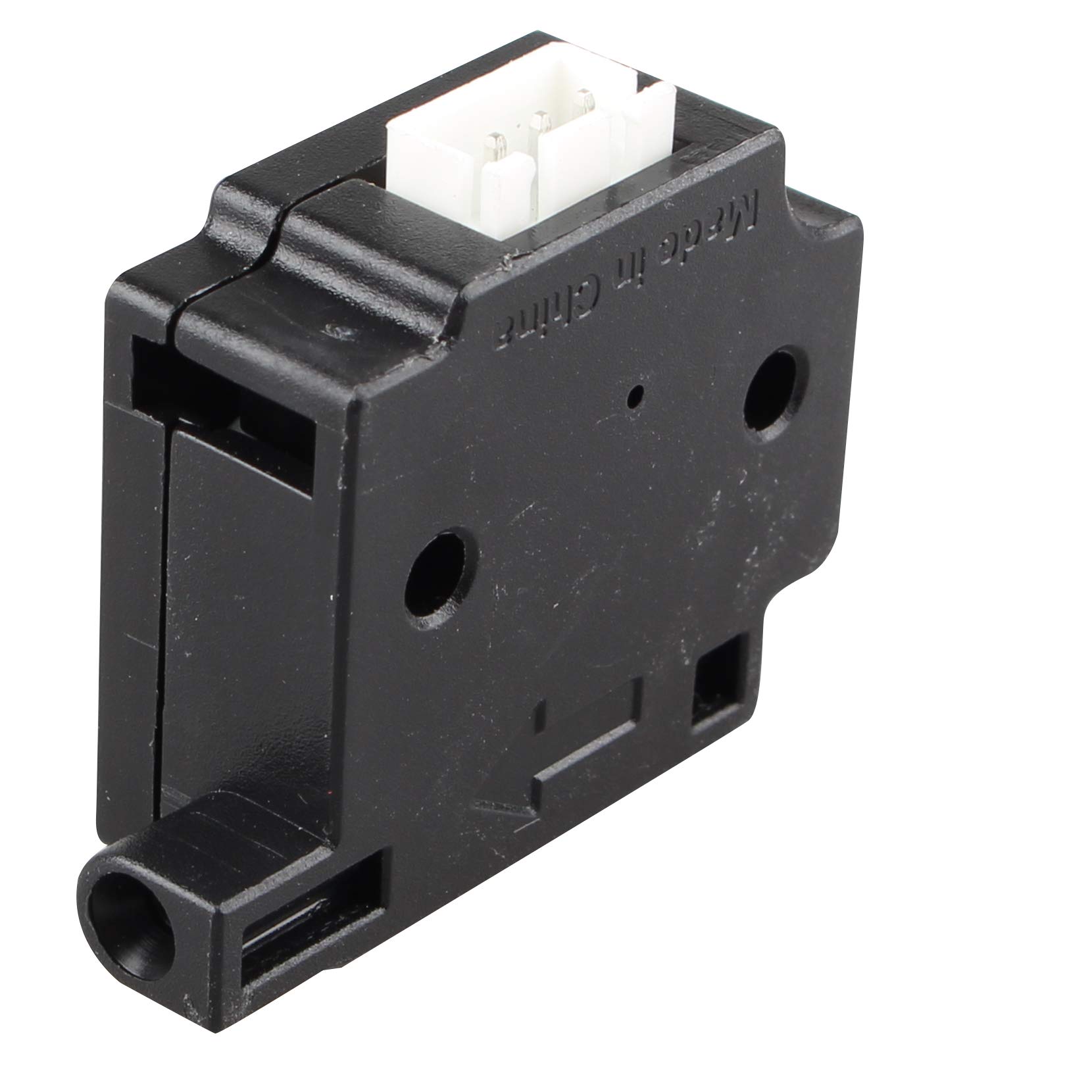

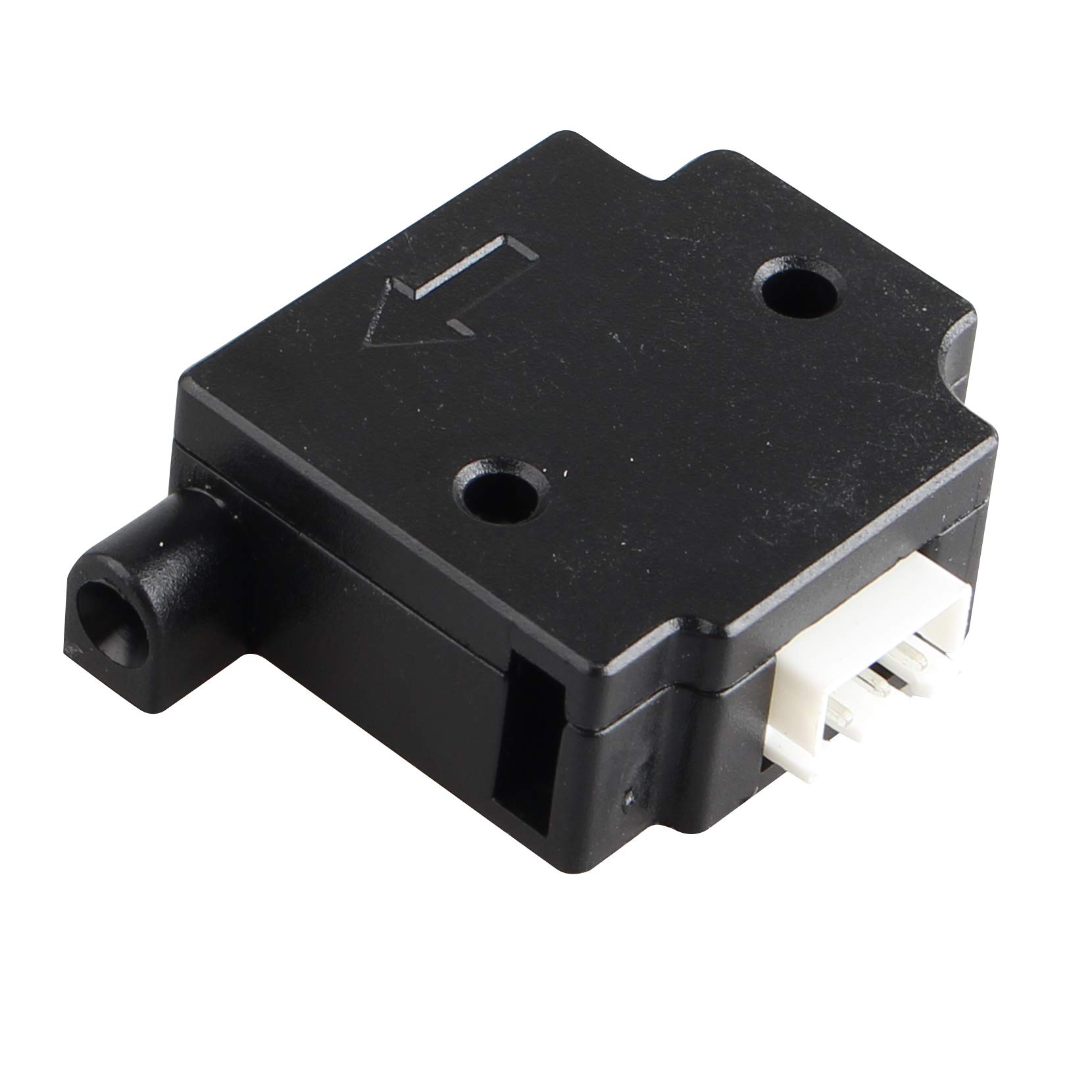

Jopto 1.75mm 3D Printer Filament Detection Module Cable Filament Run out Pause Detecting Monitor Sensor For 3D Printer Lerdge Board

• Newly designed smart module for detecting the status of the use of filament.
• To check the filament is whether run out or not, it automatically pauses the 3D Printer when the filament runs out,
• so you will have a chance to supplement the filament which makes sure you won't print a incomplete printing.
• It is a very practical filament detection sensor module, ideal accessories for 3D printer, making your printing work smooth and relieved.
• Easy to install, and work steadily and durable in use, used for 1.75mm filament sensor 3D printer.

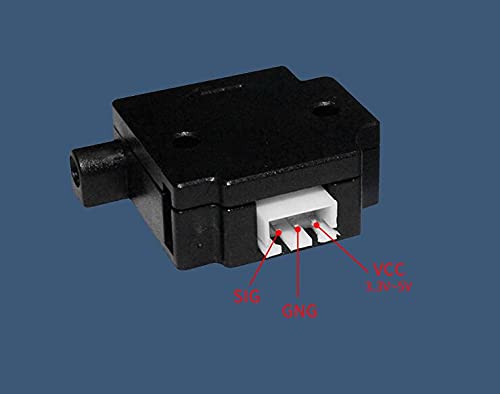

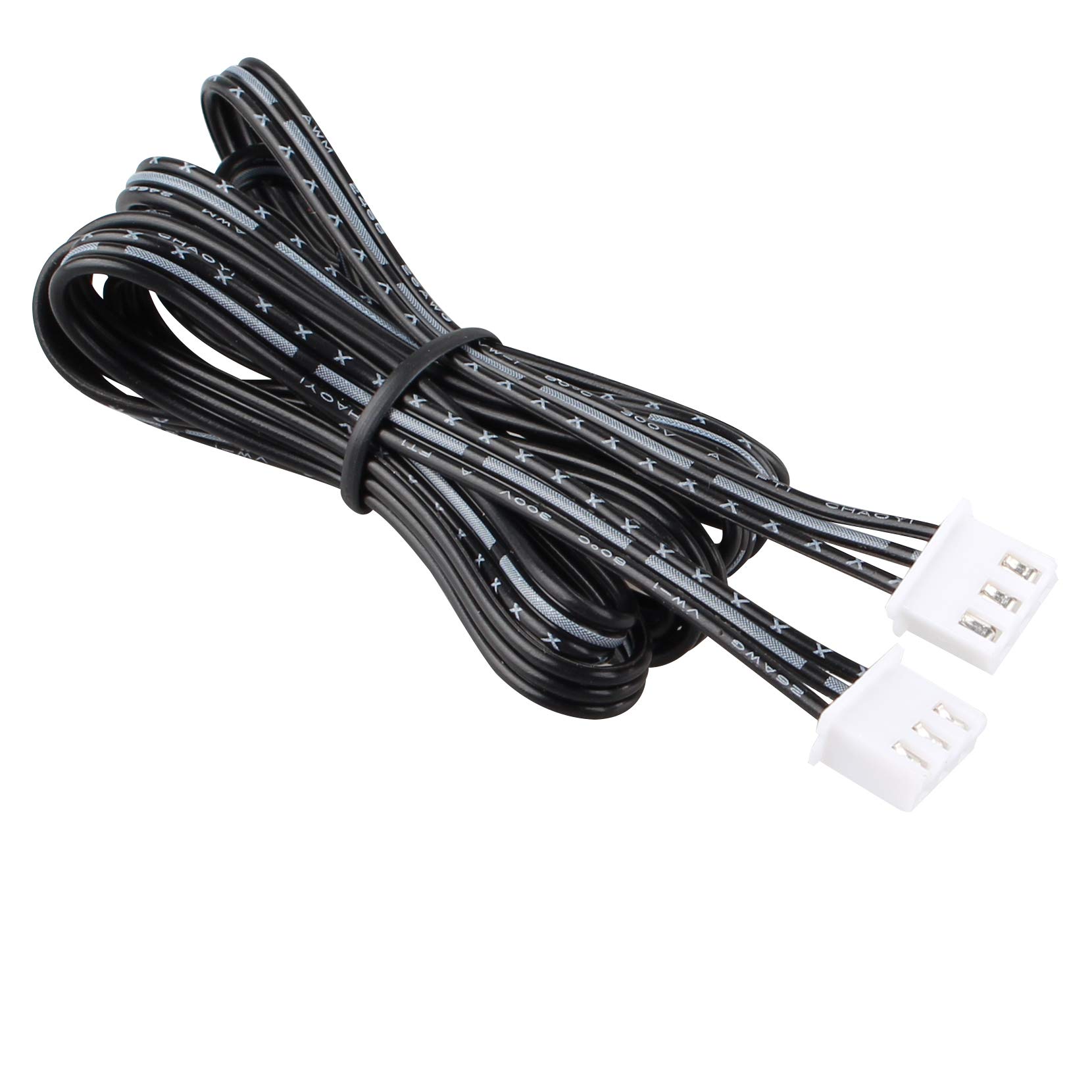

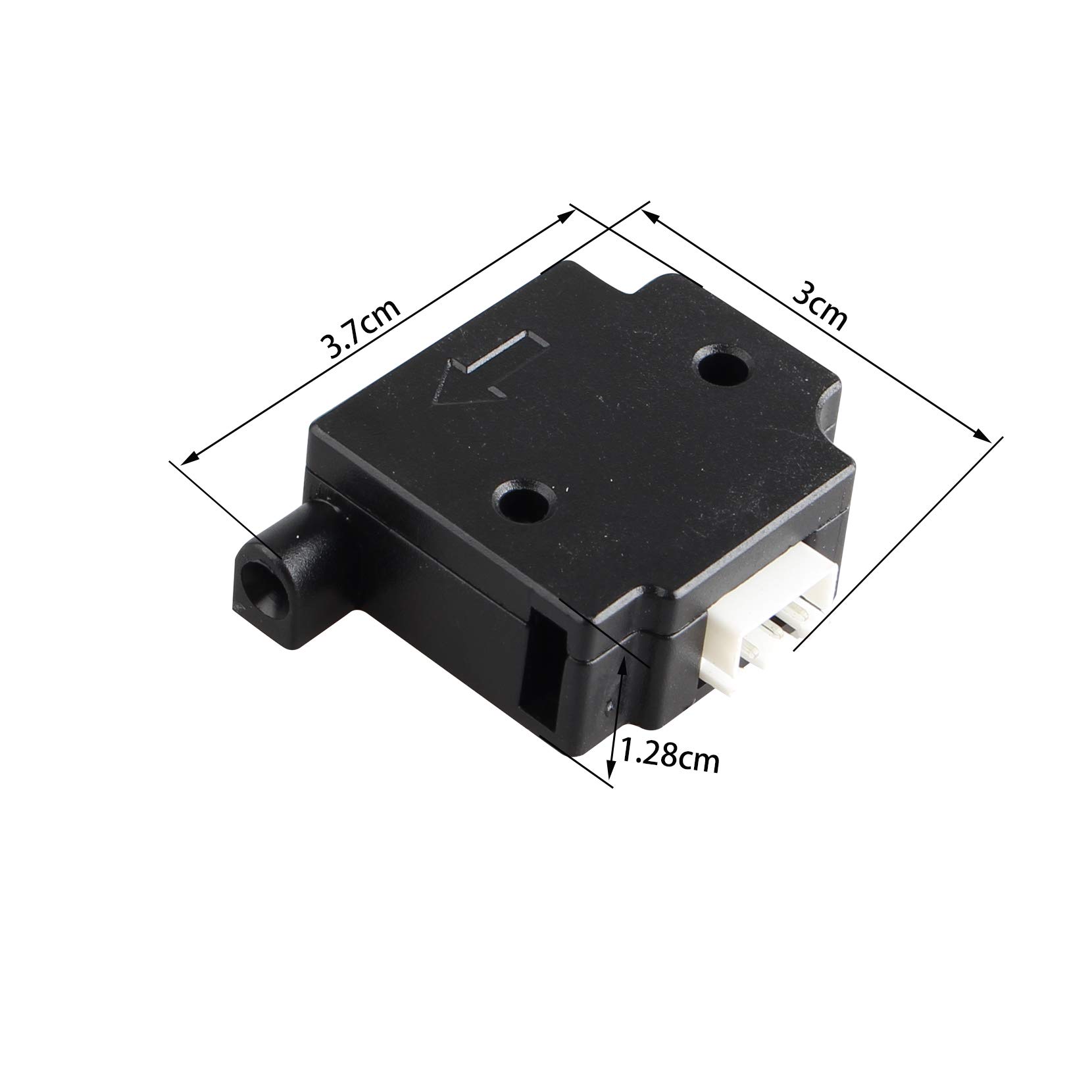

Features: Newly designed smart module for detecting the status of the use of filament. Easy to install, and work steadily and durable in use. Used for 1.75mm filament sensor 3D printer. Uses the level transition detection method. Use on lerdge board: When there is material, the green light of the module is always on. When the material is used up, the green light goes out. The main board executes the suspend command operation and waits for the person to replace the good material and then continues printing. Lerdge motherboard wiring: M-sensor port on the motherboard. For use on other boards: The material detection module uses the level jump detection method. When there is material, the level signal of the detection port should be high level. When there is no material, the level signal of the material port goes low, and the system detects one. If the high-to-low transition is determined, the material is considered exhausted and a pause command is executed. After the person has replaced the material, the printer continues printing. Filament Size: 1.75mm Mounting Hole Size: 3.5mm Mounting Hole Distance: 20mm Color: Black Material: Plastic Cable Length: 100cm Size: 3.7 x 3 x 1.27cm Weight: 18.2g Package Content: 1 x 3D Filament Detection Module 1 x Cable
