Joist Hanger Internal and External with CE Identification ETA Approval Various Dimensions to Choose From Top Quality Construction Fixing Wood Connector (WBZ 27 | 80 mm - 150 mm - 75 mm)

• Internal and external joist shoe
• Available in various sizes to choose from

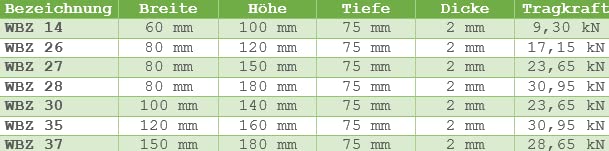

• For exact dimensions, see chart in the graphic
• Galvanised
• With CE identification and ETA approval

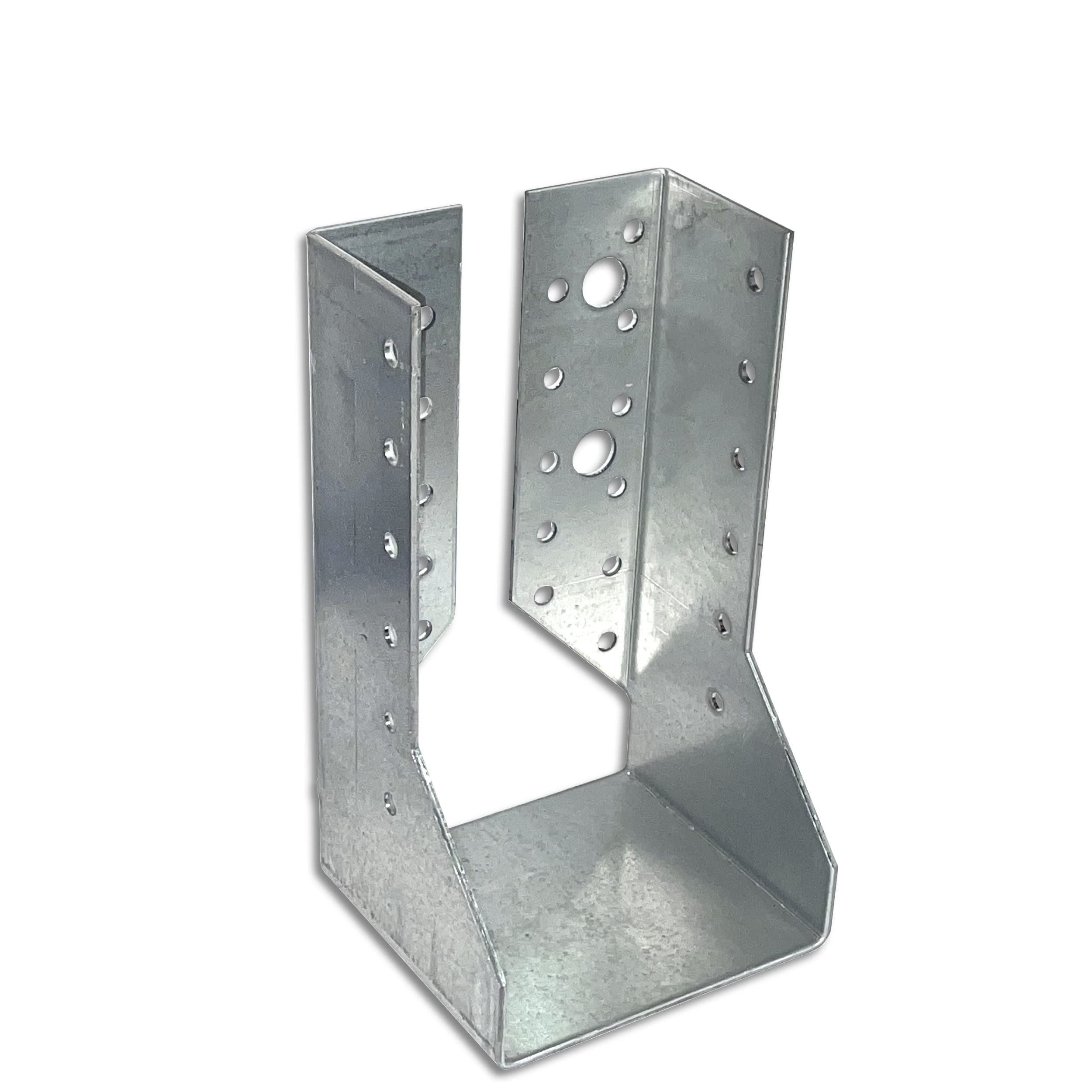

Joist hanger inside and outside different dimensions to choose from. Joist hanger inside with CE identification and ETA approval. Joist hangers are used for connecting secondary beams to main beams or supports. The inward curved elements of the hangers allow the beam to be attached in limited space conditions, especially on narrow pillars. The screw connection or nailing is therefore not visible behind the beam. Additional large hole diameters allow the joists to be attached to a concrete wall. Advantages: Internal (concealed) legs. Galvanised Easy to assemble. With holes for heavy duty anchors/dowels. With building inspection approval. Material: DX51D + Z275 Fixing Anchor nails, diameter 4. Wood screws Ø10 Screws M10. Concrete anchor M10. Joist hanger outside with CE identification and ETA approval. Joist hangers are used for connecting secondary beams to main beams or supports. Additional large hole diameters allow the joists to be attached to a concrete wall. Advantages: External (visible) legs. Galvanised Easy to assemble. With holes for heavy duty anchors/dowels. With building inspection approval. Material: DX51D + Z275 Fixing Anchor nails, diameter 4. Wood screws Ø10 Screws M10. Concrete anchor M10
